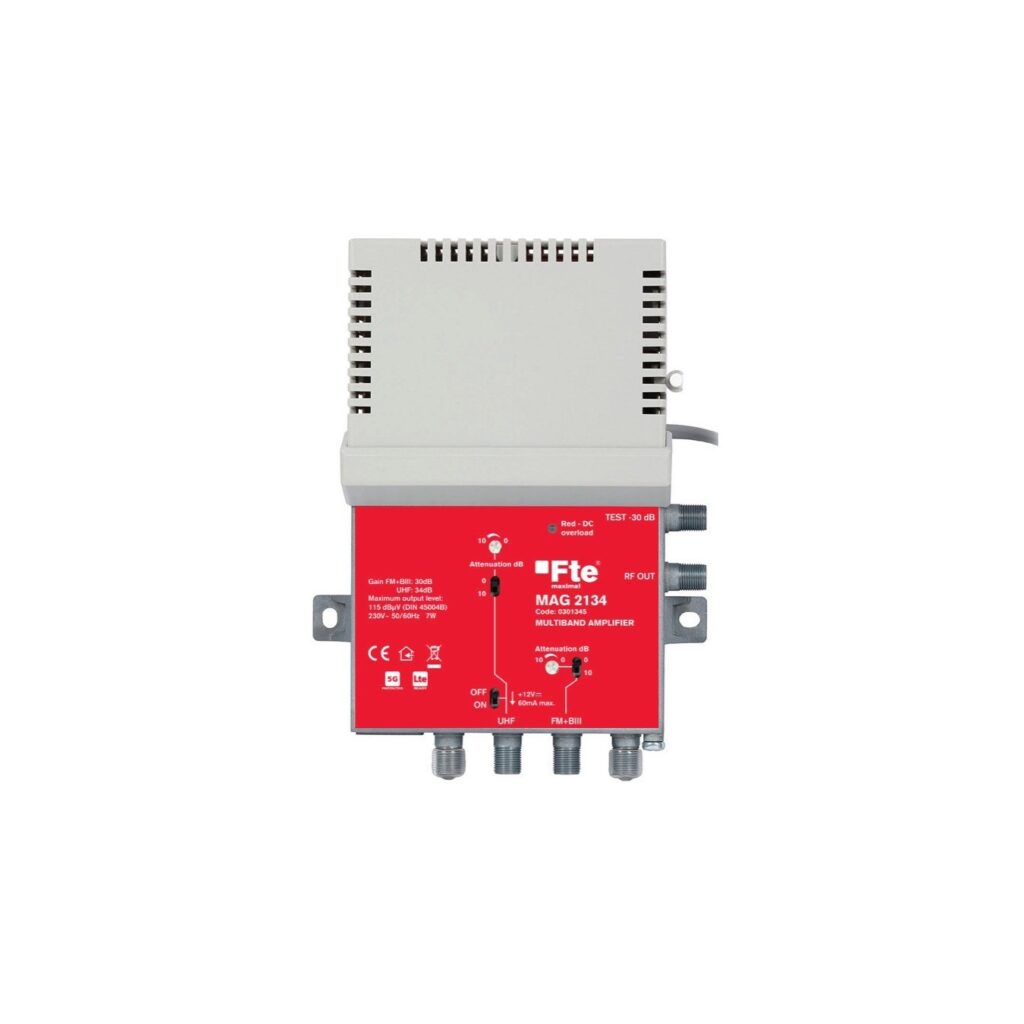

FTE Multiband Amplifier - MAG2134 - 1xUHF VHF FM 34dB Gain 115dB Max Output
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Multiband amplifier with 2 inputs (1x UHF, 1x VHF) and 1 output; 34 dB gain per output; 115 dB total output.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
- Inputs : 1x FM+BIII, 1 UHF
- Output : 1 + 1 Test (-30dB)
- Frequency range : FM+BIII (88..108MHz) (174..230 MHz)
- Frequency range : UHF 470..694 MHz
- Gain : FM+BIII : 30 dB
- Gain : UHF : 34 dB
- Noise figure, typical : FM/BIII < 6dB
- Noise figure, typical : UHF < 5dB
- Maximum output level : IMD3=60dB (DIN45004B) 115 dBµV, IMD3=60dB 112 dBµV
- Gain adjustment : 0 / -20 dB
- Return loss : >10 dB
- Preamplifiers feeding : 12V 60 mA Max.
- Supply voltage limit values and power consumption : 200-250V~ 50/60 Hz / 7W (Without external DC loading)
- Operative temperature range : -20º / +50ºC
| Type | Multiband Amplifier |
| Inputs | 2 |
| UHF Inputs | 1 |
| VHF Inputs | 1 |
| Outputs | 1 |
| Gain per output | 34db |
| Total Output | 115db |
