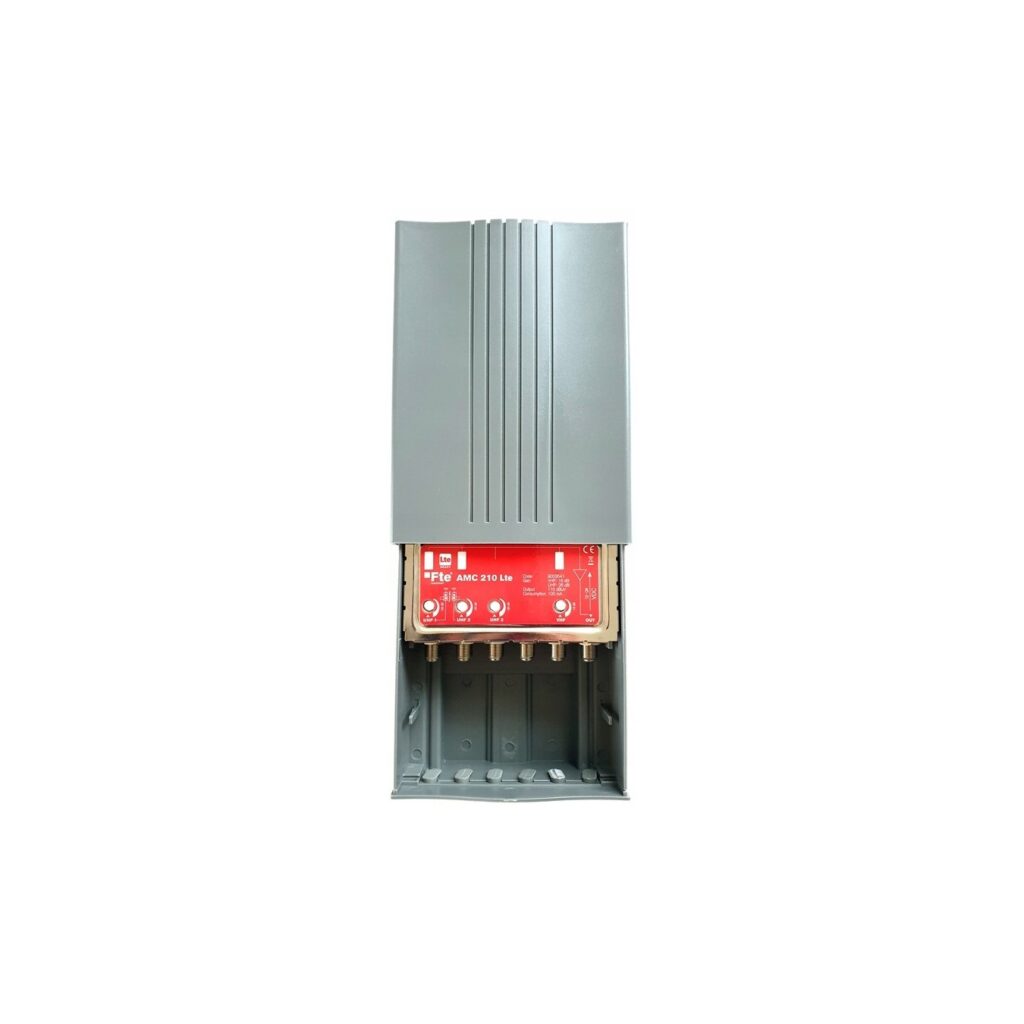

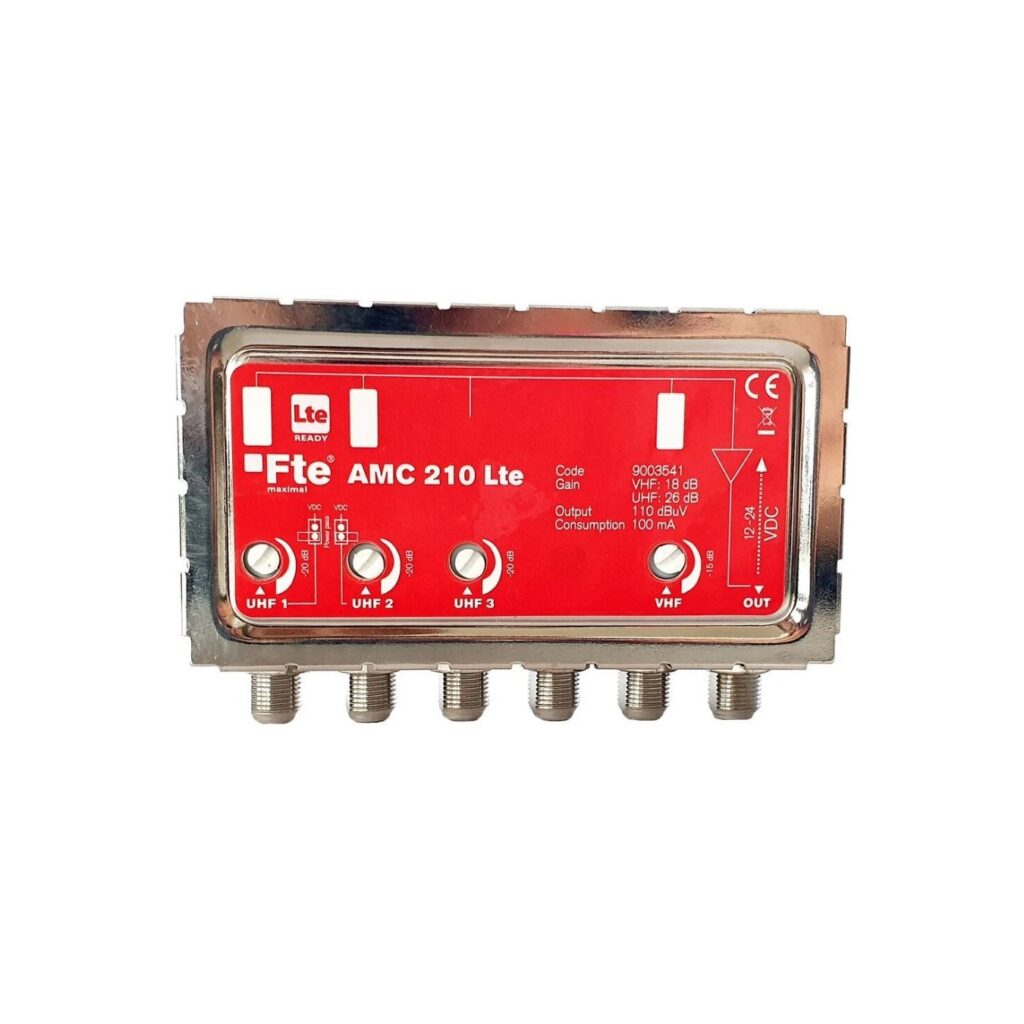

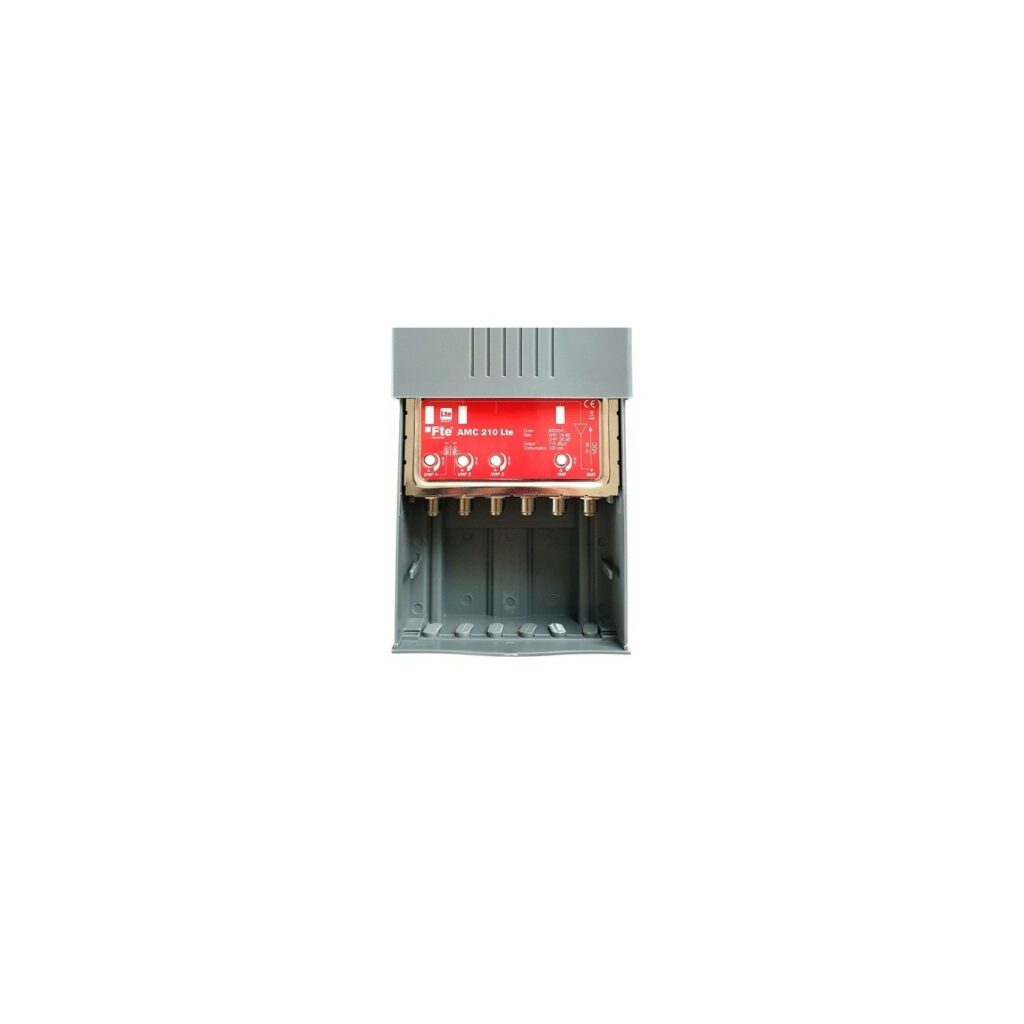

FTE Mast Amplifier - AMC210 - LTE Configurable VHF UHF
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Mast amplifier for VHF/UHF with 3 inputs (1 VHF, 3 UHF); LTE configurable. UHF gain 26 dB, VHF 18 dB; VHF NF 3 dB, UHF 4 dB.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
- Inputs and bands: 1: VHF / 3: UHF (470-790 MHz)
- Gain: VHF: 18 dB / UHF: 26 dB
- Regulation: VHF: 15 dB / UHF: 20 dB
- Noise figure: VHF: 3 dB / UHF: 4 dB
- Output level: 110 dBµV
- Current consumption: 100 mA
- Power Supply: 12 to 24 VDC
- Feeding (VDC): Yes / 2 UHF
| Type | Mast Amplifier |
| Inputs | 3 |
| UHF Inputs | 3 |
| VHF Inputs | 1 |
| Outputs | 1 |
| Gain per output | 26db |
| Total Output | 110db |
