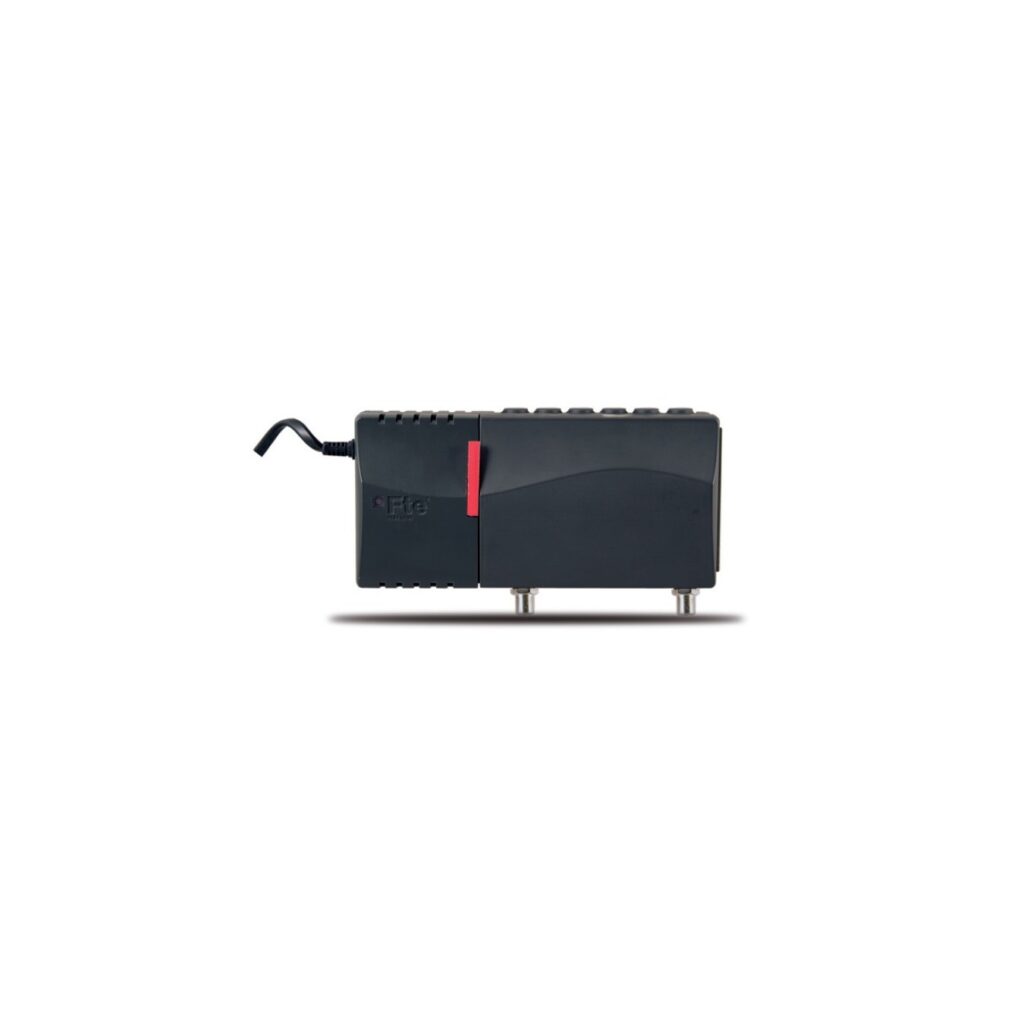

FTE Line Amplifier - HCAZM20-65 - 22db 115db Aluminium
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
1x input/1x output line amplifier for 85-862 MHz, 22dB gain, 20dB regulation, 10dB equalisation, 5-65 MHz return path, aluminium enclosure.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
- Number of Inputs/Output: 1/1
- Frequency Range: 85-862 MHz
- Gain: 22dB
- Regulation: 20dB
- Equalisation: 10dB
- Return Path: 5-65 MHz
- Return path Gain in active mode: 20dB
- Return path Gain Regulation in active mode: 20dB
- Return path Insertion losses in passive mode: 2.5dB
- Output Level Max.: 115dBµV
- Decoupling between Bands: >20dB
- Consumption: 230V 50-60Hz, 3W
- Dimensions(mm): 175 x 50 x 98
| Type | Line Amplifier |
| Inputs | 1 |
| UHF Inputs | 1 |
| Outputs | 1 |
| Gain per output | 20db |
| Total Output | 115db |
| Other | Aluminium |
