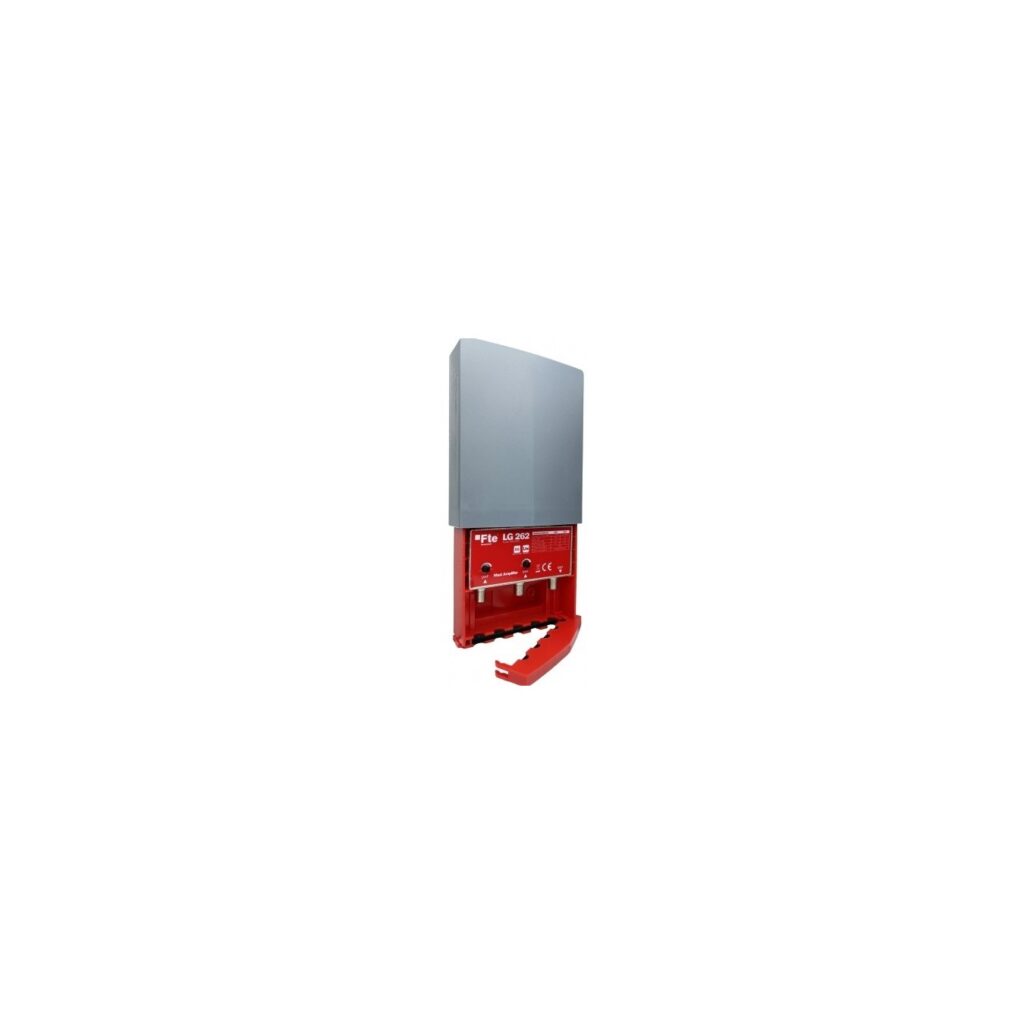

FTE Mast Amplifier - LG262 LTE2 - UHF VHF Mast Amplifier 24dB
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.

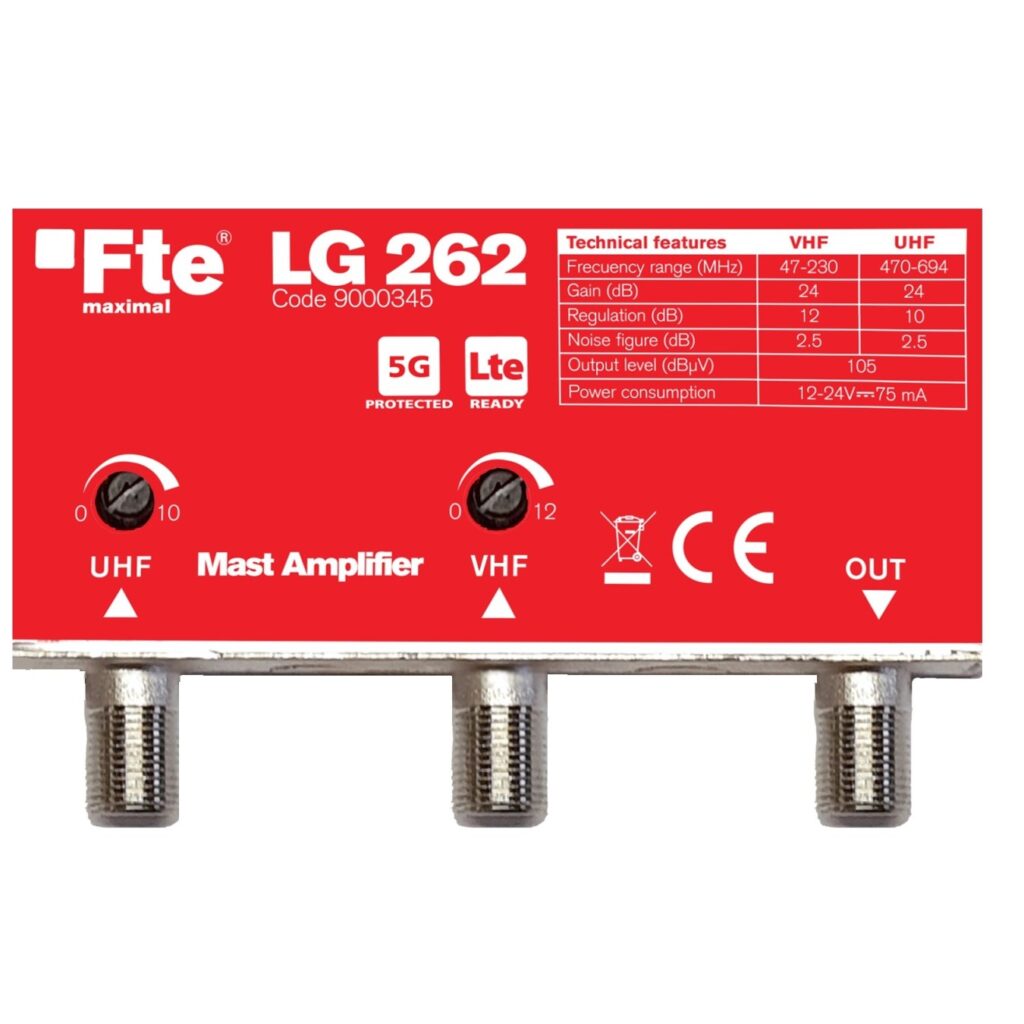

Mast amplifier with 2 inputs (1 VHF, 1 UHF); frequencies 47-230 / 470-694 MHz; gain per output 24 dB; total output 105 dB; output level 110 dBuV; noise figure 2.5 dB.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
- Inputs and bands: 2: 1 VHF / 2 UHF
- Frequencies (MHz) 47 – 230 / 470 – 694
- Gain (dB): VHF24, UHF24
- Regulation (dB): VHF12, UHF10
- Output level (dBuV) : 110
- Noise figure (dB): VHF 2.5, UHF 2.5
- Maximum consumption (mA): 75
- Feeding (VDC): 12 to 24
- Dimensions (W x H x D) (mm): with box 115 x 110 x 57 mm, without box 104,6 x 44 x 24,2 mm
- Included accesories: Outdoors box EQ BOX, Cable tie 15 mm
| Type | Mast Amplifier |
| Inputs | 2 |
| UHF Inputs | 1 |
| VHF Inputs | 1 |
| Outputs | 1 |
| Gain per output | 24db |
| Total Output | 105db |
