Dahua Conventional Fire Alarm Sounder - HY-C151 - With Base — image 1

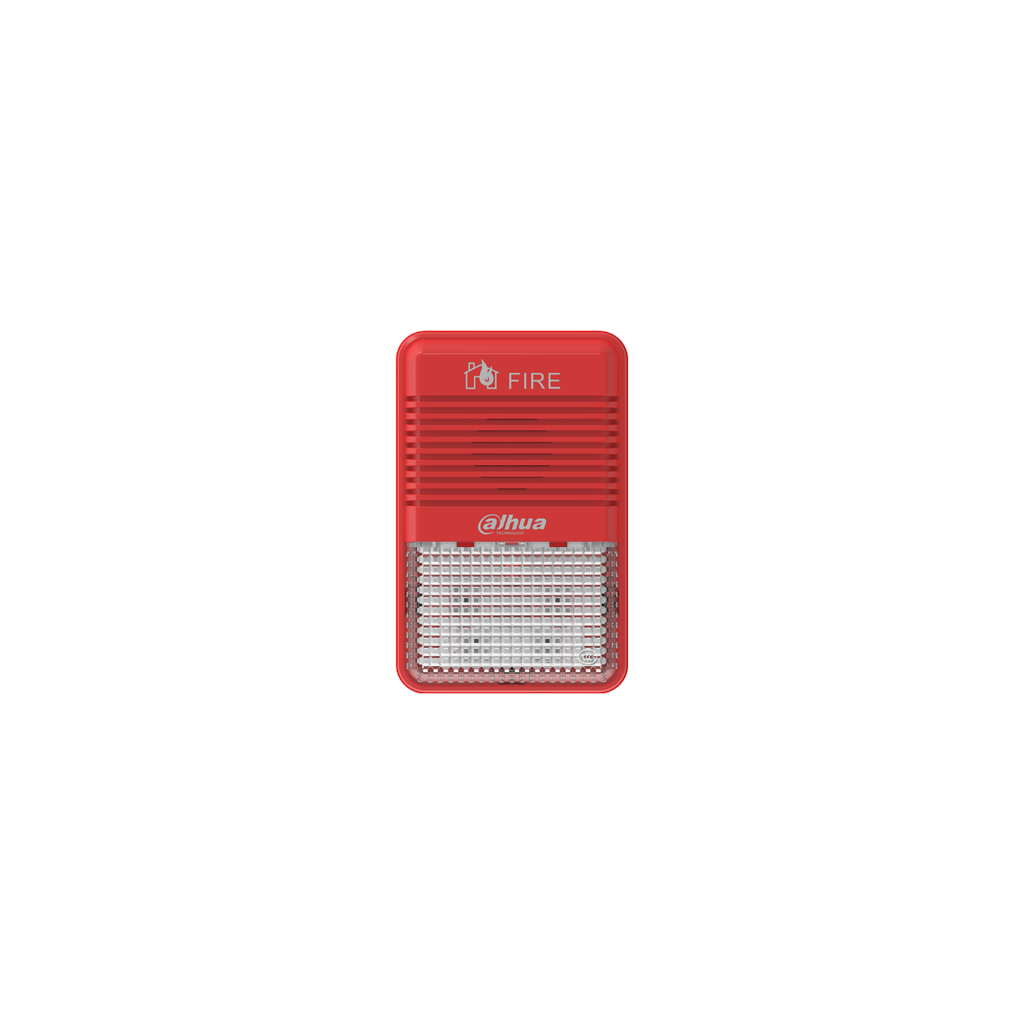

Dahua Conventional Fire Alarm Sounder - HY-C151 - With Base

SKU:
Brand: Dahua
Barcode:
Login Go to B2C to view prices

B2B prices require verification

This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.

EN54-compliant conventional fire alarm sounder with base; two-wire polarity-free wiring; EMC tested; low power; loud output >75 dB(A) at 3 m; corrosion-resistant contacts.

For any questions about this item, availability, or delivery times, please contact us at 22 270068

  • Meets all requirements of latest EN54
  • Two-wire, polarity-free realizes convenient wiring
  • Completes EMC test, it has strong anti-electromagnetic interference ability, high stability and reliability
  • Ultra-low consumption and strong loading capacity
  • Loud sound output over 75 dB(A) at 3 meters, accompanied with bright alarm signal
  • Non-loosening screws on base terminal for easy installation
  • Contacts material is highly acid-resistant and rust-resistant
  • Working Voltage : DC16V-DC28V
  • Rated Power : 132.6mW
  • Current : Standby current: ≤ 400μA / Alarm current: ≤ 8mA
  • Alarm Mode : Visual and audible alarm
  • Alarm Volume : Modified Tone:4s-5s / Sound Pressure Level:75dB-115dB (A) at 3 m (9.84 ft)
  • Operating Temperature : –10°C to +55°C (+14°F to +131°F)
  • Operating Humidity : ≤ 95% RH (no condensation)
  • Dimensions (with base) : 125 mm × 80 mm × 40 mm (4.92″ × 3.15″ × 1.57″)
  • Weight (with base) : 118 g (0.26 lb)
  • Installation : Wall Mount
  • Compliance Standard : EN54-3:2014,EN54-23:2010
