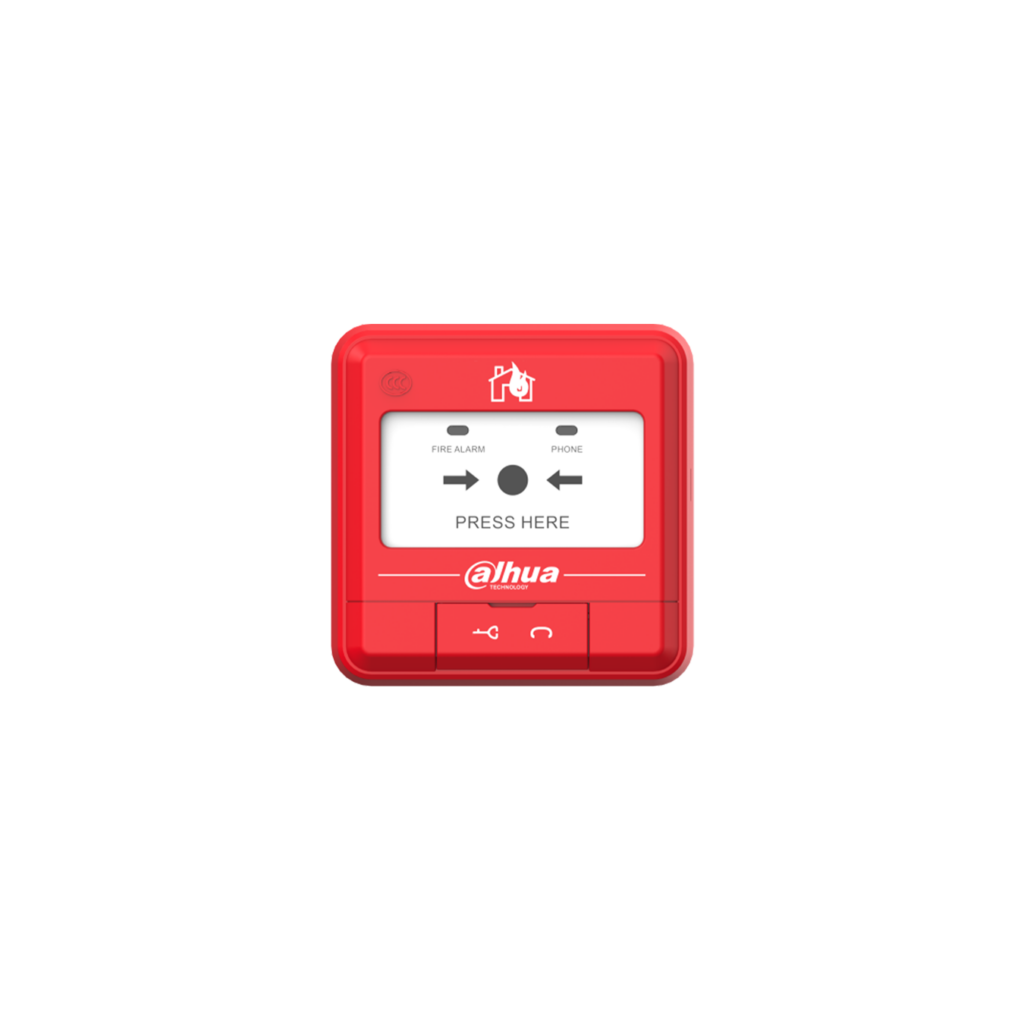

Dahua Conventional Fire Alarm Manual Call Point - HY-C121 - With Base
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
EN54-11:2001 compliant manual call point with base; two-wire, polarity-free wiring; robust base terminals; corrosion-resistant contacts.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
- Meets all requirements of latest EN54
- Two-wire, polarity-free realizes convenient wiring
- Completes EMC test, it has strong anti-electromagnetic interference ability, high stability and reliability
- Adopts manual contact, easy to manually control
- Non-loosening screws on base terminal for easy installation
- Contacts material is highly acid-resistant and rust-resistant
- Working Voltage : DC16V-DC28V
- Current : Standby current: ≤ 300μA / Alarm current: ≤ 400μA
- Alarm Mode : Visual alarm
- Operating Temperature : –10°C to +55°C (+14°F to +131°F)
- Operating Humidity : ≤ 95% RH (no condensation)
- Dimensions (with base) : 90 mm × 90 mm × 44 mm (3.54″ × 3.54″ × 1.73″)
- Weight (with base) : 136 g (0.30 lb)
- Installation : Wall Mount
- Compliance Standard : EN54-11:2001
