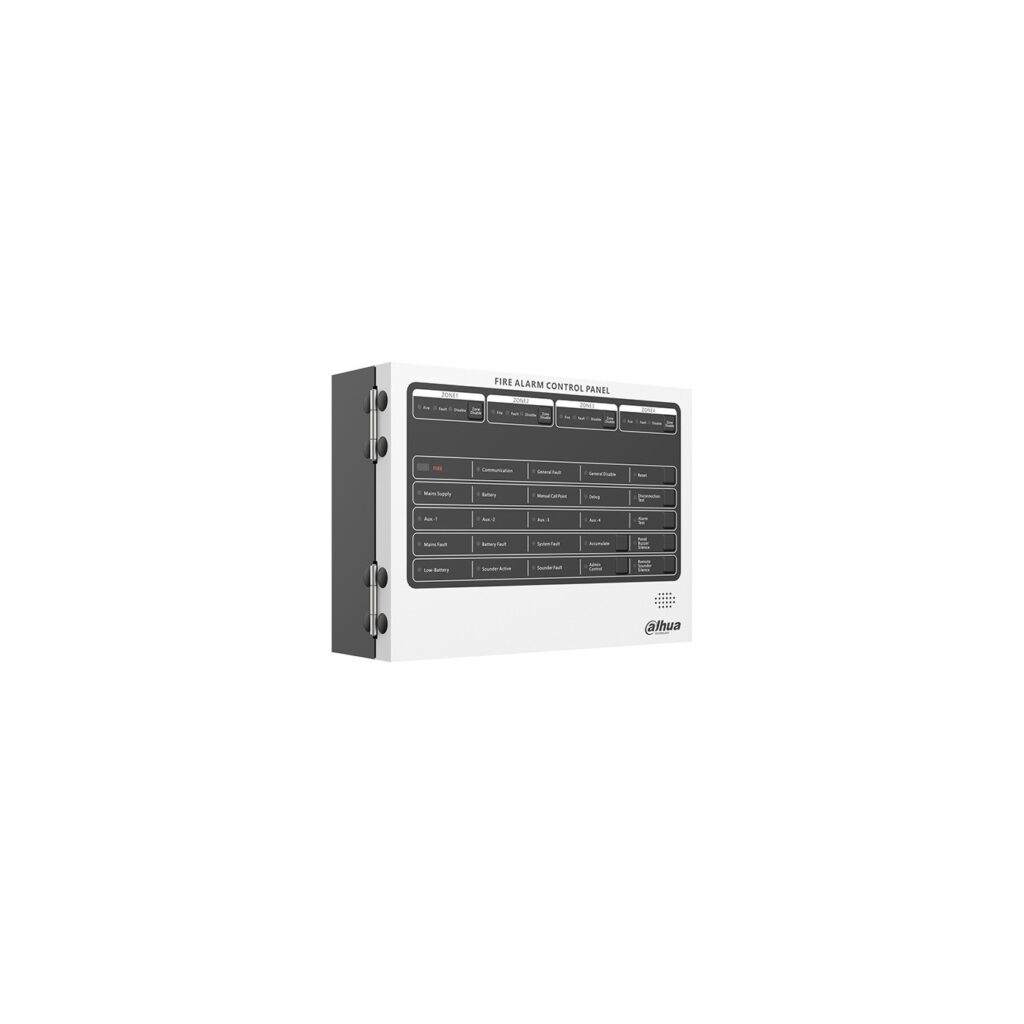

Dahua Conventional Fire Alarm Control Panel - HY-C102-4 - 4 Zones — image 1

Dahua Conventional Fire Alarm Control Panel - HY-C102-4 - 4 Zones

SKU:
Brand: Dahua
Barcode:
Login Go to B2C to view prices

B2B prices require verification

This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.

90-270V mains input with 4 dry contacts; Ethernet for IoT; RS-485 interface; records and exports historical fire, fault and operation events.

For any questions about this item, availability, or delivery times, please contact us at 22 270068

  • 90VAC to 270VAC main power supply ensures the stable operation
  • 4 dry contacts make connection flexible
  • Ethernet interfaces enables communication with IoT platform
  • RS-485 interface contributes to convenient integration
  • Record and export capacity of historical events for each of fire, fault and operation
  • Number of Zones : 4
  • Zone Capacity : 32 detectors per zone
  • Main Power : AC90-240V/50Hz, 60Hz
  • Backup Power : 2 lead-acid batteries (12V/2.5Ah each)
  • Output Current : 2A
  • Sounder Output : Fault: 50dB / Alarm: 60dB
  • Fire Bell Output : DC 28V/500mA
  • Dimensions : 310.0 mm×73.0 mm×227.0 mm (12.20″ × 2.87″ × 8.94″)
  • Weight : 3.5 kg / 5 kg (with 2 batteries)
  • Operating Temperature : –10°C to +50°C (+14°F to +122°F)
  • Operating Humidity : ≤ 95% RH (no condensation)
  • Protection Grade : IP30
  • Installation : Wall mount
  • Compliance Standard : EN54-2,EN54-4
