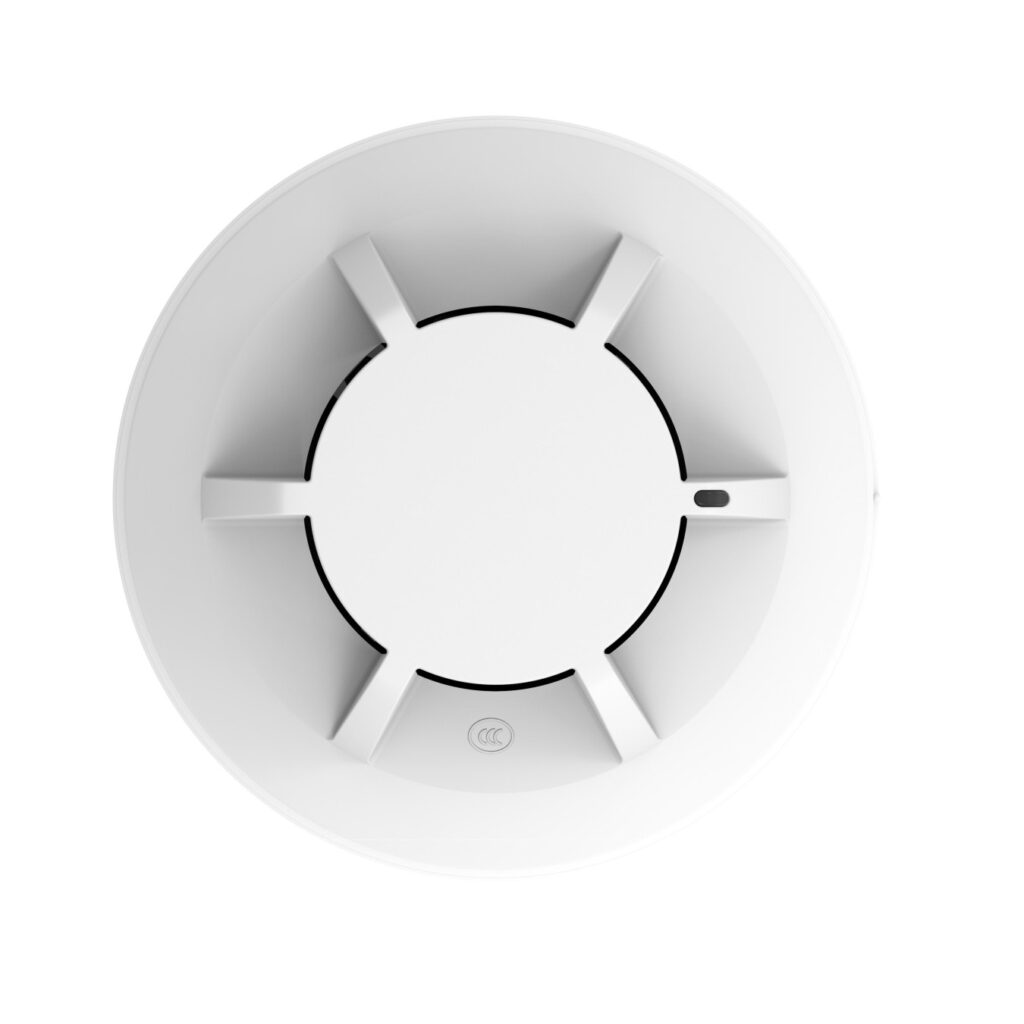

Dahua Addressable Fire Alarm Detector - HY-1301-CTXF - without Base
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Two-wire, polarity-free wiring; reliable communication via built-in microprocessor; ultra-low monitoring and alarm current; sensitive smoke detection.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
- Convenient wiring: Two-wire, polarity-free
- Reliable communication: Built-in microprocessor, stable performance
- Ultra-low power consumption: Ultra-low monitoring current and alarm current
- Detection performance: Accurate smoke detection by sensitive sensor
- Working Voltage : 24V DC
- Current : Monitoring current: ≤ 180μA / Maximum operating current: ≤ 280μA
- Indicator : Red / Polling: Flash 6 seconds / Alarm: Remain lit / Fault: Flash 2 seconds
- Wiring : Two-wire, polarity-free
- Addressing Method : Electrical encoder
- Address Range : 1–254
- Communication Distance : ≤ 1500 m (4921.26 ft)
- Operating Temperature : –10°C to +50°C (+14°F to +122°F)
- Storage Temperature : –20°C to +65°C (–4°F to +149°F)
- Operating Humidity : ≤ 95% RH (no condensation)
- Color : White
- Dimensions (with base) : Φ100 mm × 50 mm (Φ 3.00″ × 1.50″)
- Weight (with base) : 102 g (0.22 lb)
- Compliance Standard : EN54-7
