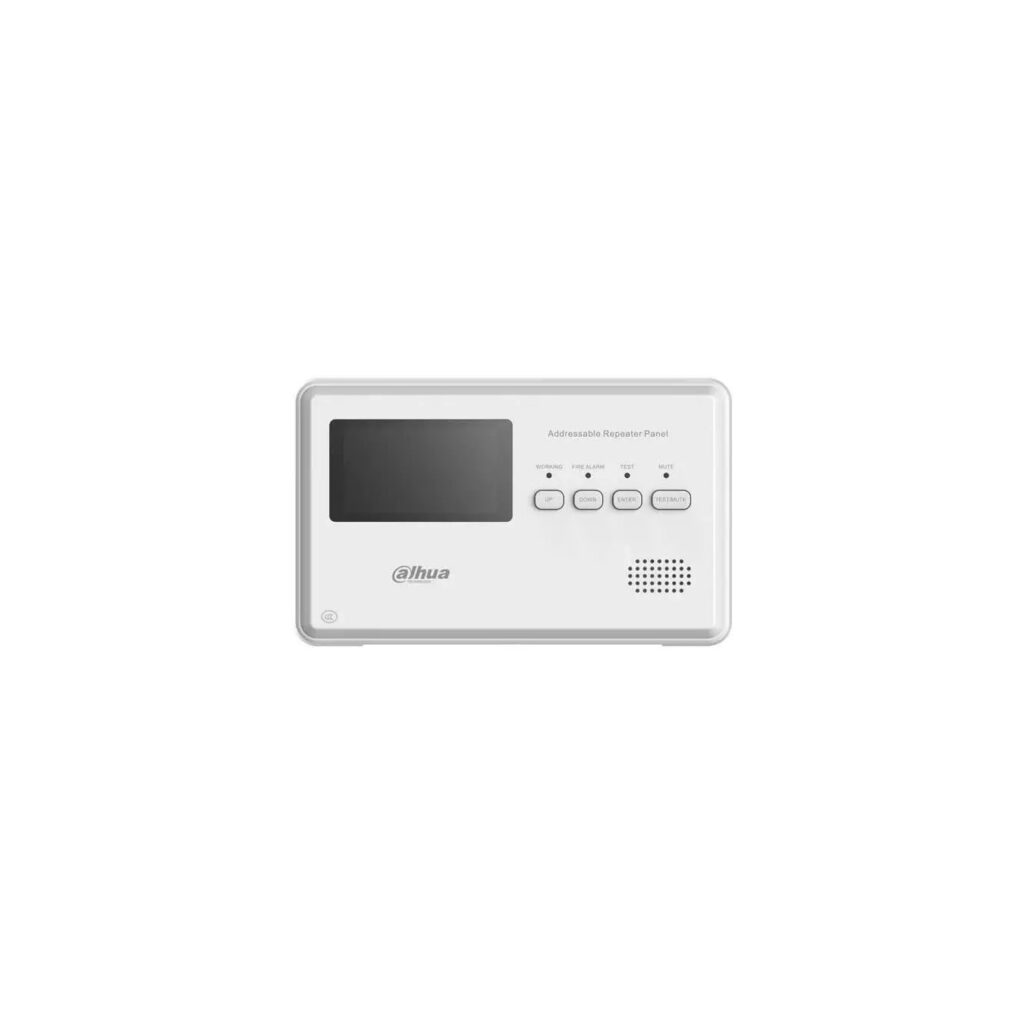

Dahua Addressable Fire Alarm Repeater Panel - HY-1330-CTXF
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Dahua addressable fire alarm repeater panel with two-wire, polarity-free wiring, built-in microprocessor for stable performance, and ultra-low monitoring/alarm current.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
- Convenient wiring: Two-wire, polarity-free
- Reliable communication: Built-in microprocessor, performance is stable
- Ultra-low power consumption: Ultra-low monitoring current and alarm current
Electrical
- Working Voltage : DC24V
- Current : Monitoring current: ≤ 2mA / Maximum operating current: ≤ 10mA
- Indicator : Working: Green indicator flashes every 6 s during polling, flashes quickly during malfunctioned / Alarm: Red indicator remains lit during alarm / Self-test: Yellow indicator remains lit during self-testMute: Yellow indicator remains lit when Test/Mute Button is pressed
- Display Capacity : 999 pieces of alarm information
- Display : 64×128 LCD screen
Communication
- Wiring : Two-wire, polarity-free
- Addressing Method : Electrical encoder
- Address Range : 1–254
- Communication Distance : 1500 m (4921.26 ft)
- Alarm Sound Pressure : 65dB–115dB (A) @ 1m
- Environment
- Operating Temperature : –10°C to +40°C (+14°F to +104°F)
- Storage Temperature : –20°C to +65°C (–4°F to +149°F)
- Operating Humidity : ≤ 95% RH (no condensation)
Construction
- Color : White
- Dimensions (with base) : 180.0 mm × 110.0 mm × 32.0 mm (7.09″ × 4.33″ × 1.26″)
- Weight (with base) : 270 g (0.60 lb)
- Compliance Standard : EN54-2
