Server chassis - 4416 - 4U, server chassis
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.

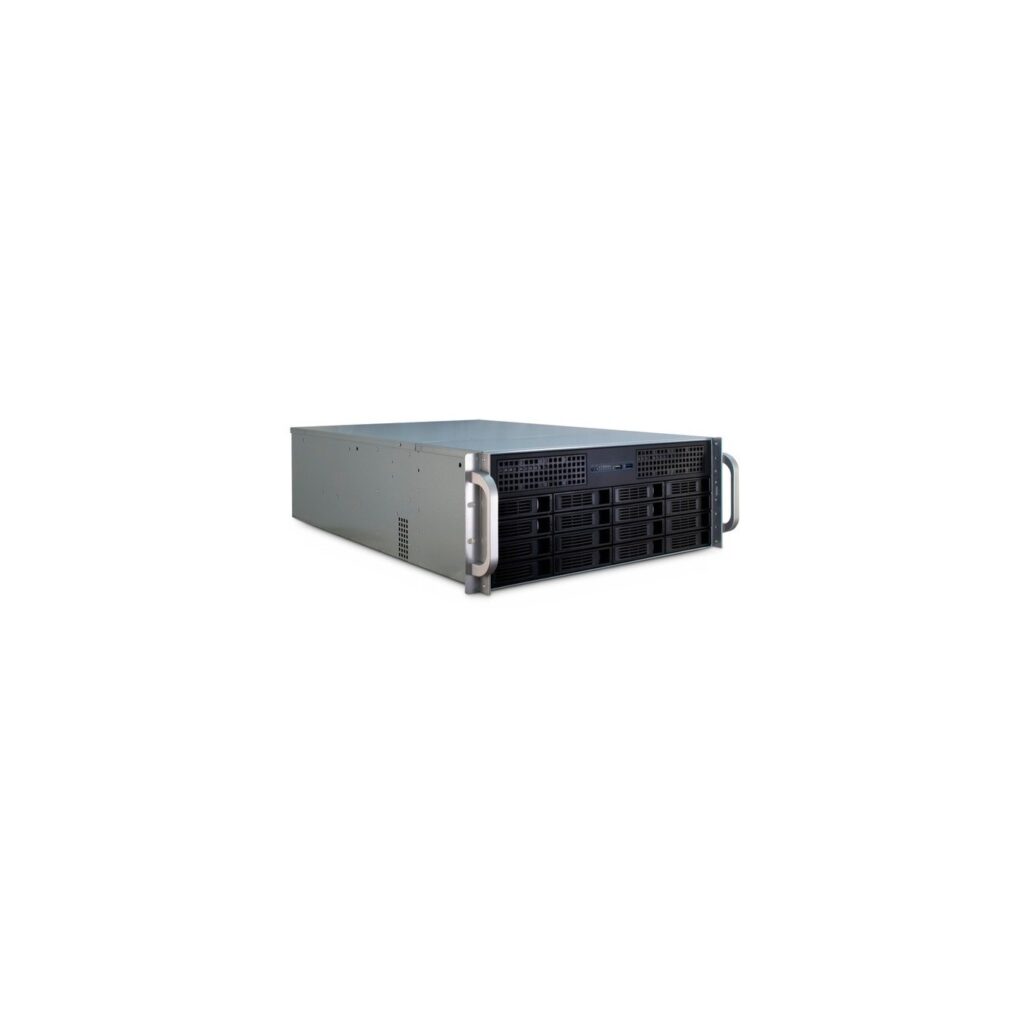

Inter-Tech 4U 4416 server chassis in Black with E-ATX support; steel body, 2x external 5.25in bays, 7 full-size slots, USB 2.0/3.2 Gen1 front I/O, front/rear fans, hot-swap backplanes, 59 L, 15.1 kg.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The Inter-Tech 4U 4416 is the perfect rack for a small and cost-effective storage system. Through the excellent material quality, combined with excellent workmanship, Inter-Tech has created the basis for an extremely variable housing. The 4U 4416 offers the option of installing a maximum of sixteen 2.5″ or 3.5″ hot-swap hard drives, two 5.25″ external drives or eight internal 2.5″ or two 3.5″ hard drives. The 4U 4416 is equipped with five built-in fans as standard, of which three 120 mm fans are located internally directly behind the drive holders. Two more 80 mm fans on the back also reliably ensure optimal cooling.
| Typ | Server enclosure |
| Color | schwarz |
| EAN | 4260133126411 |
| Manufacturer no. | 88887120 |
| Design | Rack |
| Mainboard Formfaktor | E-ATX |
| Material | 1.0-1.2mm steel |
| Internal dimensions - PSU form factor | ATX |
| Drive bays - 5.25 inches | external 2 pieces |
| Slots - Full-Size | 7 pieces |
| Front connections | 1x USB-A 2.0, 1x USB-A 3.2 Gen 1 (5 Gbit/s) |
| front | 4x 80 mm fans can be installed, power switch, reset button, LED: power, hard drive activity, 3x network activity, alarm |
| back | 2x 80 mm fans available |

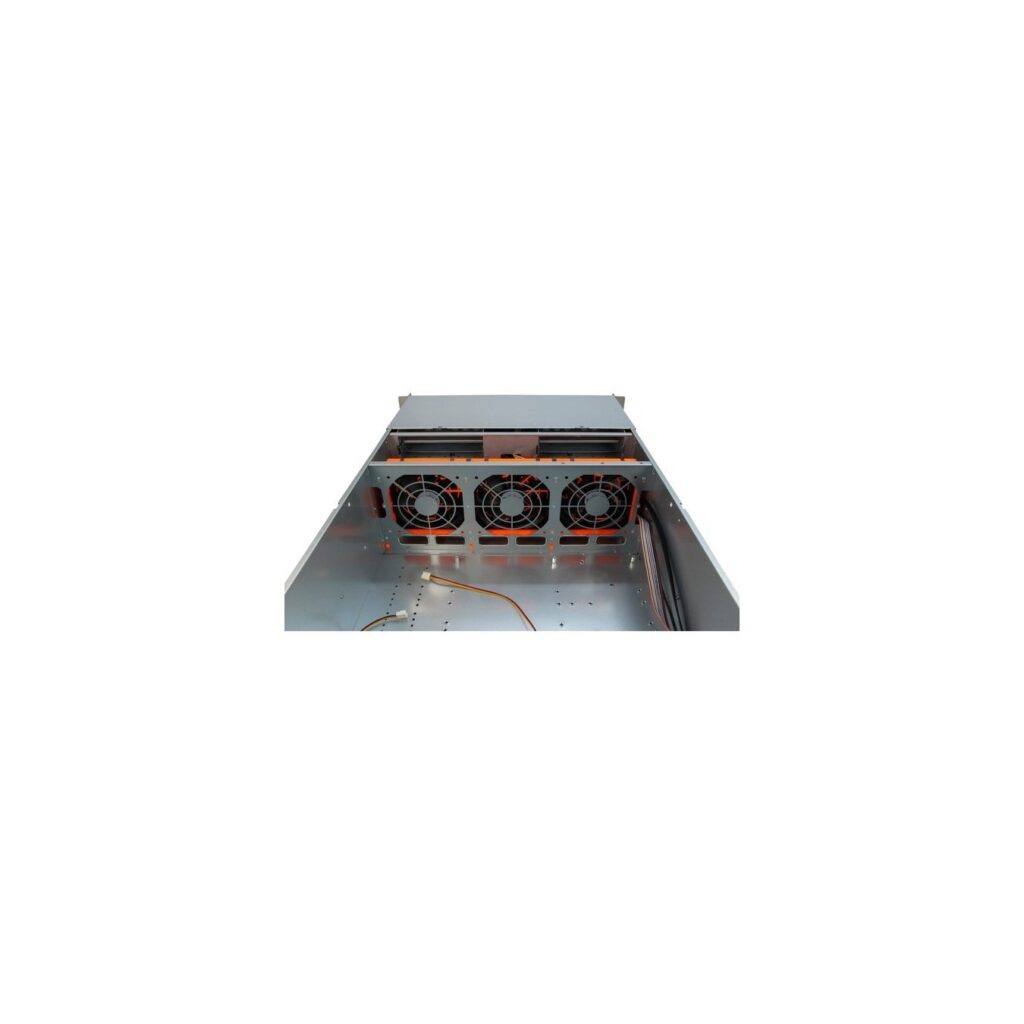

| Notes | 3x 120 mm hot-swap fans in the middle section, 4x hot-swap backplanes with an SFF-8087 socket each, removable drive holders, USB 3.0 and USB 2.0 internally as standardized block connectors |
| Rear connection of the mainboard | No |
| More information | Maximum motherboard size: 305 mm x 345 mm (12" x 13.5") |
| Notice | The included backplanes are only suitable for operation on a SAS controller with an SFF-8087 connection. For operation with an S-ATA controller, an appropriate number of optional SFF-8087 to 4x S-ATA crossed cables are required. |

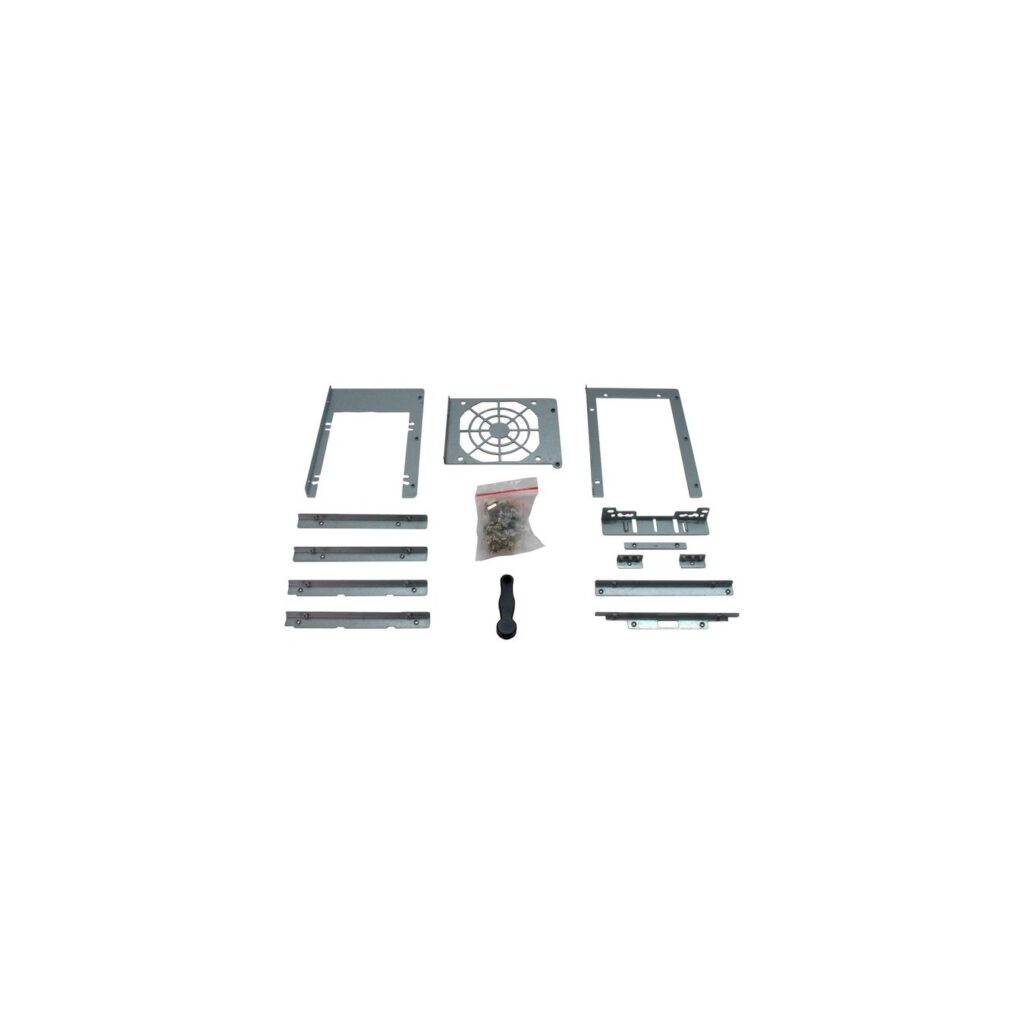

| Accessories - available | Assortment of screws, power supply bracket for ATX (pre-assembled), 4U redundant and 3U triple redundant power supplies, adapter for 2U power supply + optional 80mm fan bracket, mounting bracket for various power supplies, assembly tools |
| Volume | 59 l |
| Dimensions | Width: 48.1 cm x Height: 17.8 cm x Depth/Length: 68.8 cm |
| Weight | 15,1 kg |
