Chieftec UNC-409S-AIO-OP 4U Rackmount Server Enclosure
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Chieftec UNC-409S-AIO-OP is a 4U rackmount server chassis in 1.2mm SGCC steel. Supports 360mm AIO cooler, SSI-EEB motherboards, ATX/redundant PSU. 7 slots, 2×3.5″+2×2.5″ bays, optional fans.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The Chieftec UNC-409S-AIO-OP 4U rackmount chassis delivers reliable performance in industrial environments. Constructed from durable 1.2mm SGCC steel, it provides robust hardware protection and flexibility for diverse configurations.

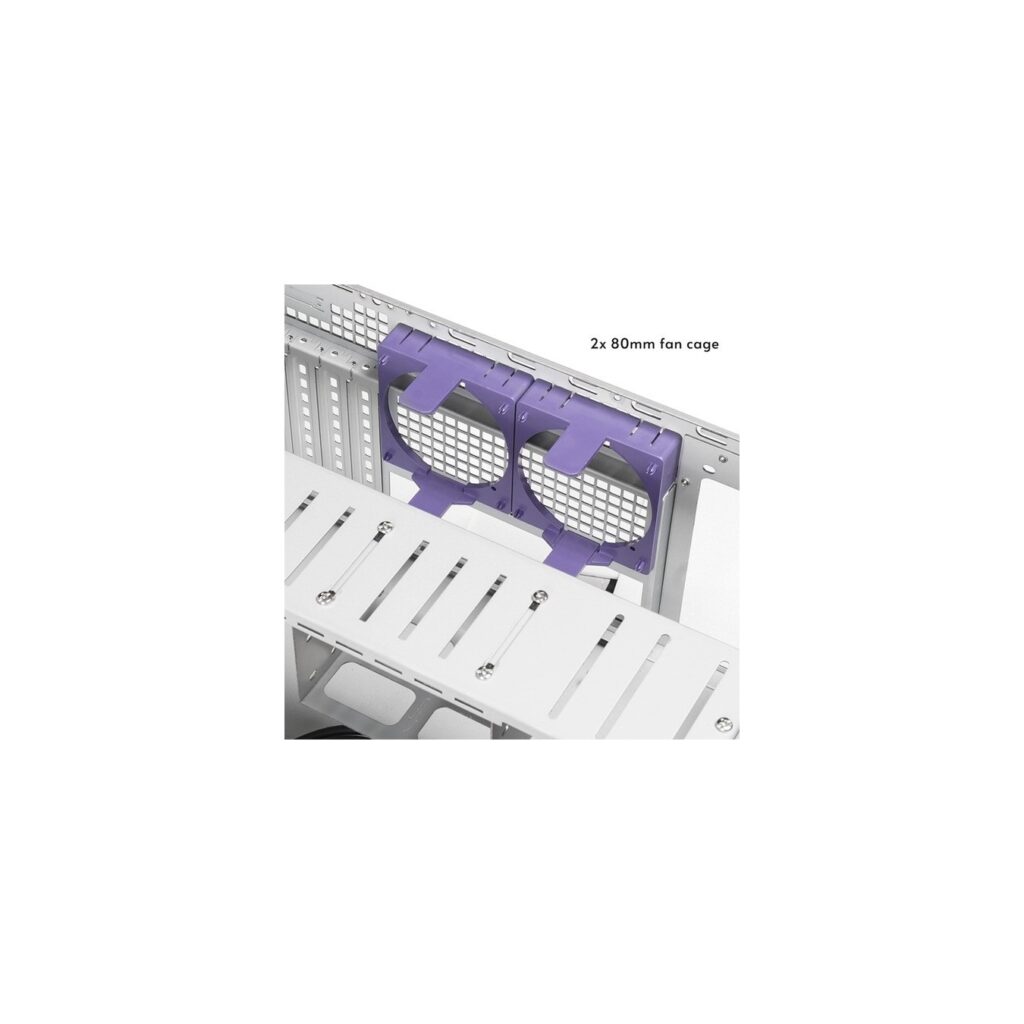

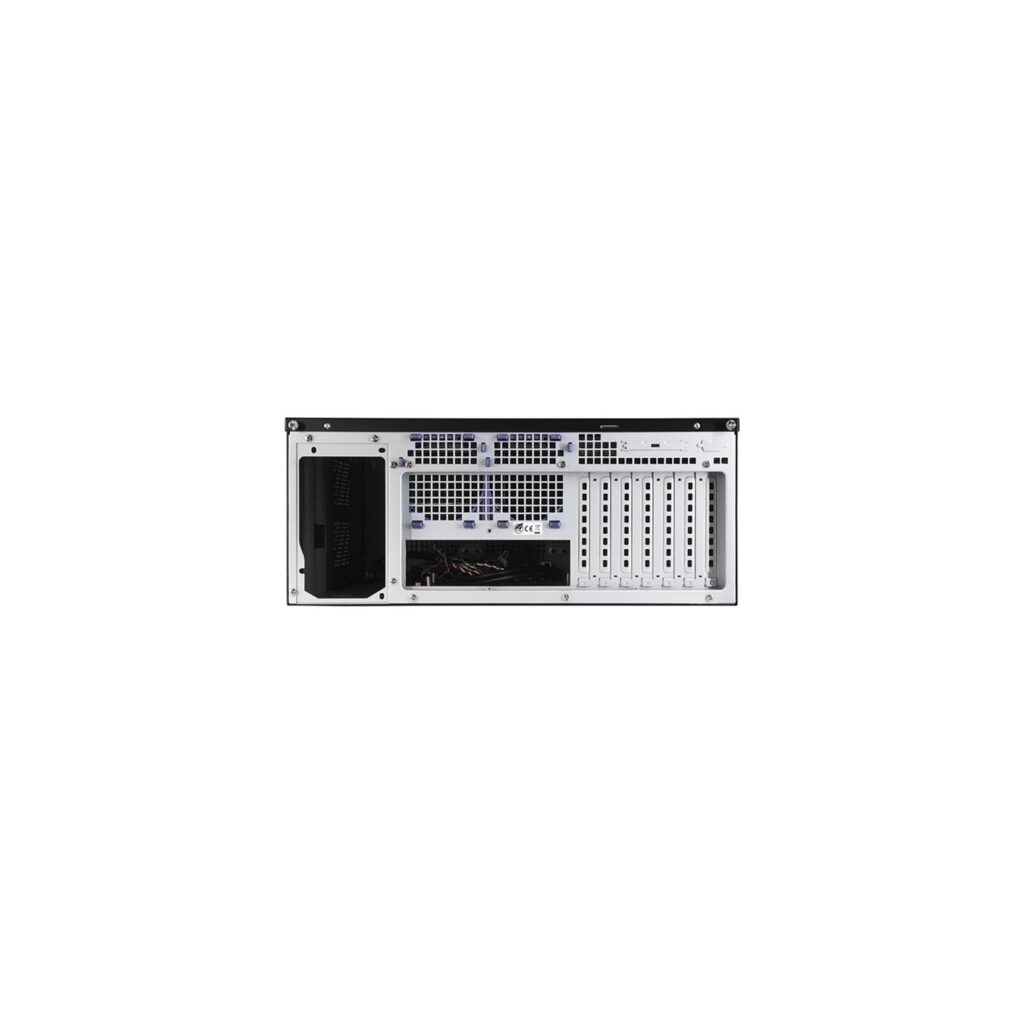

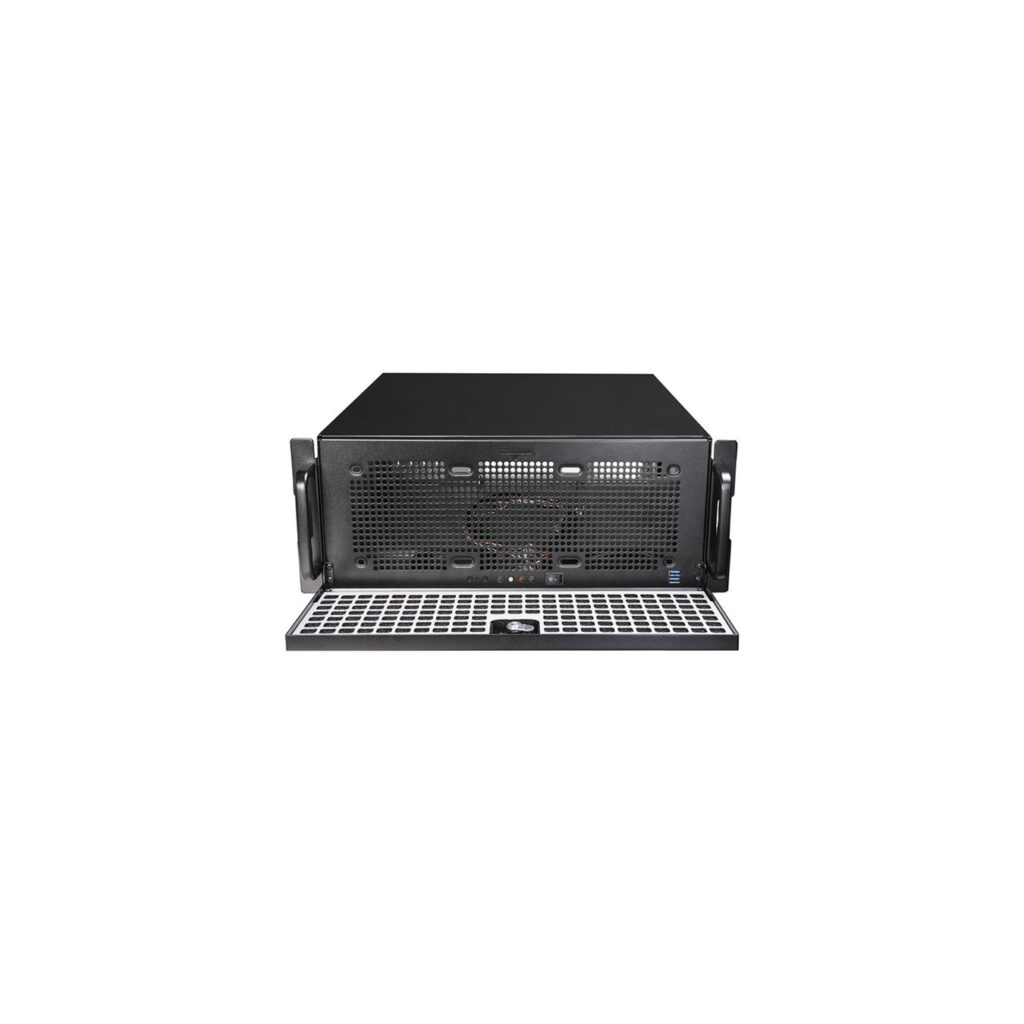

Key features include support for a 360mm AIO water cooling system for superior CPU cooling, compatibility with SSI-EEB and other motherboard form factors, and options for standard ATX or mini-redundant PSUs. It offers 7 full-size expansion slots, internal drive bays for 2x 3.5″ and 2x 2.5″ drives, and front I/O with 2x USB 3.2 Gen 1 ports. Cooling is enhanced by mounts for 3x 120mm front fans or 360mm radiator and 2x 80mm rear fans (fans optional).
- Motherboard support: ATX, E-ATX, µATX, Mini-ITX, SSI-CEB, SSI-EEB
- Max GPU length: 450mm
- CPU cooler height: 70mm (with 3.5″ drives)

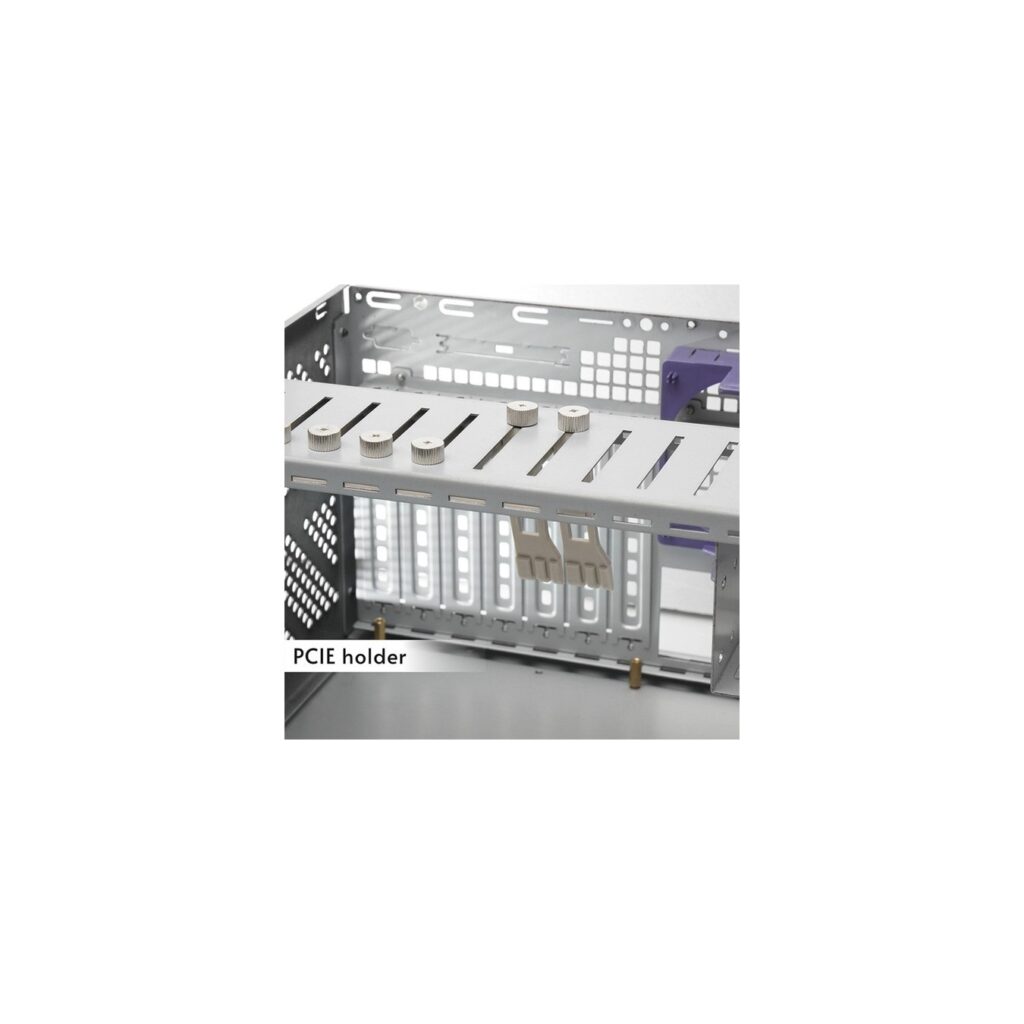

- Includes: Screw set, 7x PCI-E guide rails, PCI-E card holder
- Power supply: Optional ATX or 1+1 redundant (kit not included)
| Type | Rack, server enclosure |
| Color | Black |
| EAN | 0753263079213 |
| Manufacturer no. | UNC-409S-AIO-OP |
| Manufactured in | Taiwan |
| Design | Rack |
| Motherboard Form Factor | ATX, E-ATX, µATX, Mini-ITX, SSI-CEB, SSI-EEB |
| Material | 1.2mm SGCC Steel |
| Internal dimensions - plug-in card length | maximal 450 mm |

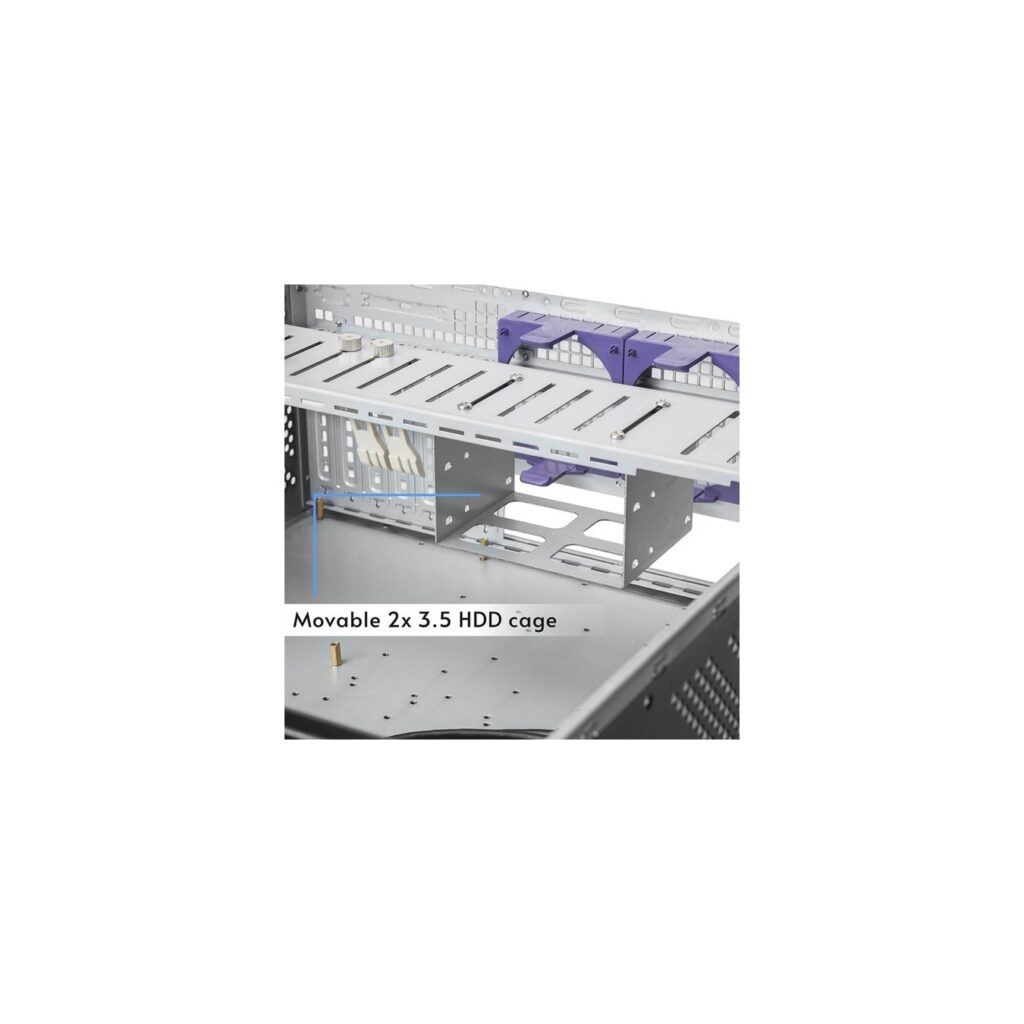

| Drive bays - 3.5 inches | internally 2 pieces |

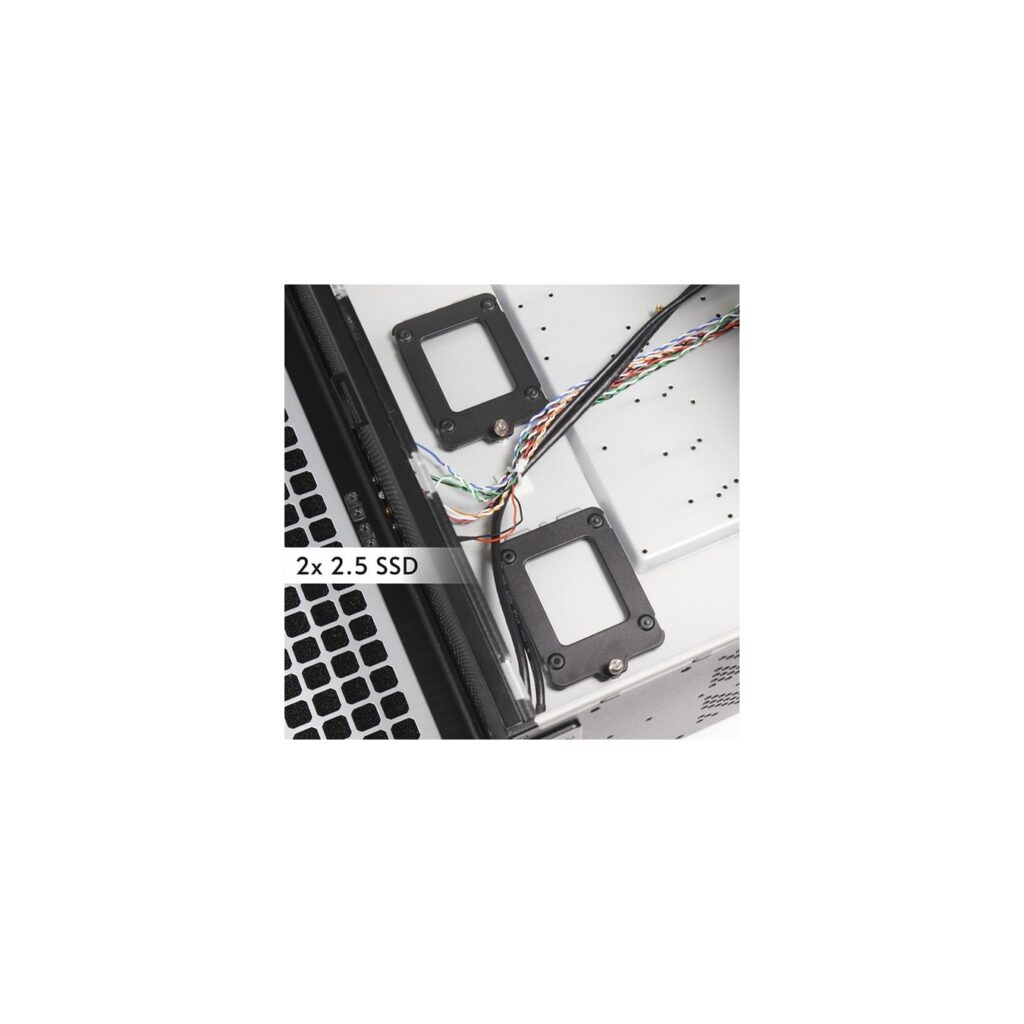

| Drive bays - 2.5 inches | internally 2 pieces |
| Slots - Full-Size | 7 pieces |
| Front connections | 2x USB-A 3.2 Gen 1 (5 Gbit/s) |
| Front fan mounts | 3 x 120 mm fans can be installed |

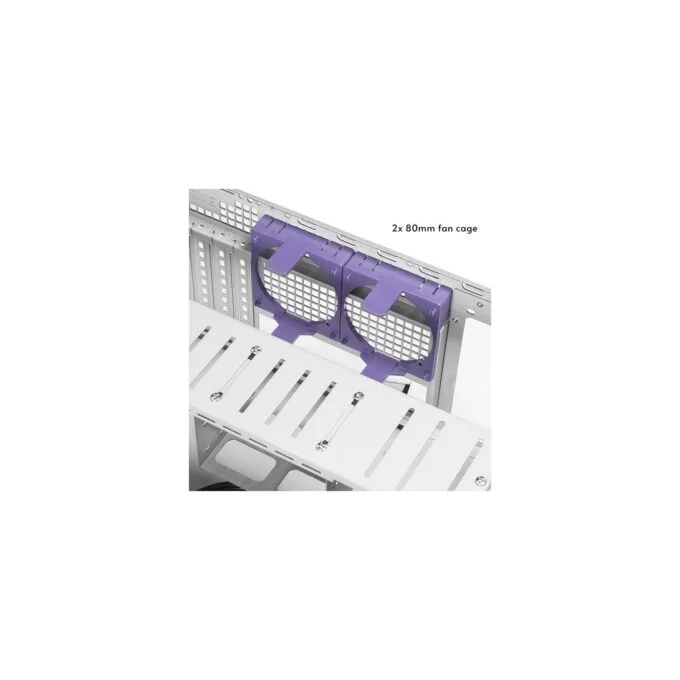

| Rear fan mounts | 2 x 80 mm fans can be installed |
| Included Fans | 0 |
| CPU cooler height (max.) | 70 mm with 3.5 |
| Water cooling possible | 360 mm radiator |
| Rear connection of the mainboard | No |
| Power supply | Optional standard ATX power supply or 1+1 redundant power supply (mounting kit not included) |
| Accessories - available | Screw set, 7× PCI-E guide rails, PCI-E card holder |
| Volume | 36 l |
| Dimensions | Width: 42.7 cm x Height: 17.68 cm x Depth/Length: 48 cm |
| Weight | 9.7 kg |
