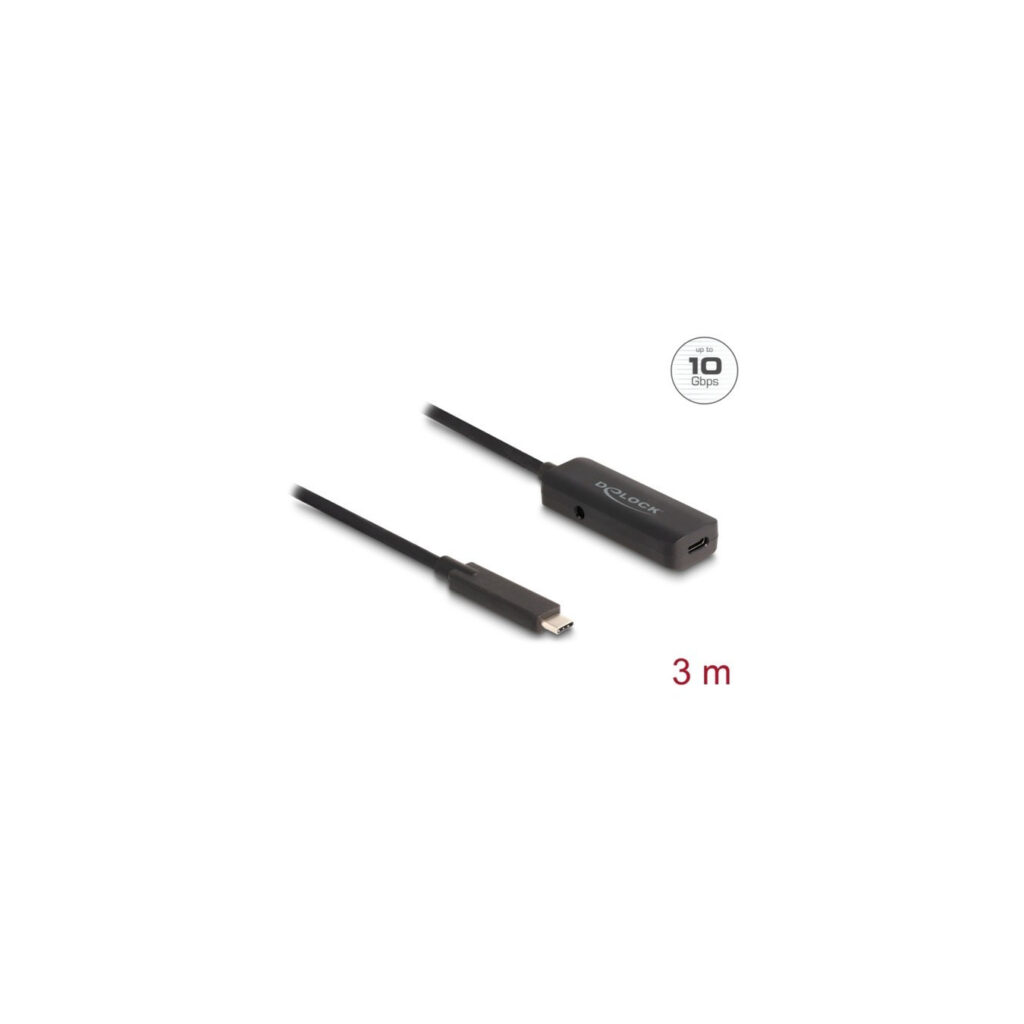

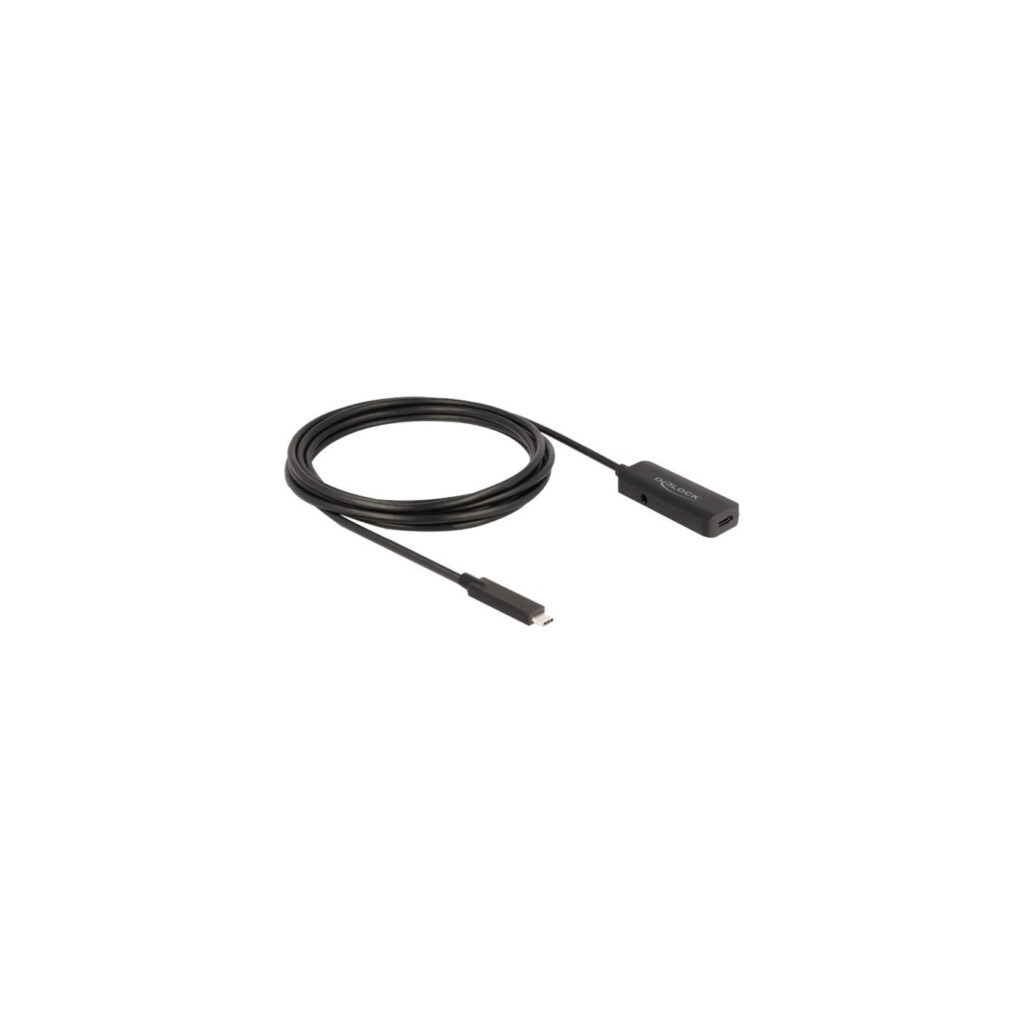

USB 3.2 Gen 2 active extension cable, USB-C male to USB-C female
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
The USB 3.2 Gen 2 cable 80027 from Delock is used to extend the USB interface by 3 meters. The USB 3.2 Type-C socket has a DC power socket to connect the power supply of an active …
For any questions about this item, availability, or delivery times, please contact us at 22 270068

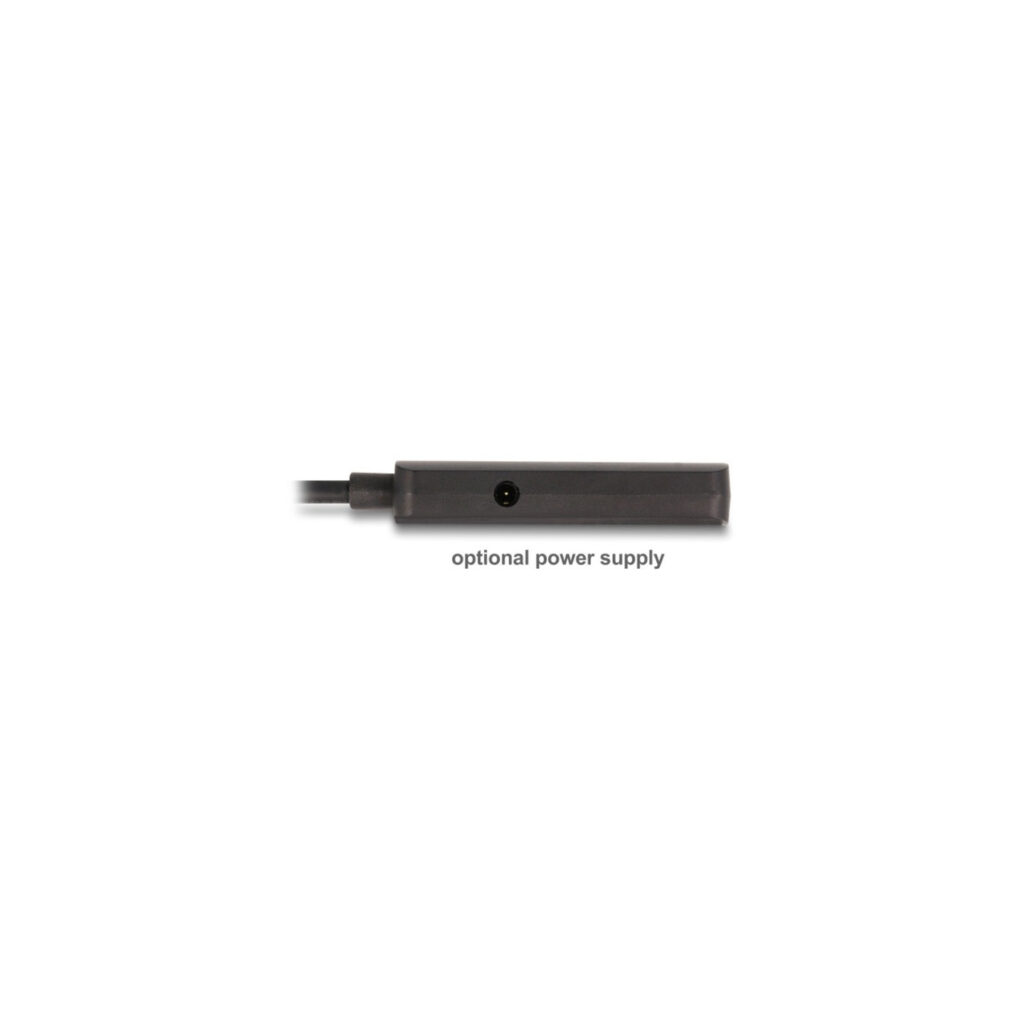

The USB 3.2 Gen 2 cable 80027 from Delock is used to extend the USB interface by 3 meters. The USB 3.2 Type-C socket has a DC power socket to connect the power supply of an active USB device. This ensures optimal data transfer even when used with powerful devices such as 2.5″ hard drives.
| Typ | Extension cable |
| Color | schwarz |
| EAN | 4043619800278 |
| Manufacturer no. | 80027 |
| Manufactured in | China |
| Application example | Extends a USB cable by 3 meters including signal amplification |
| Area | Data transfer |
| Connection - from | 1x USB-C (plug), 1x power supply (socket) |
| Protocol | USB 3.2 Gen 2 (10 Gbit/s) |
| Cable cross section | 24 AWG |
| taps | 2 |
| Characteristics | external, USB C connector can be used on both sides |
| More information | Chipset Prolific PL2586, DC connection for optional power supply, wire cross section 30 AWG data line, 24 AWG power line, cable Ø approx. 4.8mm, output current 1.5A without power supply, 2A with power supply, output voltage 5VPower connection: input 5V / 2A, ground outside, positive inside, dimensions inside: Ø approx. 1.35mm, outside Ø approx. 3.5mm, length approx. 9.65mm |
| Notice | The cable cannot transmit video signals, so connecting a USB-C monitor is not possible. |
| Cable length | 3 Meter |
