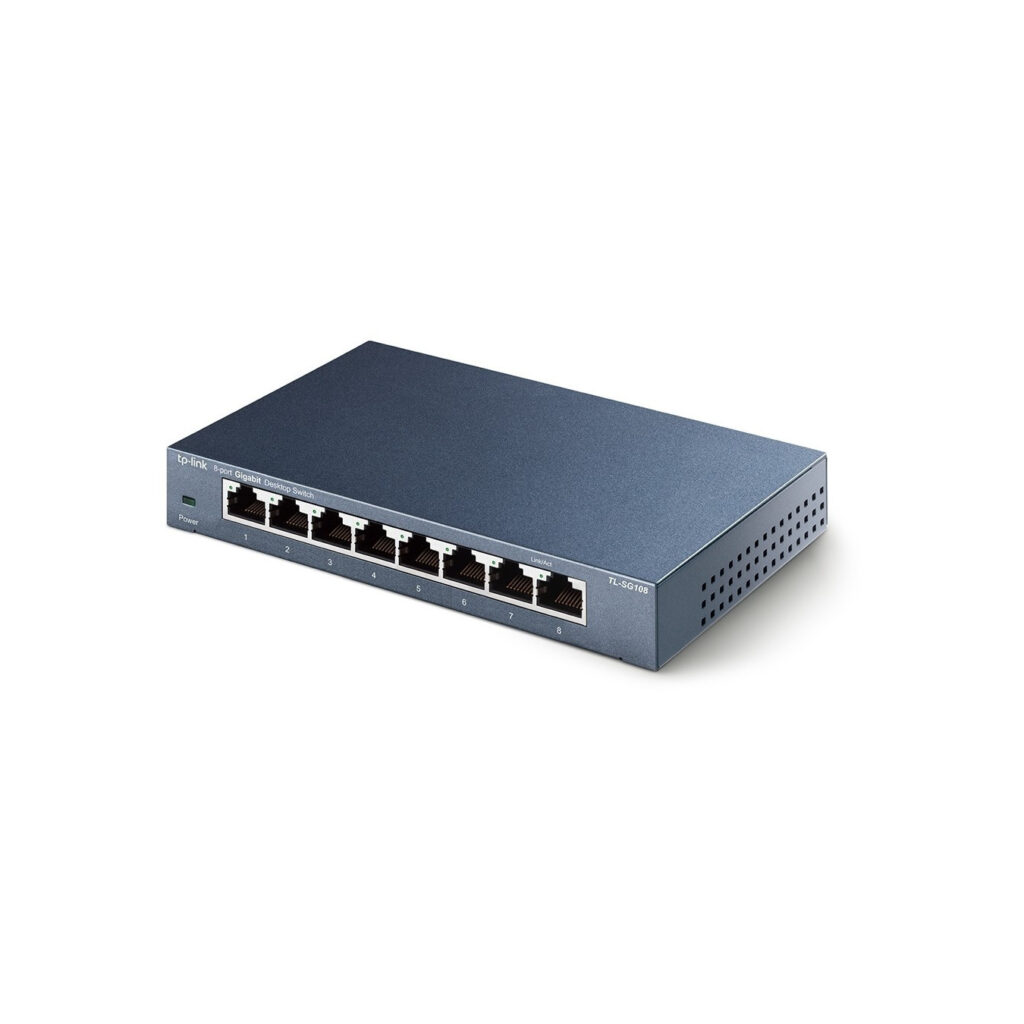

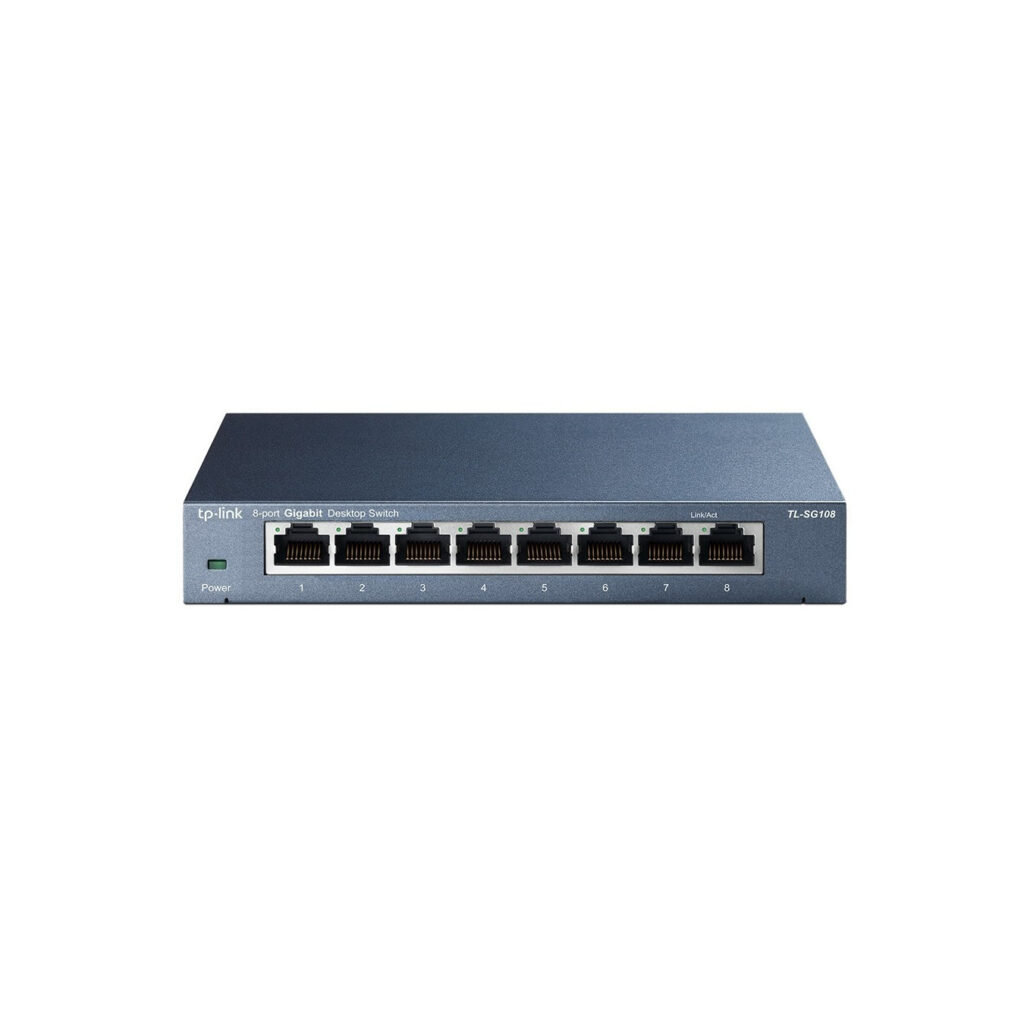

TP-Link TL-SG108 - 8-Port Gigabit Unmanaged Desktop Switch
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Unmanaged 8-port Gigabit desktop switch (10/100/1000 Mbps) with metal housing and DC-in power; plug-and-play, 16 Gbit/s switching capacity for home & small office.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
TP-Link 8-Port 10/100/1000Mbps Desktop Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries. Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p. IEEE 802.3ab. IEEE 802.3i. IEEE 802.3u. IEEE 802.3x. Power connector: DC-in jack
| Switch type | Unmanaged |
| Feature | User guide |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.1p. IEEE 802.3ab. IEEE 802.3i. IEEE 802.3u. IEEE 802.3x |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Supported data transfer rates | 10/100/1000Mbps |
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 11.9 Mpps |
| MAC address table | 4000 entries |
| Maximum data transfer rate | 2 Gbit/s |
| Jumbo frames | 16000 |
| Packet buffer memory | 1.5 MB |
| Switching protocols | CSMA/CD |
| Product colour | Black |
| Power source | DC |
| Input current | 0.6 A |
| Input voltage | 9 V |
| Power consumption (max) | 3.31 W |
| Connectivity technology | Wired |
| Bandwidth | 16 Gbit/s |
| Packet transfer speed | 14880pps/148800pps/1488000pps |
| Ethernet interface type | Gigabit Ethernet |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 158 mm |
| Depth | 101 mm |
| Height | 25 mm |
| Package width | 130 mm |
| Package depth | 191 mm |
| Package height | 92 mm |
| Package weight | 510 g |
| Certification | CE. FCC. RoHS |
| Harmonized System (HS) code | 85176990 |
