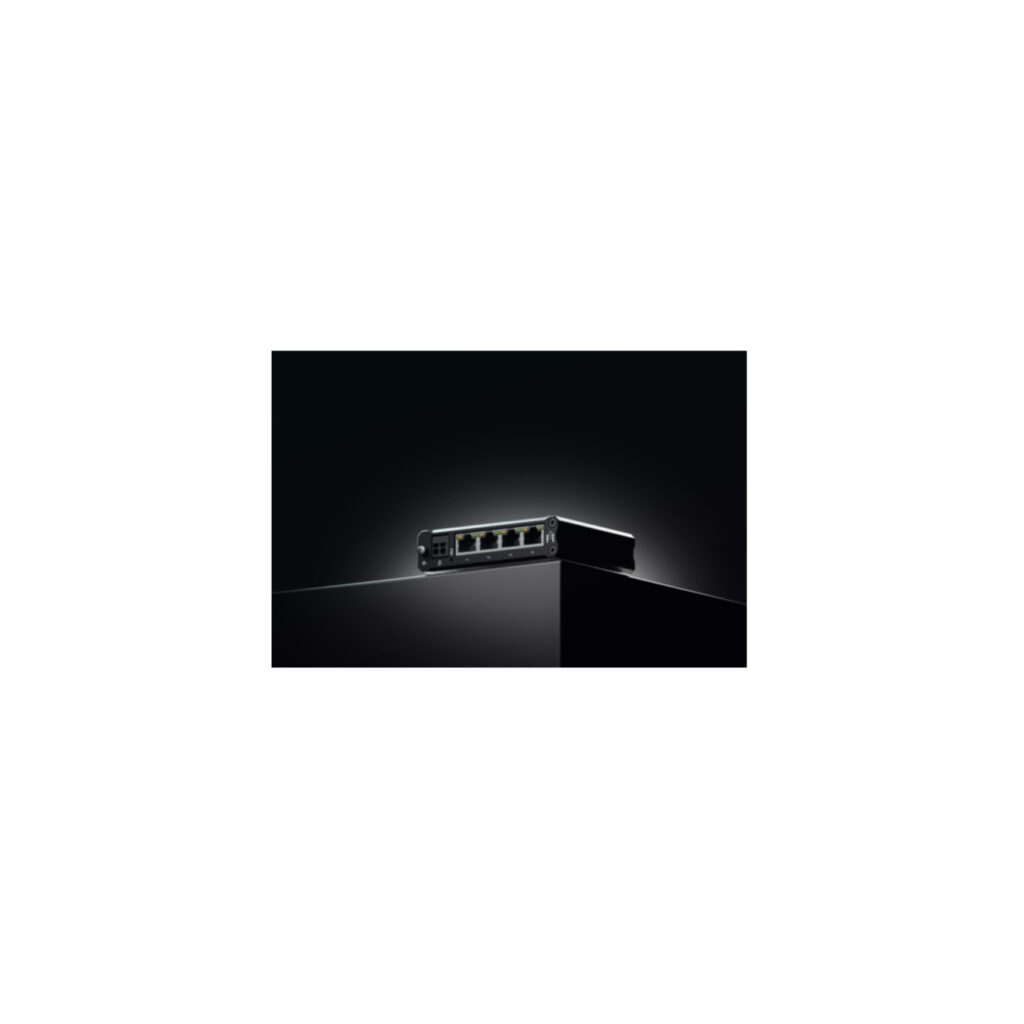

Teltonika TSW304 - 4-Port Gigabit Industrial Switch, Passive PoE, Black Aluminum, DIN-rail/Wall-mount
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Compact 4x Gigabit RJ45 switch with Passive PoE, 8 Gbit/s switching, jumbo frames (9216), IP30, wide temp -40–75°C, wall and DIN‑rail mountable.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Teltonika TSW304. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 2000 entries. Switching capacity: 8 Gbit/s. Networking standards: IEEE 802.3. IEEE 802.3az. IEEE 802.3u. DC input voltage: 7 — 57 V. Power over Ethernet (PoE). Wall mountable
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3. IEEE 802.3az. IEEE 802.3u |
| Feature | Power over Ethernet (PoE) |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Switching capacity | 8 Gbit/s |
| MAC address table | 2000 entries |
| Jumbo frames | 9216 |
| Packet buffer memory | 0.128 MB |
| Product colour | Black |
| Housing material | Aluminium |
| LED indicators | Power. Status |
| International Protection (IP) code | IP30 |
| Power source | AC/DC |
| DC input voltage | 7 - 57 V |
| Input voltage | 9 - 40 V |
| Power consumption (typical) | 0.26 W |
| Power consumption (max) | 1.44 W |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 102 mm |
| Depth | 81.5 mm |
| Height | 25 mm |
| Weight | 210 g |
| Certification | CE. REACH. RoHS. WEEE. UKCA. FCC. IC. CB. RCM |
