Professional server enclosure with E-ATX support, 350 mm GPU length, steel chassis, 54 L, 16 kg; front USB-A/USB-C I/O and 5 preinstalled fans.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

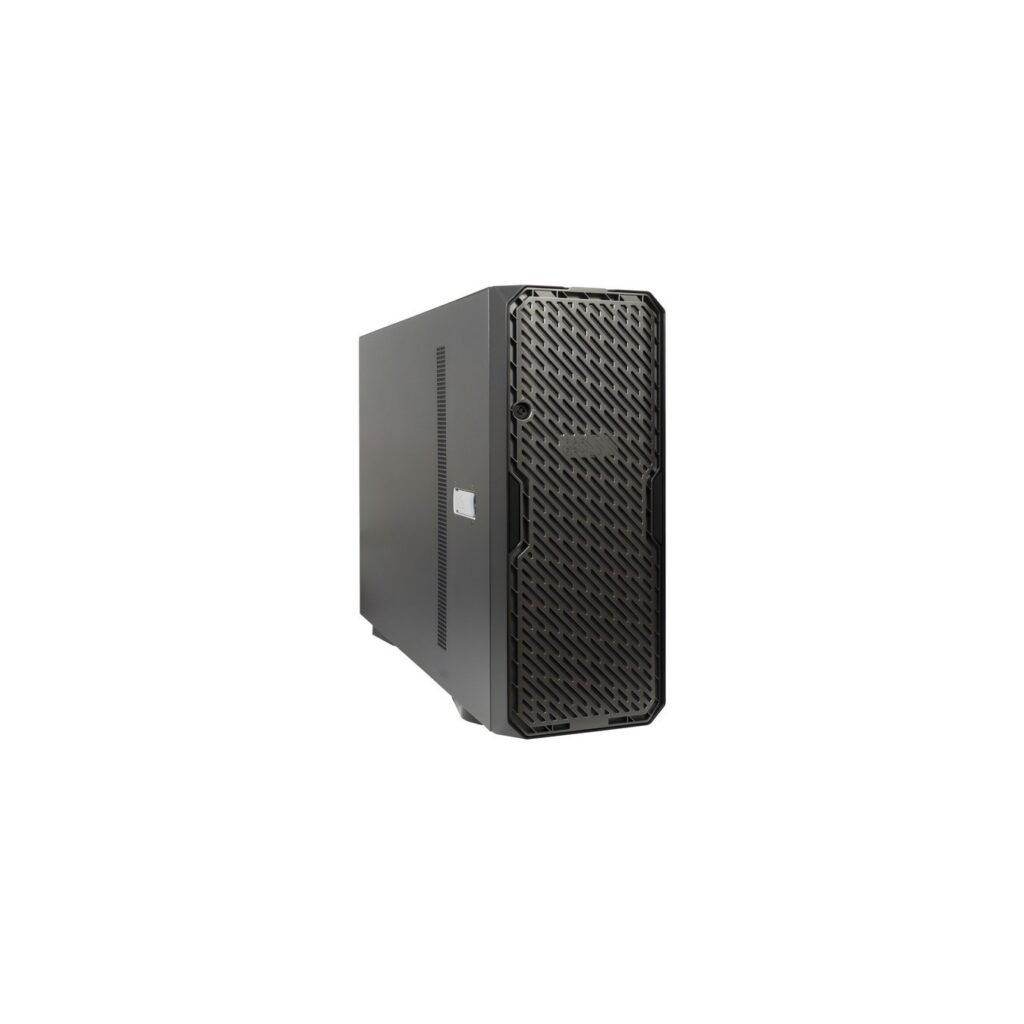

This professional server tower case was specifically designed for high-performance server and workstation configurations. It offers outstanding flexibility, generous space for components and is ideal for demanding IT environments. The housing offers up to 2x 5.25″ drives — e.g. for hot-swap frames, removable racks or other devices and up to 8x 3.5″ hard drives — ideal for large storage configurations. There is also space for 8 expansion slots — for GPU, RAID, network or other PCIe cards. The motherboard supports up to E-ATX and is designed for high-end server and workstation motherboards. Three built-in 120 mm fans in the center console and 2x 80 mm fans in the rear panel ensure optimal airflow. Perfect for servers, NAS systems, video editing workstations, virtualization or computing-intensive applications — this housing offers the optimal platform for your individual high-end system.
| Typ | Server enclosure |
| Color | schwarz |
| EAN | 4260455649728 |
| Manufacturer no. | 88887415 |
| Manufactured in | China |
| Design | Server-Tower |
| Mainboard Formfaktor | E-ATX |
| Material | Stahl |
| Internal dimensions - plug-in card length | maximal 350 mm |
| Drive bays - 5.25 inches | external 2 pieces |

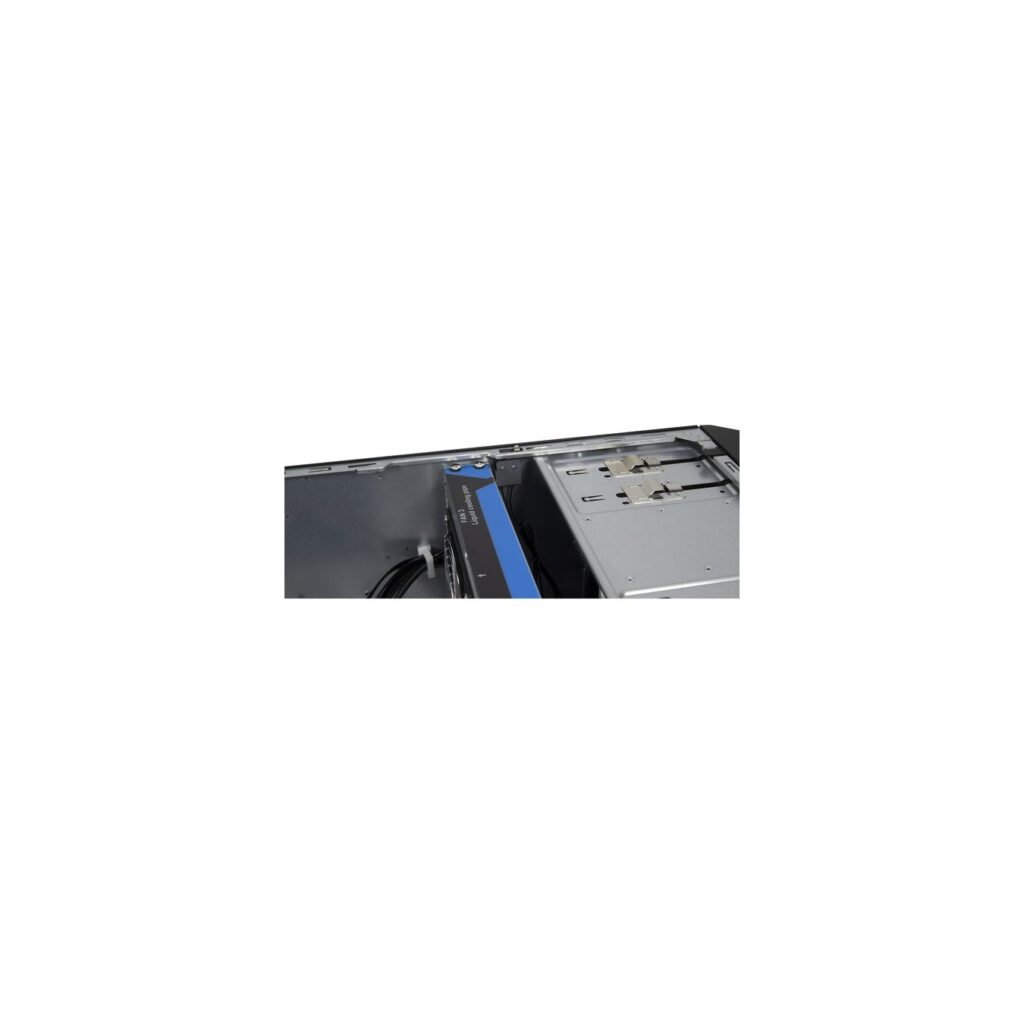

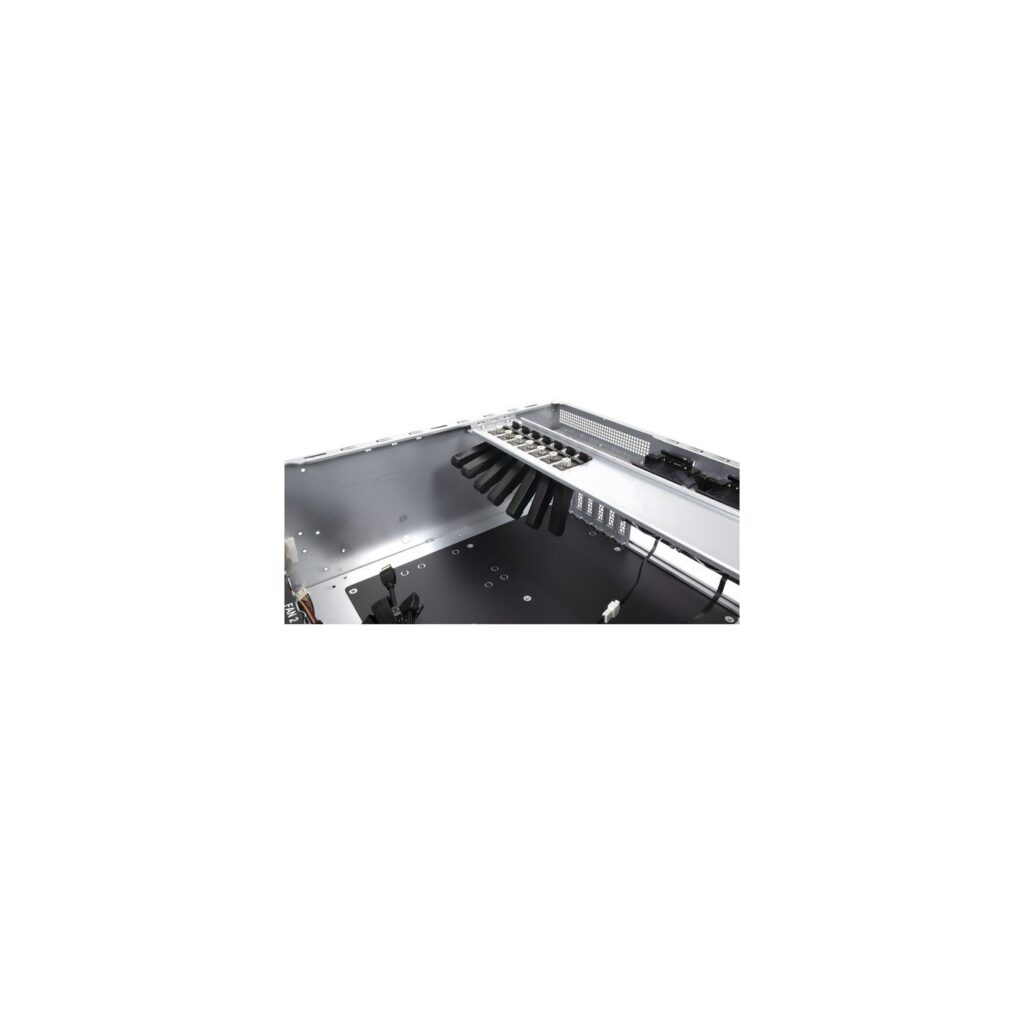

| Slots - Full-Size | 8 pieces |
| Front connections | 2x USB-A 3.2 Gen 1 (5 Gbit/s), 1x USB-C 3.2 Gen 2x2 (20 Gbit/s) |
| back | 2 x 80 mm fans pre-installed - 2 ball bearings, voltage: 12V, speed: 6000 rpm, air flow: 136 cbm/h, static pressure: 21.6 mm-H2O, volume: 57dbA, dimensions: 80x80x38mm |

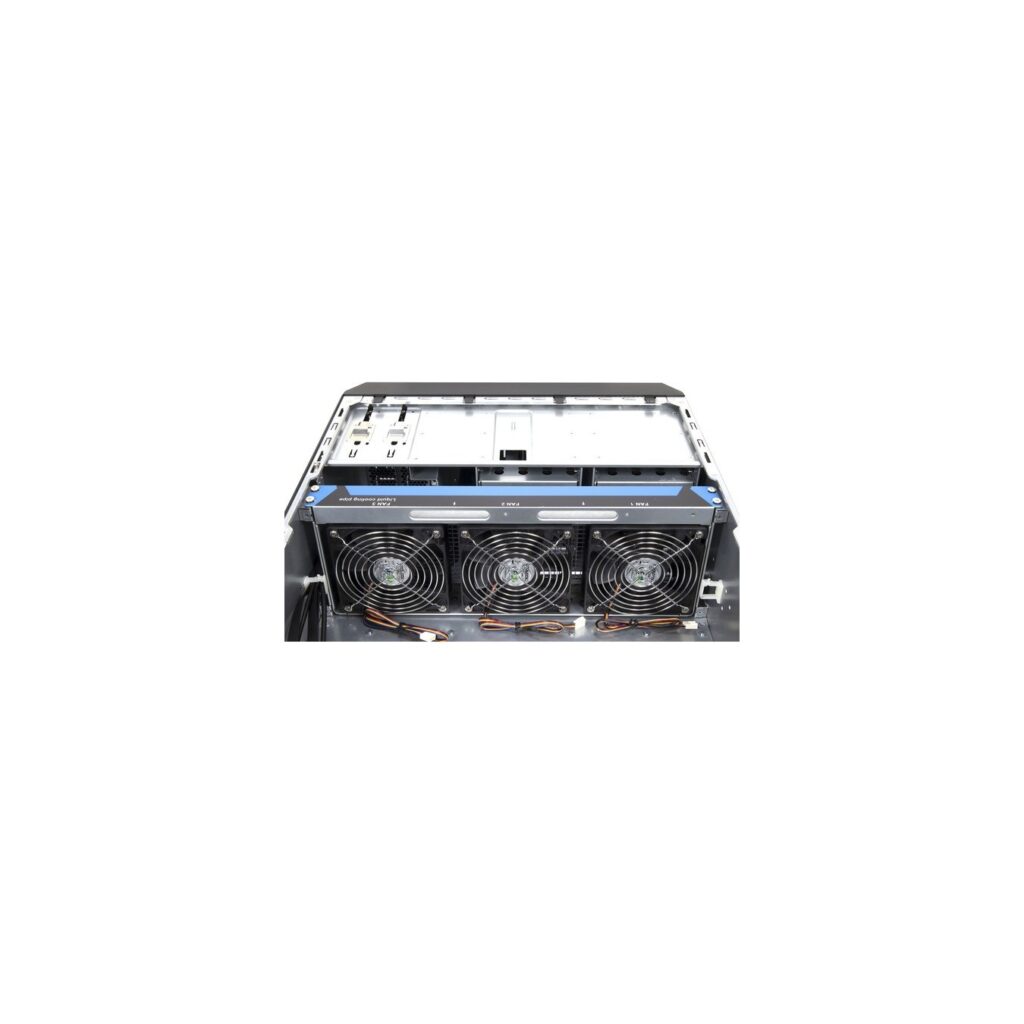

| Notes | Center console: 3 x 120 mm fans pre-installed - 2 ball bearings, voltage: 12V, speed: 3000 rpm, air flow: 197 cbm/h, static pressure: 7.3 mm-H2O, volume: 45dbA, dimensions: 120x120x38mm |
| Water cooling possible - Supported radiators | 120/240/360 mm replacing the 120mm fan in the center console |
| Rear connection of the mainboard | No |
| More information | Case open switch and UID LED in the front especially for administrators |

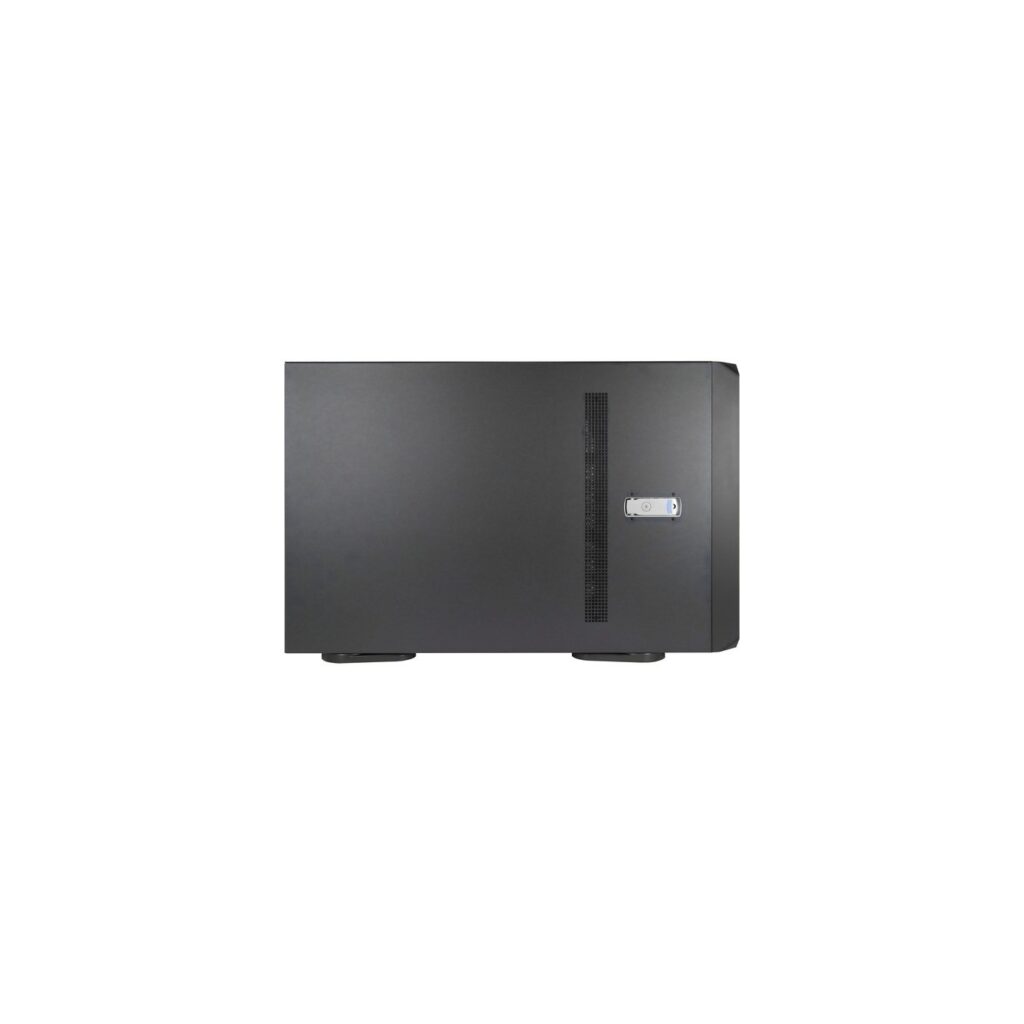

| Notice | Can be used vertically and horizontally |

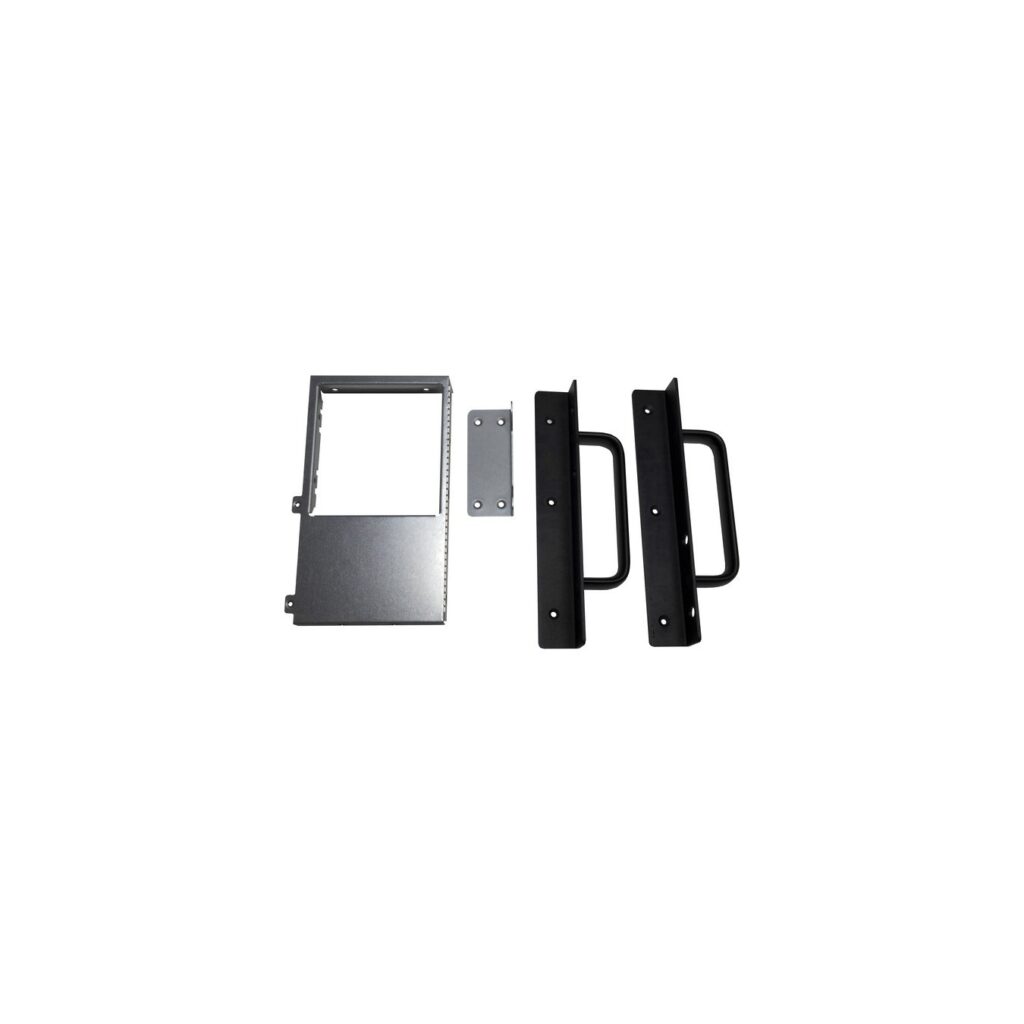

| Accessories - available | Adapter for 2U power supply, screw assortment, cable ties, handles |
| Volume | 54 l |
| Dimensions | Width: 17.5 cm x Height: 45.2 cm x Depth/Length: 68.3 cm |
| Weight | 16 kg |
