Enterprise Samsung PM9A3 M.2 2280 NVMe SSD. 960GB PCIe 4.0 x4, up to 6900MB/s read, 1M IOPS rand read. V-NAND TLC, NVMe 1.4, 1 DWPD/5yr, TCG encryption. Bulk pack, ideal for data centers.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

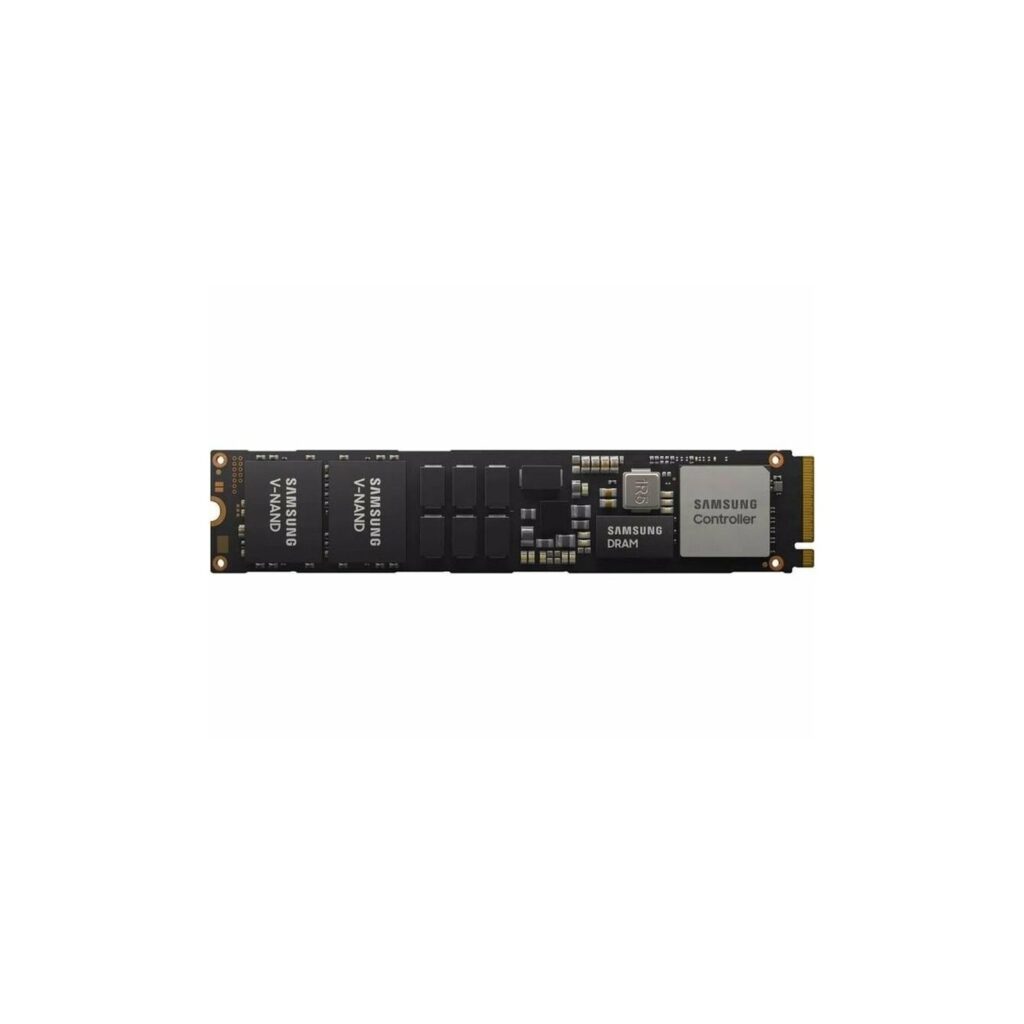

The Samsung PM9A3 is a high-performance enterprise-grade M.2 NVMe SSD designed for data centers and servers. Featuring PCIe 4.0 x4 interface and NVMe 1.4 protocol, it delivers sequential read speeds up to 6,900 MB/s and write up to 4,100 MB/s for the 960GB model, with random 4K read performance reaching 1,000,000 IOPS and write up to 180,000 IOPS.
Built with Samsung V6 (128-layer) V-NAND TLC flash and in-house Elpis controller, it offers 1 Drive Writes Per Day (DWPD) endurance over 5 years (1,752 TBW), TCG Enterprise encryption, power-loss protection, and MTBF of 2 million hours. Optimized for mixed workloads with consistent low latency and QoS prioritization.
Form factor M.2 2280 (33.6 x 118.75 x 9.5 mm), no heatsink included. Bulk packaging for cost-effective deployment in high-duty cycle environments.
- ✅ PCIe Gen4 x4, NVMe 1.4
- ✅ Up to 6,900/4,100 MB/s sequential
- ✅ 1M/180k IOPS random 4K
- ✅ 1 DWPD / 5 years, 1,752 TBW
- ✅ TCG encryption, 2M hours MTBF
| Capacity | 960GB |
| Interface | PCIe 4.0 x4 (NVMe) |
| NVMe Version | 1.4 |
| Form Factor | M.2 2280 |
| NAND Flash | Samsung V-NAND TLC (V6 128-layer) |
| Controller | Samsung Elpis in-house |
| Sequential Read | Up to 6,900 MB/s |
| Sequential Write | Up to 4,100 MB/s |
| Random Read 4K (QD32) | Up to 1,000,000 IOPS |
| Random Write 4K (QD32) | Up to 180,000 IOPS |
| Endurance DWPD | 1 DWPD (5 years) |
| TBW | 1,752 TB |
| Power Consumption | Read <=11W, Write <=13.5W |
| MTBF | 2,000,000 hours |
| Encryption | TCG Enterprise, AES 256-bit |
| Dimensions (SSD) | 33.6 x 118.75 x 9.5 mm |
| DRAM Cache | Yes |
| Heatsink | Not Included |
