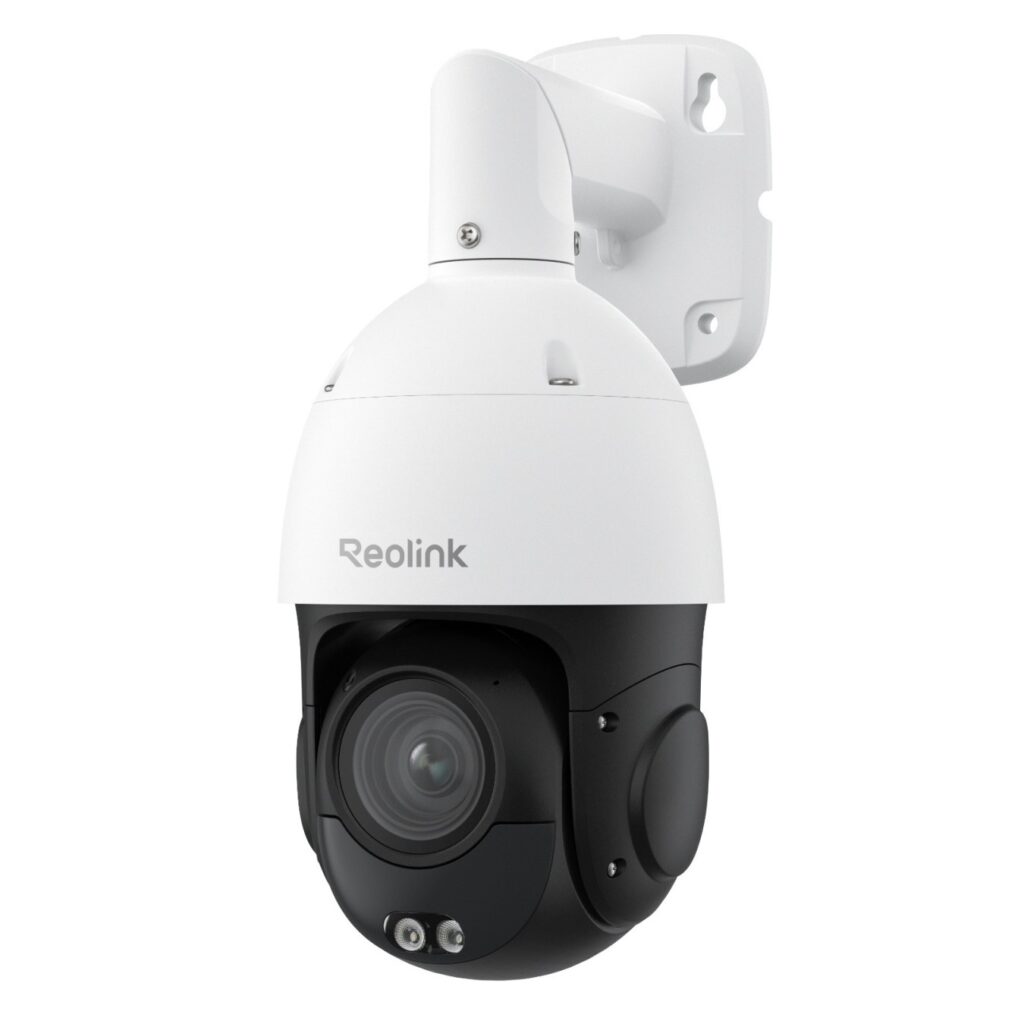

Reolink POE IP PTZ Camera 8MP 16x Optical Zoom - RLC-823S2 - P850

• 16X Optical Zoom
• 360° Coverage in 4K UHD
• Auto Tracking
• Color Night Vision

Video & Audio

• Image Sensor: 1/2.8″ CMOS sensor
• Resolution: 3840 x 2160 (8 Megapixels) @ 25FPS
• Lens: f = 5.3 — 86mm / Max F1.6
• Video Compression: H.265 / H.264
• Zoom: 16X
• Field of View: Horizontal: 54.2° — 3.6°, Vertical: 41.7° — 2.1°
• Infrared Night Vision: Up to 80 meters (260 ft); LED: 7 pcs / Max 5.5W / 850nm (Auto-switching with IR-cut filter)
• Color Night Vision: With spotlights: 2 pcs / 4W / 4000K (Adjustable)
• Audio: Two-way audio

Power

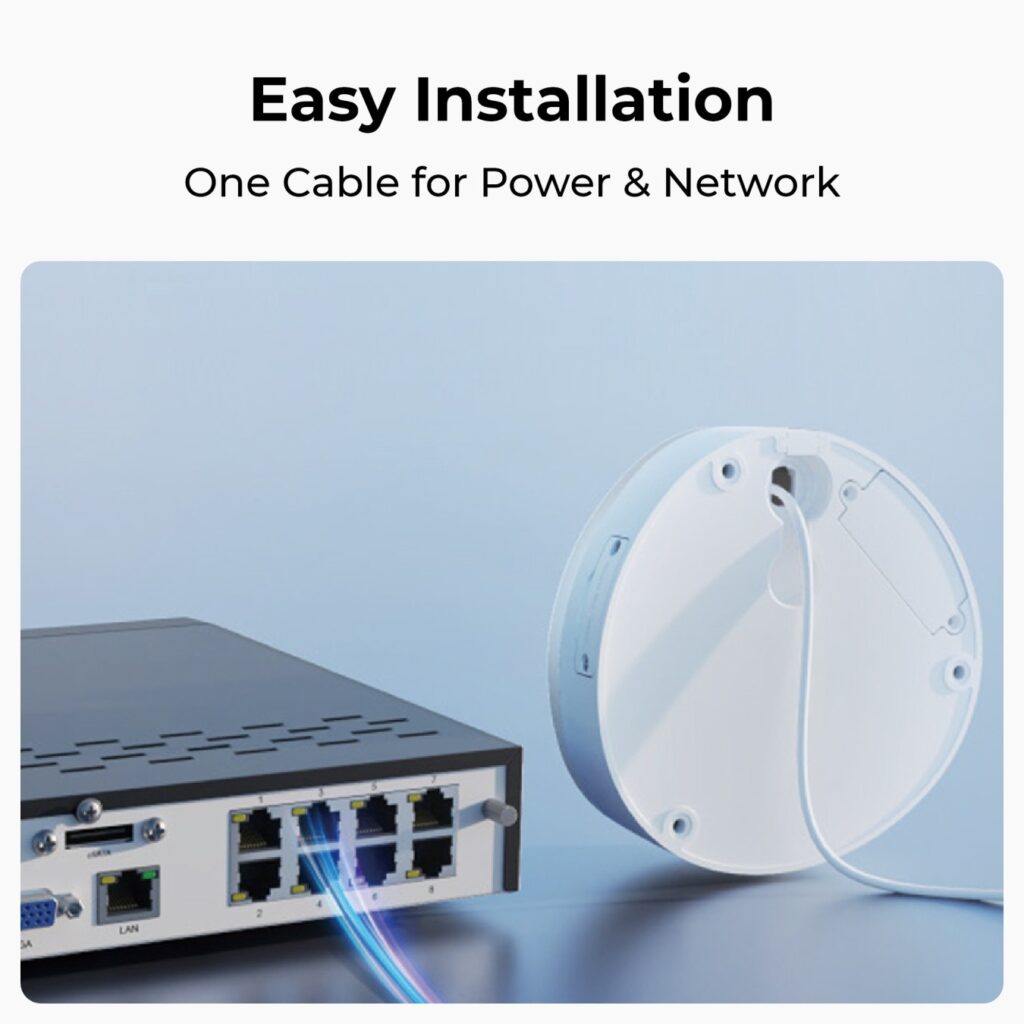

• PoE: IEEE 802.3at, 48V active
• DC Power: DC 12V⎓2A, < 24W

Interface

• Power: DC power port
• Ethernet: 1 × 10M/100Mbps RJ45

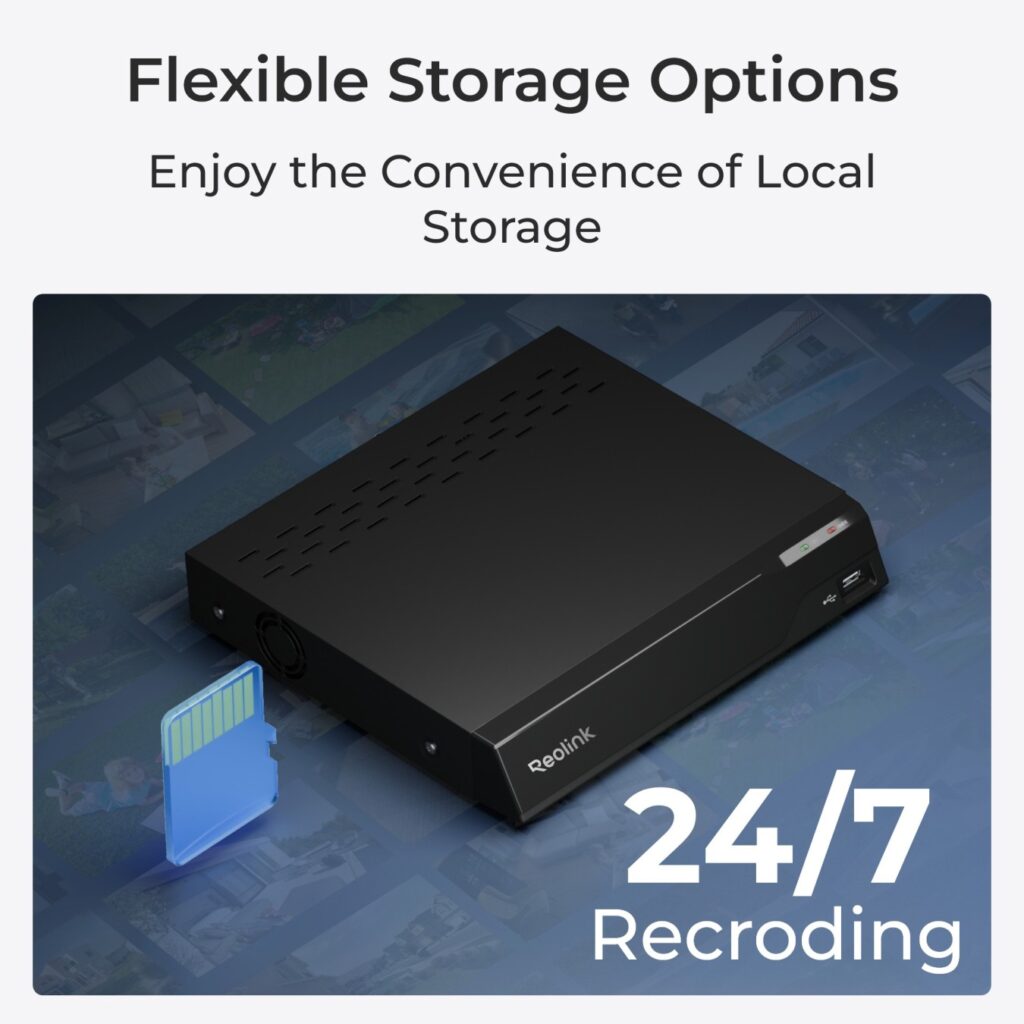

• Storage: Supports Max. 256GB microSD card
• System: Reset button
• Audio: Built-in microphone and speaker

Pan & Tilt

• Pan & Tilt: Pan: 360°, Tilt: 90°
• Pan Speed: 1.4° — 90°/s (configurable)
• Tilt Speed: 1.4° — 56°/s (configurable)
• Preset: Supports 1 guard position & up to 64 preset positions
• Patrol: Supports 1 patrol; up to 16 presets per patrol
• Power-off Memory Function: Yes
• Auto Tracking: Yes

Software Features

• Frame Rate:
• Mainstream: 2fps — 25fps (default: 25fps)
• Substream: 4fps — 15fps (default: 10fps)
• Code Rate:
• Mainstream: 2048Kbps — 8192Kbps (default: 6144Kbps)
• Substream: 64Kbps — 512Kbps (default: 256Kbps)
• Compatible Browsers: Edge, Chrome, Firefox, Safari
• OS Supported: PC: Windows, Mac OS; Smartphone: iOS, Android
• Smart Alarm: Motion detection, person detection, vehicle detection, animal detection
• Time Lapse: Yes
• Recording Modes: Motion-triggered recording (default), Scheduled recording, 24/7 recording
• Protocols & Standards: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
• User Access: Max. 20 users (1 admin & 19 users); Max. 12 simultaneous streams (2 main & 10 substreams)
• Smart Home Compatibility: Google Assistant

Working Environment

• Operating Temperature: -10°C ~ +50°C (14°F ~ 126°F)
• Operating Humidity: 10% ~ 90%

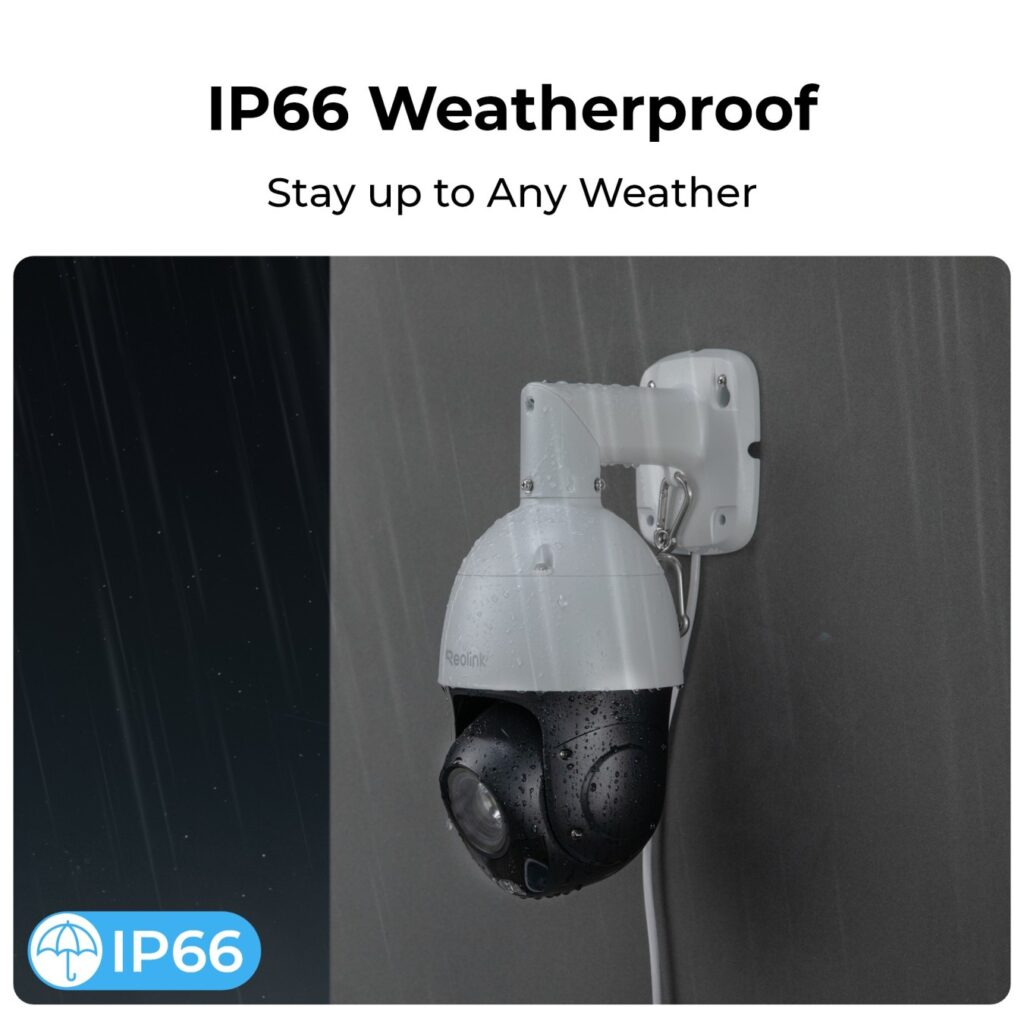

• Weatherproof: IP66

Size & Weight

• Dimensions: 373 × 177 × 140 mm (Ceiling Mount)
• Weight: 2.34 kg
