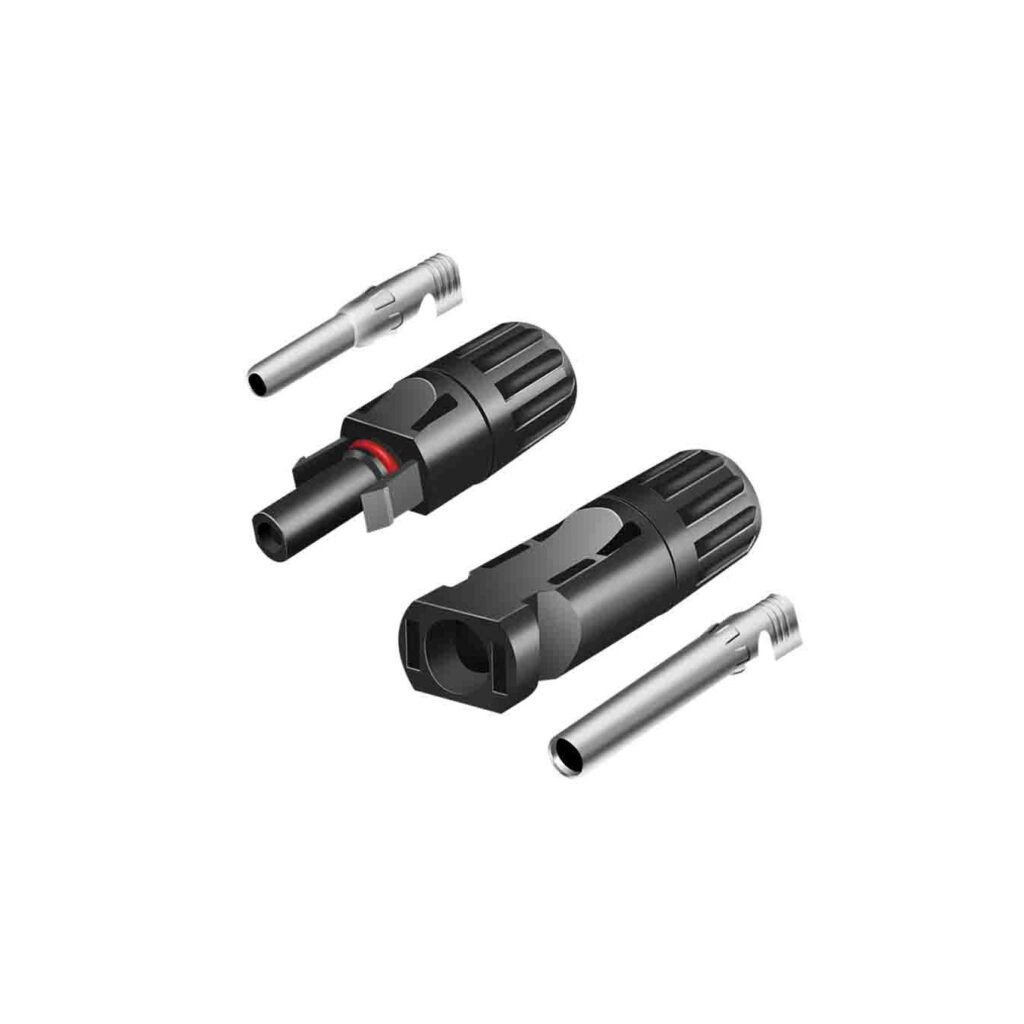

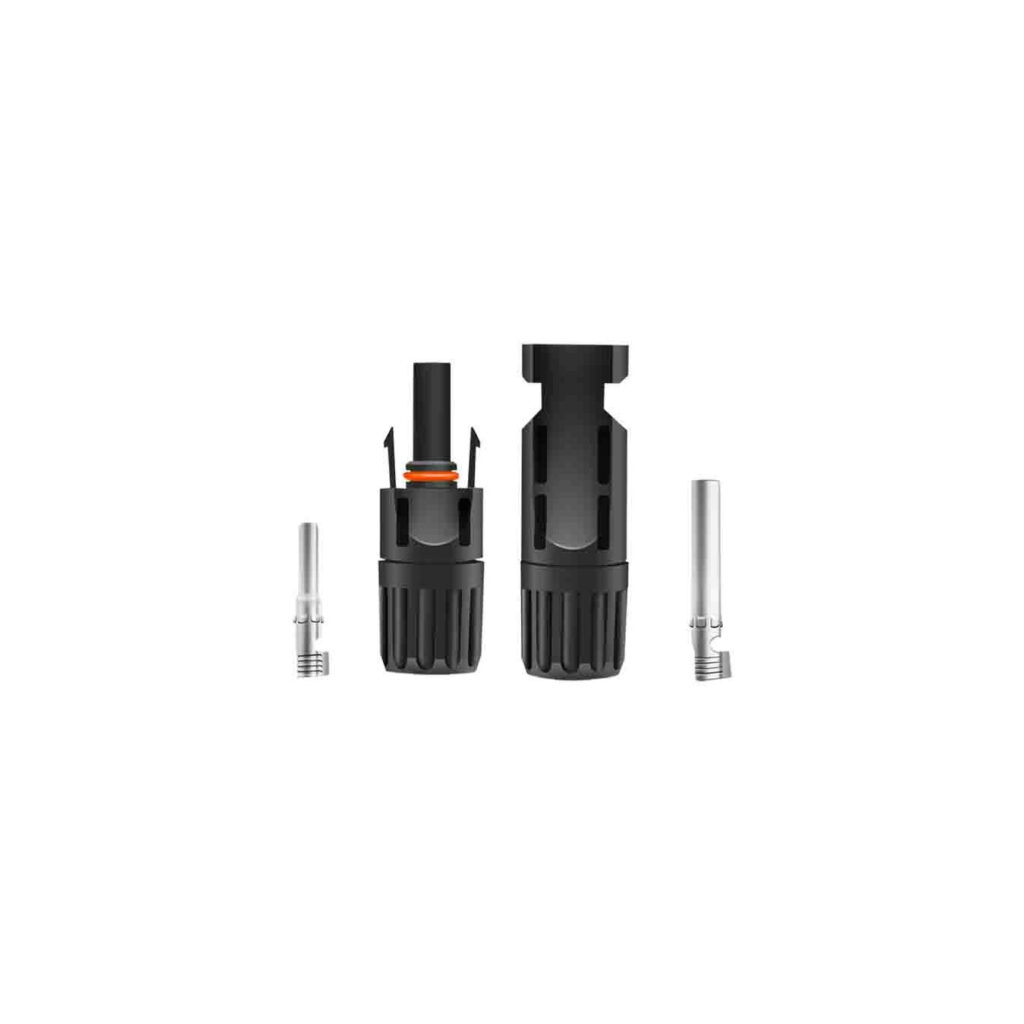

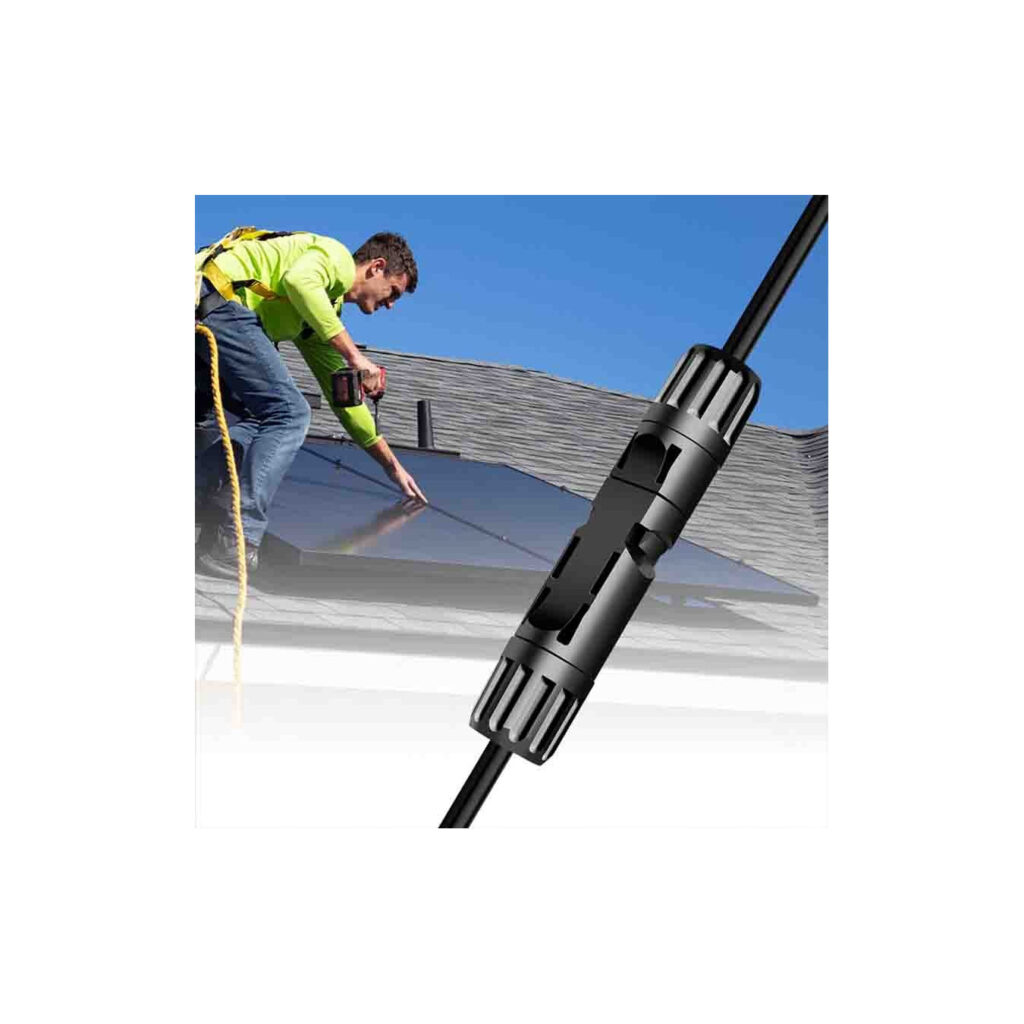

PHC0300 SOLAR CONNECTOR SET, MC4 M F FOR 2.5 4 6 mm2 CABLES, LOGILINK

PHC0300 SOLAR CONNECTOR SET, MC4 M/F FOR 2.5/4/6 mm² CABLES, LOGILINK
Connector 1: MC4 (Male)
Connector 2: MC4 (Female)
Set of 2 pcs / TUV Certified
Conform with IEC 62852:2015

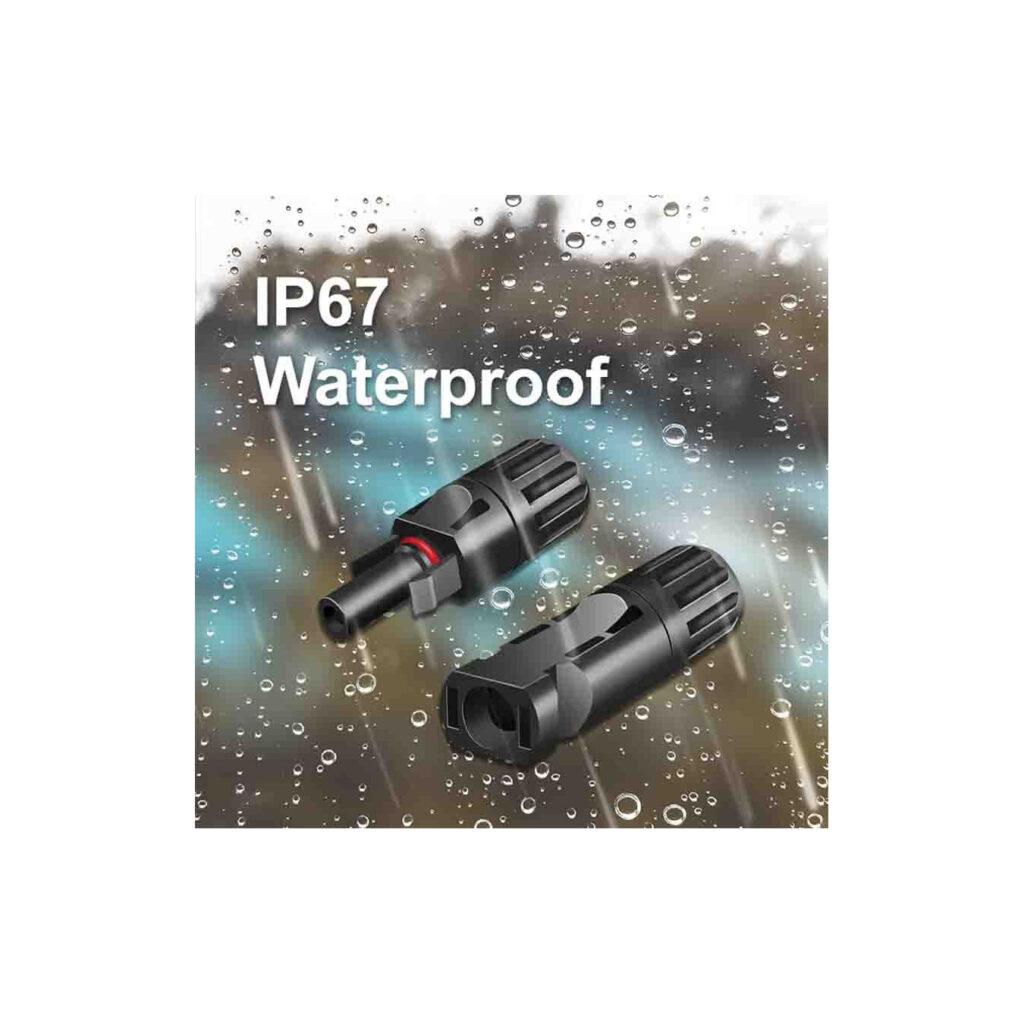

Protection class: IP67 / Flame class: UL94V-0
Rated Voltage: 1000V
Rated Current: 30A (DC)
Temperature range of work environment: -40 oC to 85 oC

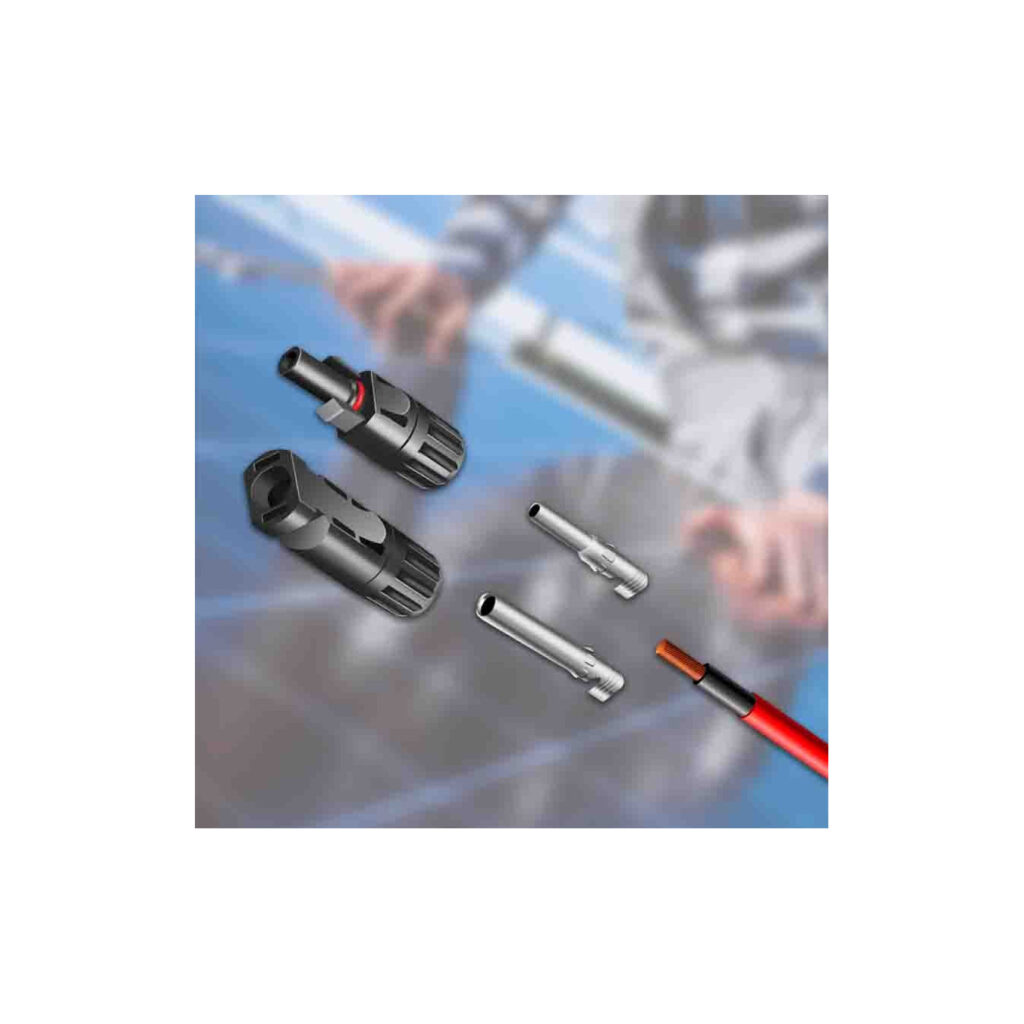

Suitable for cables with a wire cross – section of 2.5 to 6mm2
Conform to safety class II
Plastic housing
Color: Black
Packaging: PE Bag
Weight: 0.019kg
