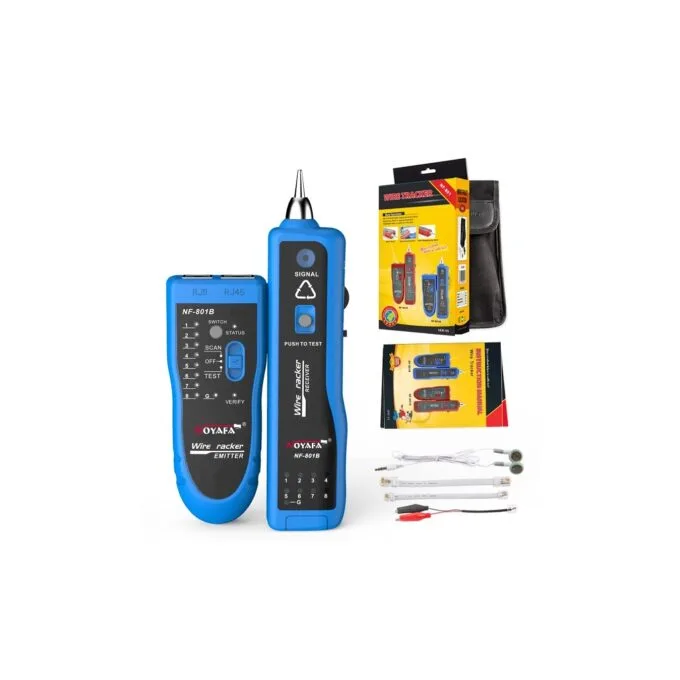

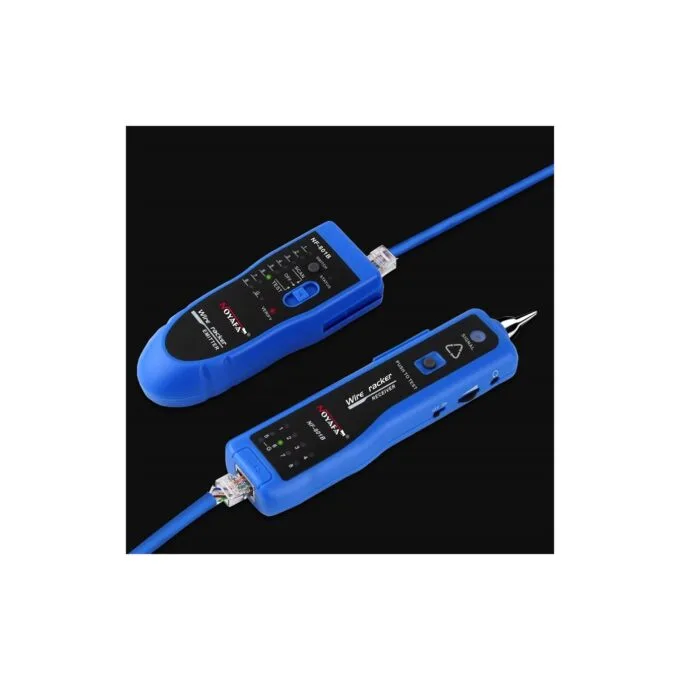

Noyafa Wire Tracker for Cable Tracing, Identification & Fault Detection NF-801
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Quickly trace and identify needed cables among lots of unknown cables
Check continuity for Lan cables
Track the cables, and diagnose the breakage
Visible indication: pin-to-pin cable map for indivi…
For any questions about this item, availability, or delivery times, please contact us at 22 270068
- Quickly trace and identify needed cables among lots of unknown cables
- Check continuity for Lan cables
- Track the cables, and diagnose the breakage
- Visible indication: pin-to-pin cable map for individual cable (not by pairs)
- Low Voltage alarm function
- Earphone for using in noisy environment
- LED light assists use in dark scenario

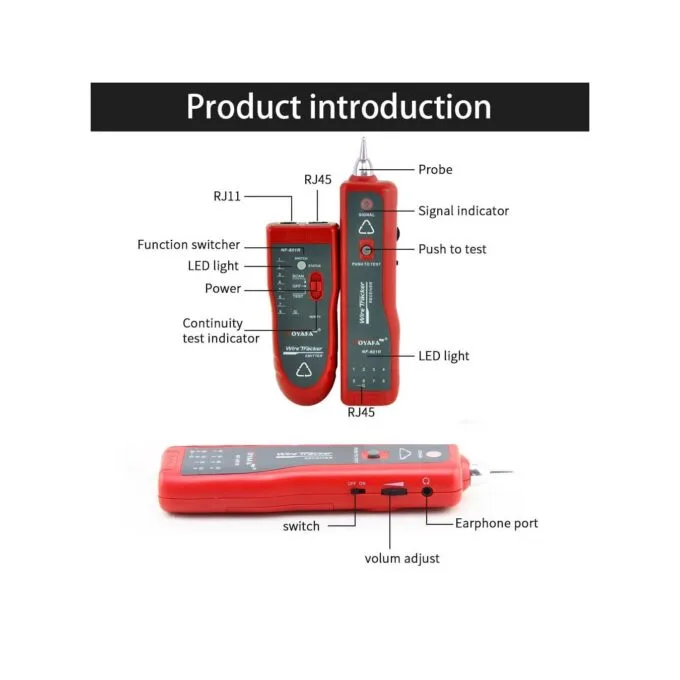

NF-801 Transmitter specifications
- Tone frequency 200Hz
- Max. distance of transmission Up to 2 kilometers
- Max. working current 10mA
- Volume Regulate Function Audio volume level control
- Tone mode 2 Tones, adjustable
- Compatible connectors RJ11, RJ45
- Max. signal voltage 8Vp-p
- LED lights display Wiremap, tone, tracing
- Voltage protection DC 48V
- Battery Type DC9.0V（NEDA 1604/6F22) x 1pc
- Dimensions (LxWxD) 15 x 3.7 x 2cm
NF-801 Receiver specifications
- Frequency 200kHz
- Max. working current 30mA
- Earphone jack 1
- Battery Type DC9.0V（NEDA 1604/6F22) x1pc
- Dimensions (LxWxD) 12.2 x 4.5 x 2.3cm
-
-
