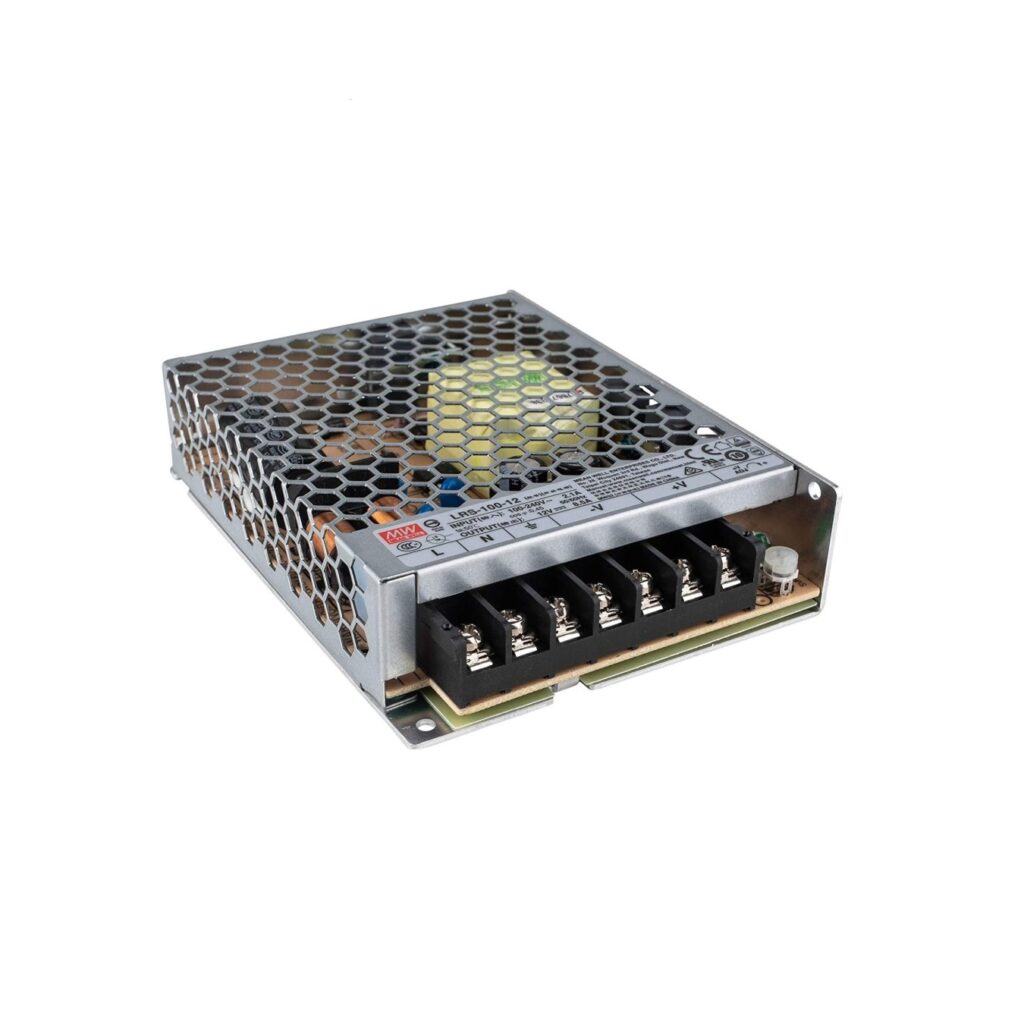

Meanwell Enclosed Power Supply - LRS-100-12 - 12V 100W
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Non-PFC, ultra-compact enclosed 12V 100W Mean Well power supply; 8.5A; 300VAC surge; no-load 0.2–0.75W; 5G vibration; 70°C operation; altitude up to 5000 m.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
- Non-PFC, most economical models
- Ultra compact and 1U low profile
- 300VAC input surge
- No load power consumption: 0.2W~0.75W
- 5G vibration, 70℃ operation
- Operating altitude up to 5000 meters
- Complete safety certificates: IEC/EN60335-1(PD3), IEC/EN61558-1, -2-16; IEC/EN/UL62368-1 and GB4943
- Description : AC-DC Single output enclosed power supply; Universal AC input; Output 12Vdc at 8.5A; Up to 5G vibration; 1U low profile
- Application : Household EN 60335 / IT AV EN/UL/IEC 62368-1
- Technology : AC/DC
- Power Format : Box Type — Enclosed
- Output Power : 100W
- Output Voltage : 12V
- Output Current : 8,5A
- Input Voltage : 85 — 264V / Universal Input 110/230V
- IP Rating : No IP assigned
- Width : 97mm
- Height : 30mm
- Depth :129mm
- Dimming Technology : No Dimming
| Type | Bare |
| Voltage | 12V |
| Ampers | 8,5A |
| Current | 8.5A |
