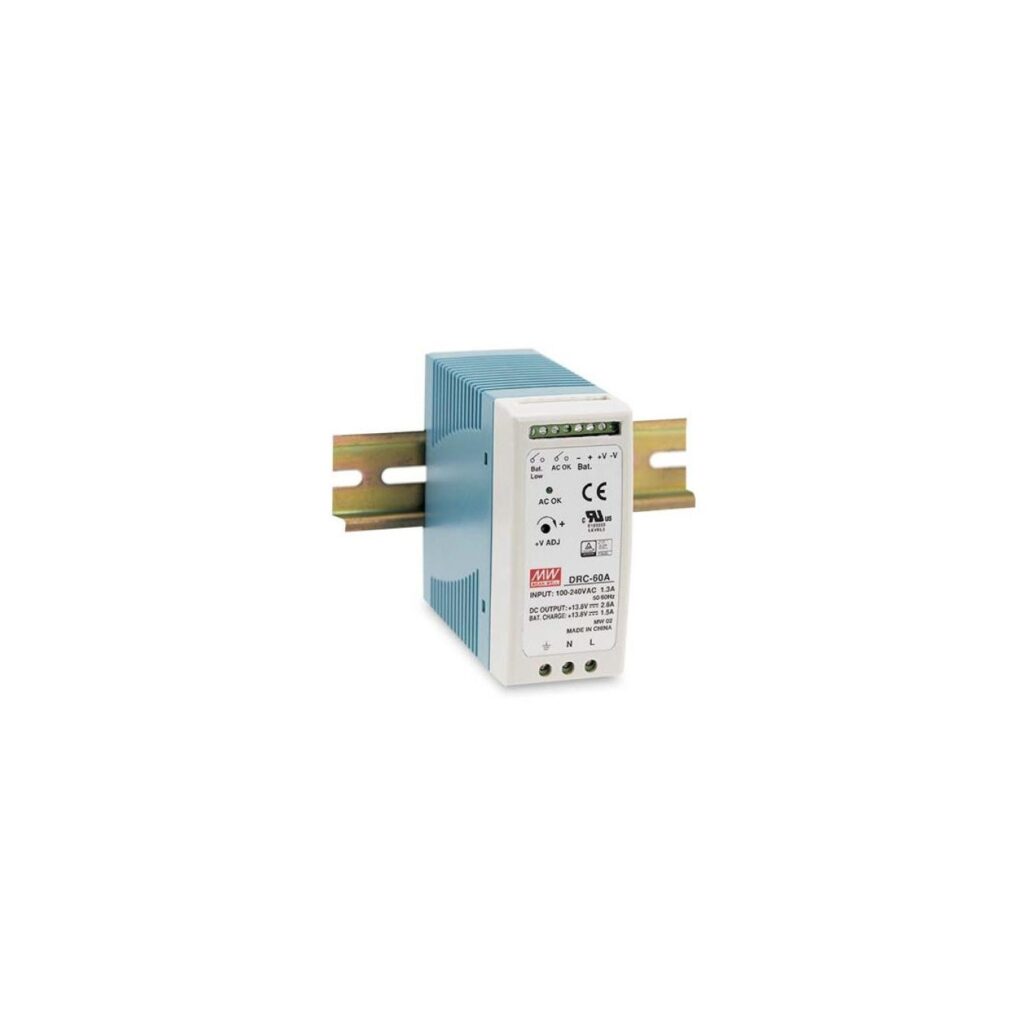

Meanwell DIN Rail Power Supply with UPS Function - DRC-60A - 12V 60W
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
DIN rail 12V 60W power supply with UPS function (external batteries required); ideal for security and backup systems; mounts on TS-35 rails.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
- With UPS function (need external batteries)
- Suitable for security industry or battery backup systems
- Assemble on industrial rail TS-35 / 7.5 or 15
- Description : AC-DC DIN rail single output power supply with battery charger (UPS function); Output 13.8Vdc at 2.8A and 13.8Vdc at 1.5A
- Application : Battery Charging / ITE EN/UL/IEC 60950
- Net weight : 370g
- Technology : AC/DC
- Power Format : DIN rail
- Output Power : 100W
- Output Voltage : 13.8V
- Output Current : 4.3A
- Input Voltage : 90 — 264V / Universal Input 110/230V
- IP Rating : No IP assigned
- Width : 40mm
- Height : 90mm
- Depth :100mm
- Dimming Technology : No Dimming
| Type | Din-Rail |
| Voltage | 12V |
| Ampers | 4.3A |
| Current | 4.3A |
