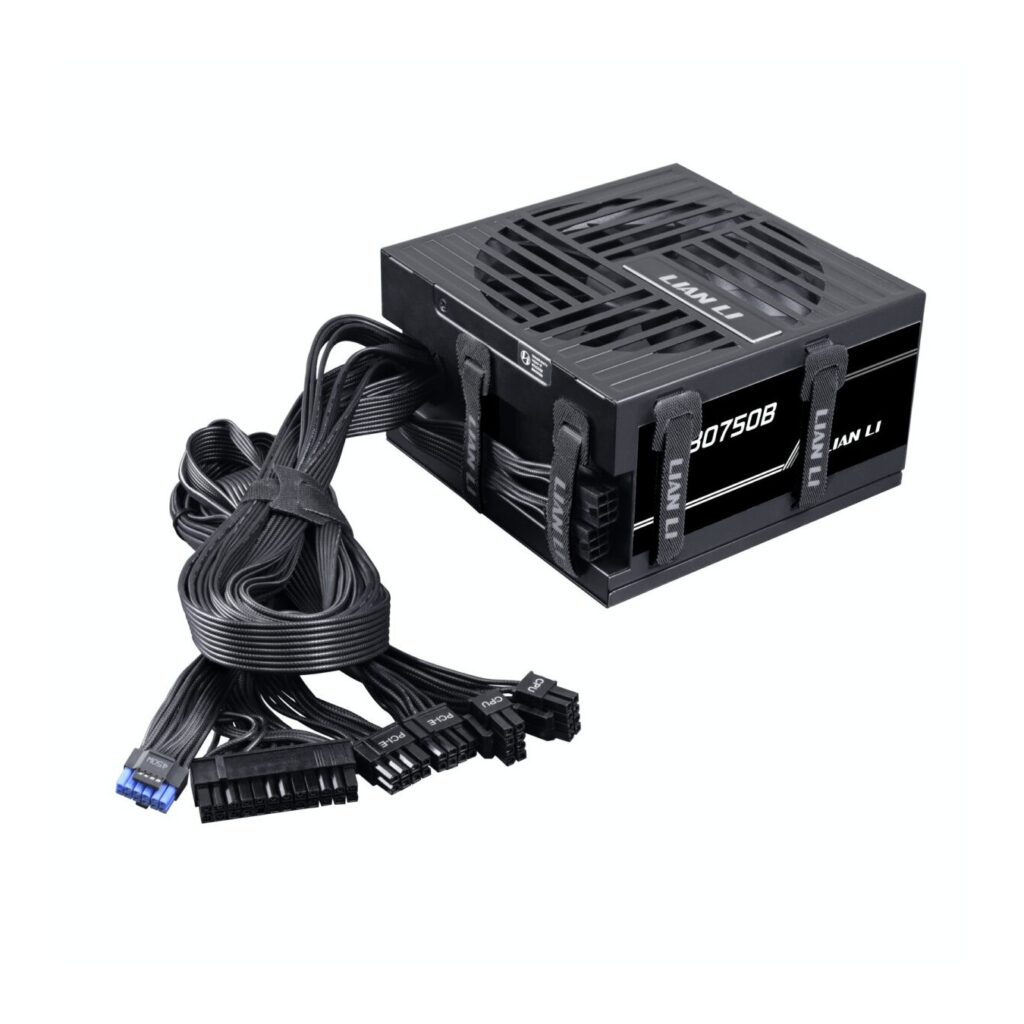

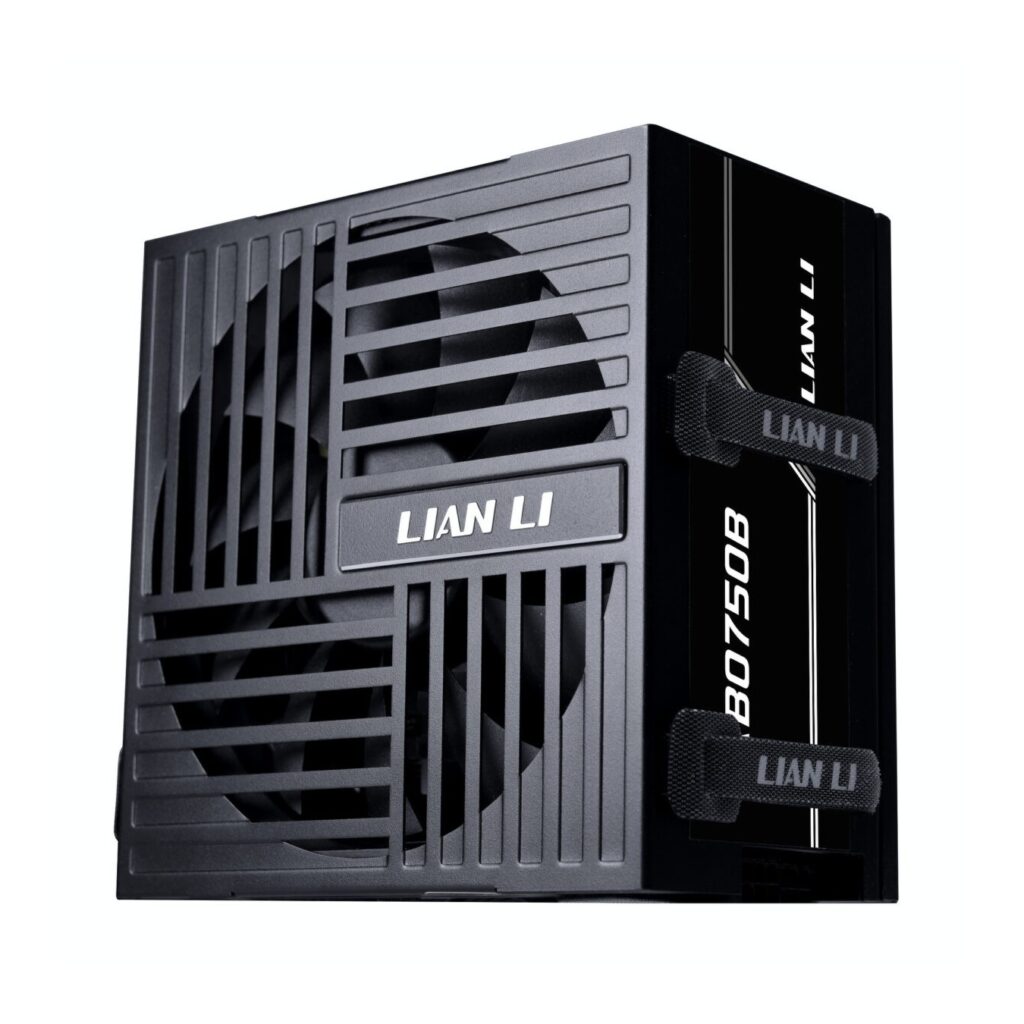

Lian Li RB0750B 750W 80+ Bronze ATX 3.1 PCIe 12V-2x6 PSU - 135mm Fan
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Lian Li RB0750B 750W 80+ Bronze PSU with ATX 3.1, native 12V-2×6 connector, integrated cable management via Velcro straps, 135mm HYB fan for quiet cooling, and 105°C capacitors. Non-modular, 150mm depth, 5-year warranty.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

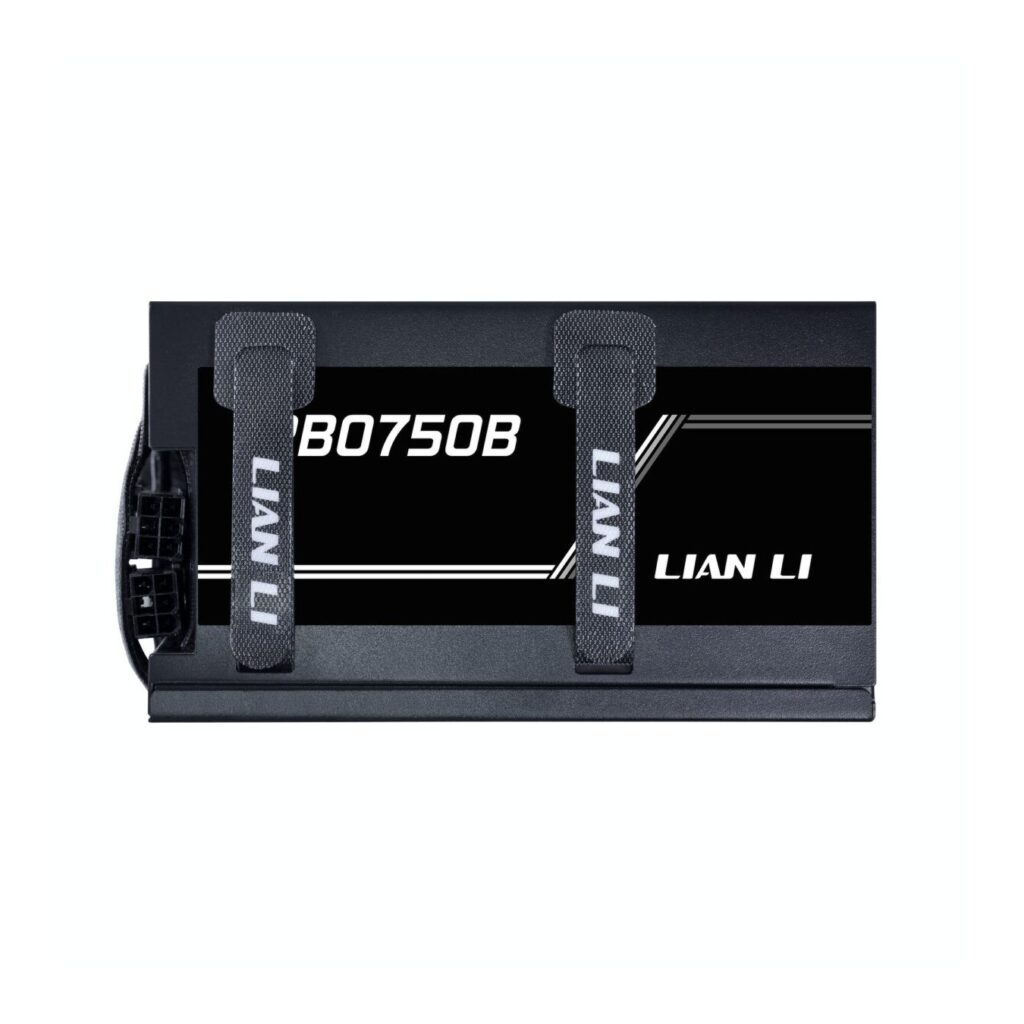

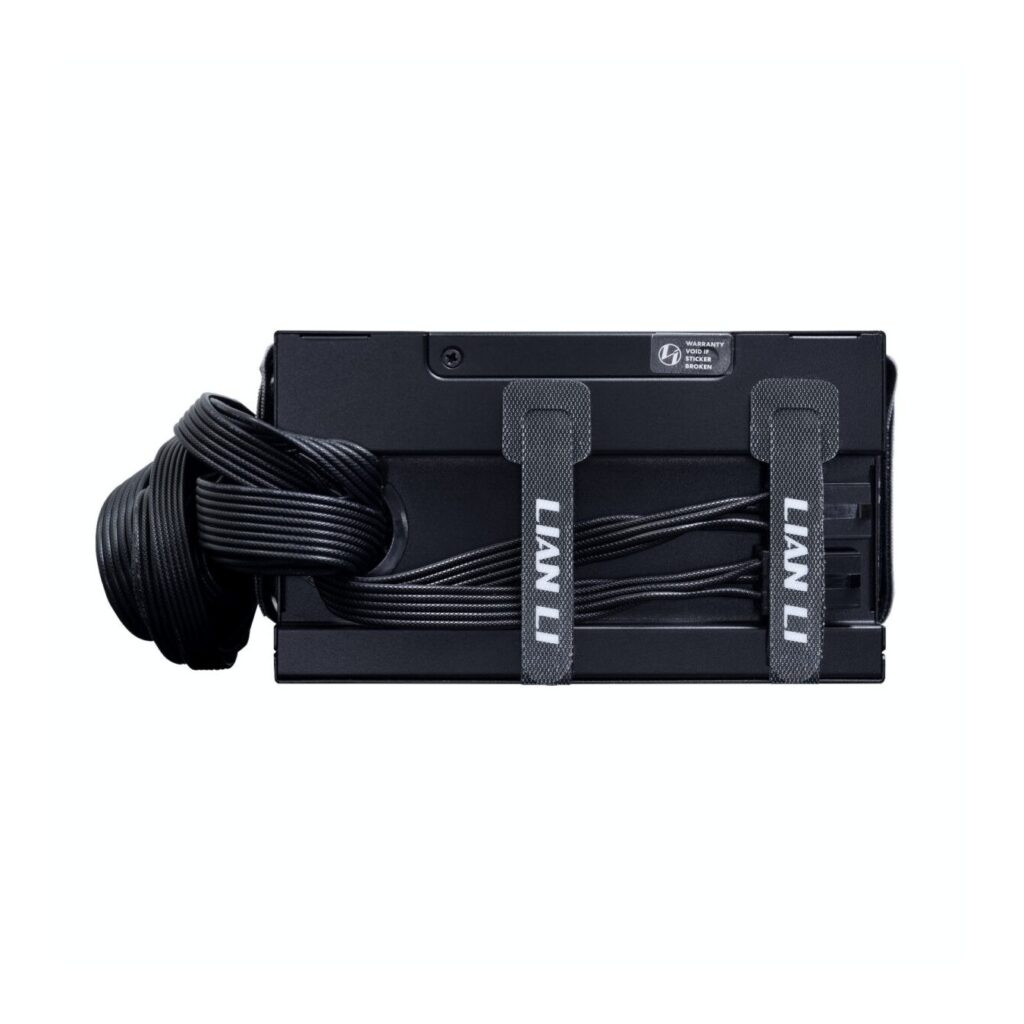

Lian Li RB Series PSU delivers a cleaner build with more storage space. Built-in cable management with deep routing channels and Velcro straps on three sides maximizes space and reduces clutter for professional-looking systems.
Reliable Performance & Daily Savings 80 PLUS Bronze certified for up to 85% energy conversion efficiency. Reduces heat and power consumption, ideal for everyday systems. Features a single high-amperage +12V rail and DC-to-DC design for stable power output under loads up to 40°C ambient.
Quiet Cooling & High Compatibility 135mm HYB smart fan (1600 RPM max, 40.1dBA) provides superior airflow at low noise. ATX 3.1 compliant with native 12V-2×6 (450W) PCIe connector plus extra 12V-2×6 to 6+2pin cable (total 3x 8-pin effective for high-end AMD GPUs). Compact 150mm depth fits most ATX cases. Full protections: OPP, OVP, SCP, OCP, UVP, OTP. 5-year warranty.

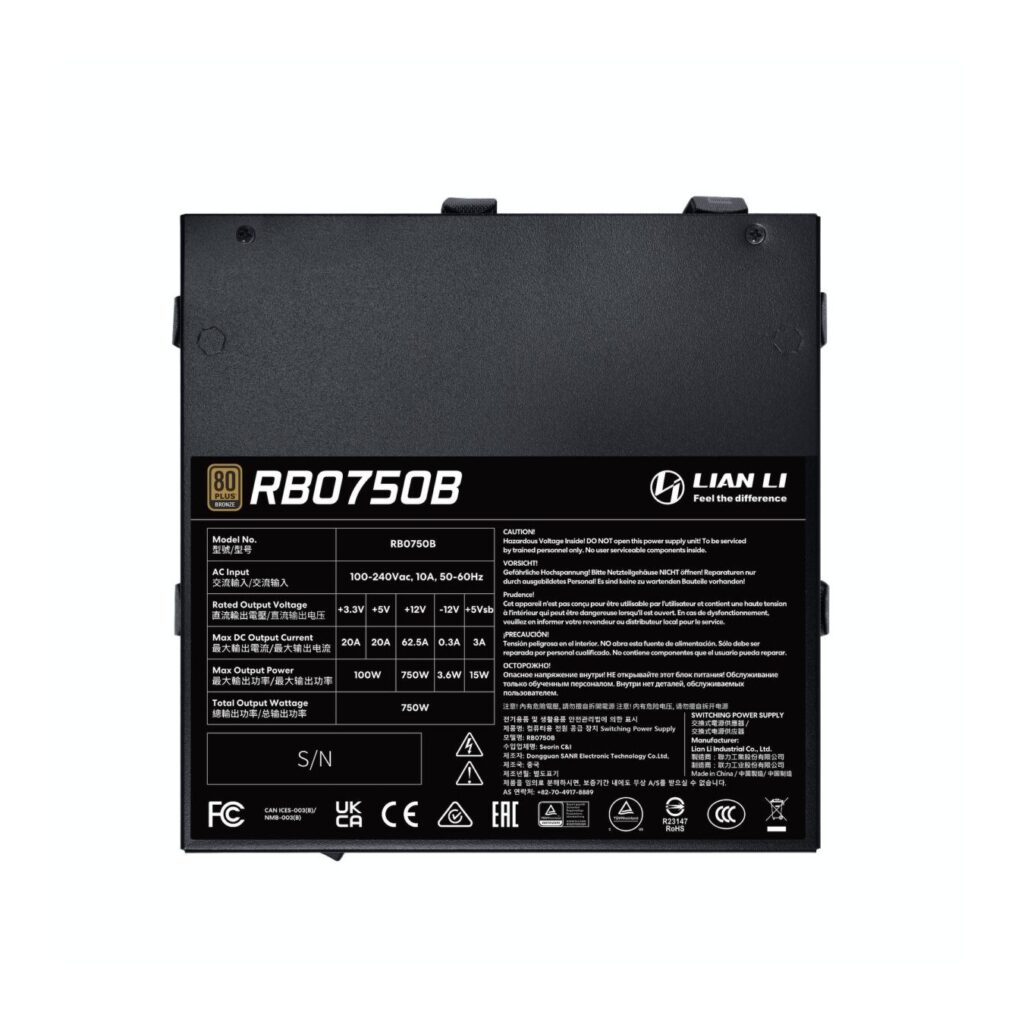

- 750W max output, Combined +12V: 750W

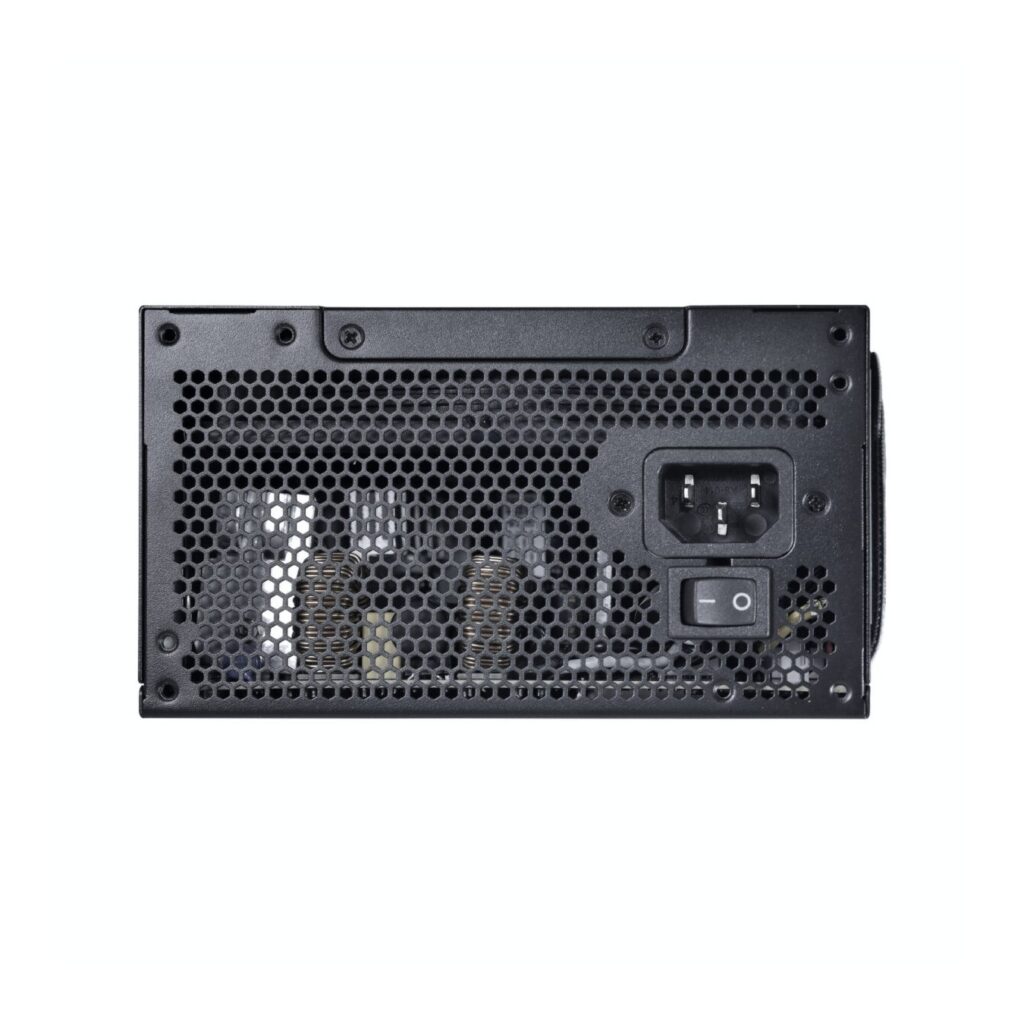

- Non-modular black design, 100-240Vac input
- 2x CPU 4+4pin, 1x 20+4pin MB, SATA/Peripheral cables
- MTBF 100,000 hours @ 25°C/75% load
- Safety: CE/CB/cTUVus/TÜV/FCC/BSMI/CCC/KCC/SAA+RCM
| Model | RB0750B |
| ATX12V Version | ATX 3.1 |
| Efficiency | 80 PLUS Bronze |
| DC Output Cable | Non-Modular |
| Dimensions | (D)150 mm x (W)86 mm x (H)150 mm |
| Color | Black |
| PFC | Active PFC, PF > 0.95 under full load @ 115Vac, 60Hz |
| Input Rating | 100-240Vac 10A, 50-60Hz |
| Max. DC Output | 750W |
| Combined +12V | 750W |
| Combined +3.3V & +5V | 100W |
| Fan Spec | 135mm HYB Fan |
| Fan RPM | 1600rpm |
| Noise Level | 40.1dBA |
| MTBF | 100,000 hrs minimum 25°C/75% Load |
| Protection | OPP, OVP, SCP, OCP, UVP, OTP |
| Safety Approval | CE/CB/cTUVus/TÜV/FCC/BSMI/CCC/KCC/SAA+RCM |
| Warranty | 5 Years |
| Capacitors | 105°C Japanese |
| PCIe Connectors | 1x 12V-2x6 (450W), 1x 6+2pin PCIe (650+150mm, daisy-chain) |
| CPU Connectors | 2x 4+4pin (650mm) |
| MB Connector | 1x 20+4pin (600mm) |
