IB-PCI215M2-HSL PCIe Card for 2x M.2 SSDs w/ Heatsinks ICY BOX
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
PCIe card for 1x M.2 SATA (6 Gbit/s) + 1x M.2 NVMe SSD (up to 64 Gbit/s). Supports 22×30-110mm sizes, incl. heatsinks for 2280/22110, modular low/full profile brackets.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

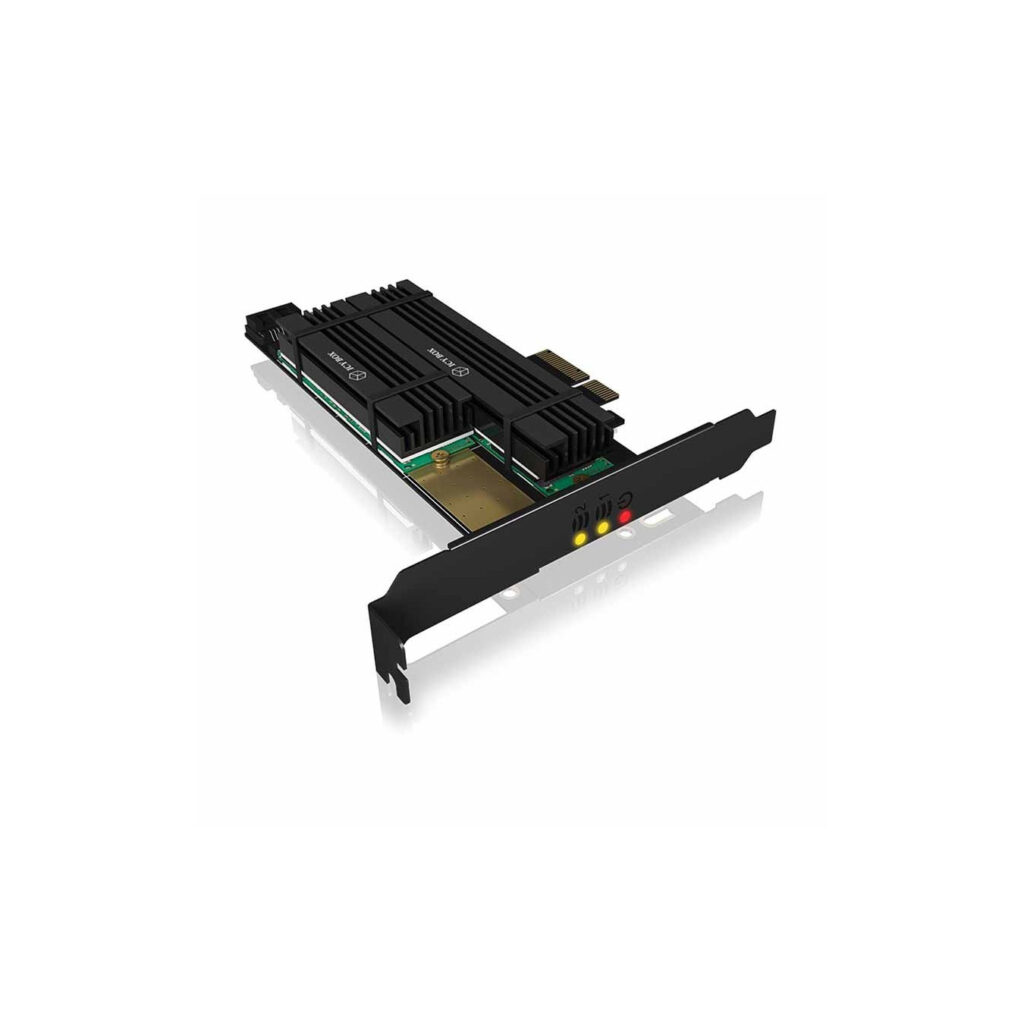

The ICY BOX IB-PCI215M2-HSL is a versatile PCIe extension card that adds support for two M.2 SSDs to your system: one SATA (B-Key or B+M-Key) with up to 6 Gbit/s transfer rate and one PCIe NVMe (M-Key) with up to 64 Gbit/s bandwidth.
It supports various M.2 sizes from 22×30/42/60/80/110 mm and includes passive heatsinks for 2280 and 22110 SSDs, with customizable thermal pads for optimal cooling. Modular slot covers allow use in both low-profile (80mm) and full-height (120mm) cases.
- Easy PCIe installation for enhanced storage
- 1x SATA M.2 + 1x NVMe M.2 slots
- Included heatsinks prevent thermal throttling
- Backward compatible with PCIe 3.0 systems
| Product Type | M.2 SATA/NVMe SSD to PCIe Adapter |
| MPN | IB-PCI215M2-HSL |
| M.2 Slots | 1x B-Key (SATA AHCI) + 1x M-Key (PCIe NVMe) |
| SATA Transfer Rate | up to 6 Gbit/s |
| PCIe Transfer Rate | up to 64 Gbit/s (PCIe x4) |
| Supported M.2 Sizes | 22x30/42/60/80/110 mm |
| Heatsinks Included | For 2280 and 22110 M.2 SSDs |
| Bracket Options | Low-profile 80mm / Full-height 120mm |
| Weight (unboxed) | 64 g |
