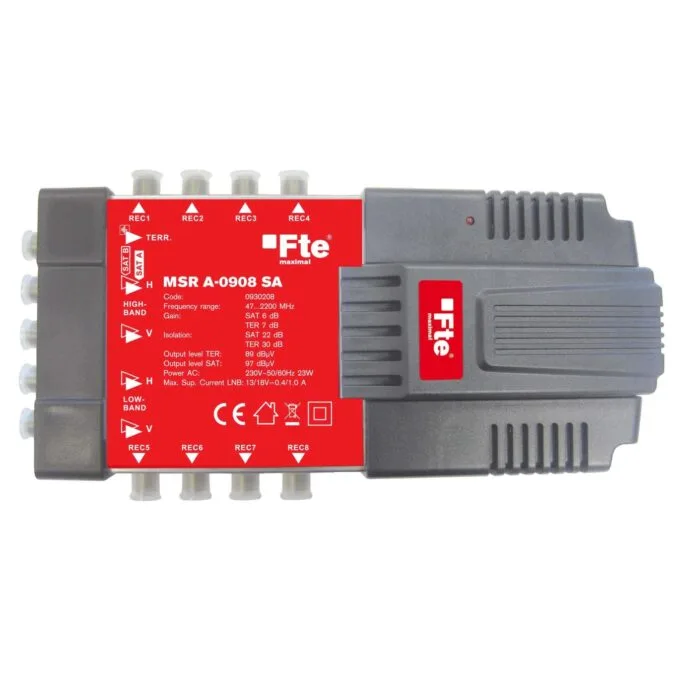

FTE Multiswitch - MSRA0908 - 9 8 Active Sat Ter Multiswitch
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
9 inputs (8 SAT, 1 TER), 8 outputs; Active terrestrial multiswitch. SAT 950-2200 MHz; TER 47-862 MHz; Isolation TER-to-SAT ≥30 dB, SAT-to-TER ≥28 dB.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
- Number of inputs: 8 SAT, 1 TER
- Subscriber outputs: 8
- Connectors (F-con): female
- Frequency range (MHz): SAT 950-2200, TER 47-862
- Isolation: TER to SAT ≥ 30 dB, SAT to TER ≥ 28 dB
- Isolation cross polarisation H/V: ≥ 25 dB
- Isolation: out — out TER ≥30 dB, out — out SAT ≥ 22 dB
- Return loss: SAT inputs ≥ 10dB, SAT outputs ≥ 8dB, TER inputs ≥ 10dB, TER outputs ≥ 8dB
- Output level: SAT (IMD- 35 dB) 97 dBμV, TER (IMD- 60 dB) 89 dBμV
- Impedance input/output: 75 Ohm
- Max current to LNB: 13 VDC: 400 mA / 18 VDC: 1000 mA
- Mains: ~230V ± 15%, 50/60Hz, 23W
- Dimensions: 248x129x64 mm
| Type | Multiswitch |
| Inputs | 9 |
| Outputs | 8 |
| Active Terrestrial | Yes |
| Series | MSR |
