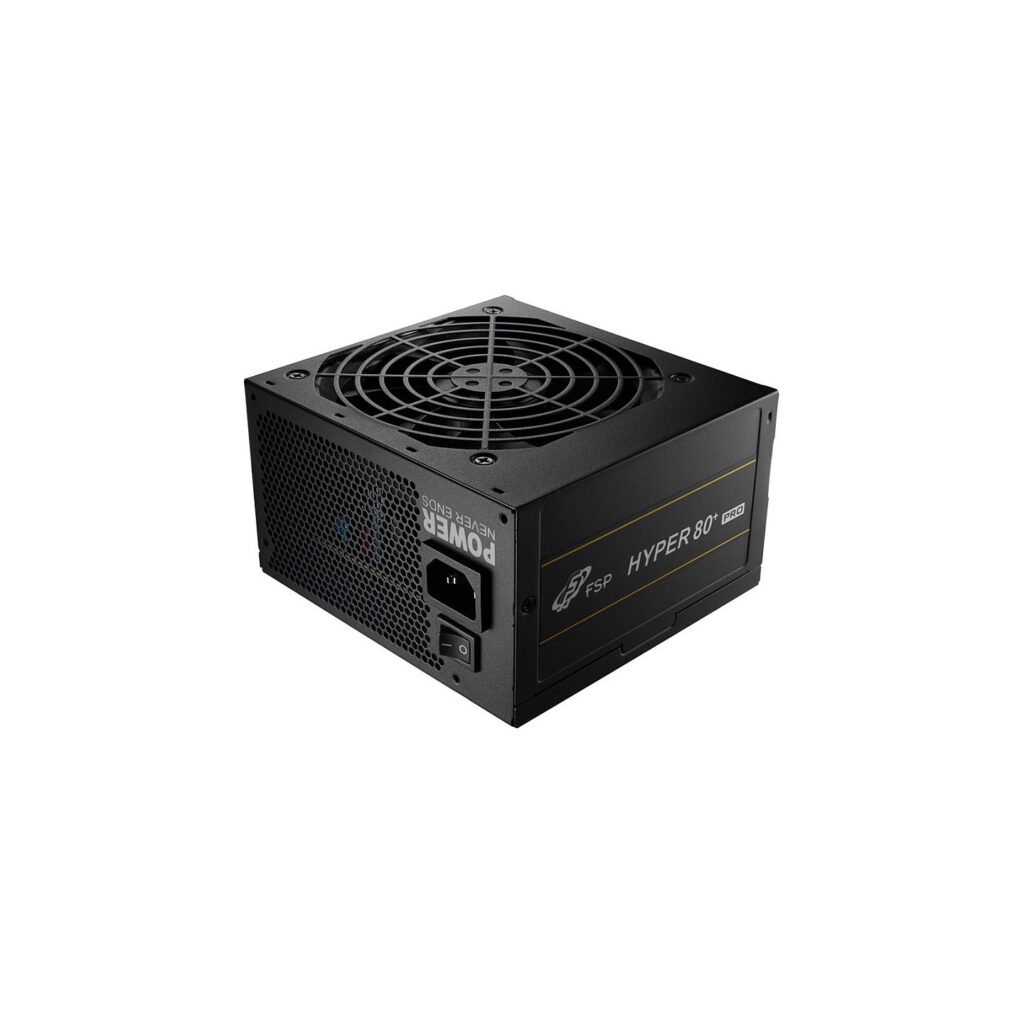

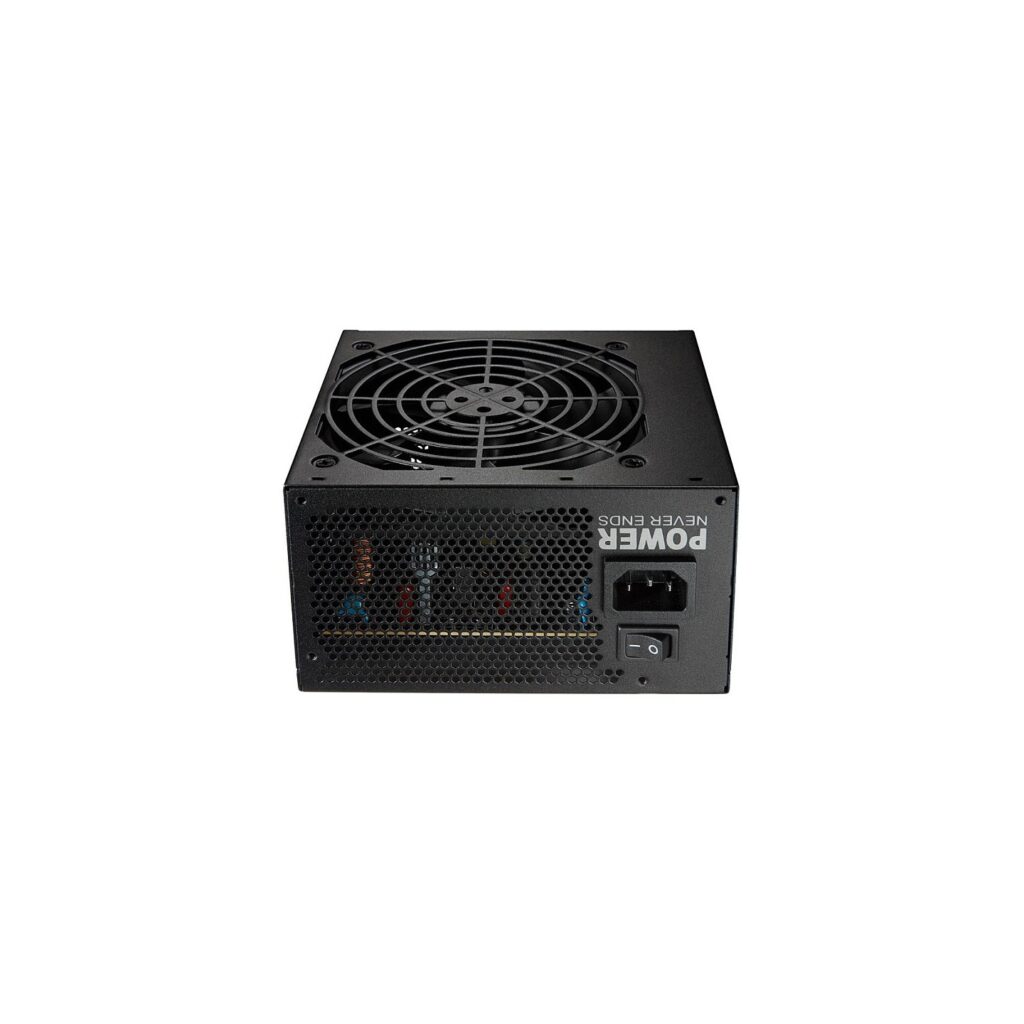

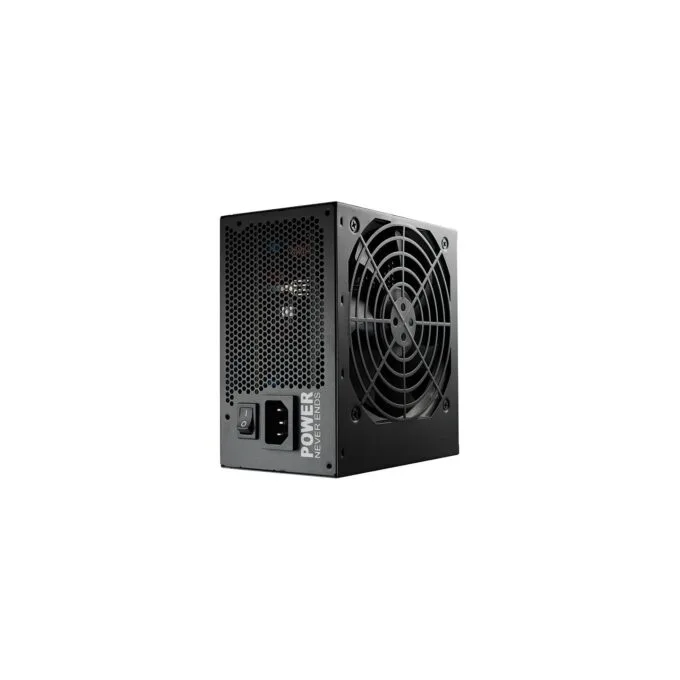

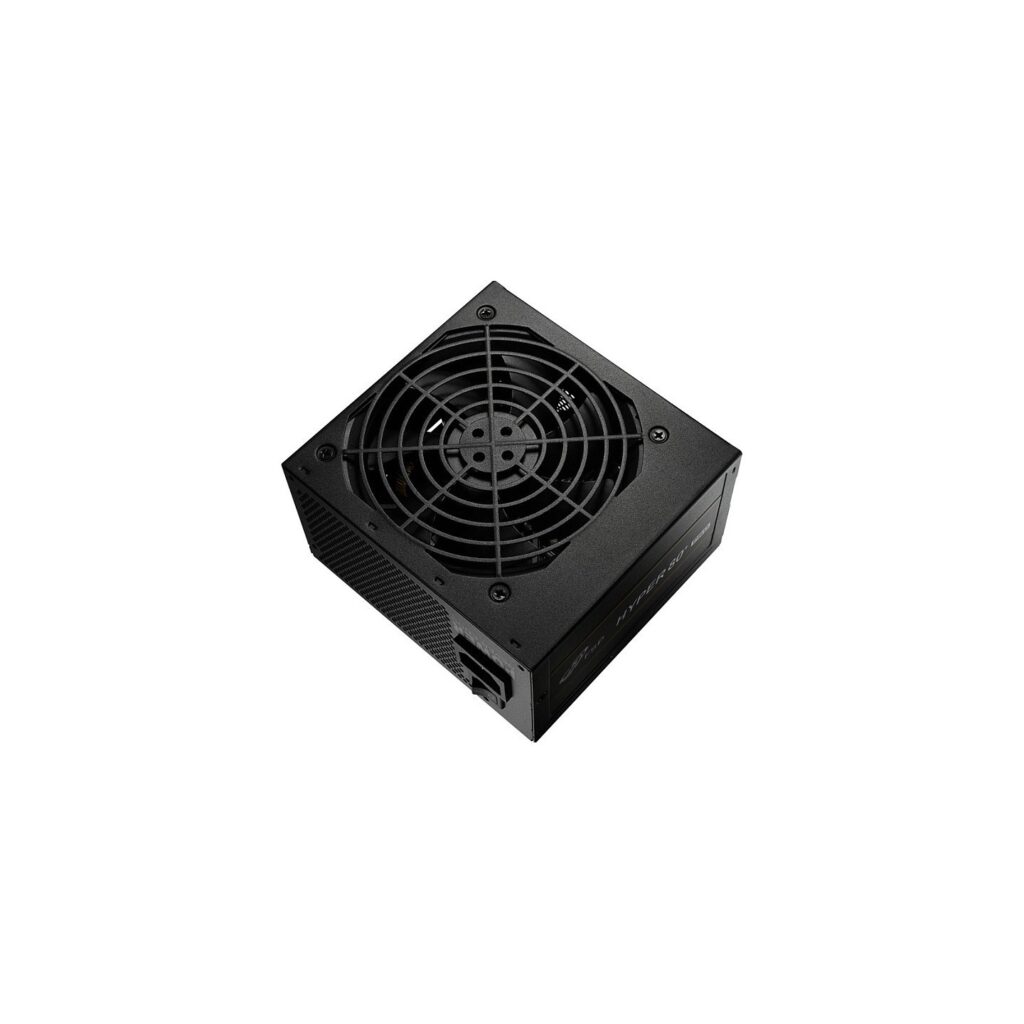

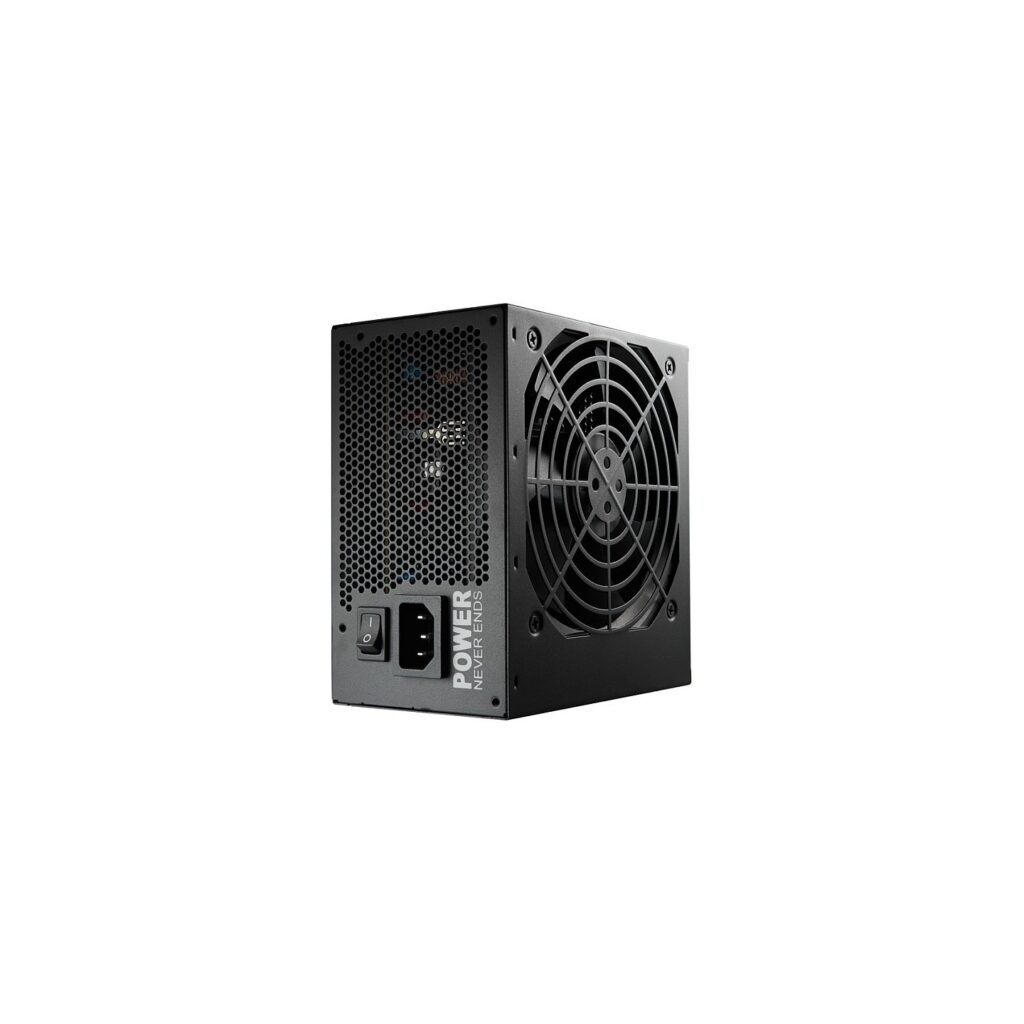

FSP HYPER 80+ PRO 650W G5.1 ATX 3.1 80+ Bronze PSU
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
FSP HYPER 80+ PRO 650W G5.1 is an ATX 3.1 compliant PSU with 80 PLUS Bronze efficiency (85-88%). Features 650W single +12V rail, active PFC, 120mm fan, non-modular black cables. Includes 4x PCIe 6+2pin, 1x 8pin, 8x SATA. Ideal for mid-range PCs.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The FSP HYPER 80+ PRO 650W G5.1 is a reliable ATX 3.1 power supply unit designed for PC and server builds. Certified 80 PLUS Bronze for 230V EU (≥85% efficiency at typical load), it delivers 650W total power via a powerful single +12V rail (54.1A, 649.2W). Equipped with active PFC (≥0.9), DC-DC design for +5V/+3.3V, and hold-up time >17ms.

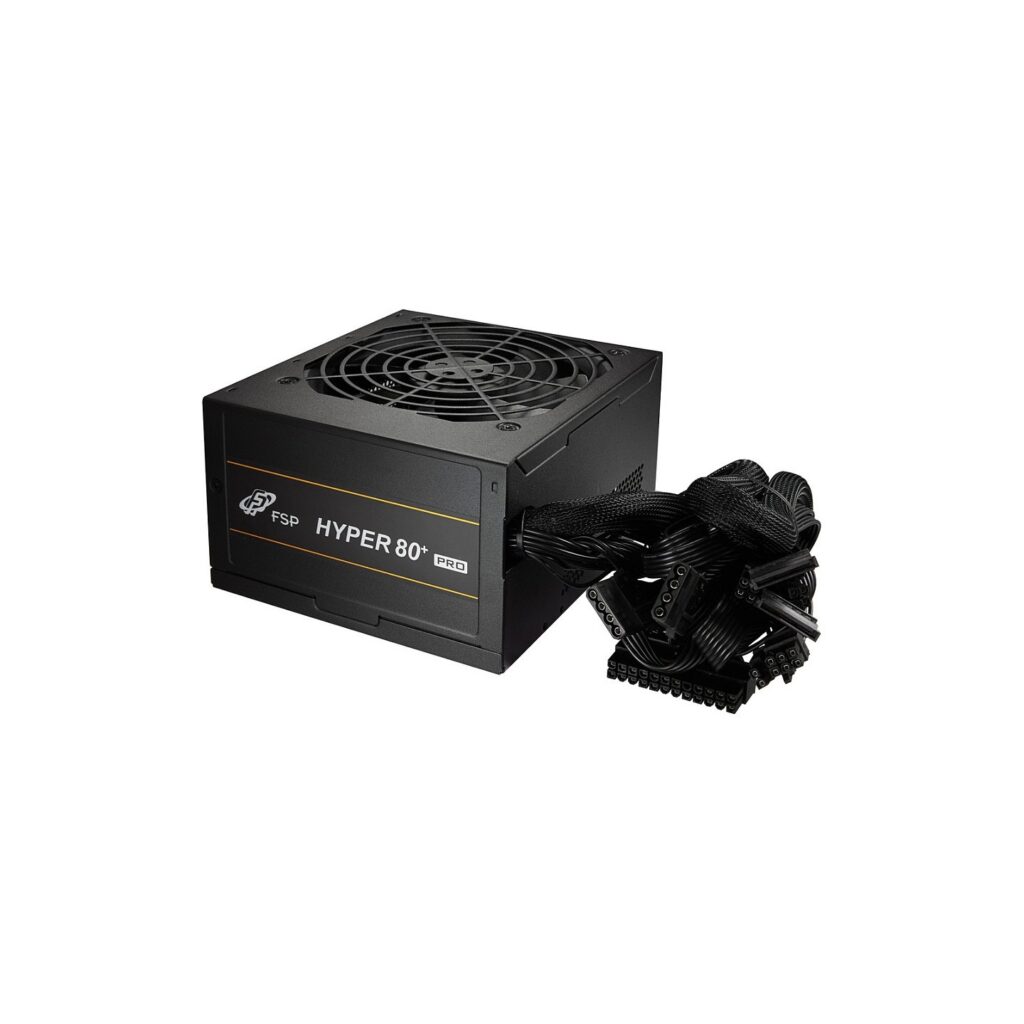

Non-modular with all-black round cables for clean builds. Cooling via quiet 120mm sleeve fan (top-mounted). Full protections: OCP, OVP, OPP, SCP, OTP. Connectors: 24-pin ATX, 1x EPS 8-pin (4+4), 4x PCIe 6+2-pin, 1x PCIe 8-pin, 8x SATA, 2x Molex, 1x Floppy. Dimensions: 150x140x86mm, weight 1.46kg.
- ✅ ATX 3.1 & EPS 2.92 compliant
- ✅ 450V 105°C Japanese capacitors
- ✅ Low noise thermal fan control
- ✅ Complete protection suite
- ✅ Black cables for aesthetics
| Total Power | 650 W |
| Form Factor | ATX |
| ATX Version | 3.1 |
| EPS Version | 2.92 |
| 80 Plus Certification | 80 PLUS Bronze (230V EU) |
| Efficiency | ≥88% at typical load |
| Input Voltage | 200-240 V |
| Input Current | 5 A |
| Input Frequency | 50-60 Hz |
| PFC | Active PFC ≥0.9 |
| Fan Diameter | 120 mm |
| Fan Type | Sleeve bearing |
| Dimensions (L x W x H) | 150 x 140 x 86 mm |
| Weight | 1.46 kg |
| Max +3.3V | 20 A |
| Max +5V | 20 A |
| Max +12V | 54.1 A |
| Max -12V | 0.3 A |
| Max +5Vsb | 2.5 A |
| Combined +3.3V/+5V | 100 W |
| Combined +12V | 649.2 W |
| Hold-up Time | >17 ms at 80% load |
| Protections | OCP/OVP/OPP/SCP/OTP |
| Mainboard Connector | 24-pin ATX |
| PCIe 6+2pin | 4 |
| PCIe 8pin | 1 |
| SATA Connectors | 8 |
| Molex 4pin | 2 |
| Floppy | 1 |
| Cable Type | Non-modular, black round cables |
| Color | Black |
