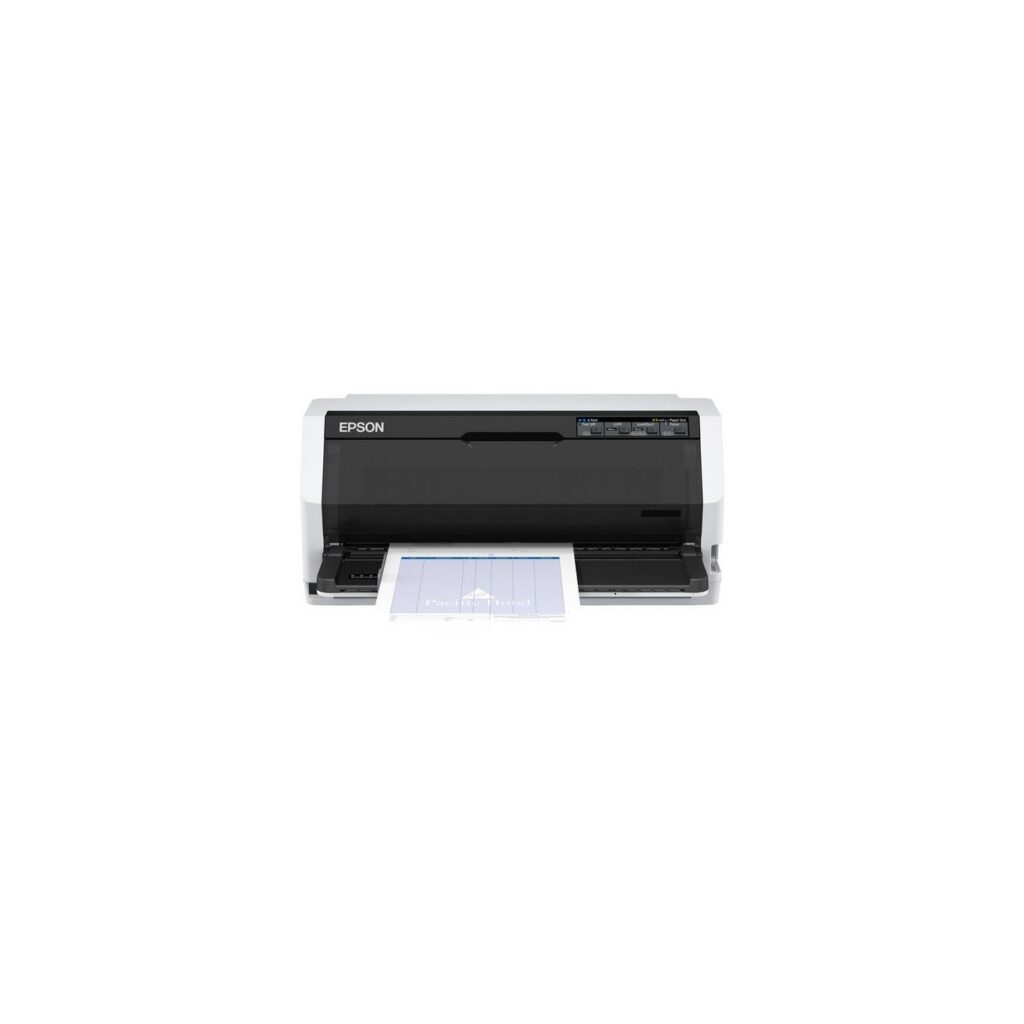

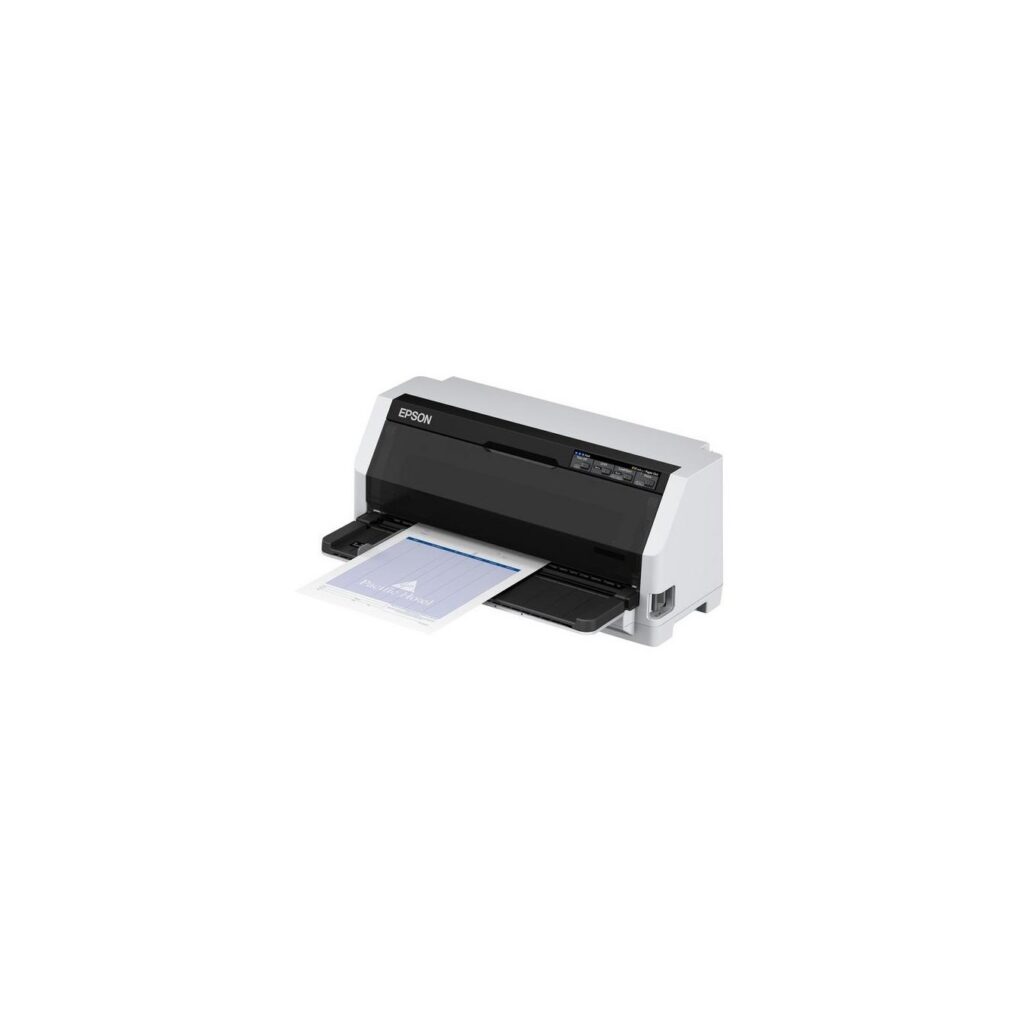

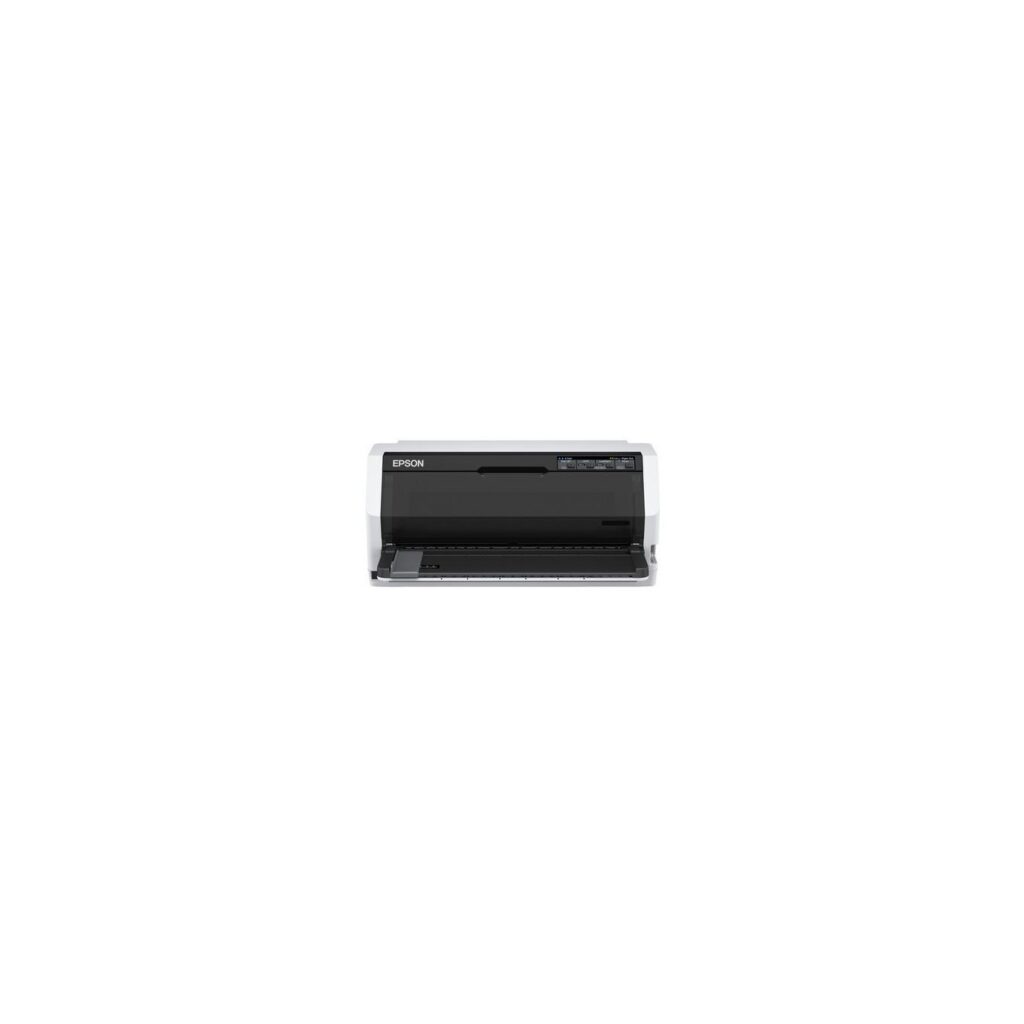

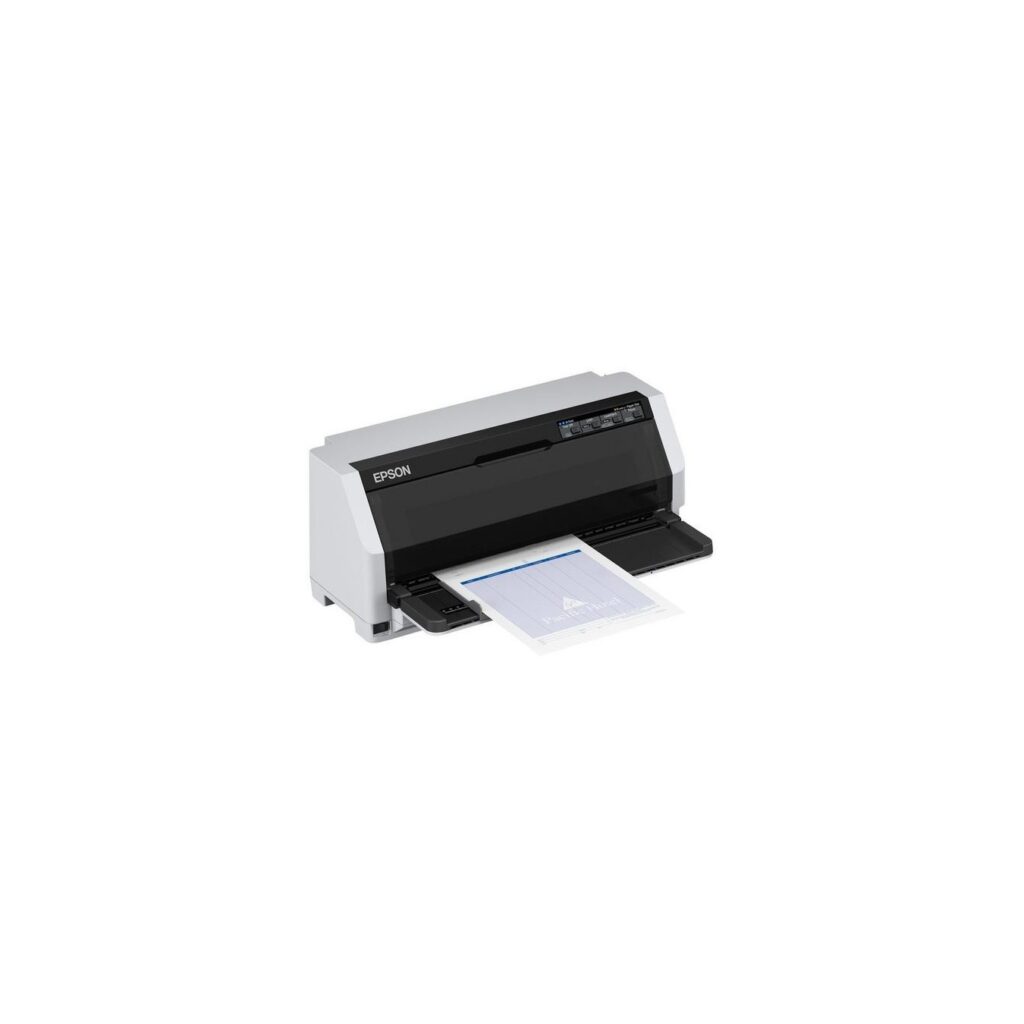

Epson - LQ-690IIN
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
EPSON LQ-690IIN: 487 cps, 360×180 dpi, 7-copy capability, supports CODABAR, Code 39, Code-128, EAN128, EAN13, Industrial 2/5, Interleaved 2/5.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Epson LQ-690II. Maximum print speed: 487 cps. Maximum resolution: 360 x 180 DPI. Maximum print speed (draft): 366 cps. Paper feed: Manual. Pull tractor. Paper tray media types: Envelopes. Labels. Plain paper. Roll. Continuous paper thickness range: 0.065 — 0.49 mm. Product colour: Black. White. Buffer size: 128 KB. Sound pressure level (printing): 59 dB. Standard interfaces: Parallel. USB 2.0. Print head: 24-pin. Print head life: 400 million characters. Ribbon life: 10 million characters
| Maximum resolution | 360 x 180 DPI |
| Maximum printing width (columns) | 106 |
| Maximum print speed | 487 cps |
| Maximum print speed (draft) | 366 cps |
| Maximum print speed (LQ) | 121 cps |
| Maximum number of copies | 7 copies |
| Built-in barcodes | CODABAR (NW-7). Code 39. Code-128 Codabar Library. EAN128. EAN13. Industrial 2/5. Interleaved 2/5. Matrix 2/5. POSTNET. UPC-A. UPC-E |
| Character sets | ISO 8859-15. Italic. PC437. PC708. PC720. PC850. PC858. PC864. PCAR864. Roman 8 |
| Paper feed | Manual. Pull tractor |
| Paper tray media types | Envelopes. Labels. Plain paper. Roll |
| Continuous paper thickness range | 0.065 - 0.49 mm |
| Label thickness range | 0.16 - 0.19 mm |
| Multi-part paper thickness range | 0.12 - 0.49 mm |
| Single sheet thickness range | 0.065 - 0.15 mm |
| Product colour | Black. White |
| Buffer size | 128 KB |
| Sound pressure level (printing) | 59 dB |
| Country of origin | Indonesia |
| Standard interfaces | Parallel. USB 2.0 |
| Print head | 24-pin |
| Print head life | 400 million characters |
| Ribbon life | 10 million characters |
| Mean time between failures (MTBF) | 20000 h |
| Power consumption (typical) | 38 W |
| Power consumption (standby) | 3 W |
| Operating temperature (T-T) | 5 - 35 °C |
| Feature | Windows operating systems supported |
| Bundled software | Epson Status Monitor |
| Width | 480 mm |
| Depth | 301 mm |
| Height | 211 mm |
| Weight | 6.8 kg |
