DisplayPort Splitter - 1x mini DisplayPort 1.2 to 4x DisplayPort 4K
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.

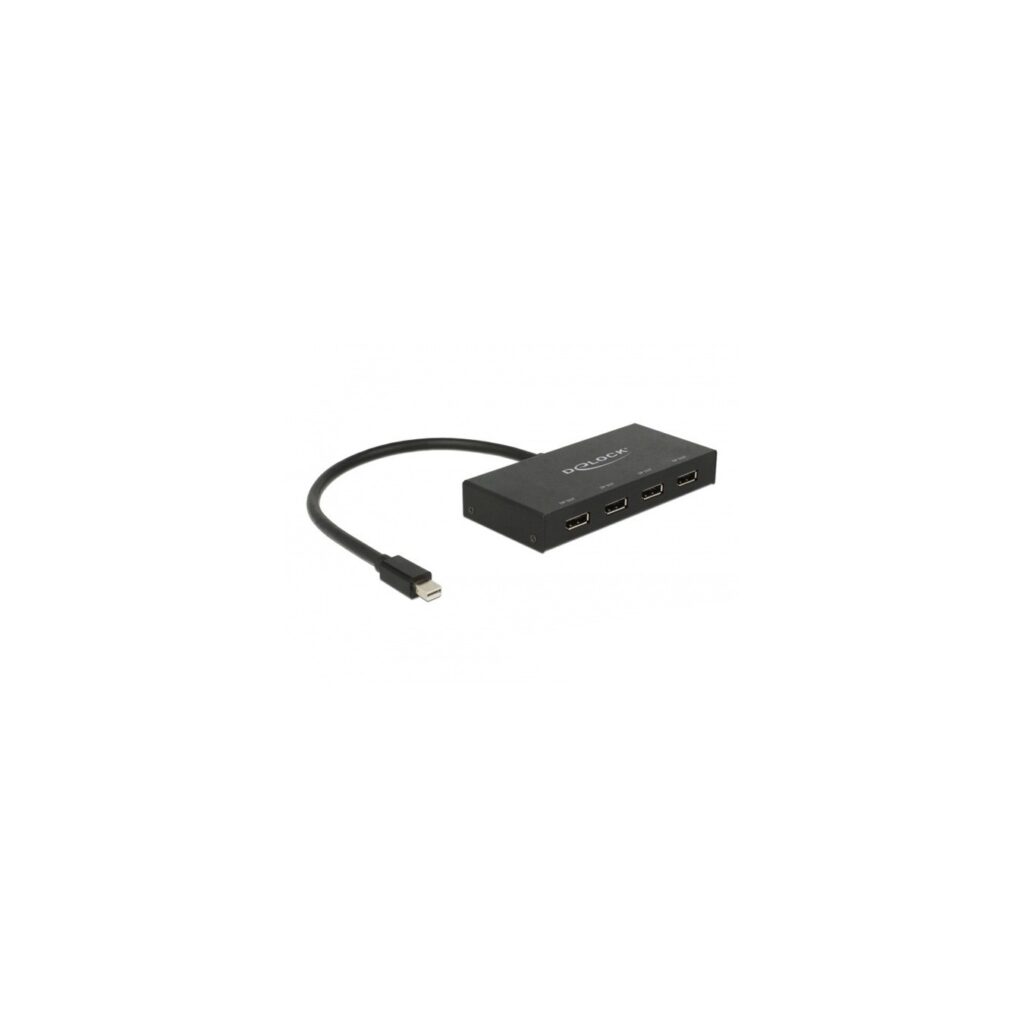

Delock DisplayPort 1.2 Splitter 87693 distributes one DP signal from a PC/notebook to four displays.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The DisplayPort 1.2 Splitter 87693 from Delock receives a DisplayPort signal from a PC or notebook and splits it between four connected screens. This means that four DisplayPort monitors can be operated on one DisplayPort connection. The outputs are dual mode capable (DP++), so HDMI or DVI monitors can also be connected with appropriate adapters.
| Typ | DisplayPort Splitter |
| Color | schwarz |
| EAN | 4043619876938 |
| Manufacturer no. | 87693 |
| Application example | Divides the video signal between four connected screens |
| Area | Audio / Video |
| Connection - from | 1x Mini DisplayPort (male) |
| Video classification | Displayport 1.2a |
| taps | 5 |
| Characteristics | extern |
| Feature | Metal housing, supports audio and video signals, DisplayPort output supports dual mode DP++ |
| More information | Chipset: STDP4320, active converter, Single / Multi Stream Transport Hub (SST / MST), maximum resolution (depending on the system and connected hardware): DisplayPort 1.1 or 1.2 Single Stream Transport (SST) up to 1,920 x 1,080 @ 60Hz (mirrored), DisplayPort 1.2 Multi Stream Transport (MST) up to 2,560 x 1,440 @ 60Hz or 3,840 x 2,160 @ 30Hz (mirrored or extended), max. 4x 1,920 x 1,080 @ 60Hz, supports Eyefinity / Single Large Surface (SLS), audio input formats: 7.1 channel with a sampling rate up to 192 kHz |
| Notice | OS independent, no driver installation required |
| Accessories - available | User manual, external power supply |
| Dimensions | Width: 67mm x Height: 23mm x Depth/Length: 143mm |
| Cable length | 30 cm |
