The der8enchtable is a collaboration between Thermal Grizzly with Jon “elmor” Sandström (ElmorLabs) and Roman “der8auer” Hartung. In addition to the functions of a normal benchtabl…
For any questions about this item, availability, or delivery times, please contact us at 22 270068

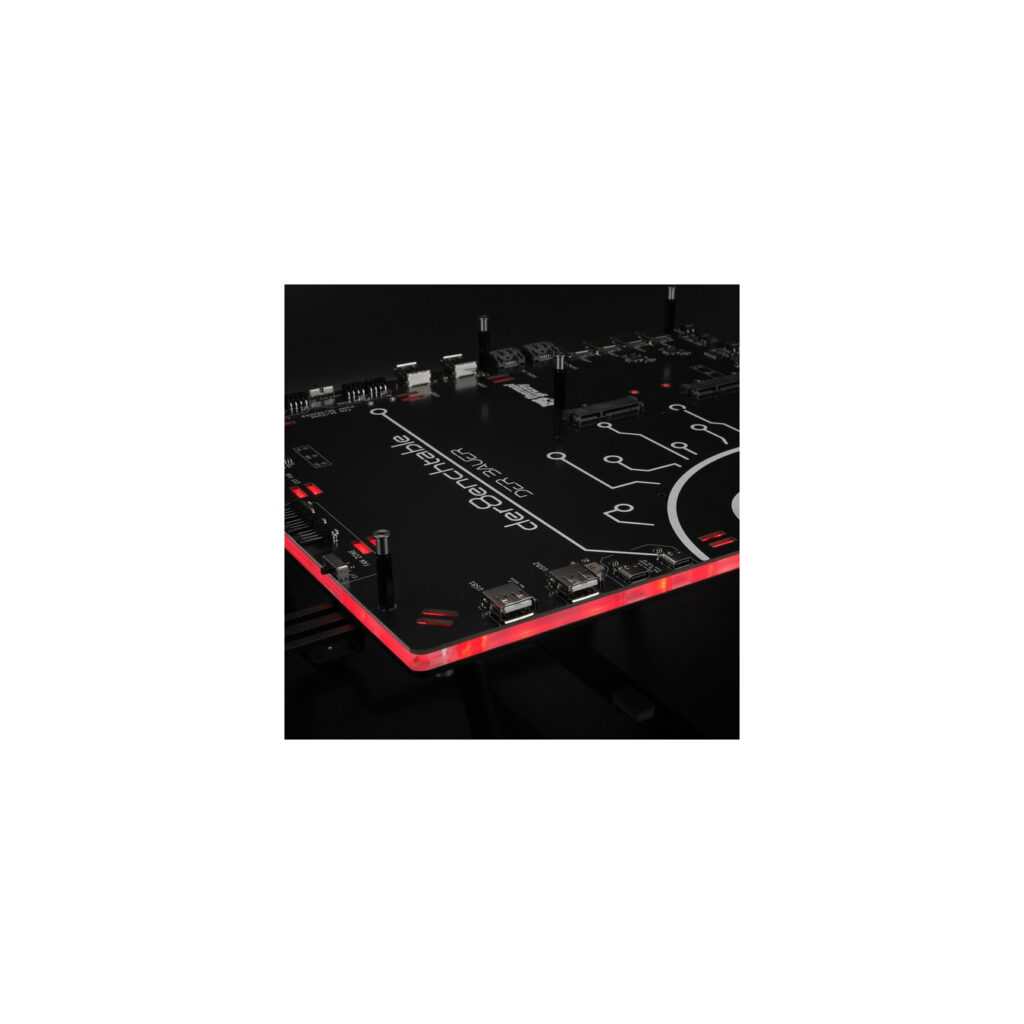

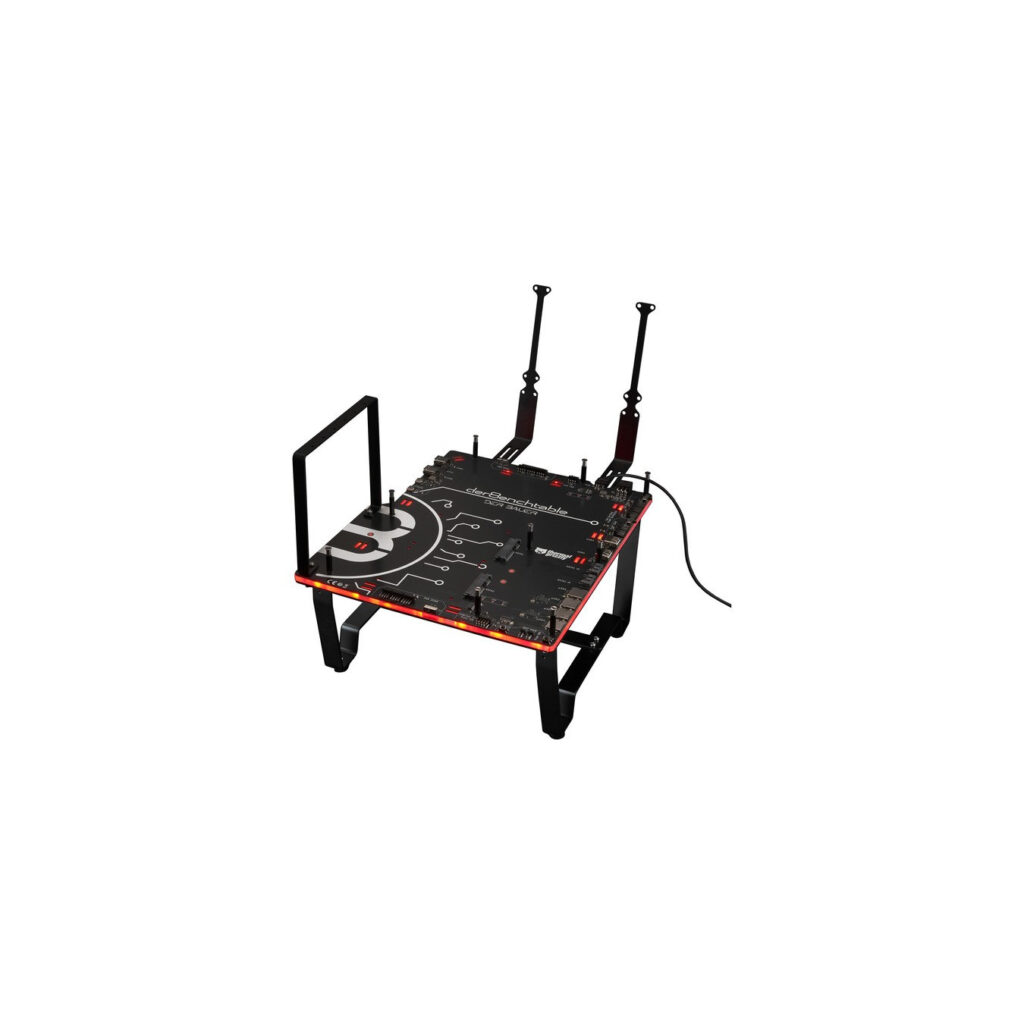

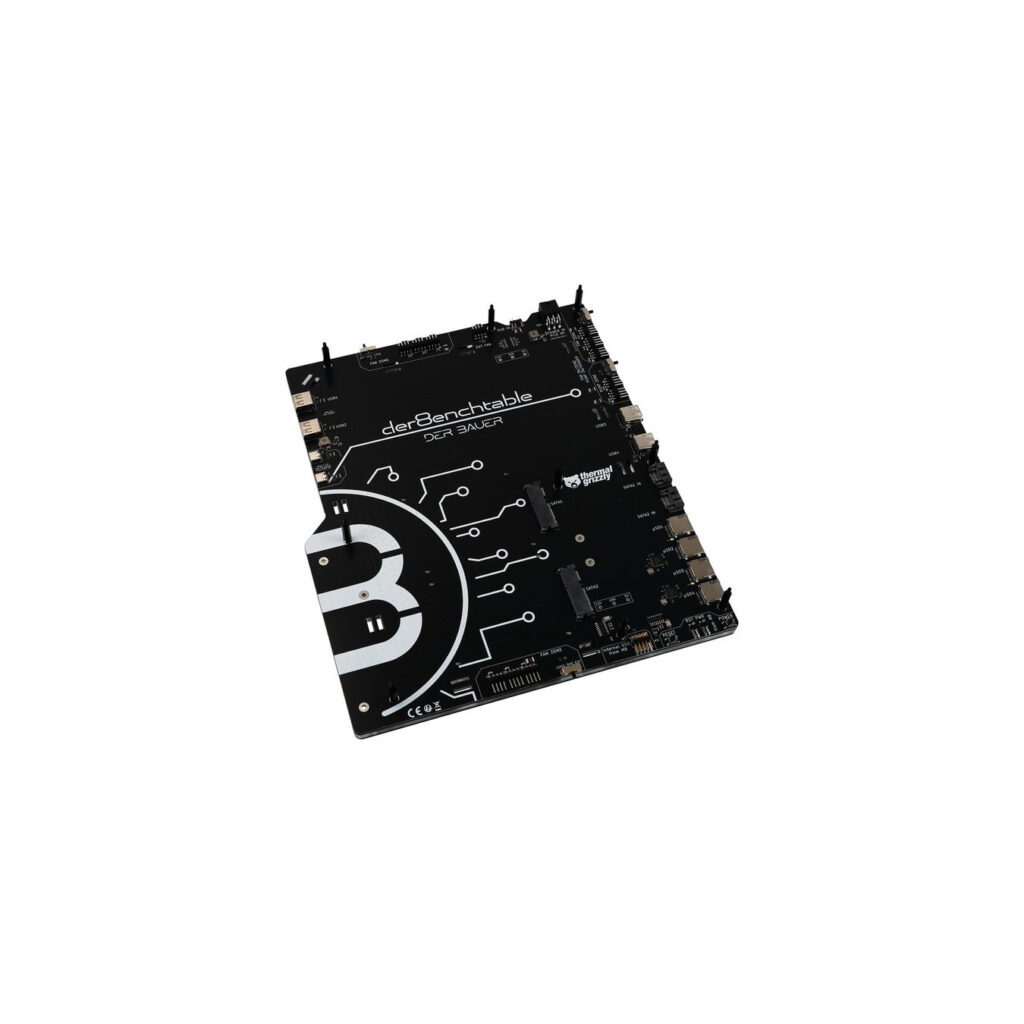

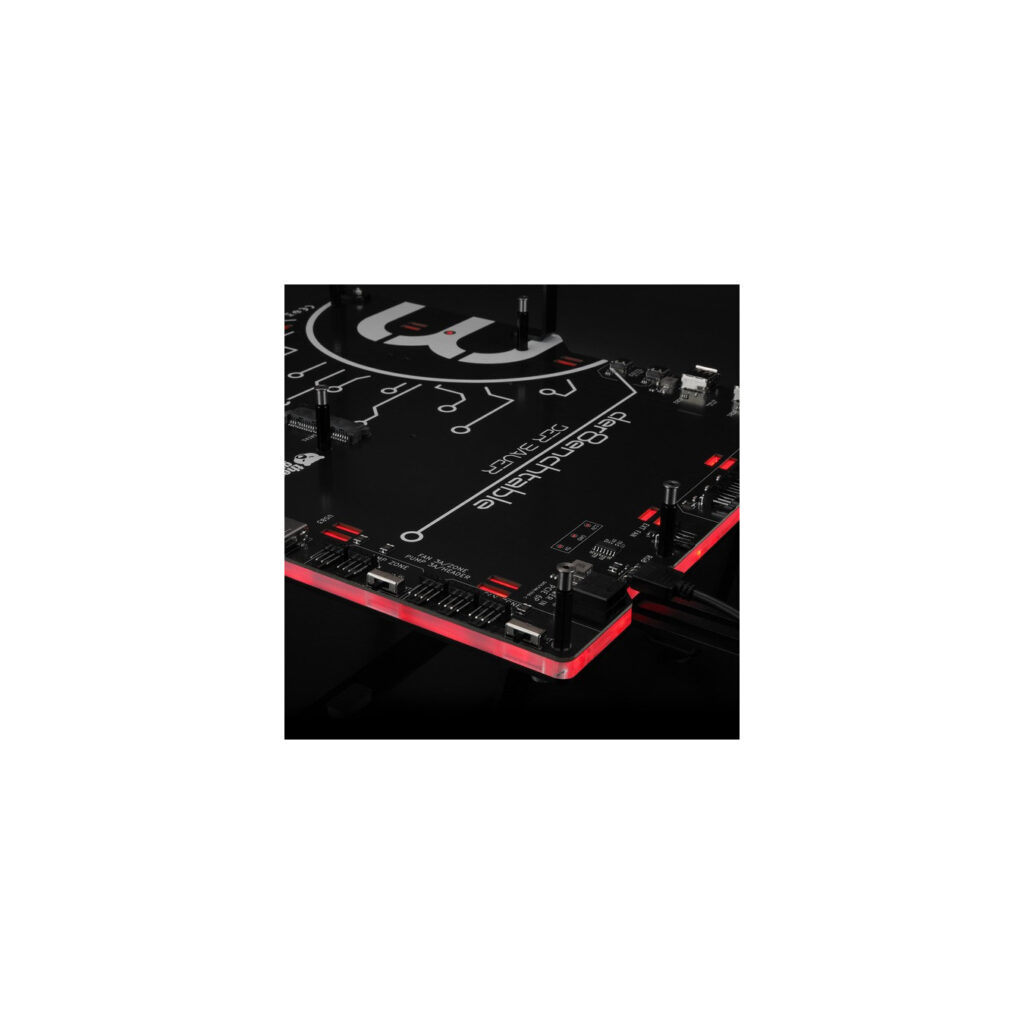

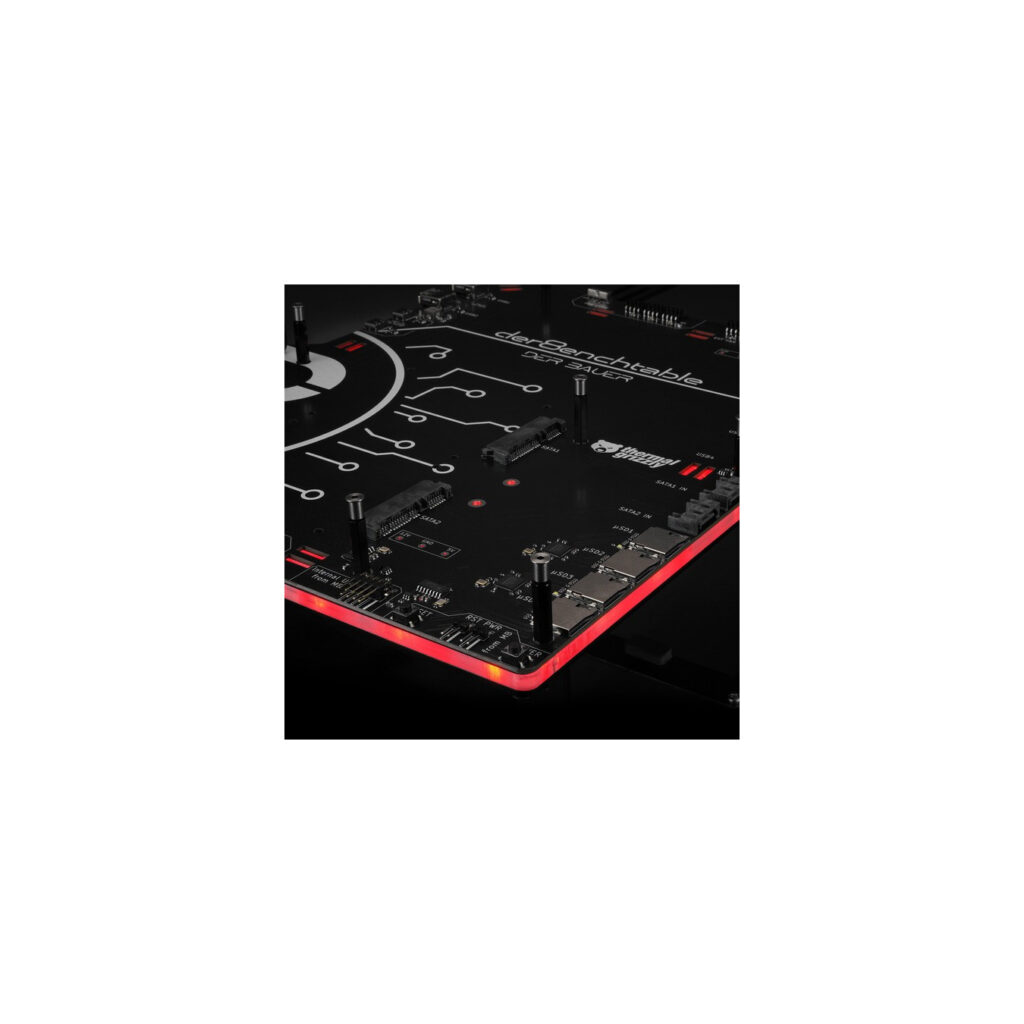

The der8enchtable is a collaboration between Thermal Grizzly with Jon “elmor” Sandström (ElmorLabs) and Roman “der8auer” Hartung. In addition to the functions of a normal benchtable such as integrated holders for radiators and power supplies, the der8enchtable has a base unit with an integrated printed circuit board (PCB) to which the hardware to be tested can be connected. For uniform test results, fans can be controlled via three fan controllers, each with three 4-pin fan connectors. Each of these fan zones can be individually adjusted to 50% or 100% rotation speed using a switch, supplies 3A of power to power the fans and is equipped with a fuse. It is also possible to have the fan zones of the der8enchtable controlled externally by the mainboard.
| Typ | Benchtable |
| Color | schwarz |
| EAN | 4260711992070 |
| Manufacturer no. | TG-D8-001 |
| Protocol | Serial-ATA/600, Serial-ATA/150, USB 2.0, Serial-ATA/300 |
| Connections - external | 4x USB A, 2x USB C |
| Feature | A-RGB lighting | 3+1 control zones for fans and AiOs, SSD | USB or micro SD for OS and test programs, compact | modular and user-friendly frame design | Compatible with air and AiO coolers |
| More information | 1x 9-pin USB header (mainboard data connection), 1x PCIe 6-pin header (power supply from the power supply), 1x 4-pin header (for PWM signal for external fan control), 3x fan zone (3x 4-pin fan header each), 1x pump zone (2x 4-pin pump header), 4x MicroSD for memory cards, 2x SATA on-board slot, 2x SATA out port, 1x 2-pin header for power button, 1x 2-pin header for reset button, 1x 3-pin header aRGB (GND / - / D / 5V) |

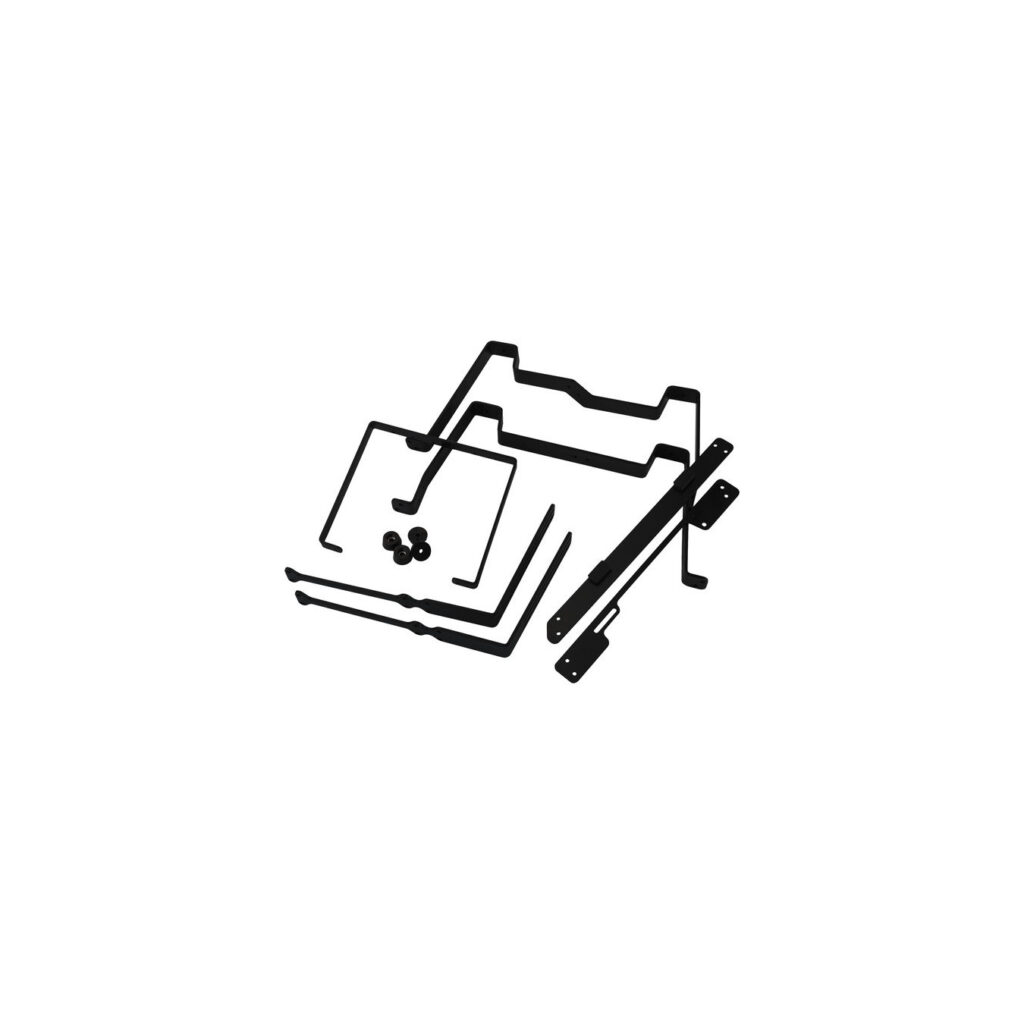

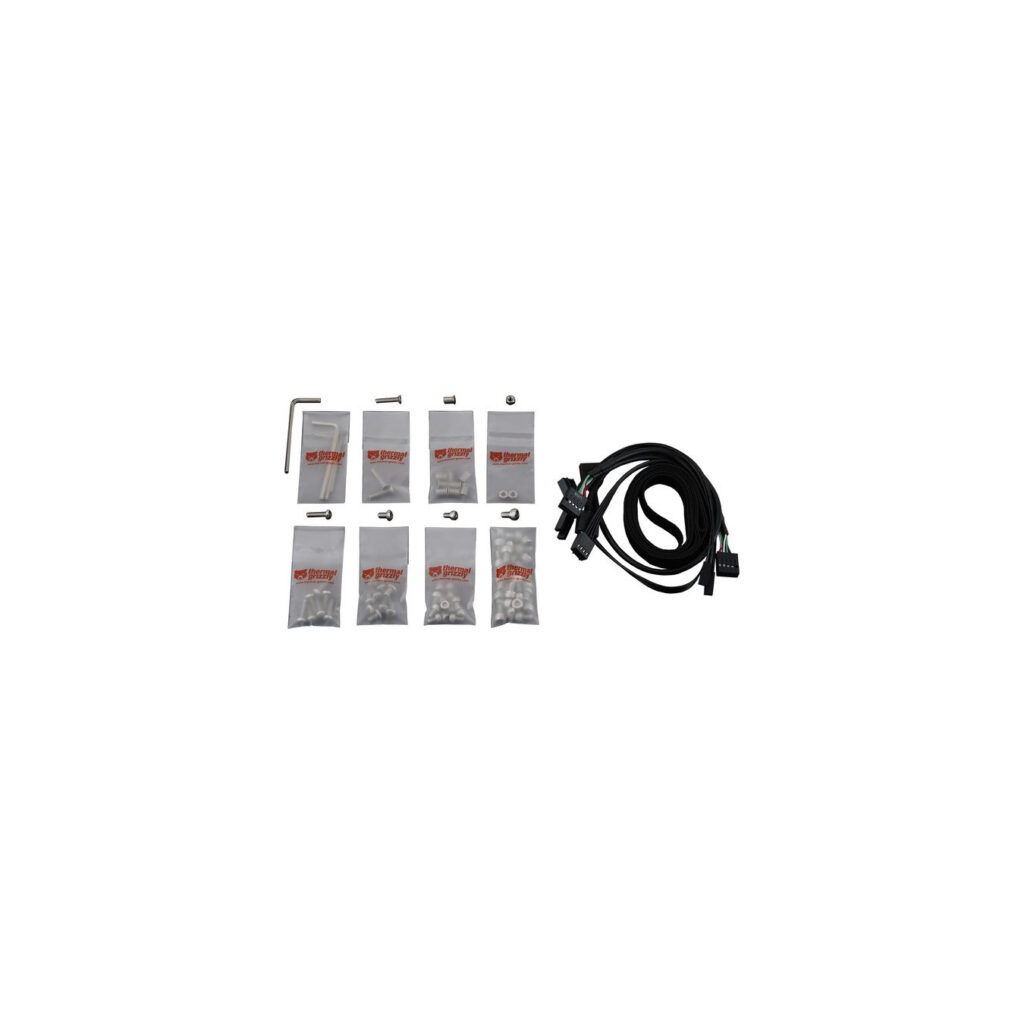

| Accessories - available | Manual / Instructions, AIB Mounting Bracket, Radiator Mounting Bracket, Right Stand Bracket, Left Stand Bracket, Power Supply Support Bracket, Power Supply Mounting Bracket, Damping Feet, DIN7991 M3 x 16mm Screw, DIN7985H M3 x 12mm Screw - A2, DIN912 M3 x 5mm Screw - A2, DIN912 M4 x 6mm screw, 6-32 UNC x 1/4in Phillips screw - A4, M3 hex nut - A2, M3 x 12mm barrel nut - A4, Allen key 2mm, Allen key 2.5mm, Allen key 3mm, Dupon cable, 2-pin, double female, 20cm, Fan cable, 4-pin, double female, 30cm Velcro Double Sided A-RGB Cable 3 Pin Double Female 30cm USB 2.0 Cable 9 Pin Double 15cm |
| Weight | 23 Gramm |
