Dahua CAT6 CPR D, OFC, LSZH, FTP Cable 305m 0.53mm White PFM923I-6FN-CD

• 305m/carton F/UTP CAT6, power over Ethernet, compatible with one cable
• High-purity oxygen-free copper conductor material
• Customized LSZH outer sheath; CE CPR Dca flame retardant class certified
• 10-year warranty

Conductor

• Material : Oxygen free copper (99.97% purity)
• Diameter : 0.53 mm ± 0.01 mm (0.021″ ± 0.0004″)
• Wire Gauge : 24 AWG

Insulation

• Material : HDPE
• Min. Average Thickness : 0.21 mm (0.0083″)
• Diameter : 1.02 mm ± 0.1 mm (0.040″ ± 0.004″)
• Color : 8 cores, Blue, white/blue; Orange, white/orange; Green, white/green; Brown, white/brown

Rip Cord

• Material : Polyester
• Specification : 500D

Drain Wire

• Material : Tin-plated copper
• Specification : 0.4 mm ± 0.01 mm (0.016″ ± 0.0004″)

Separator

• Material : PE
• Specification : Translucent 4.5 mm × 0.4 mm (0.18″ × 0.0157″)

Outer Shield

• Material : Composite aluminum foil (Conductive side facing inward)
• Specification : 0.04 mm × 22 mm (0.002″ × 0.867″)

Sheath

• Material : LSZH
• Min. Average Thickness : 0.5 mm (0.02″)
• Diameter : 6.4 mm ± 0.3 mm (0.252″ ± 0.012″)
• Color : White

Electrical

• Max. DC Resistance of a Single Conductor : 8.7 Ω / 100 m
• Min. Insulation Resistance : 5000 MΩ·km
• Max. DC Resistance Unbalance : 2% (pair intra), 4% (pairs inter)
• Dielectric Strength : No breakdown with 1kV DC for 1 min

Transmission

• Characteristic Impedance : 100 Ω ± 15 Ω
• Near-end Crosstalk : ≥39.30 dB / 100 m @ 250 MHz
• Max. Attenuation : 34.8 dB / 100 m @ 250 MHz
• Return Loss : ≥17.3 dB / 100 m @ 250 MHz

Mechanical

• Tensile Strength : Sheath ≥10 MPa, insulation ≥16 MPa
• Elongation at Break : Sheath ≥125%, insulation ≥300%
• Installation Bending Radius : >8 times of outer cable diameter
• Conductor Elongation at Break : ≥10%

Environmental

• Shrinkage of Insulation : ≤5%
• Color Migration Resistance of Insulation : No migration
• Sheath Tensile Strength and Elongation at Break after Aging : ≥8 MPa, ≥100%
• Low Temperature Bending Test : No cracking after the test
• Heat Shock Test : No cracking after the test
• Operation Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
• Installation Temperature : 0 °C to +50 °C (32 °F to 122 °F)
• Storage Temperature and Humidity : –10 °C to +40 °C (14 °F to 104 °F), <60% (RH)

Security

• Vertical Fire Propagation Test : EN 50399; EN 60332-1-2; EN 61034-2; EN 60754-2

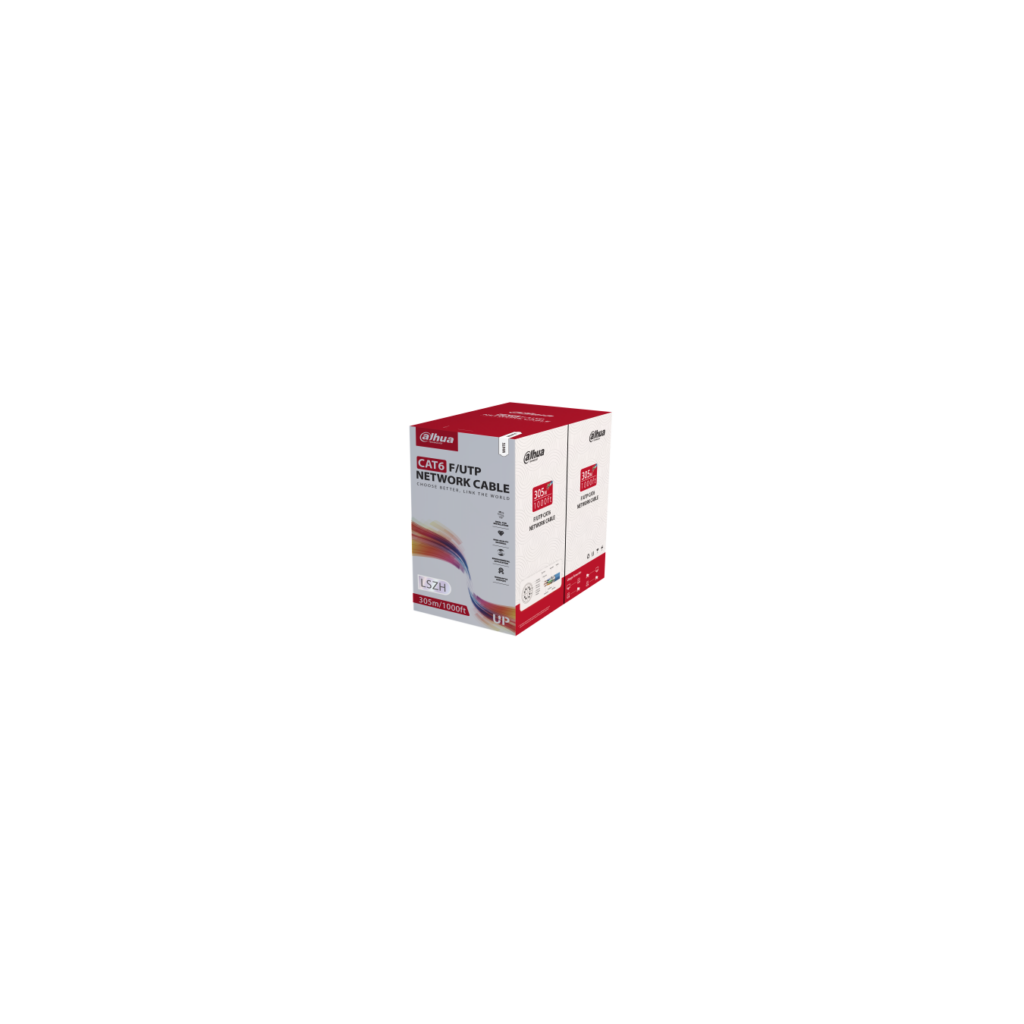

Packaging

• Cable Length : 305.0 m ± 2 m (1,000.66 ft ± 6.56 ft)
• Packaging Method : 305 m / box
• Packaging Dimensions : 436 mm × 436 mm × 222 mm (17.17″ × 17.17″ × 8.74″) (L × W × H)
• Transport Package Dimensions : 470 mm × 470 mm × 470 mm (18.5″ × 18.5″ × 18.5″) (L × W × H)
• Net Weight : 12.00 kg ± 0.50 kg (26.46 lb ± 1.10 lb)
• Gross Weight : 13.00 kg ± 0.50 kg (28.66 lb ± 1.10 lb)

Compliance

• Executive Standards : Q／DXJ 067-2024, EN50575
• Certifications : CPR Dca
• Flame-retardant Standard : EN50575
