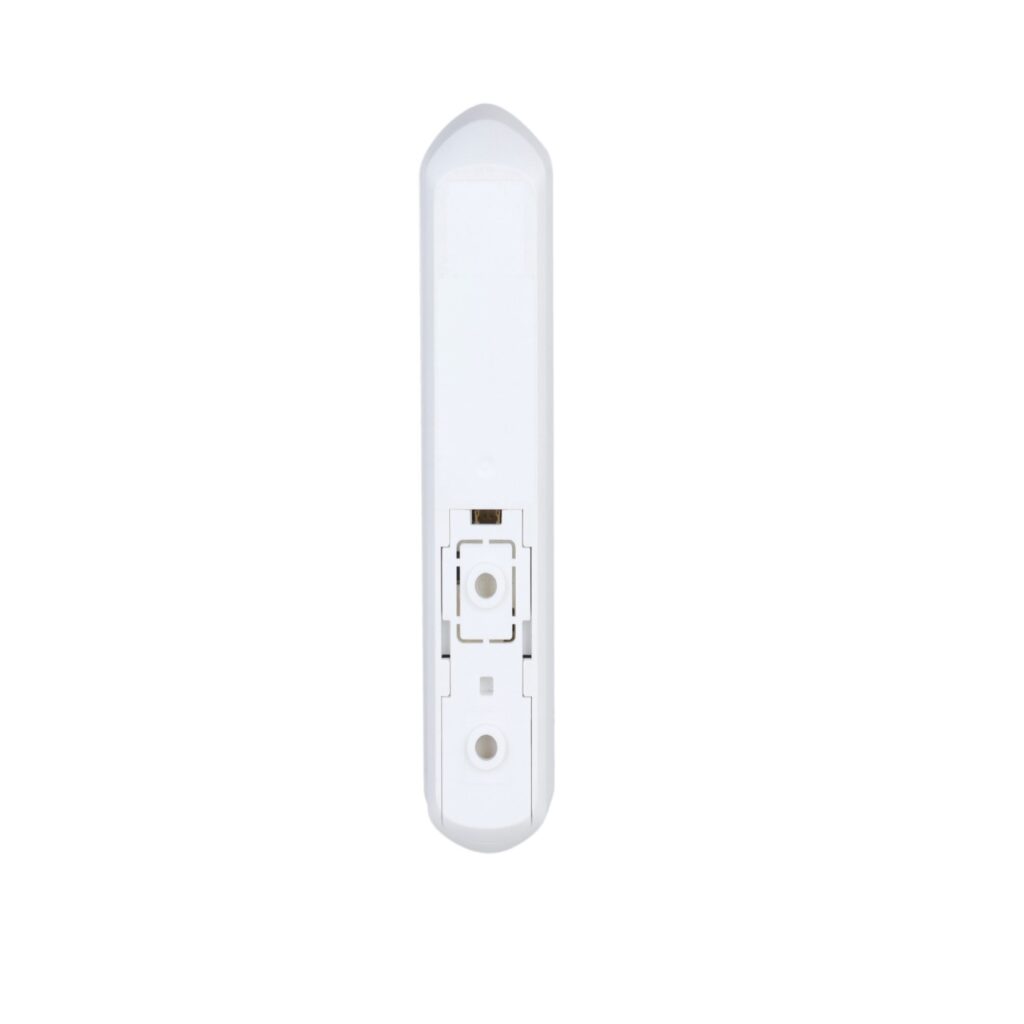

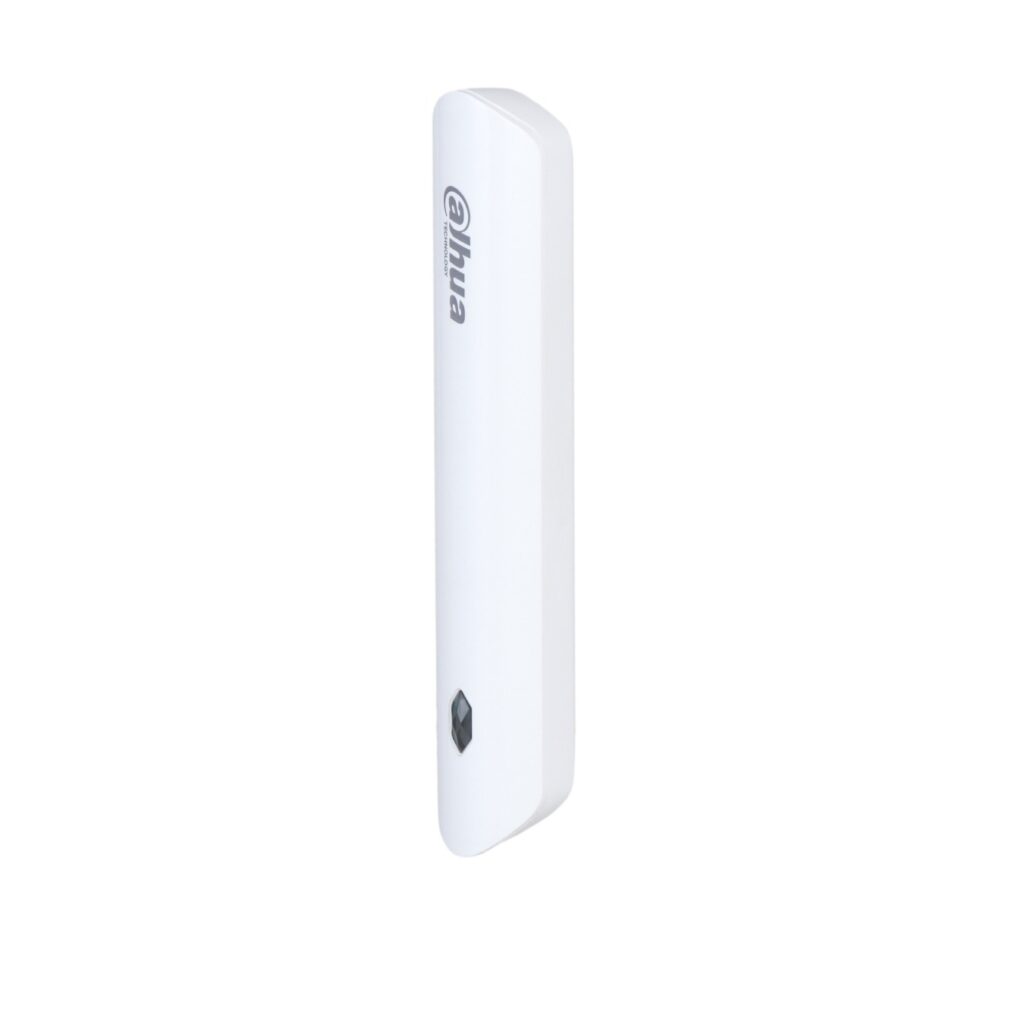

Dahua Alarm Automation Input Expander - ARM310-W2(868)
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Compact Dahua Alarm Automation Input Expander ARM310-W2(868) with 1-channel dry contact input; tamper alarm, low-battery alert, signal strength detection, cloud update, and two-way 868 MHz wireless up to 1,200 m.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
- Six types of alarm: intrusion, medical, fire, emergency, gas, and tamper
- NC and NO are available for alarm inputs (NO by default)
- Signal strength detection
- Low battery alarm
- Temperature monitoring
- Frequency hopping function and two-way communication technology ensure communication stability
- Cloud update and automatic recovery from update failure
Port
- Indicator Light : 1 × green alarm indicator
- Button : 1 × power button
- Protection Zone : 1-channel dry contact input
Function
- Tampering Alarm : Yes
- Remote Upgrade : Cloud update
- Low Battery Alarm : Yes
- Test Mode : Yes
- Search : Signal strength detection
Wireless
- Carrier Frequency : 868.0 MHz–868.6 MHz
- Communication Distance : Up to 1,200 m in an open space
- Communication Mechanism : Two-way
- Frequency Hopping : Yes
- Encryption Mode : AES128
General
- Power Supply Mode : CR123A battery
- Power Consumption: Max. 125 mW
- Operating Temperature : –10 °C to +55 °C (indoor)
- Operating Humidity : 10%–90% (RH)
- Dimensions : 100.2mm × 20.8mm × 20.3mm
- Package Dimensions : 135.0 mm × 98.5 mm × 27.8mm
- Installation Mode : Bracket mount
- Net Weight : 70 g
- Gross Weight : 115 g
- Certification : CE
- Battery Life : 4 years (The external input type is NO) / 2 years (The external input type is NC or Pulse)
- Casing Material : PC + ABS
Temperature
- Measurement Range : –15 °C to +65 °C (indoor)
- Measurement Precision : ±1 °C
- Resolution : 1 °C
