Cudy - GS1005P - 5P PoE+
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.

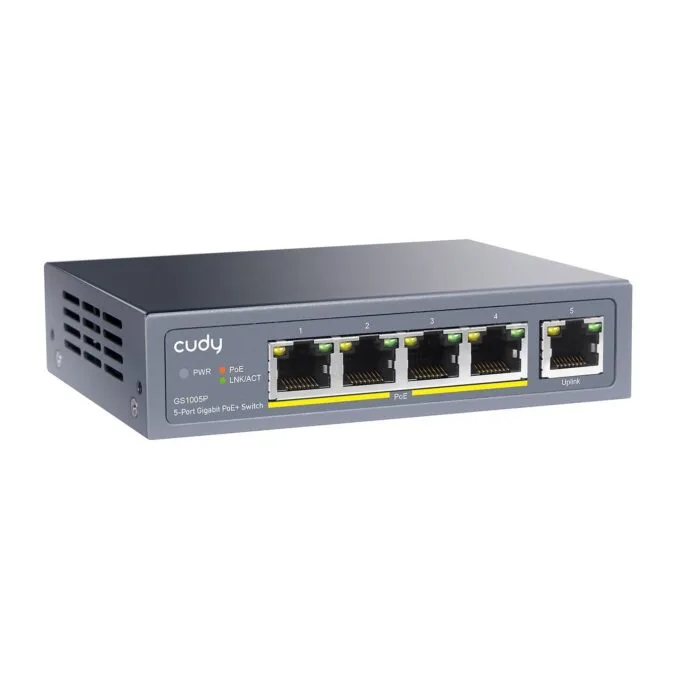

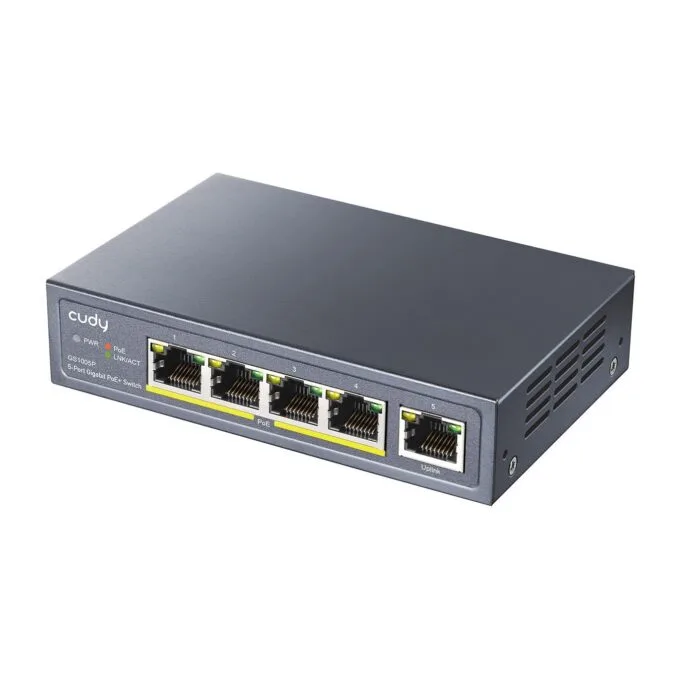

Cudy GS1005P PoE+ switch with 5 Gigabit ports and rack-mount capability.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Cudy GS1005P. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries. Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3u. DC input voltage: 48 — 57 V. Power over Ethernet (PoE). Rack mounting
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Uplink ports quantity | 1 |
| Networking standards | IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3u |
| Feature | Rack mount kit |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Switching capacity | 10 Gbit/s |
| MAC address table | 2000 entries |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Product colour | Grey |
| Housing material | Metal |
| LED indicators | Activity. Link. PoE. Power |
| Power source | AC/DC |
| DC input voltage | 48 - 57 V |
| Power consumption (typical) | 5 W |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 60 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Width | 119 mm |
| Depth | 85 mm |
| Height | 28 mm |
| Cables included | AC. DC |
| Package type | Box |
