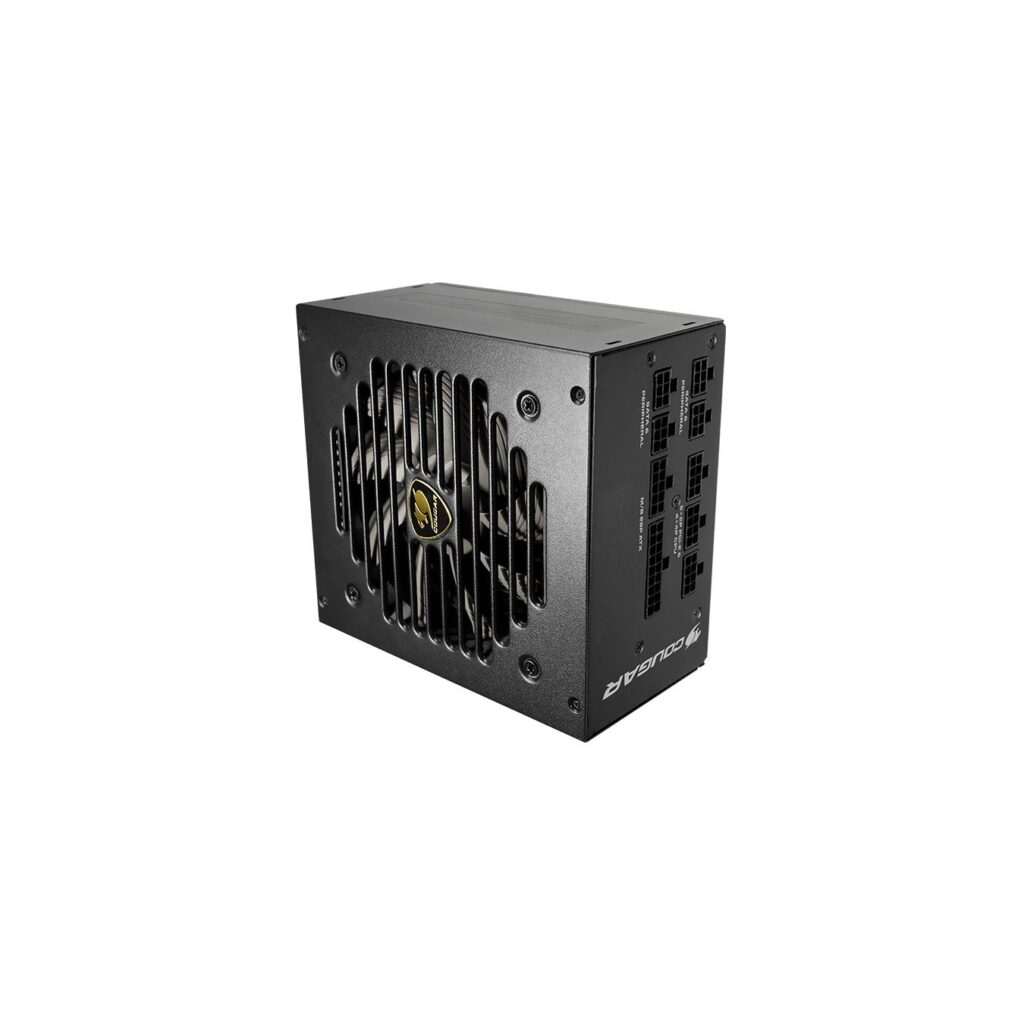

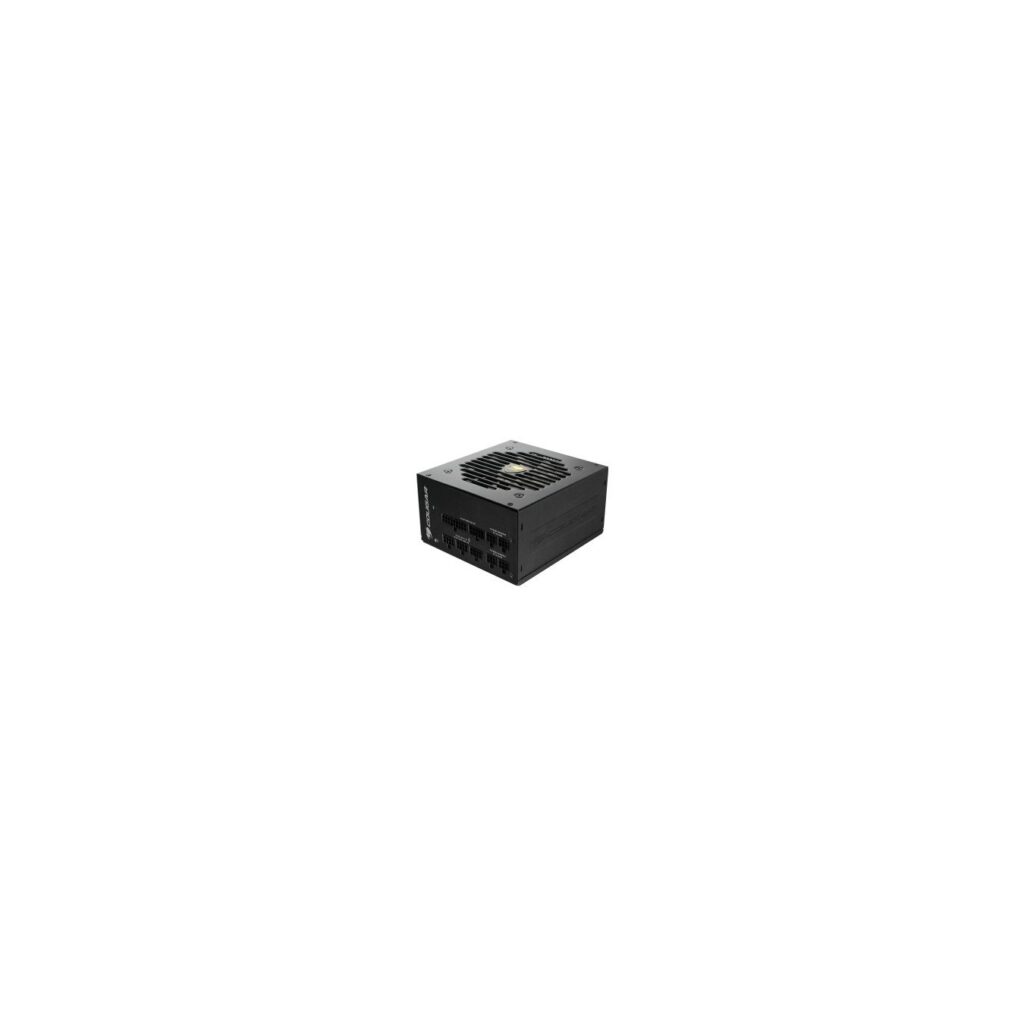

COUGAR Power Supply - GEX 850W - ATX3.0 80 Plus Gold Modular
Войти

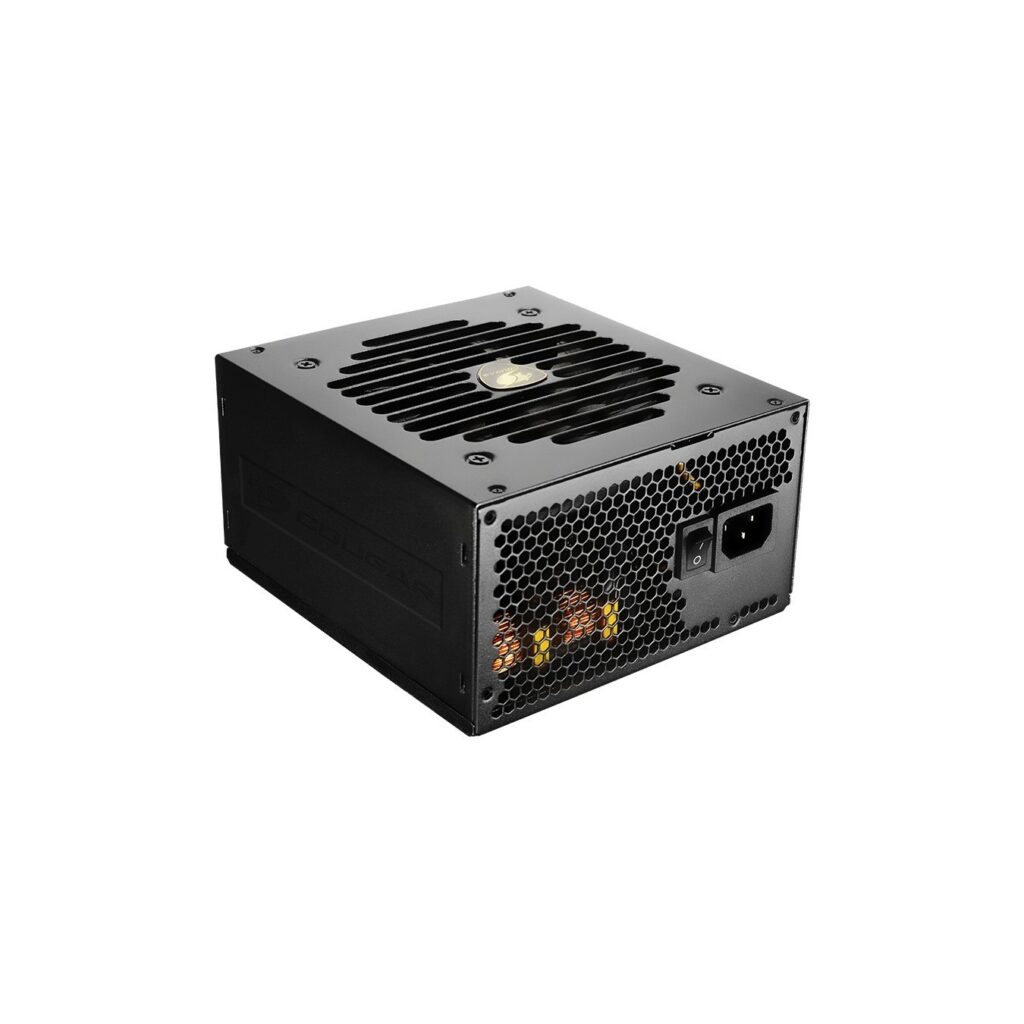

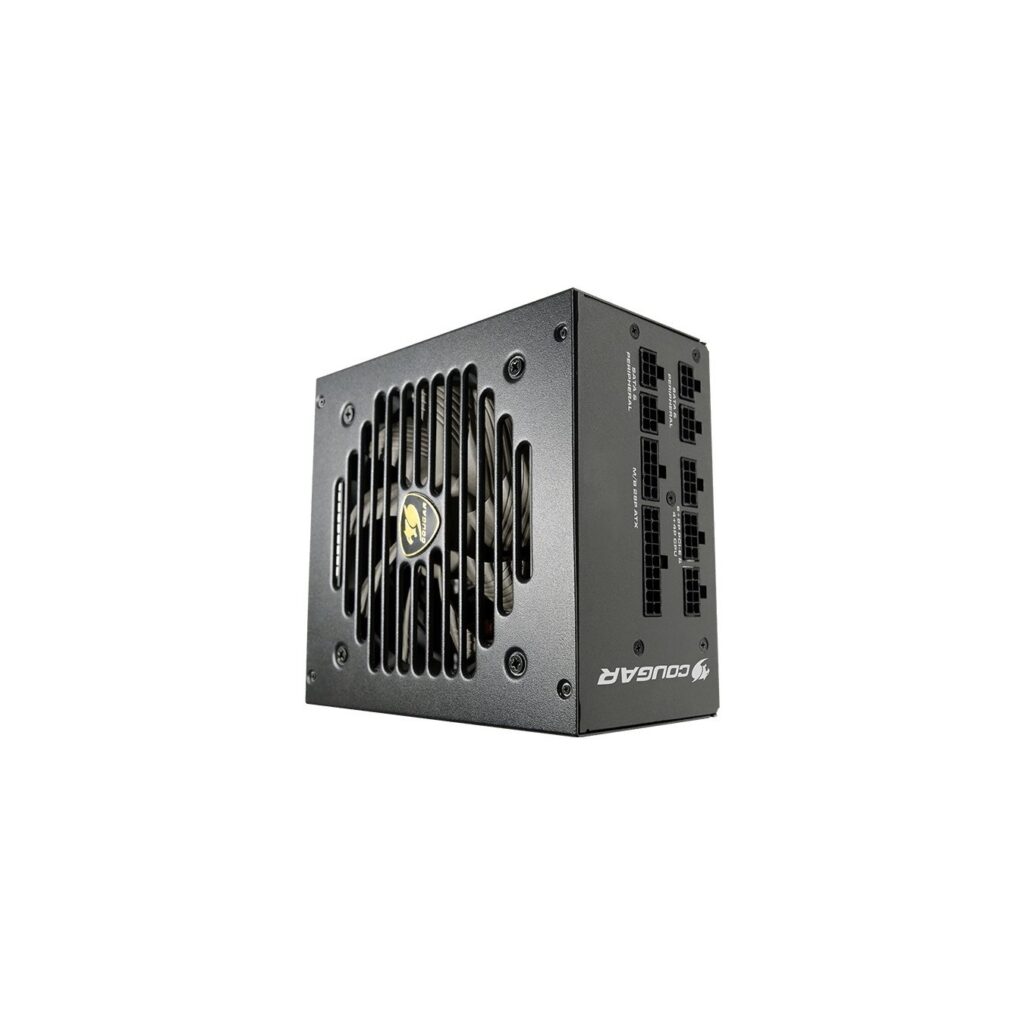

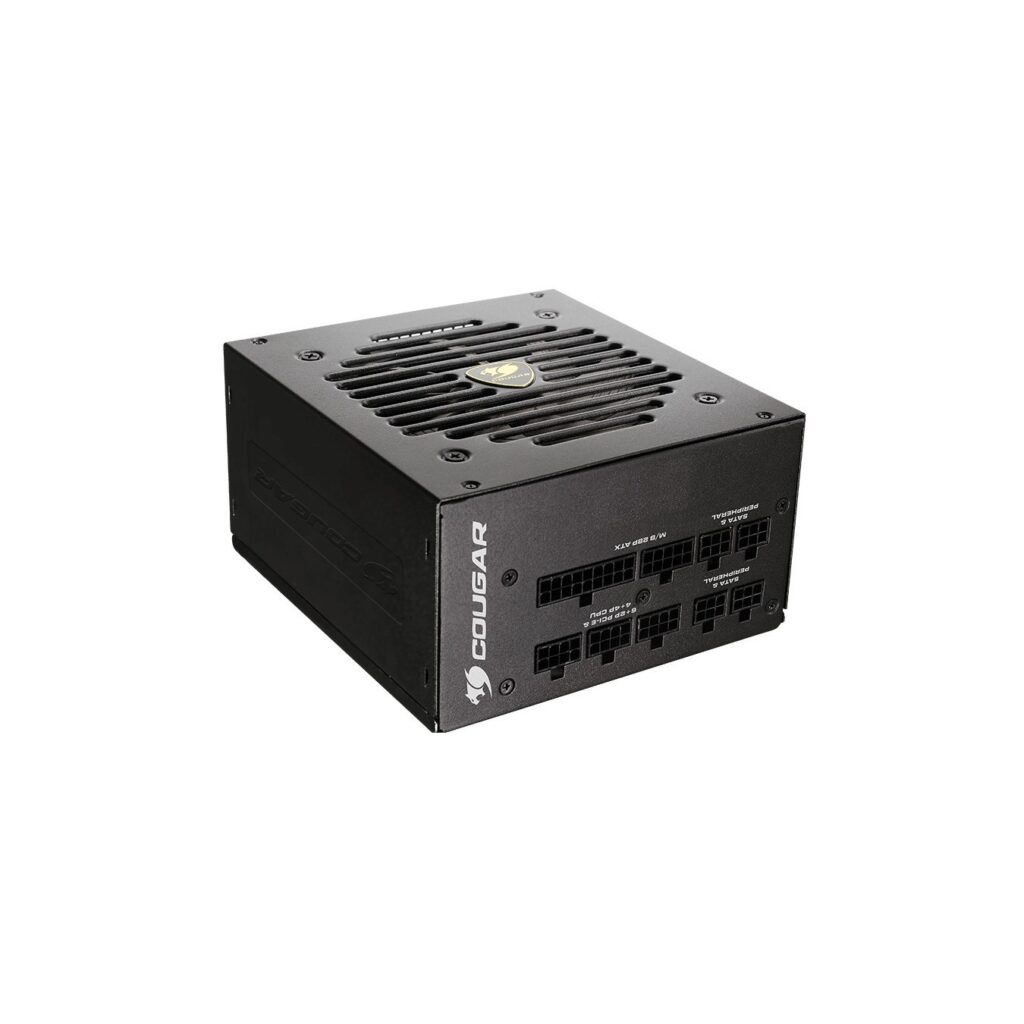

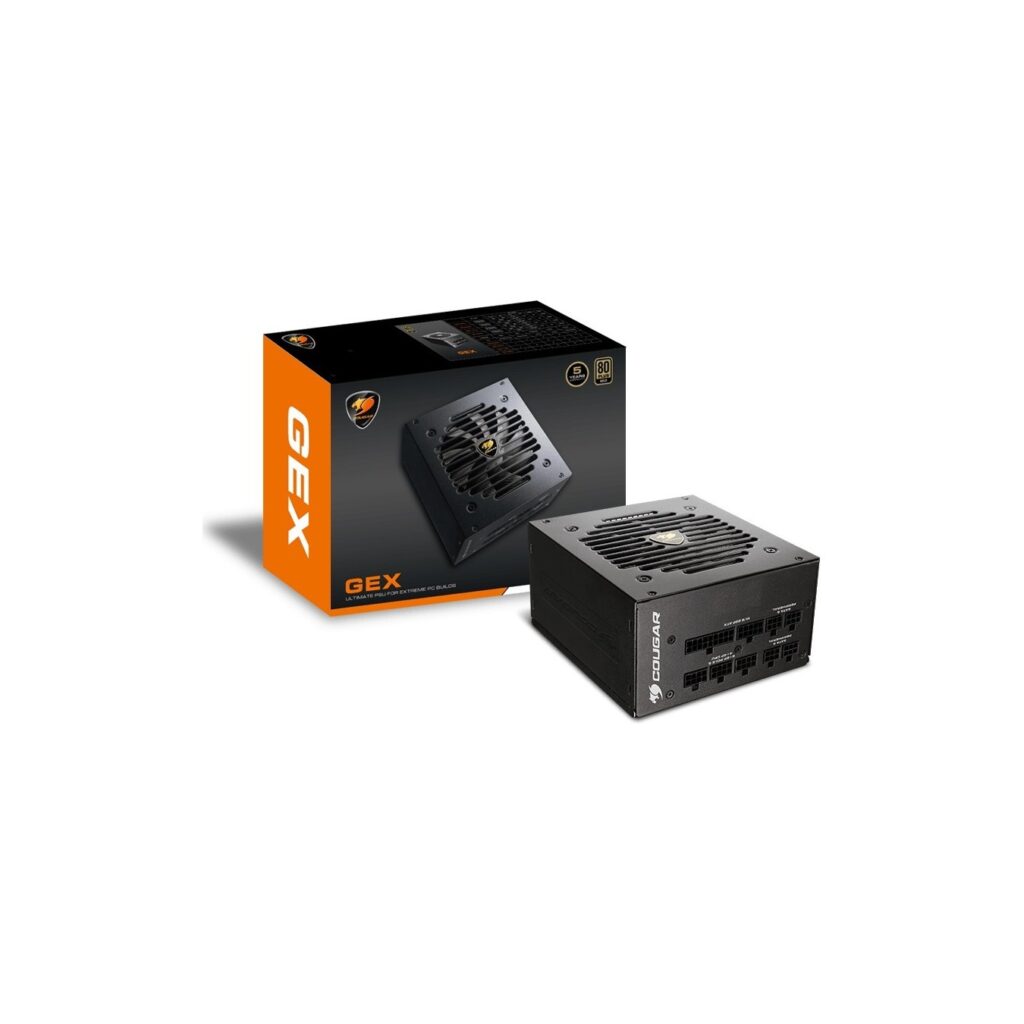

COUGAR GEX 850W modular power supply featuring ATX3.0 compliance and 80 Plus Gold efficiency.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
COUGAR Gaming GEX850. Total power: 850 W. AC input voltage: 100 — 240 V. AC input frequency: 50 — 60 Hz. Motherboard power connector: 20+4 pin ATX. Motherboard power cable length: 61 cm. SATA power cable length: 120.450 mm. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Gold. Product colour: Black. Cooling type: Active. Fan diameter: 12 cm. Cables included: AC. CPU. PCIe. Peripheral (Molex). SATA
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 12 - 6 A |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 849.6 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 0.3 W |
| Combined power (+5Vsb) | 3 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 91% |
| Power protection features | Over current. Over power. Over voltage. Overheating. Short circuit. Under voltage |

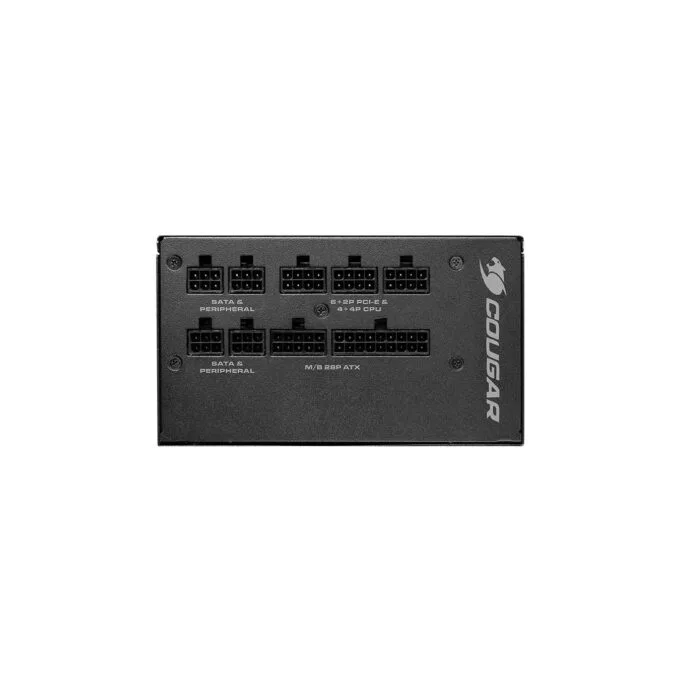

| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 8 |
| Number of PATA power connectors | 3 |
| SATA power cable length | 120.450 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 120.450 mm |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power cable length | 60 cm |

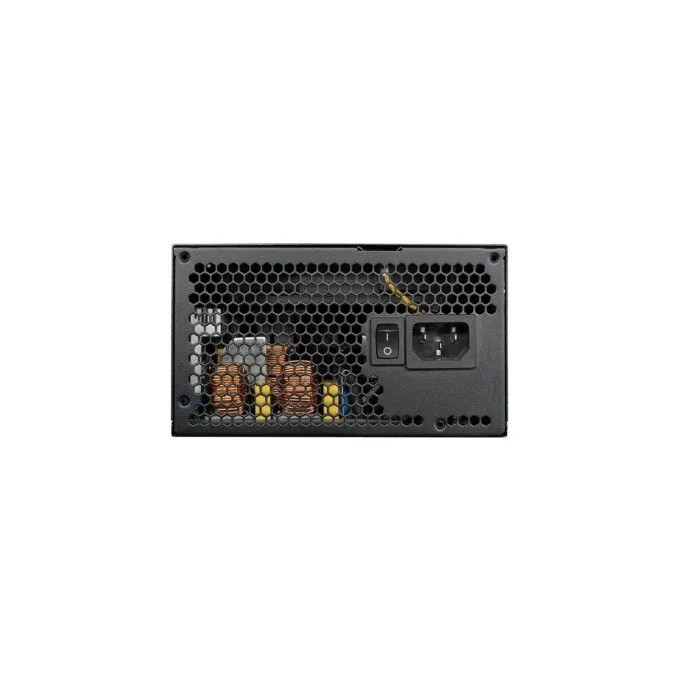

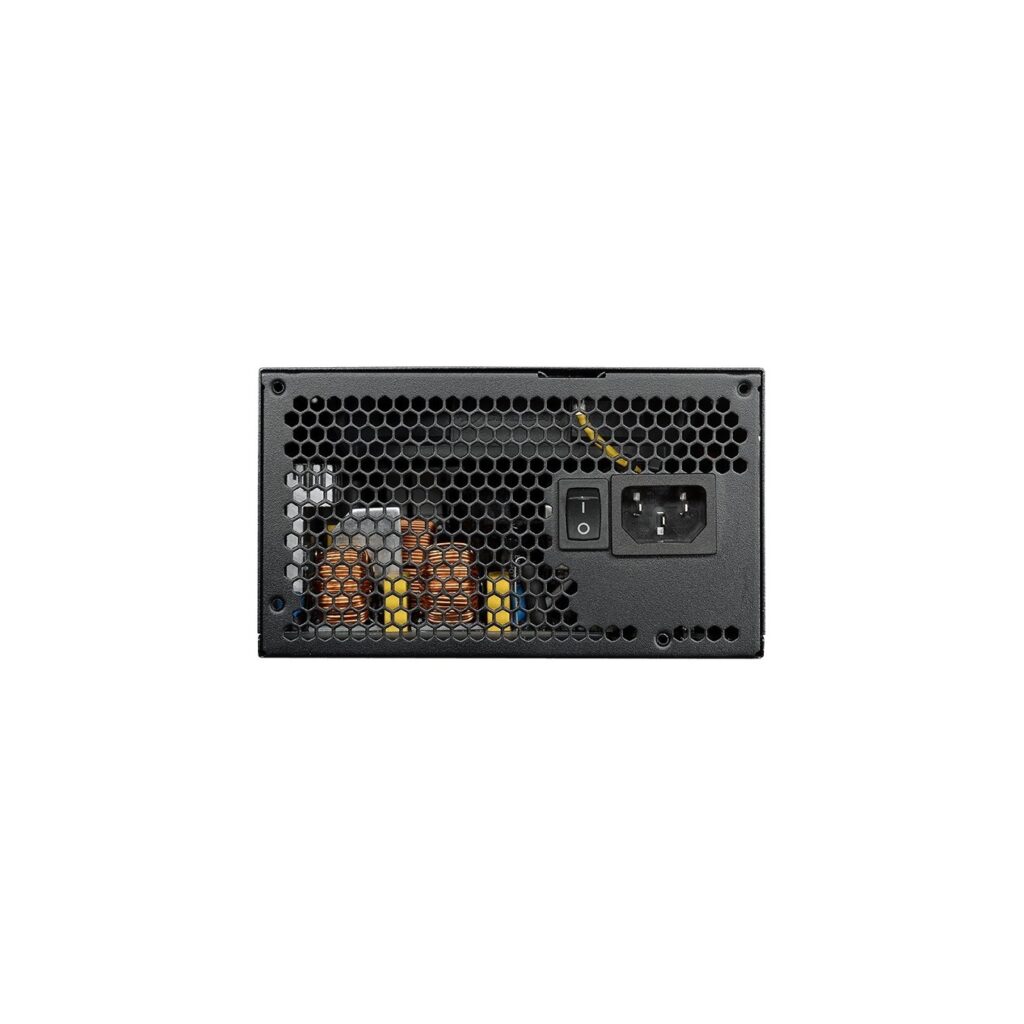

| Feature | On/off switch |
| CPU power cable length | 65 cm |

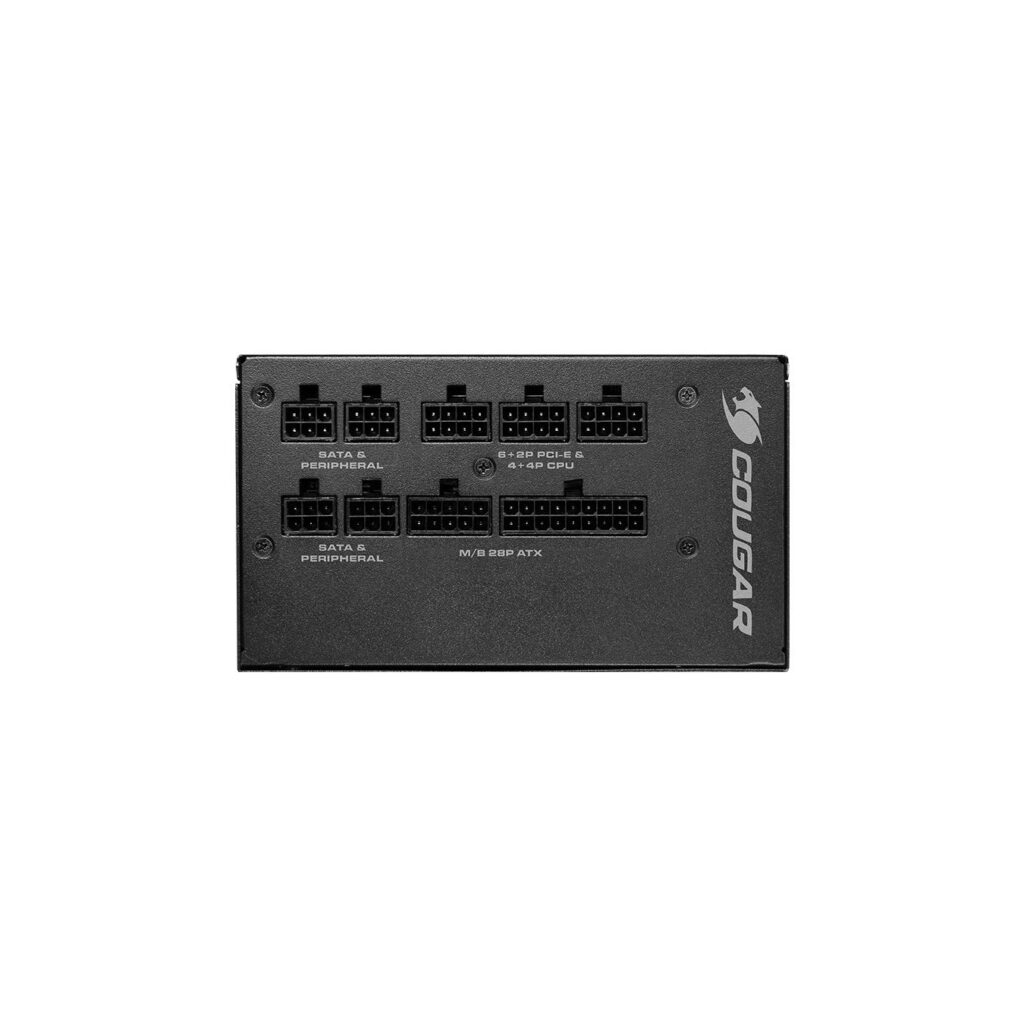

| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Bearing technology | HDB |
| Product colour | Black |
| Cooling type | Active |

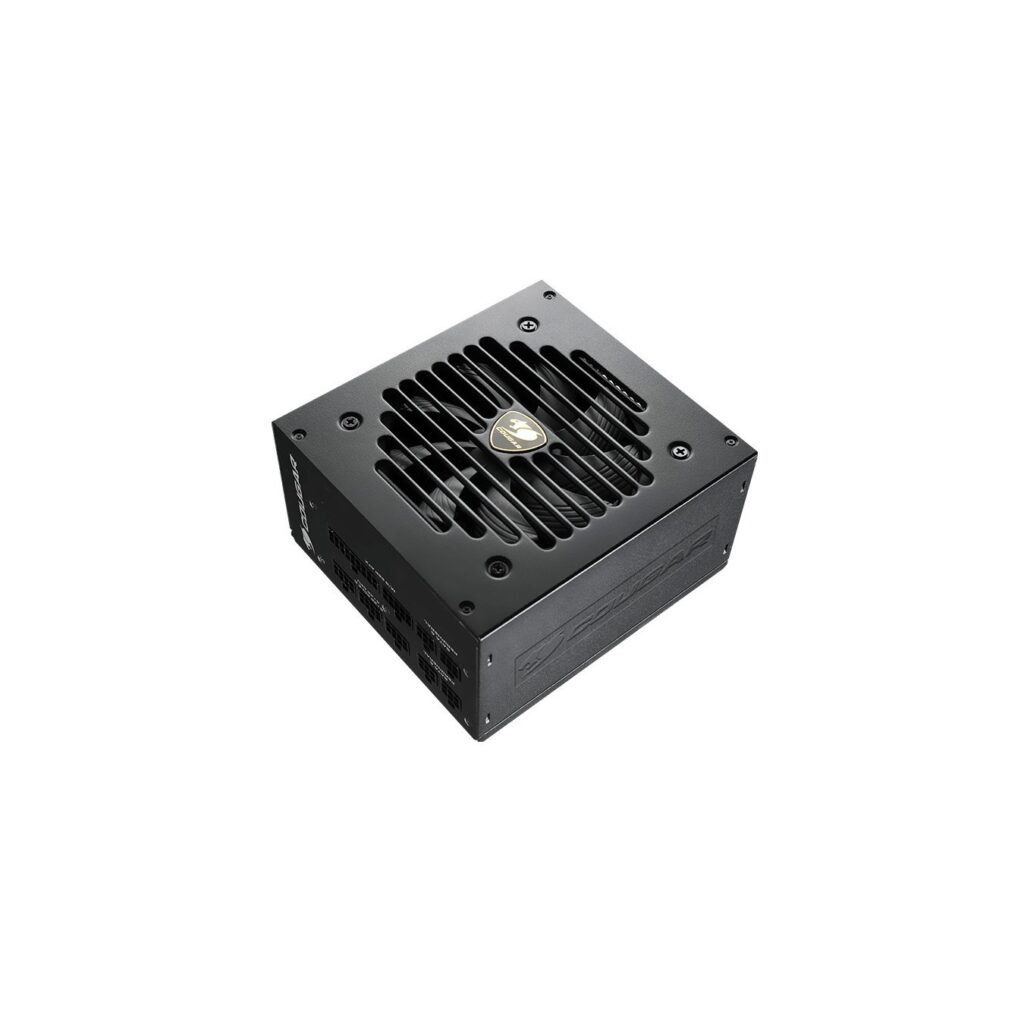

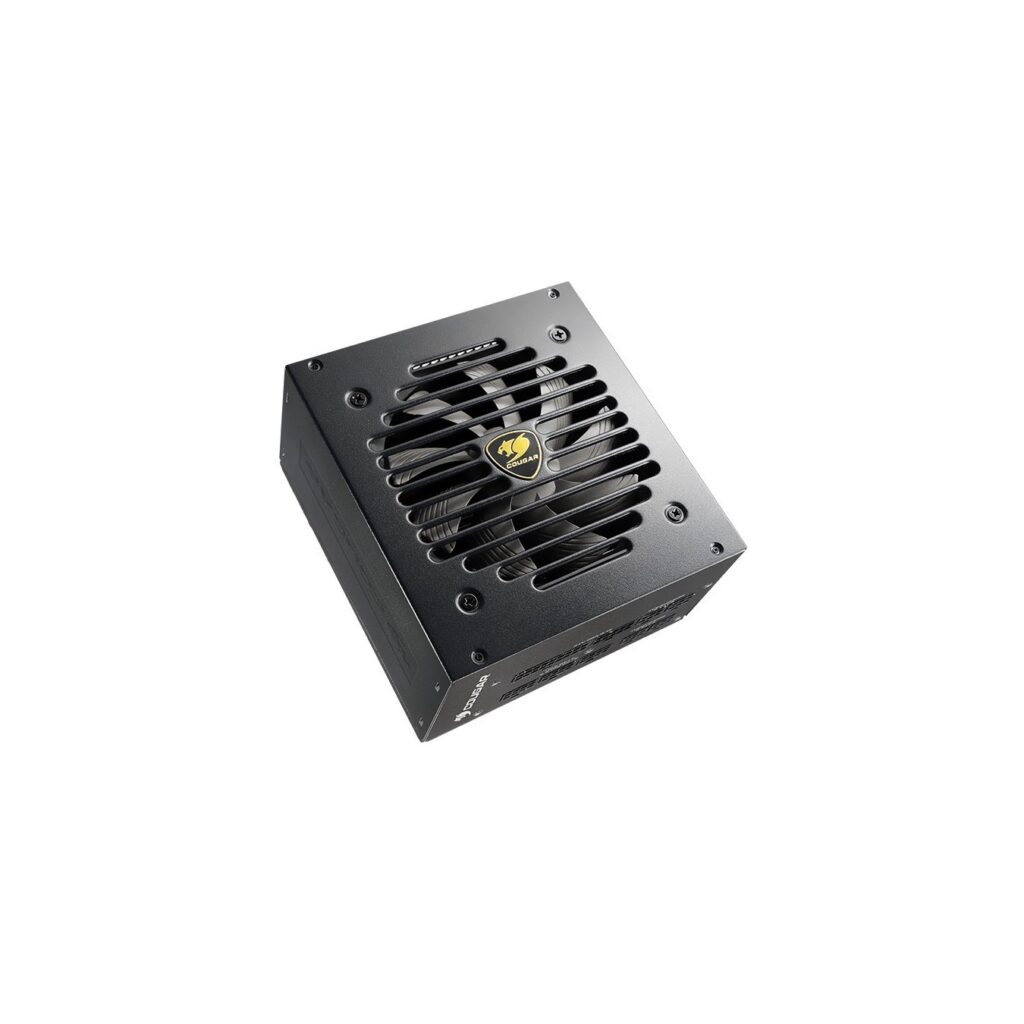

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Operating temperature (T-T) | 10 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |

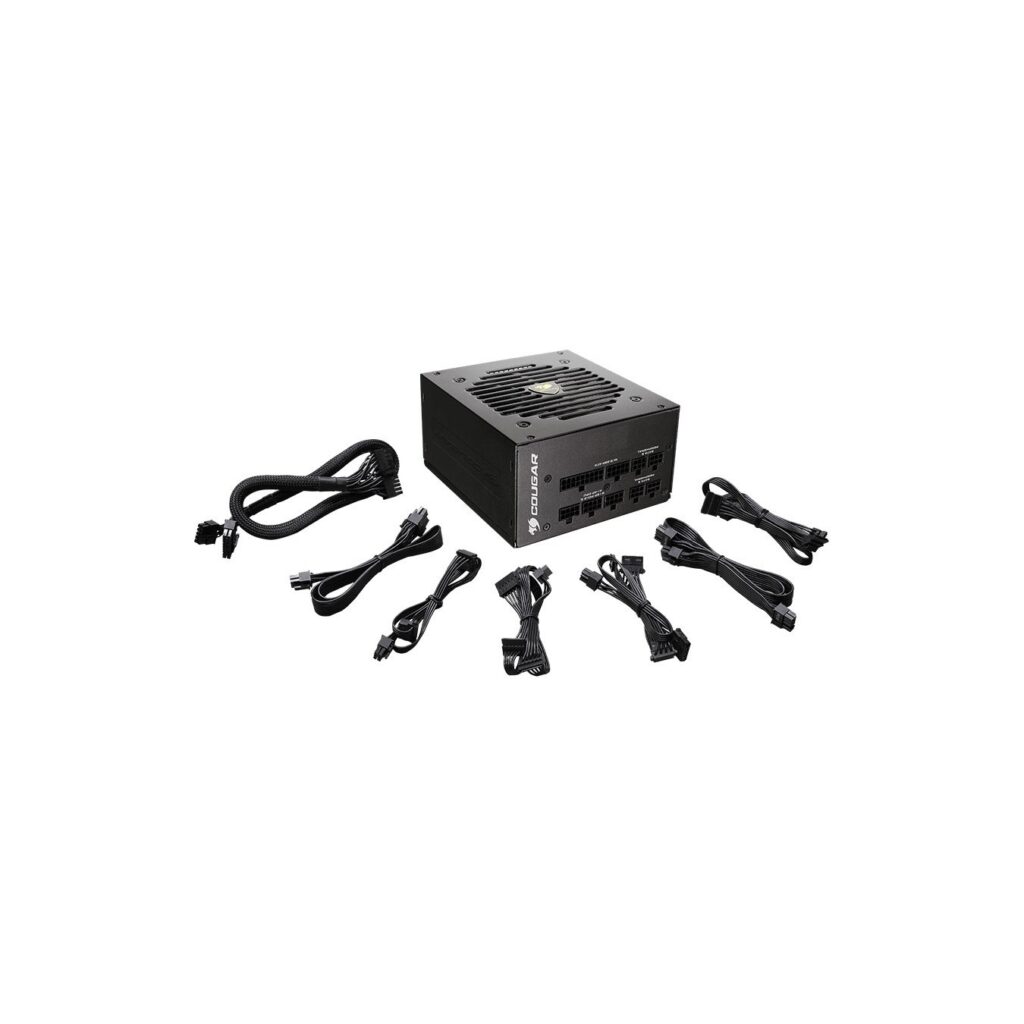

| Cables included | AC. CPU. PCIe. Peripheral (Molex). SATA |
| Compliance certificates | CCC. CE. EAC. Federal Communications Commission (FCC). RoHS. TÜV mark |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 1.56 kg |
| Package width | 229 mm |
| Package depth | 331 mm |
| Package height | 107 mm |
| Package weight | 2.76 kg |
| Package type | Box |
| Warranty period | 5 year(s) |
