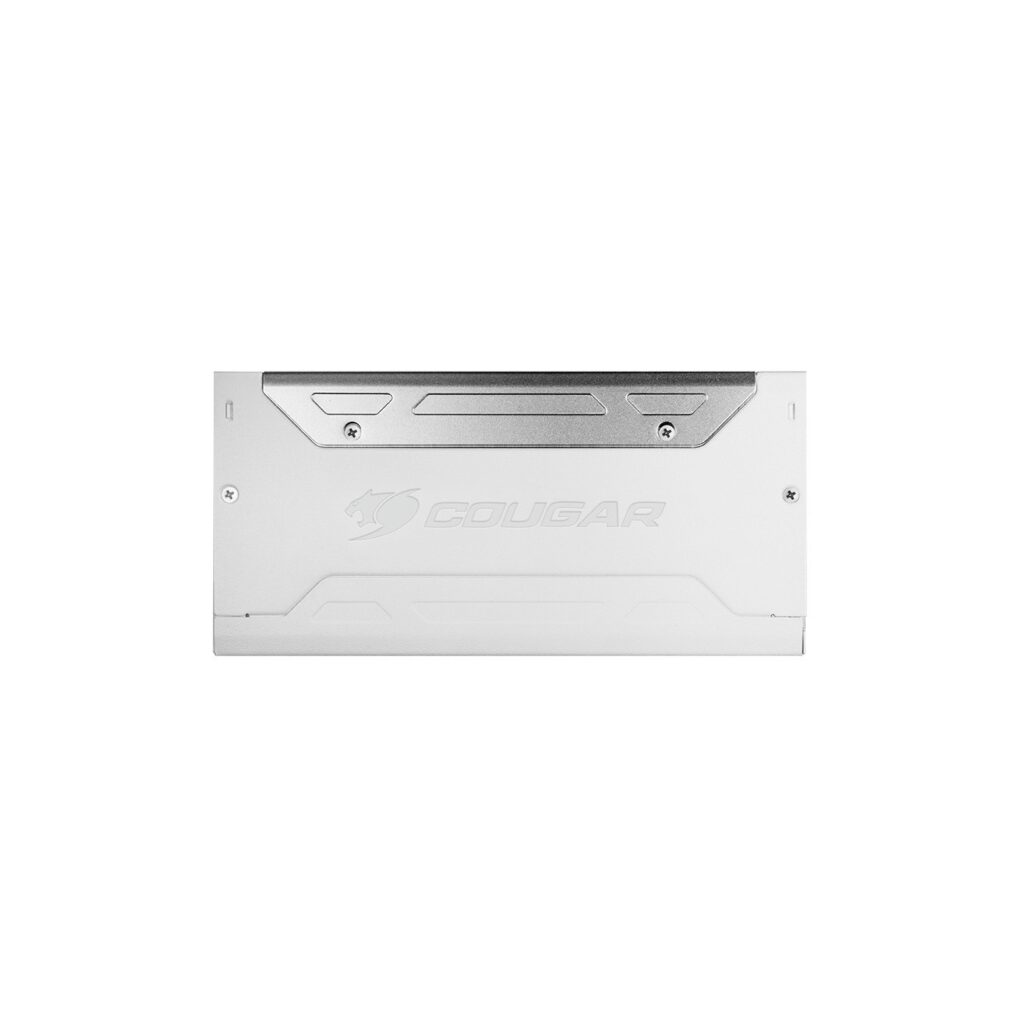

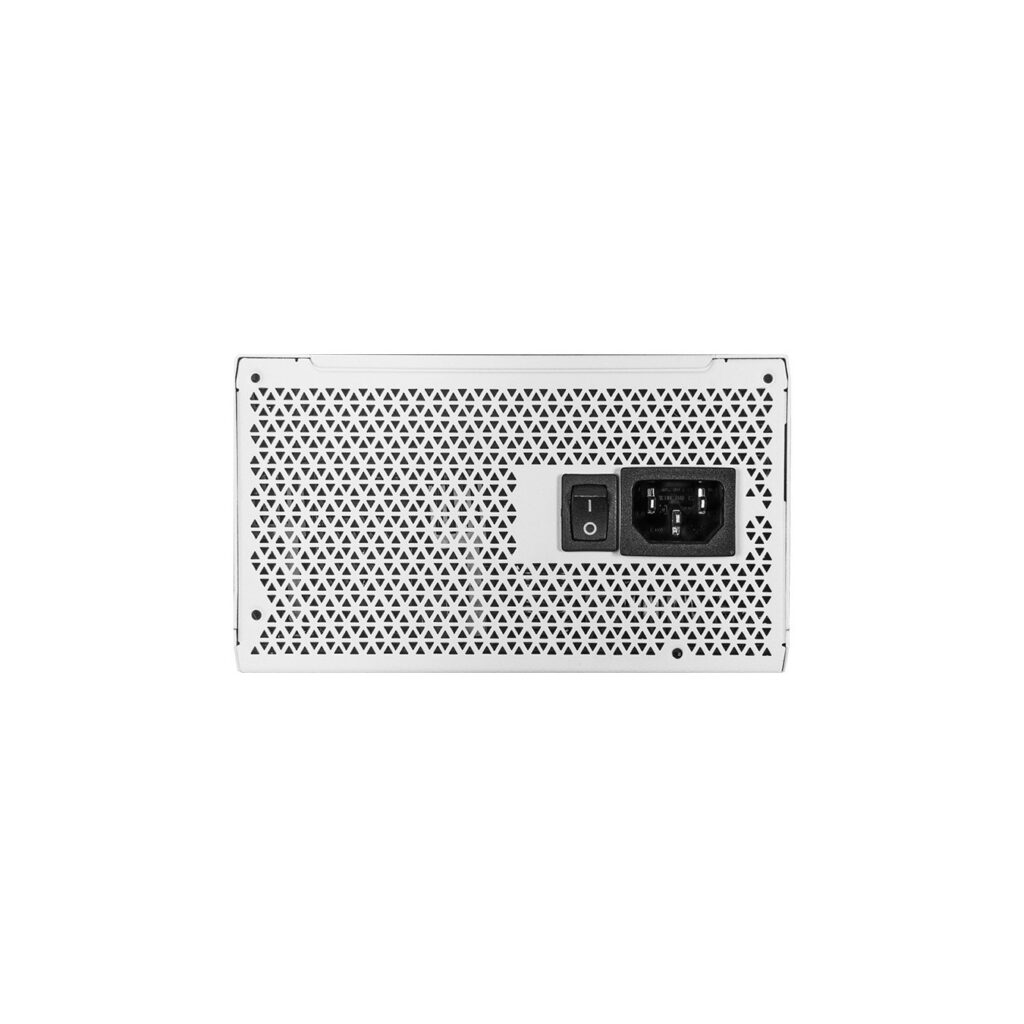

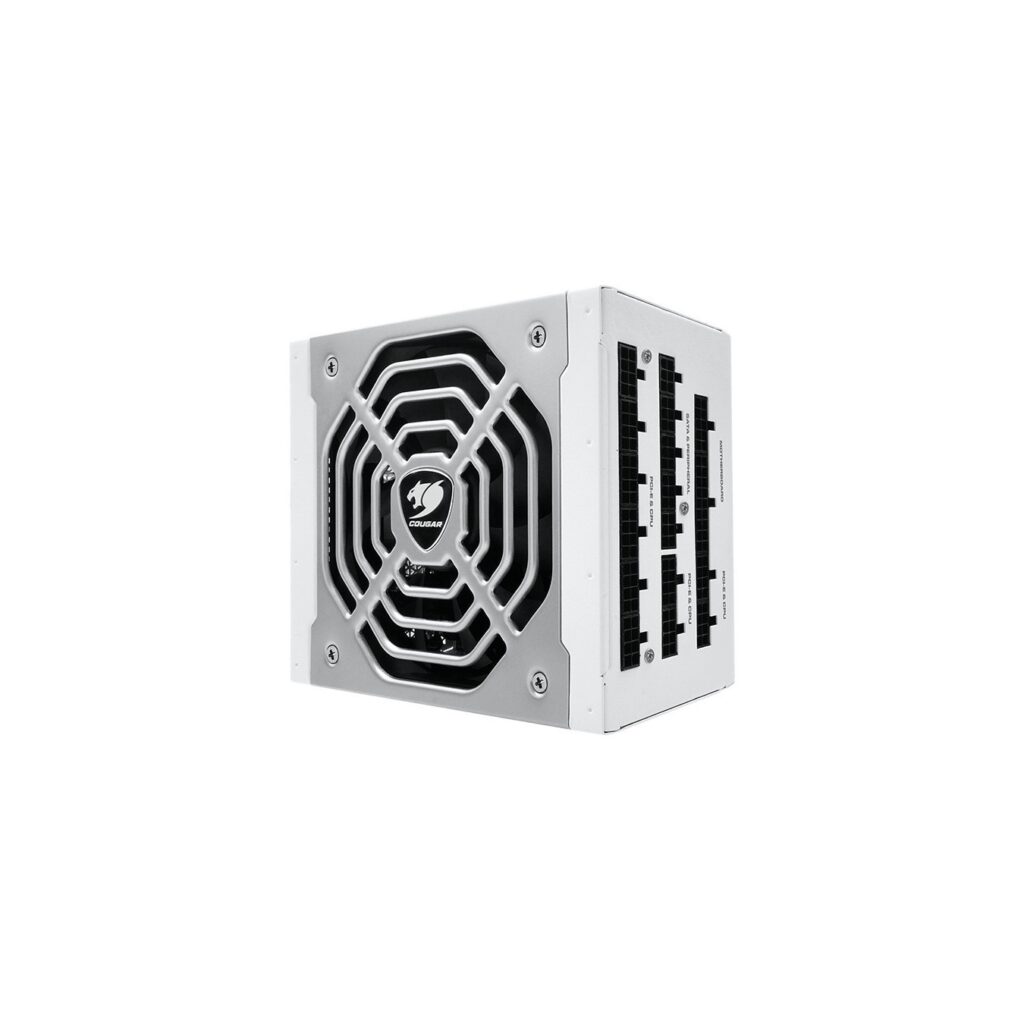

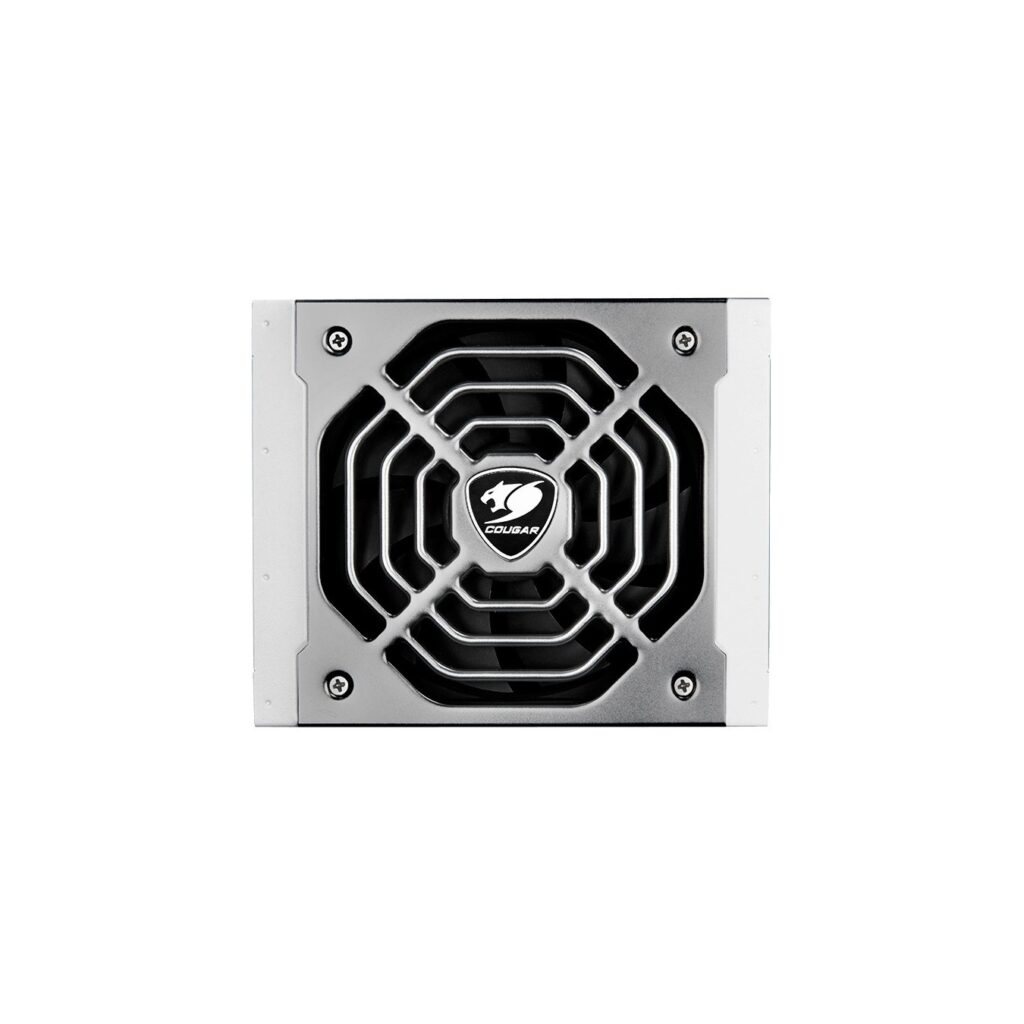

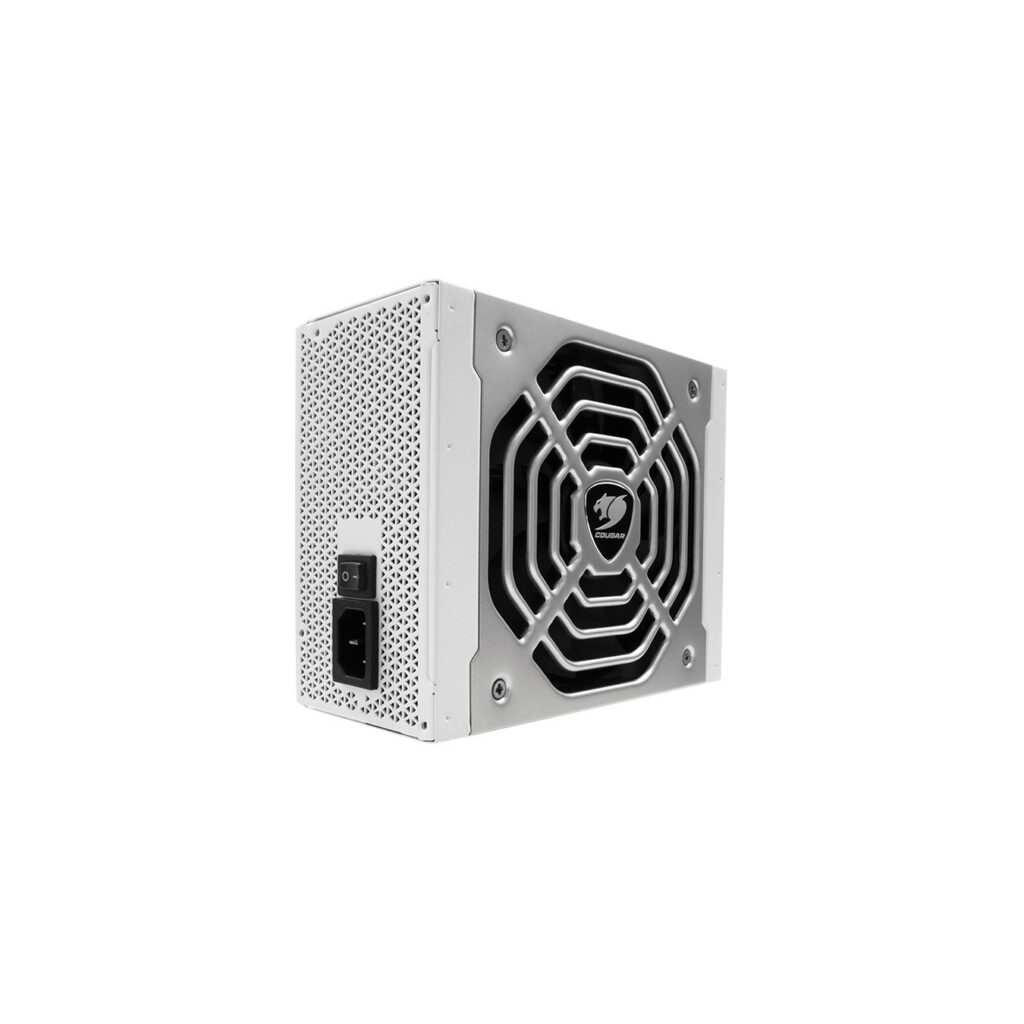

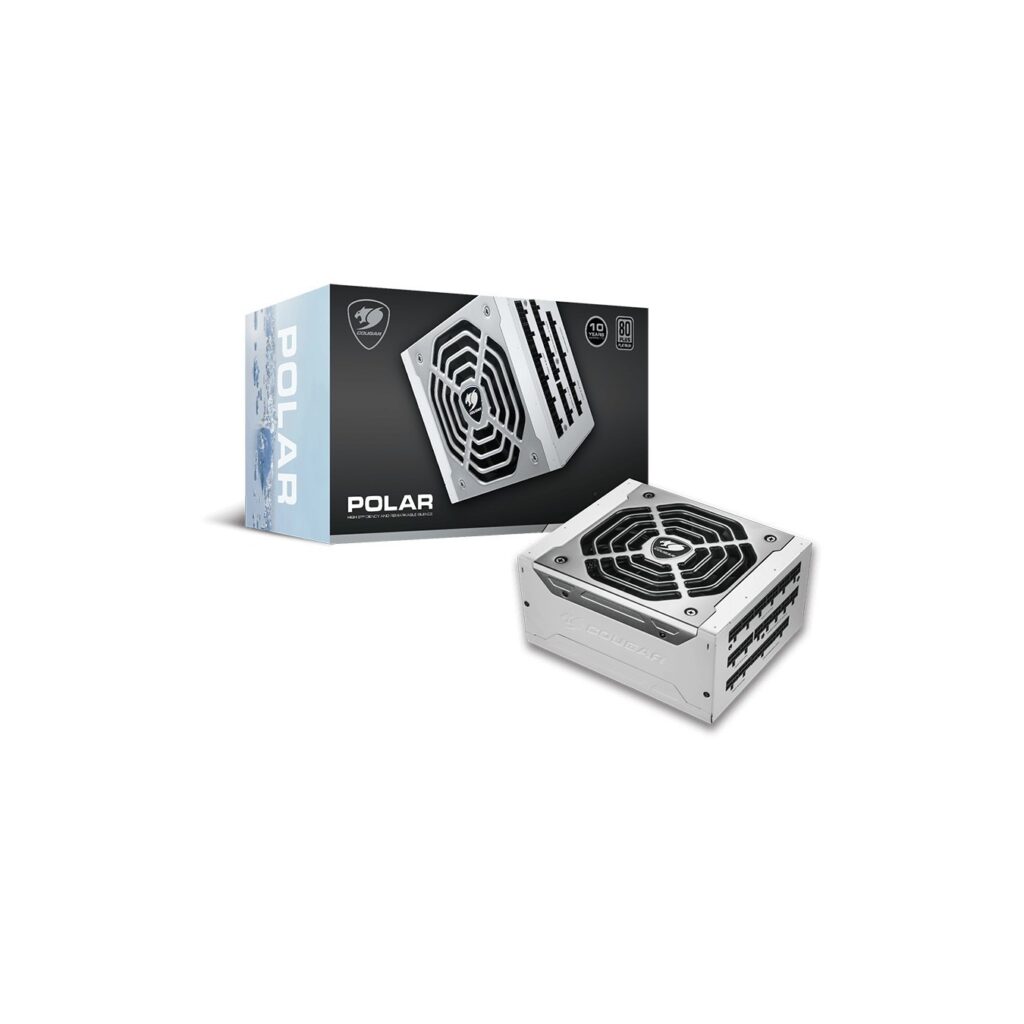

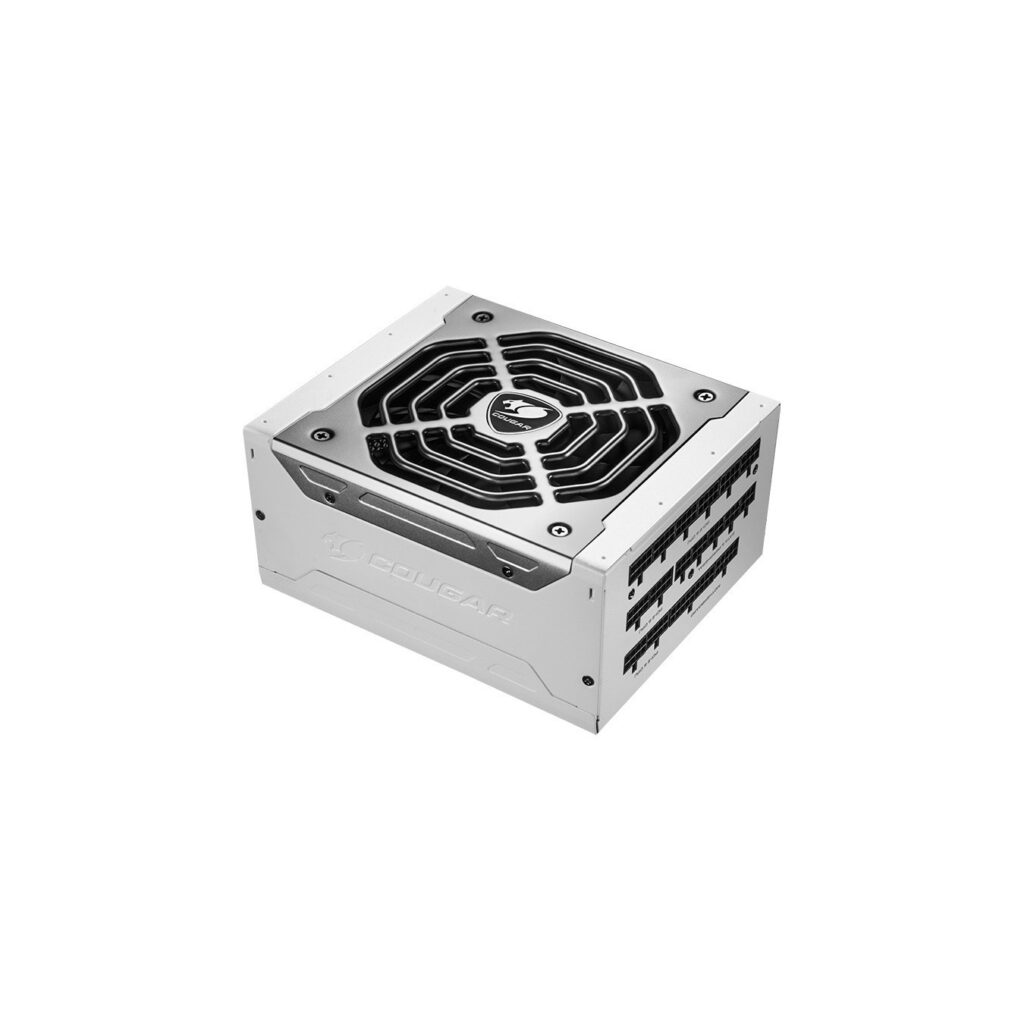

COUGAR Polar Power Supply - 1050W ATX3.1 80 Plus Platinum Modular
Войти

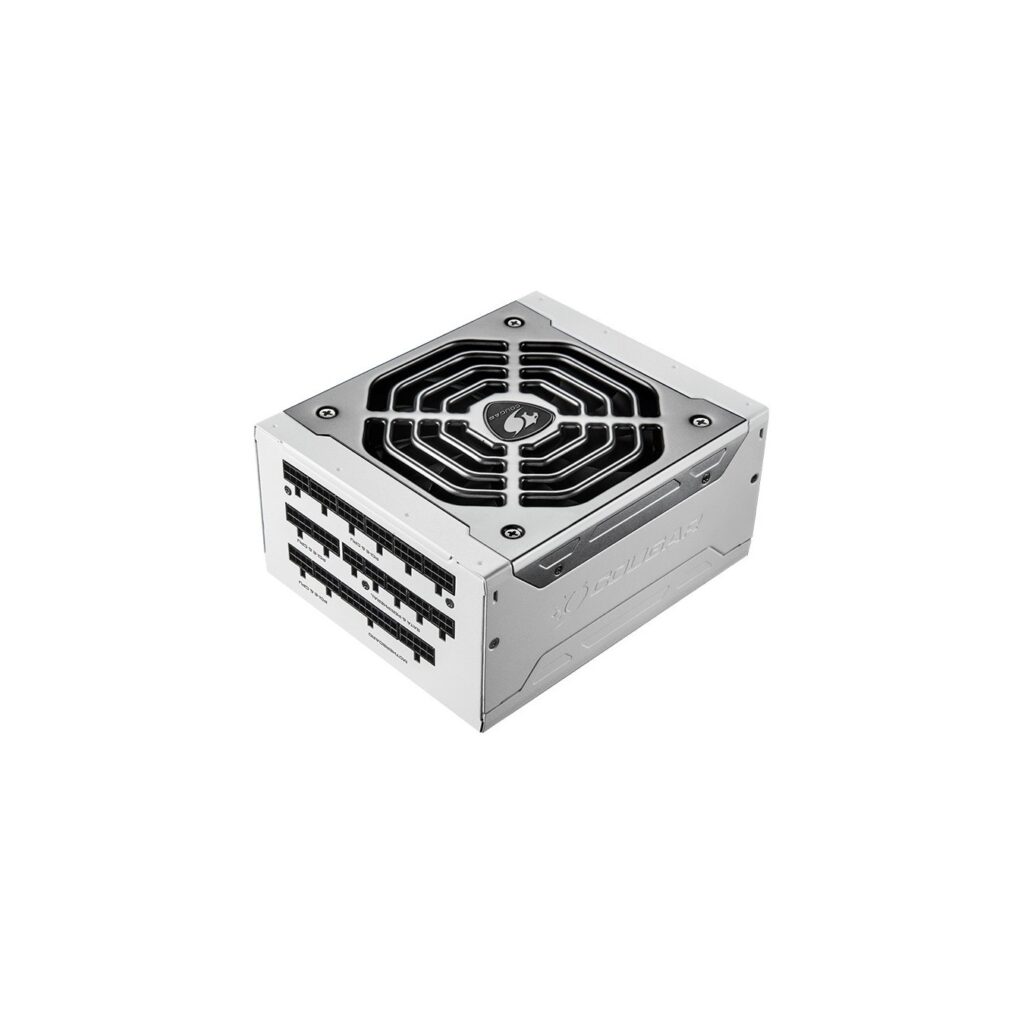

COUGAR Polar 1050W modular power supply with ATX3.1 and 80 Plus Platinum efficiency.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
COUGAR Gaming POLAR. Total power: 1050 W. AC input voltage: 100 — 240 V. AC input frequency: 47 — 63 Hz. Motherboard power connector: 20+4 pin ATX. Motherboard power cable length: 65 cm. SATA power cable length: 120.500 mm. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Platinum. Product colour: Silver. Cooling type: Active. Fan diameter: 13.5 cm. Compliance certificates: CCC. CE. EAC. Federal Communications Commission (FCC). RoHS. TÜV mark
| Total power | 1050 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 15 - 7 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 1050 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 87.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current. Over power. Over voltage. Overheating. Short circuit. Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 65 cm |
| Number of SATA power connectors | 12 |
| Number of PATA power connectors | 4 |
| SATA power cable length | 120.500 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 120.500 mm |
| Feature | On/off switch |
| PCI Express power connectors (6+2 pin) | 7 |
| PCI Express power connectors (12+4 pin) cable length | 650 mm |
| PCI Express power connectors (12-pin) | 1 |
| PCI Express power cable length | 65 cm |
| CPU power cable length | 65 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | HDB |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Silver |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Operating temperature (T-T) | 10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Compliance certificates | CCC. CE. EAC. Federal Communications Commission (FCC). RoHS. TÜV mark |
| Width | 150 mm |
| Depth | 180 mm |
| Height | 86 mm |
| Weight | 2.1 kg |
| Package width | 229 mm |
| Package depth | 331 mm |
| Package height | 107 mm |
| Package weight | 3.59 kg |
| Package type | Box |
