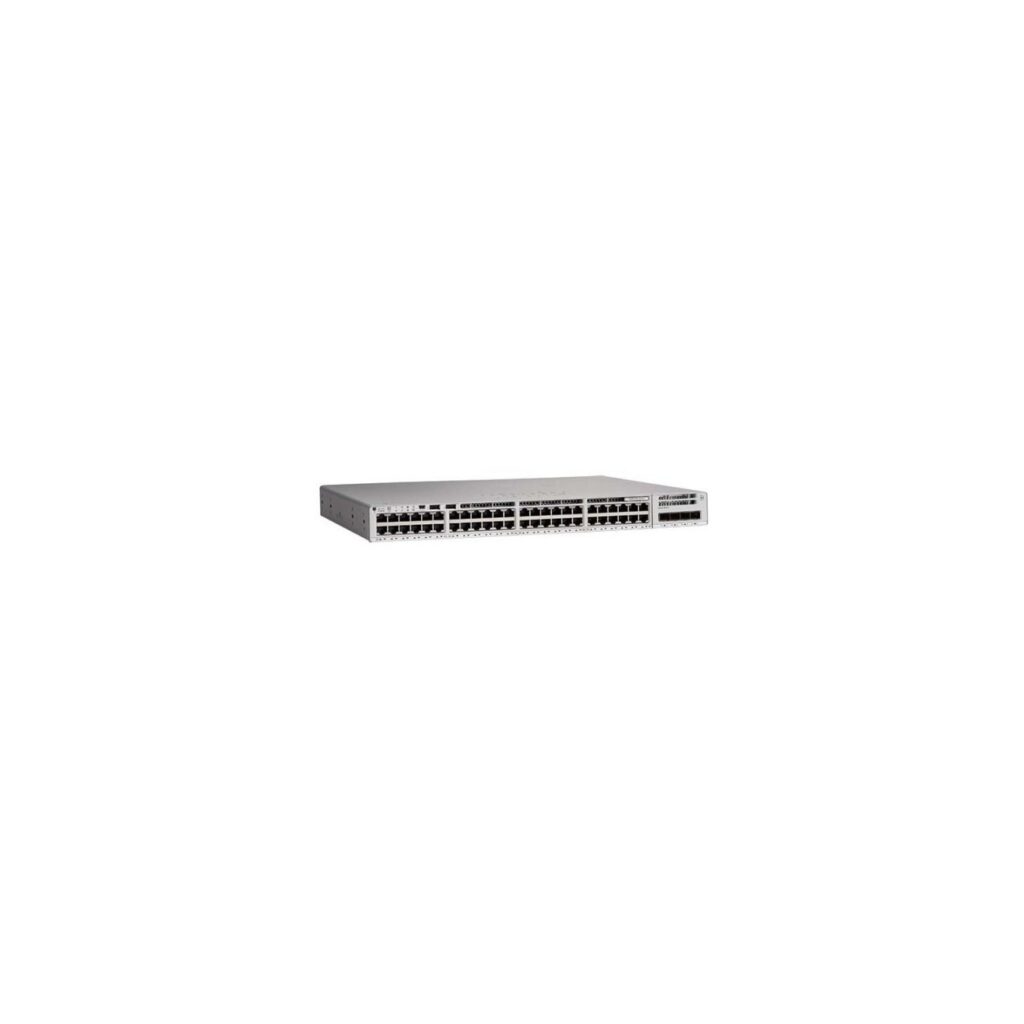

Cisco Catalyst - CATALYST 9200 - 48-PORT POE+
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Cisco Catalyst 9200 series, managed L3 switch with 48-port PoE+ Gigabit Ethernet (10/100/1000), full duplex.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Cisco Catalyst C9200. Switch type: Managed. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 32000 entries. Switching capacity: 160 Gbit/s. Networking standards: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3. IEEE…. Power connector: AC-in jack
| Switch type | Managed |
| Switch layer | L3 |
| Feature | Redundant power supply (RPS) support |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fast Ethernet (copper) ports quantity | 48 |
| Power connector | AC-in jack |
| Routing entries | 4000 |
| Number of VLANs | 4096 |
| Switching capacity | 160 Gbit/s |
| Forwarding rate | 130.95 Mpps |
| MAC address table | 32000 entries |
| Jumbo frames | 9198 |
| Packet buffer memory | 6 MB |
| Security algorithms | 128-bit AES |
| Multicast MAC address table | 1000 entries |
| IPv4 multicast entries | 4000 |
| IPv6 multicast entries | 2000 |
| Management protocols | SNMPv1/v2c/v3 |
| Routing protocols | CDP. RIP. VRRP |
| Product colour | Grey |
| Memory type | DRAM |
| Internal memory | 4000 MB |
| Flash memory | 4000 MB |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 12 - 6 A |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3000 m |
| Width | 445 mm |
| Depth | 350 mm |
| Height | 44 mm |
| Package type | Box |
| Harmonized System (HS) code | 85176990 |
