Chieftec Mesh CW-01B-OP Black Mid-Tower ATX/mATX/ITX Case
Chieftec CW-01B-OP Mesh Series black mid-tower PC case. ATX/mATX/Mini-ITX support, 3×5.25″ + 7×3.5″/2.5″ bays, 410mm GPU (w/ HDD cage removal), 165mm CPU cooler, bottom ATX PSU, 2x USB 3.0.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

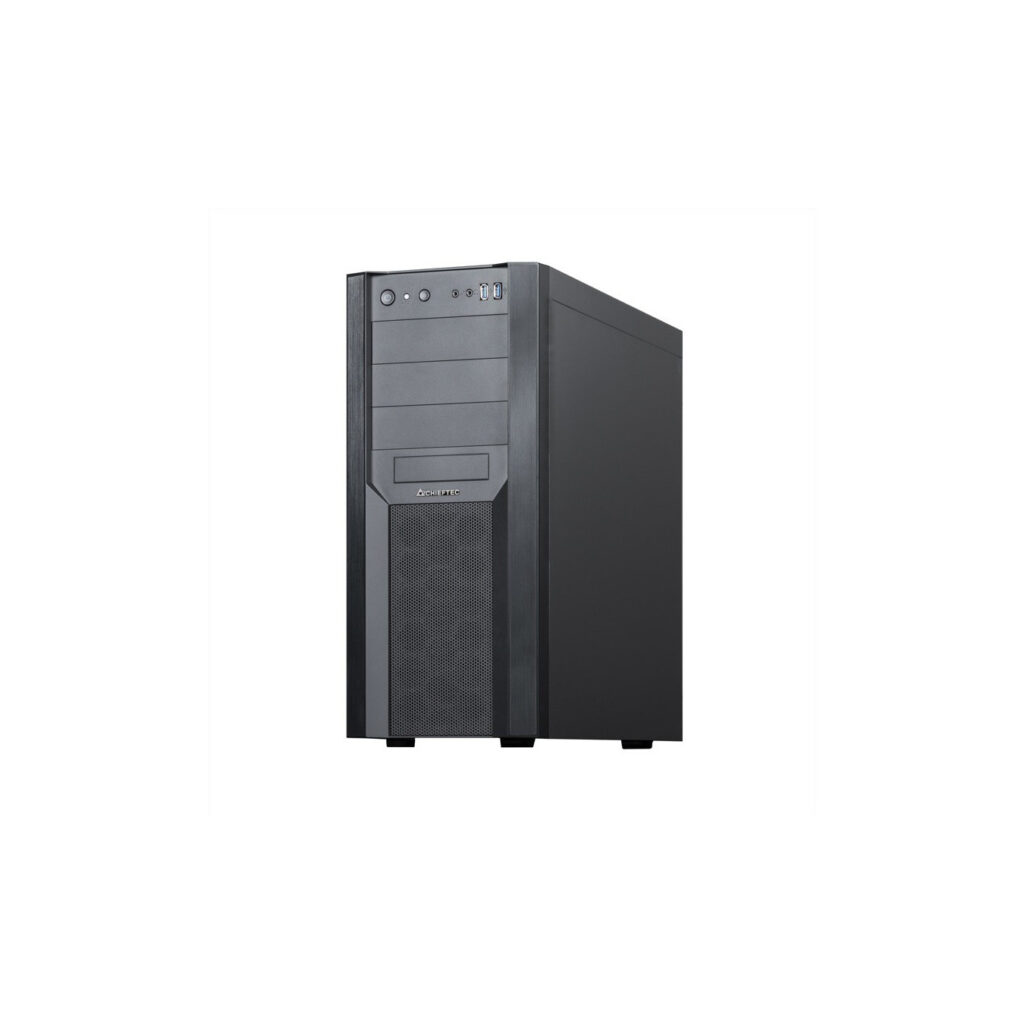

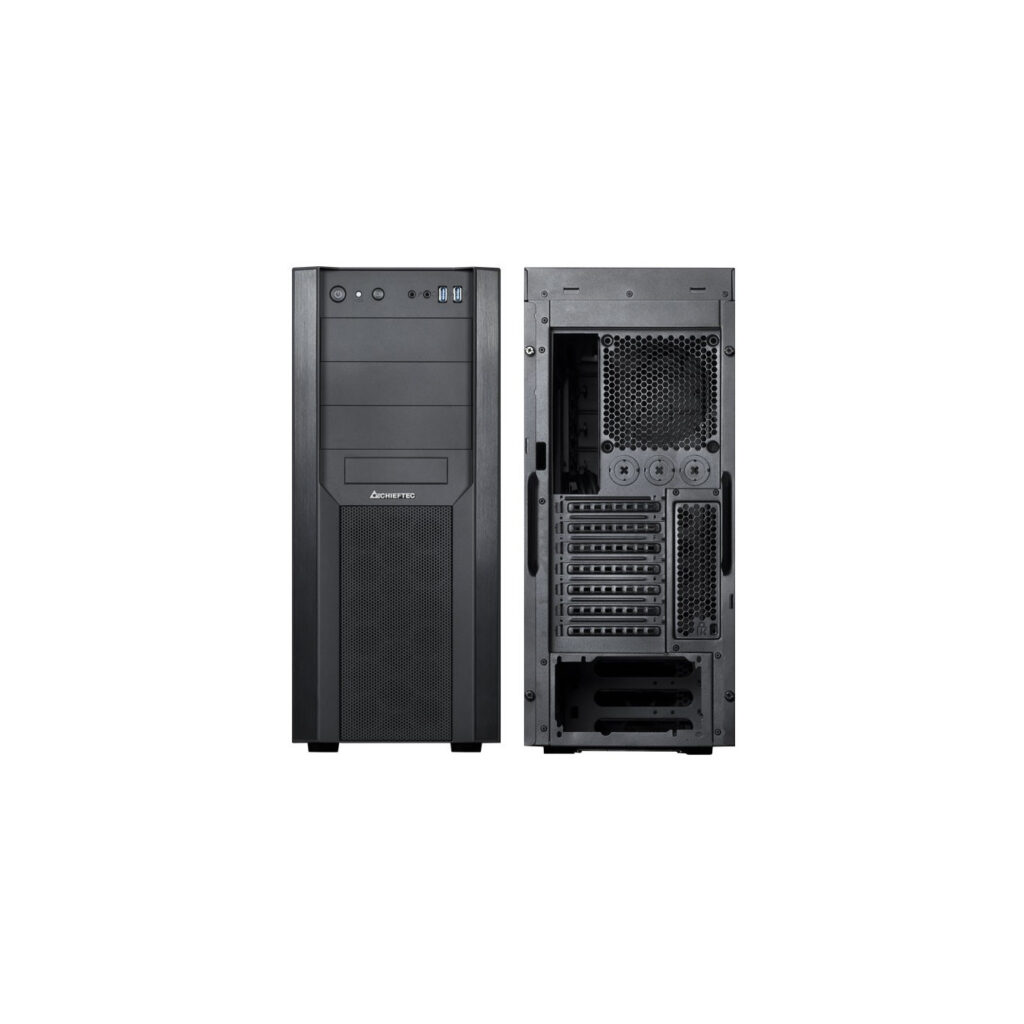

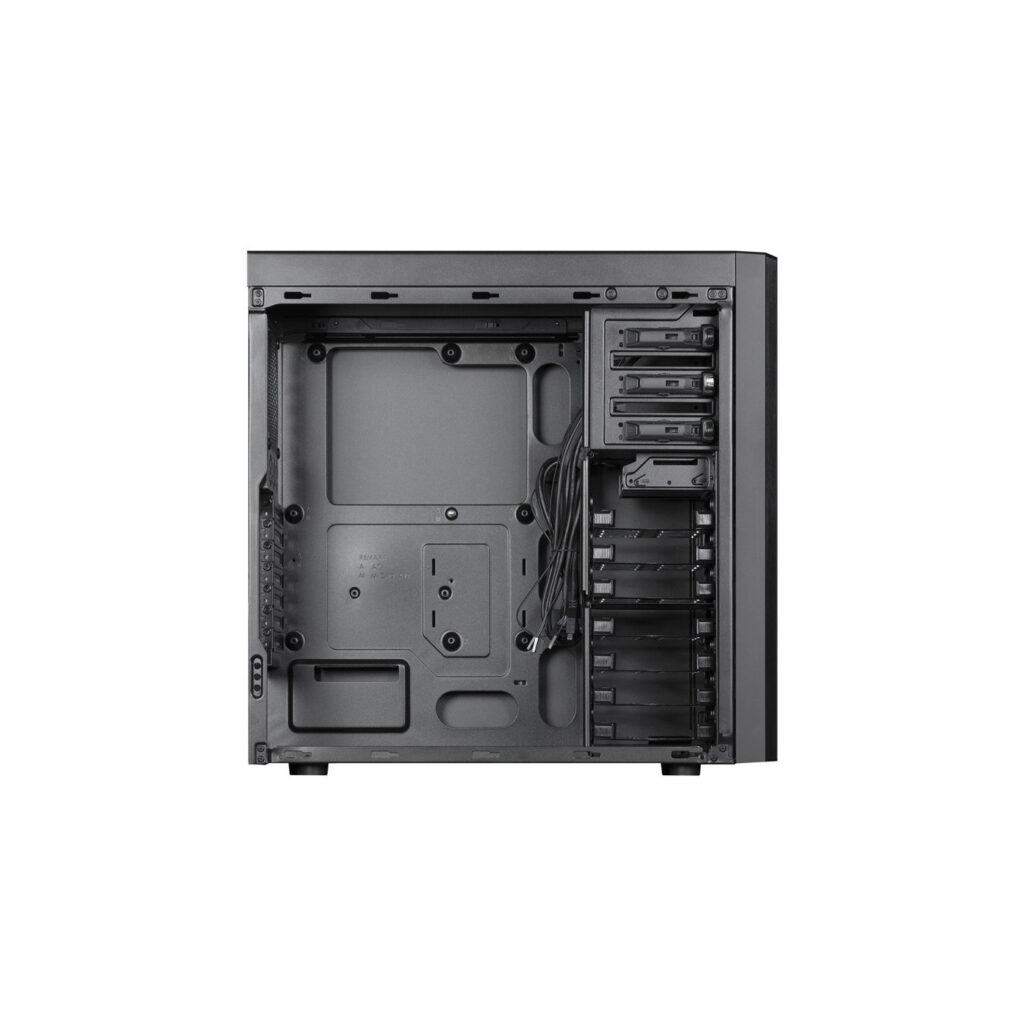

The Chieftec CW-01B-OP from the Mesh Series is a high-performance mid-tower workstation case designed for flexibility and airflow. It combines brushed aluminum accents with mesh panels for optimal cooling and a timeless look. Supports ATX, micro-ATX, and Mini-ITX motherboards with dimensions 490 x 210 x 471 mm and 0.7mm SPCC steel construction.

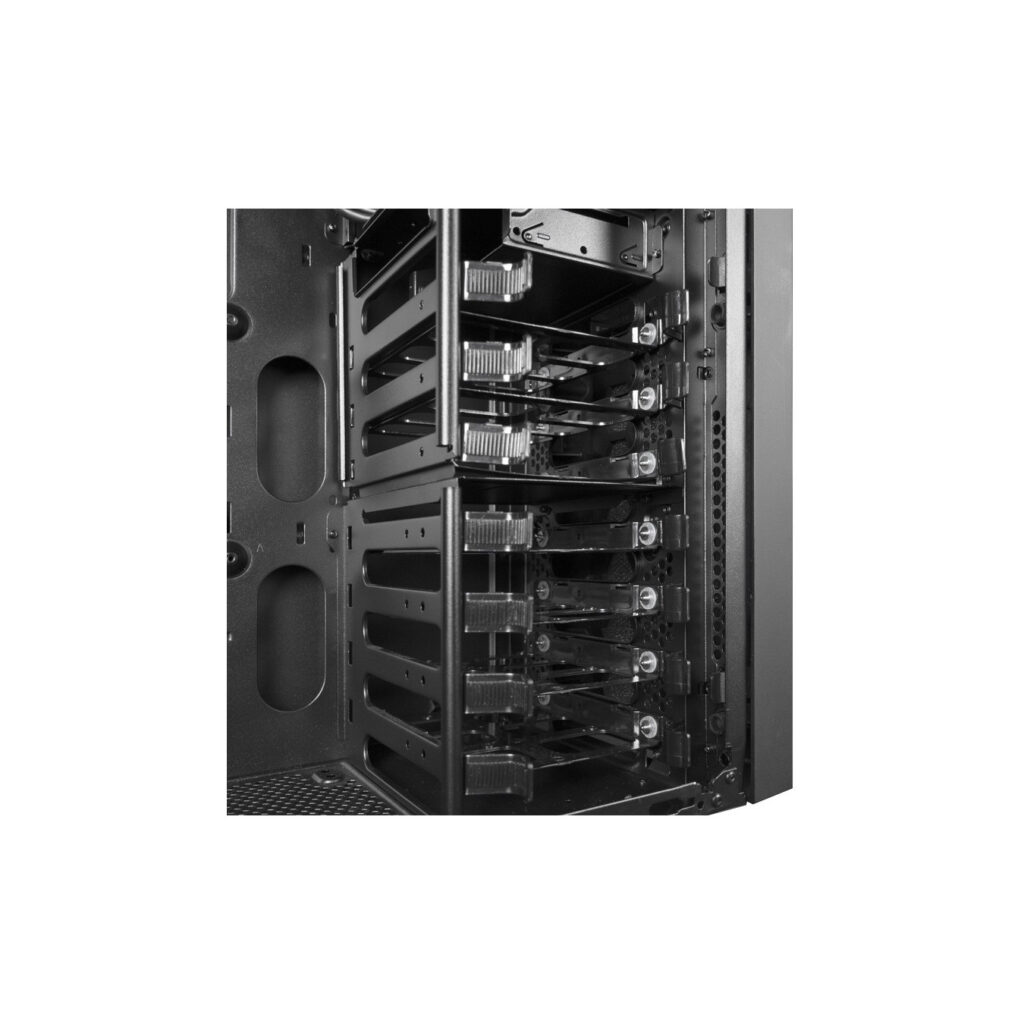

Key features include 3x external 5.25″ bays, 7x internal 3.5″ or 2.5″ bays via tool-less HDD/SSD combo cages, and 7 expansion slots. Cooling options: front 2x120mm, top 2×120/140mm or 280mm radiator, side 1x120mm, bottom 1×120/140mm. Max CPU cooler height 165mm, GPU length 410mm (270mm standard, extends with middle HDD cage removal). Front I/O: 2x USB 3.0, audio out, mic in. Bottom ATX PSU mount.
- ✅ Tool-less drive installation

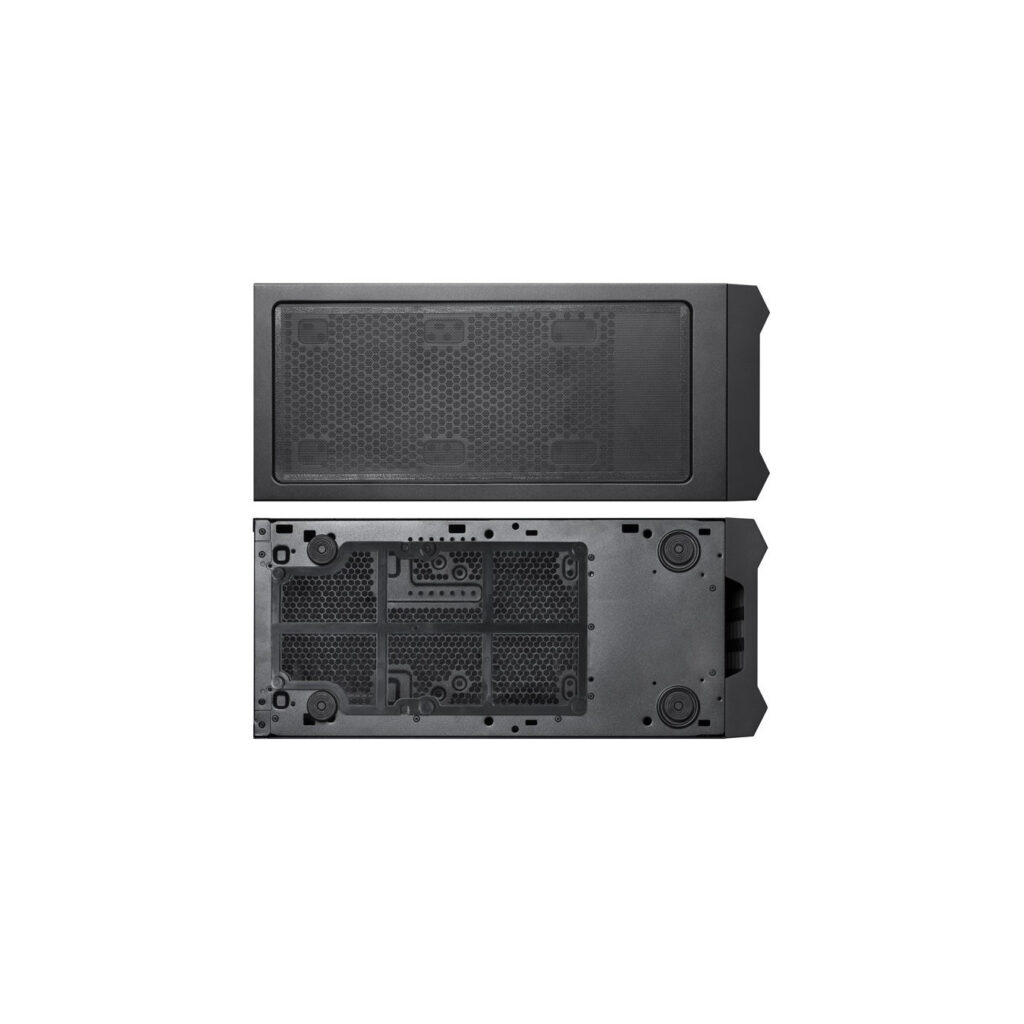

- ✅ Pre-installed dust filters (front, top, bottom magnetic)
- ✅ 24-month warranty
- ✅ No pre-installed fans (0 included)
- ✅ Weight: 6.8kg (packaged 7.8kg)
| Material | 0.7mm SPCC |
| Form factor | Mid Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5 | 7 |
| Number of 5.25 | 3 |
| Number of 2.5 | 7 |

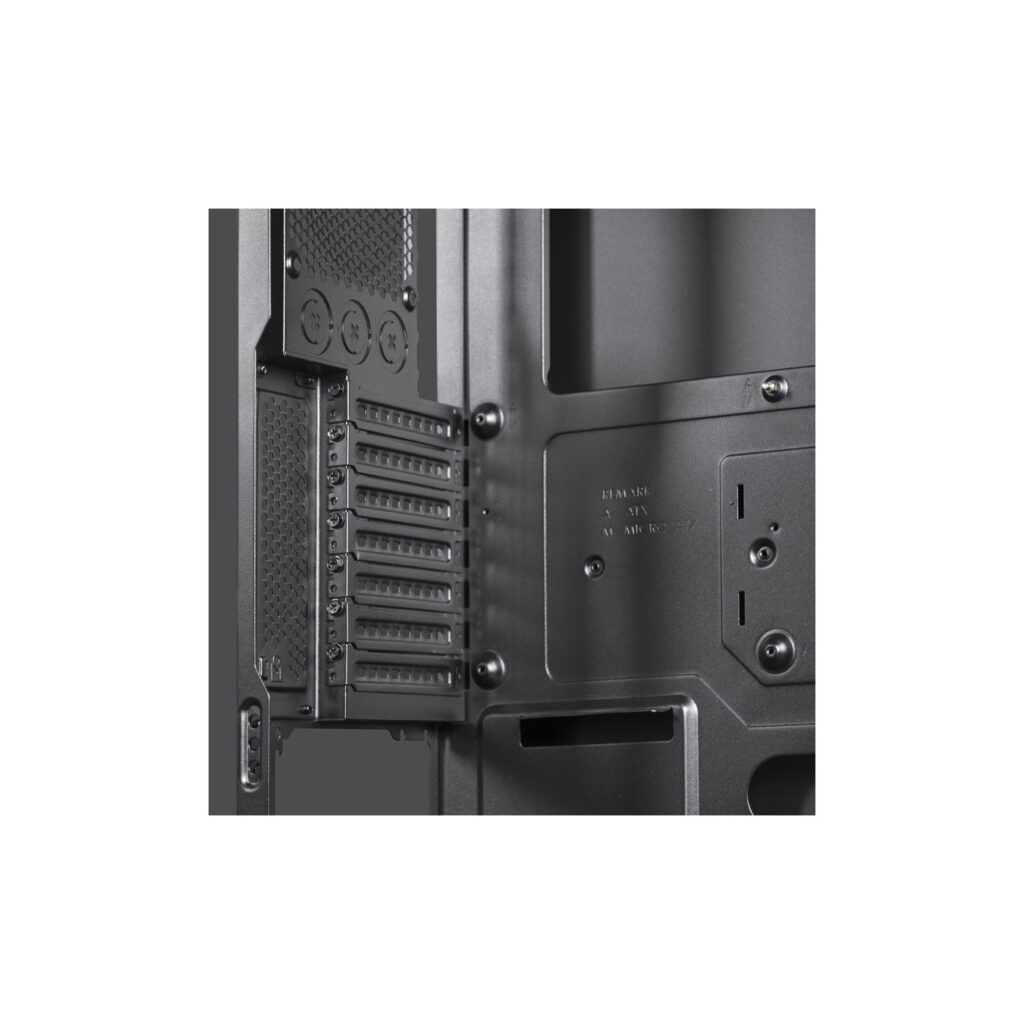

| Number of expansion slots | 7 |
| Maximum CPU cooler height | 165 mm |
| Maximum graphics card length | 410 mm (270 mm standard) |
| Power supply location | Bottom |
| Supported power supply form factors | ATX |
| Front USB 3.2 Gen 1 ports | 2 |
| Front audio | Audio-out, Mic-In |
| Width | 210 mm |
| Depth | 490 mm |
| Height | 471 mm |
| Weight | 6.8 kg |
| Package weight | 7.8 kg |
| Included fans | 0 |
| Top radiator support | 280 mm |
| Warranty | 24 Months |
