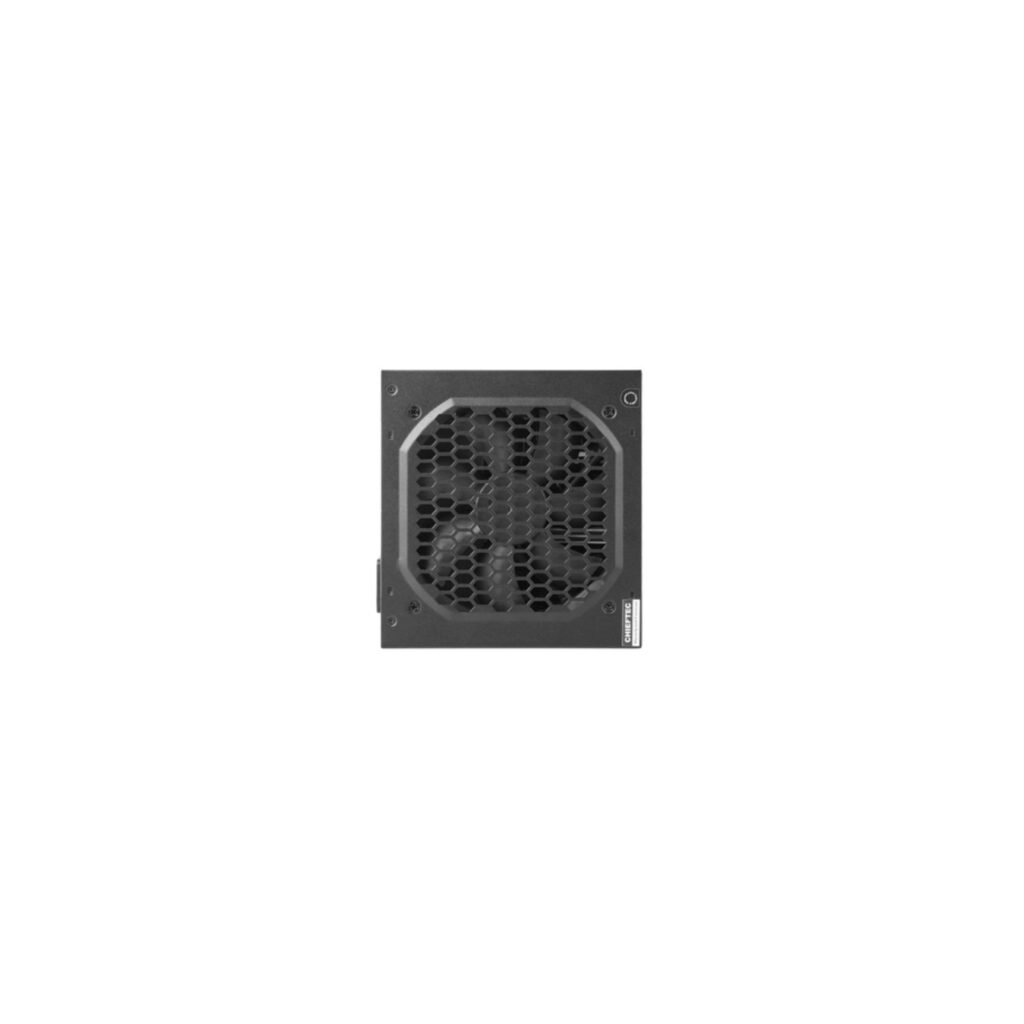

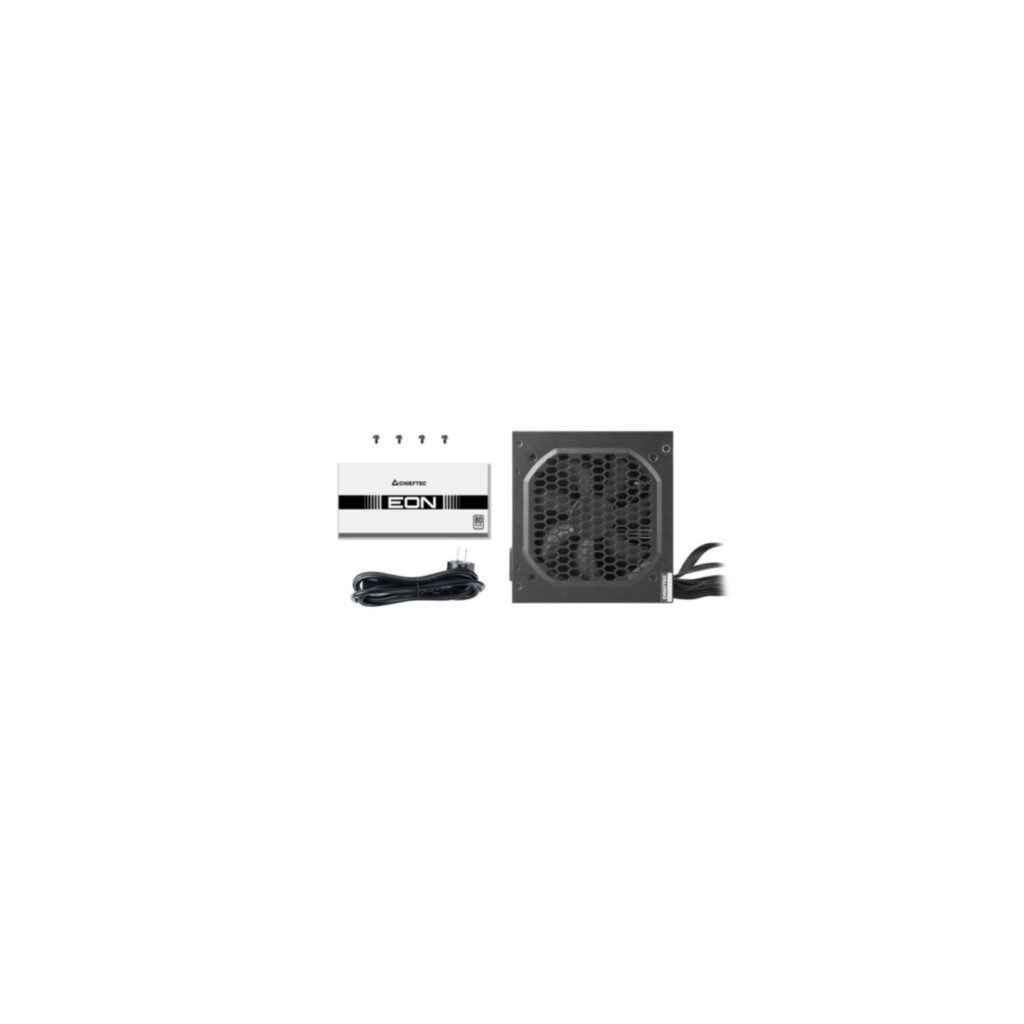

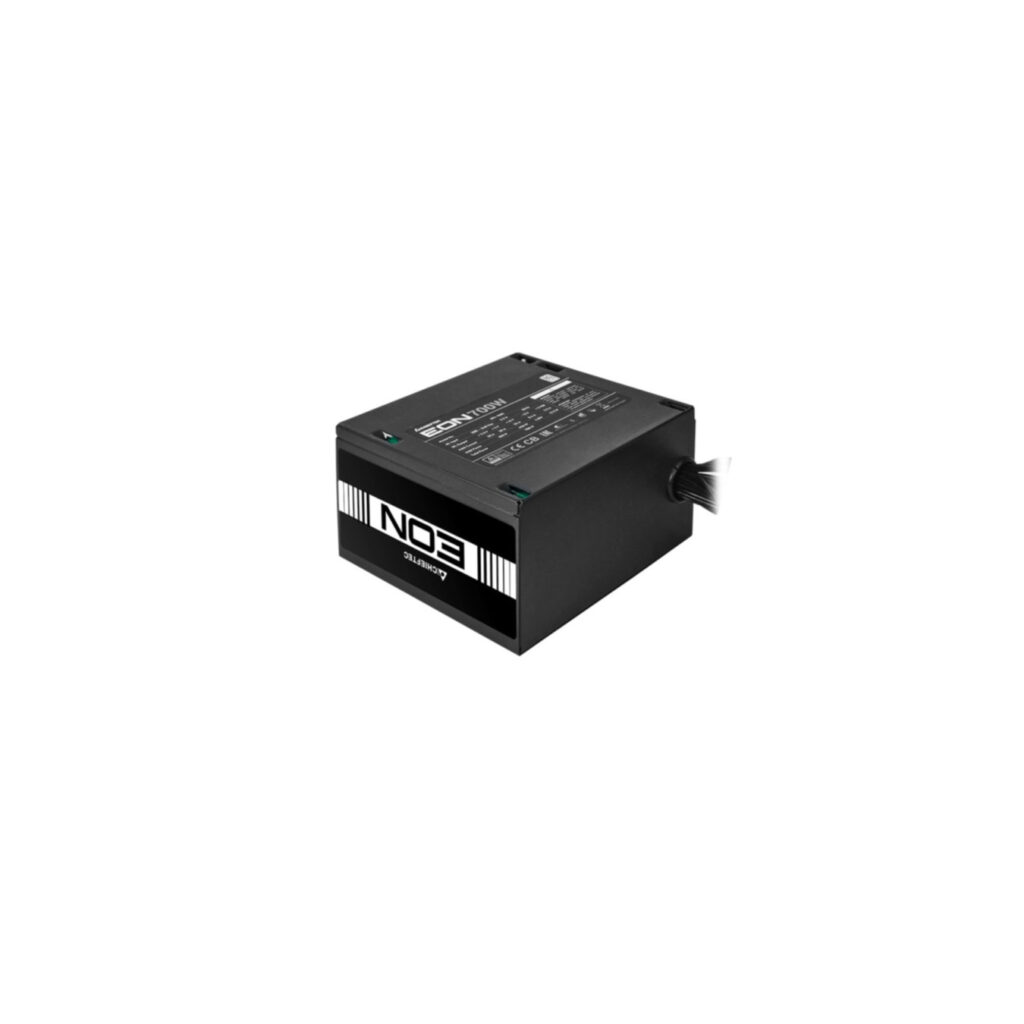

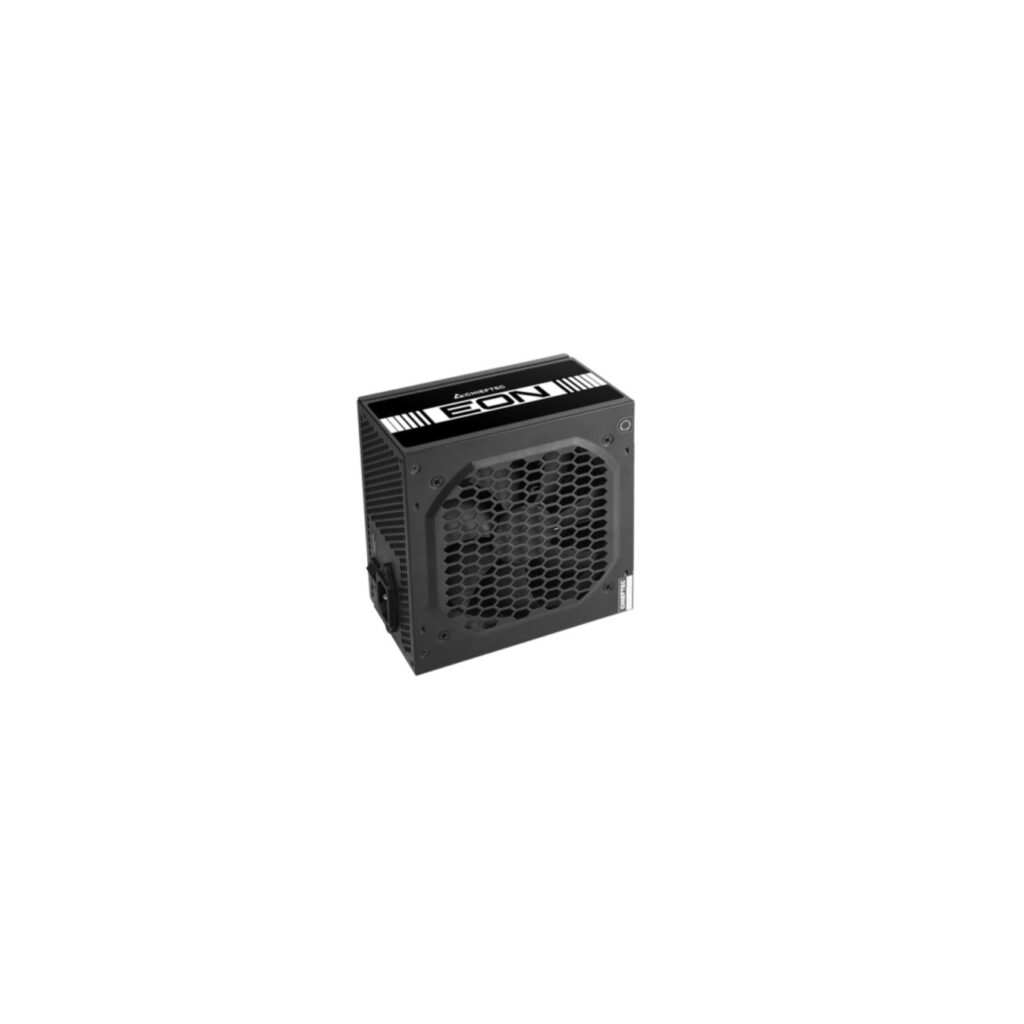

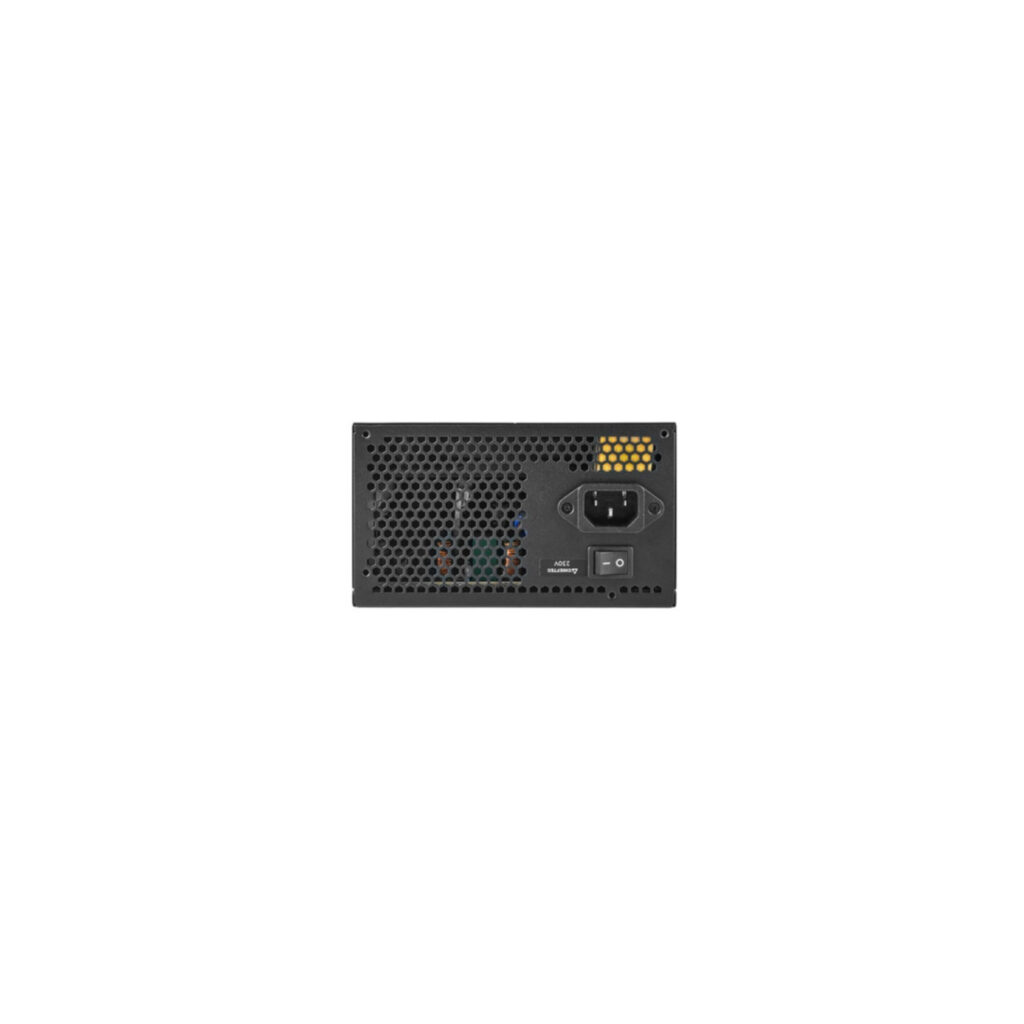

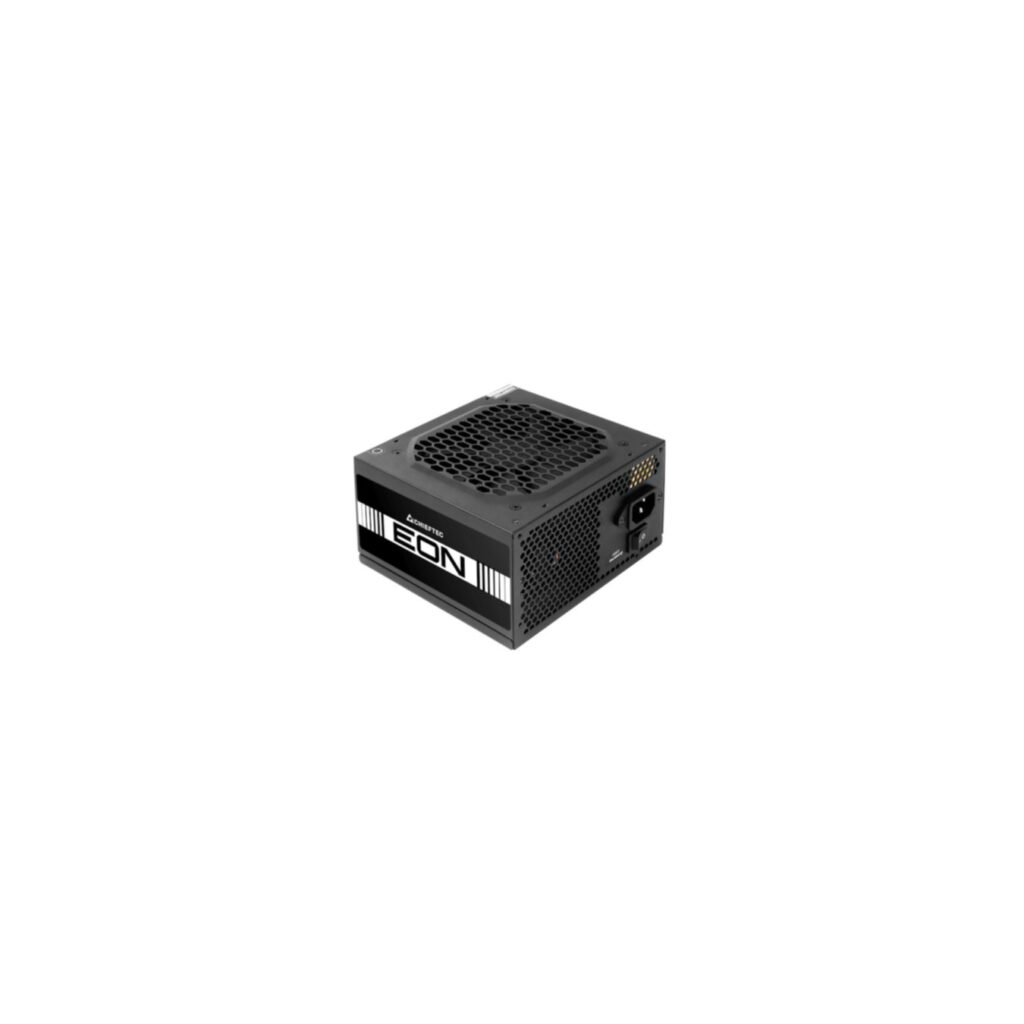

Chieftec EON ZPU-400S - 400W ATX Power Supply, Black, 80 PLUS, 120mm Fan
Войти
Chieftec EON ZPU-400S: 400W non-modular ATX PSU with 80 PLUS 230V EU efficiency, active PFC, silent 120mm fan, full protections, and extended cables for reliable PC power.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The Chieftec EON ZPU-400S delivers 400W of reliable power in a non-modular ATX form factor, certified 80 PLUS Standard for 230V EU with active PFC (0.9 PF) for efficient operation.
Equipped with a silent 120mm fan, steel black chassis, and extra-long native cables including 55cm ATX 20+4pin, EPS 4+4pin CPU, 1x PCIe 6+2pin, 4x SATA, and 2x Molex connectors. Multi-protection safeguards against short circuit, over/under voltage, over power, and inrush.
- Total Power: 400W continuous
- Efficiency: 80 PLUS Standard 230V EU
- Connectors: 20+4pin ATX, 4+4pin EPS, 1x 6+2pin PCIe, 4x SATA, 2x 4pin Molex
- Dimensions: 150x86x140mm; Warranty: 2 years
| Total power | 400 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 Hz |
| Input current | 3 A |
| Maximum input current (@220V) | 3 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (-12V) | 4.8 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 30 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.4 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Short circuit, Over Voltage, Under Voltage, Over Power, Surge and Inrush |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 550, 600 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 150, 450 mm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Standard 230V EU |
| Supported motherboard form factors | ATX |
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
| Product colour | Black |
| Fan diameter | 12 cm |
| On/off switch | Yes |
| Compliance certificates | CB, CE, EAC, RoHS |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.15 kg |
| Package weight | 1.4 kg |
| Package type | Box |
| Sustainability certificates | ErP |
| Warranty period | 2 year(s) |
