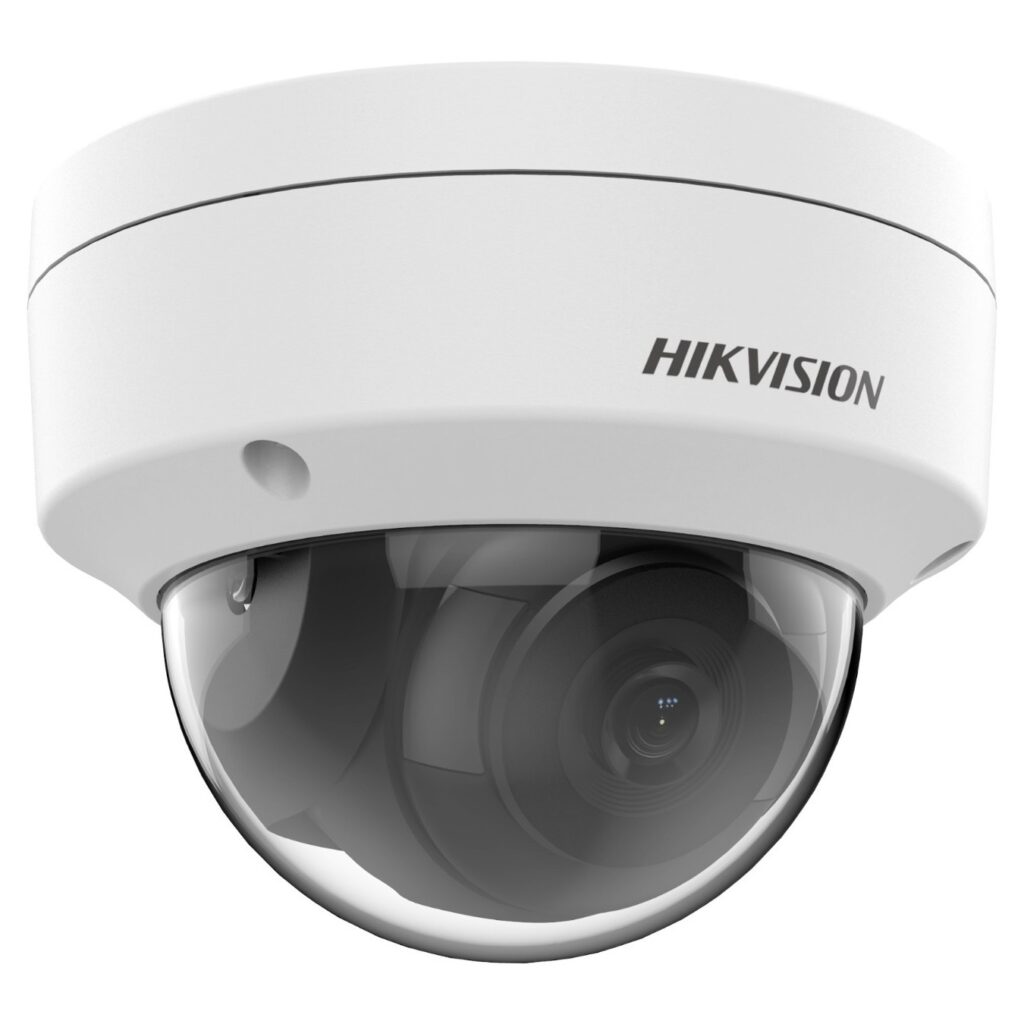

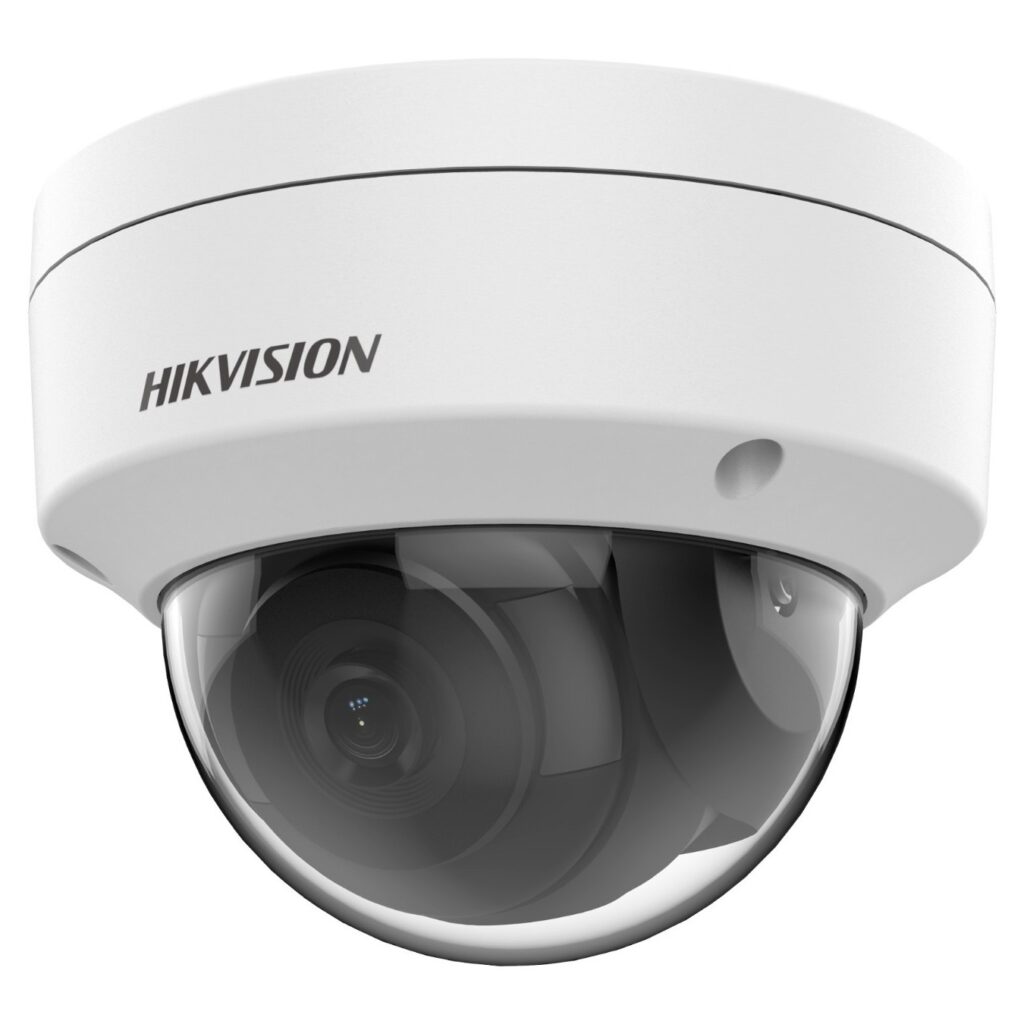

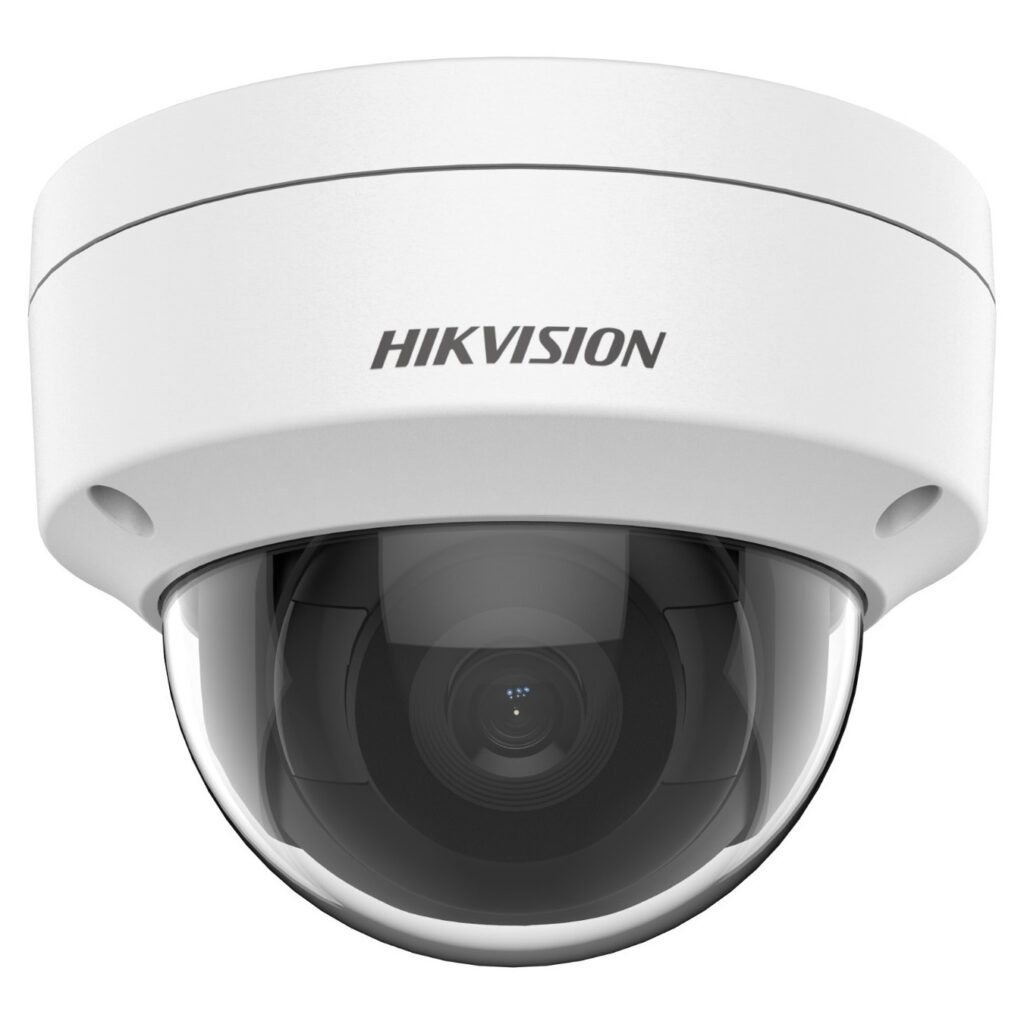

CAMIP Hikvision DS-2CD2143G2-IU - DS-2CD2143G2-IU - Outdoor Dome IP Camera, 4 MP, 2.8 mm, PoE, White
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Outdoor IP dome camera, 4 MP, 2.8 mm lens, PoE, IP65, up to 30 m IR, microSD up to 256 GB, 1-channel audio in/out, 30 fps
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Hikvision DS-2CD2143G2-IS. Type: IP security camera. Placement supported: Outdoor. Connectivity technology: Wired. Mounting type: Ceiling/wall. Product colour: White. Form factor: Dome. Angle of rotation: 355°. Lens viewing angle. horizontal: 103°. Lens viewing angle. vertical: 55°. Sensor type: CMOS. Optical sensor size: 25.4 / 3 mm (1 / 3″). Fixed focal length: 2.8 mm
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Feature | Reset button |
| Number of languages | 33 |
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Aluminium |
| International Protection (IP) code | IP65 |
| IK code | IK10 |
| Minimum illumination | 0 lx |
| Angle of rotation | 355° |
| Lens viewing angle. horizontal | 103° |
| Lens viewing angle. vertical | 55° |
| Lens viewing angle. diagonal | 122° |
| Tilt angle range | 0 - 75° |
| Pan range | 0 - 355° |
| Camera shutter speed | 1/3 - 1/100000 s |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Sensor type | CMOS |
| Number of lenses | 1 |
| Maximum aperture number | 1.6 |
| Fixed focal length | 2.8 mm |
| Night vision distance | 30 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Maximum resolution | 2688 x 1520 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264. H.264+. H.265. H.265+. M-JPEG |
| Supported graphics resolutions | 640 x 360. 640 x 480 (VGA). 1280 x 720 (HD 720). 1920 x 1080 (HD 1080). 2688 x 1520 |
| Frame rate | 30 fps |
| Noise reduction technology | 3D noise reduction |
| Image quality adjustment | Brightness. Contrast. Saturation. Sharpness |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 32 Kbps - 8 Mbps |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio formats supported | AAC. MP3. PCM |
| Sample rate | 48 kHz |
| Voice codecs | G.711alaw. G.711ulaw. G.722.1. G.726. MP2L2 |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x. IEEE 802.3af |
| Supported network protocols | TCP/IP. ICMP. HTTP. HTTPS. FTP. DHCP. DNS. DDNS. RTP. RTSP. NTP. UPnP. SMTP. IGMP. 802.1X. QoS. IPv6. UDP. Bonjour. SSL/TLS. PPPoE |
| Number of users | 32 user(s) |
| Compatible memory cards | MicroSD (TransFlash). MicroSDHC. MicroSDXC |
| Maximum memory card size | 256 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| Intelligent Video Surveillance (IVS) system features | Face detection |
| Behavior analysis | Intrusion detection. Line crossing detection |
| Power source type | DC. PoE |
| Power consumption (max) | 5 W |
| Power consumption (Power over Ethernet (PoE)) | 6.5 W |
| DC output voltage | 12 |
| DC output current | 0.4 A |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Height | 84.7 mm |
| Diameter | 11.1 cm |
| Weight | 530 g |
| Package width | 134 mm |
| Package depth | 134 mm |
| Package height | 108 mm |
| Package weight | 720 g |
| Compliance certificates | REACH. RoHS |
| Number of cameras | 1 |
