Brateck TV Mount - LP77-46T - 60x40 Tilt 75kg
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Brateck TV mount with 60×40 tilt, supports up to 75 kg; ultra-slim design with leveling adjustments for precise hanging.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

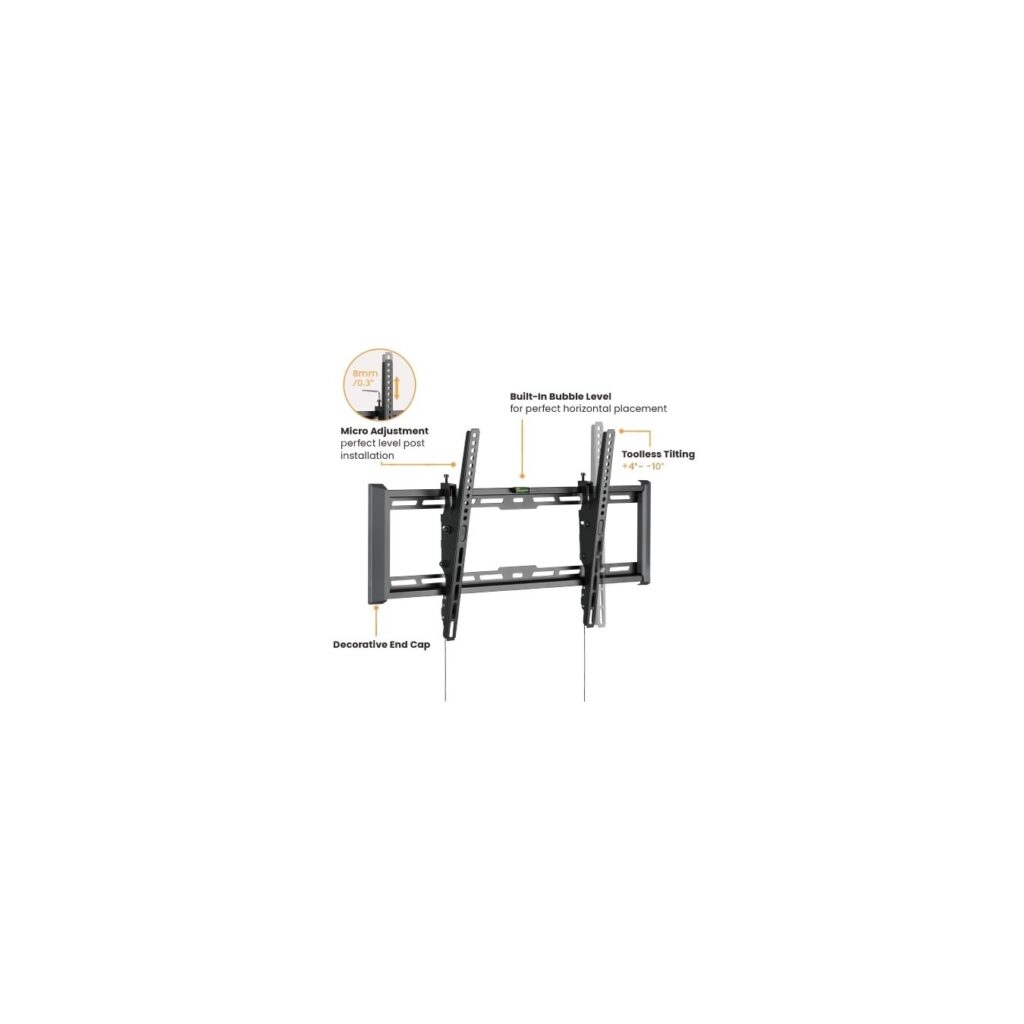

- Leveling adjustments: allow TV to be perfectly positioned after hanging
- Magnetic Strap End: hides itself when not in use.
- Bubble level included
- Ultra-slim design

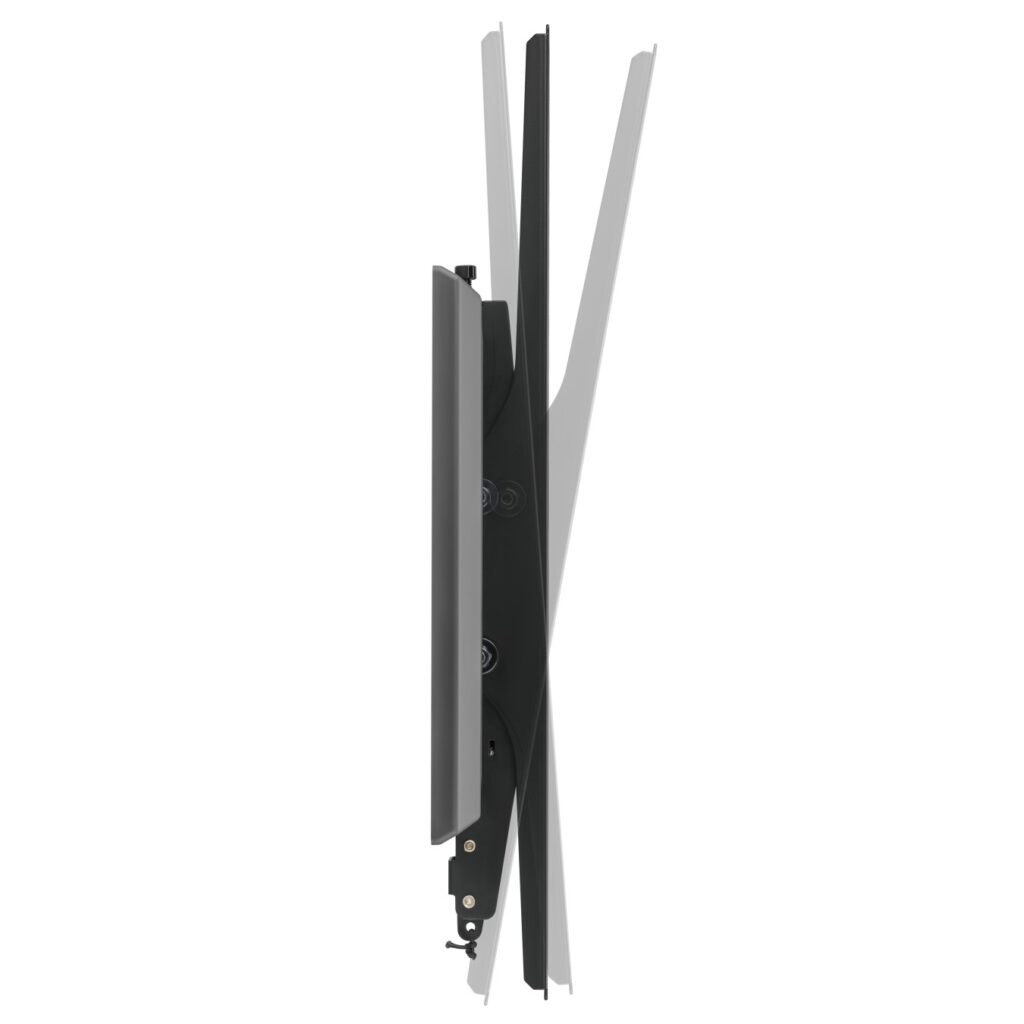

- Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
- Decorative Covers: for a more elegant look
- Heavy-Duty Steel Construction: provides extra strength and durability

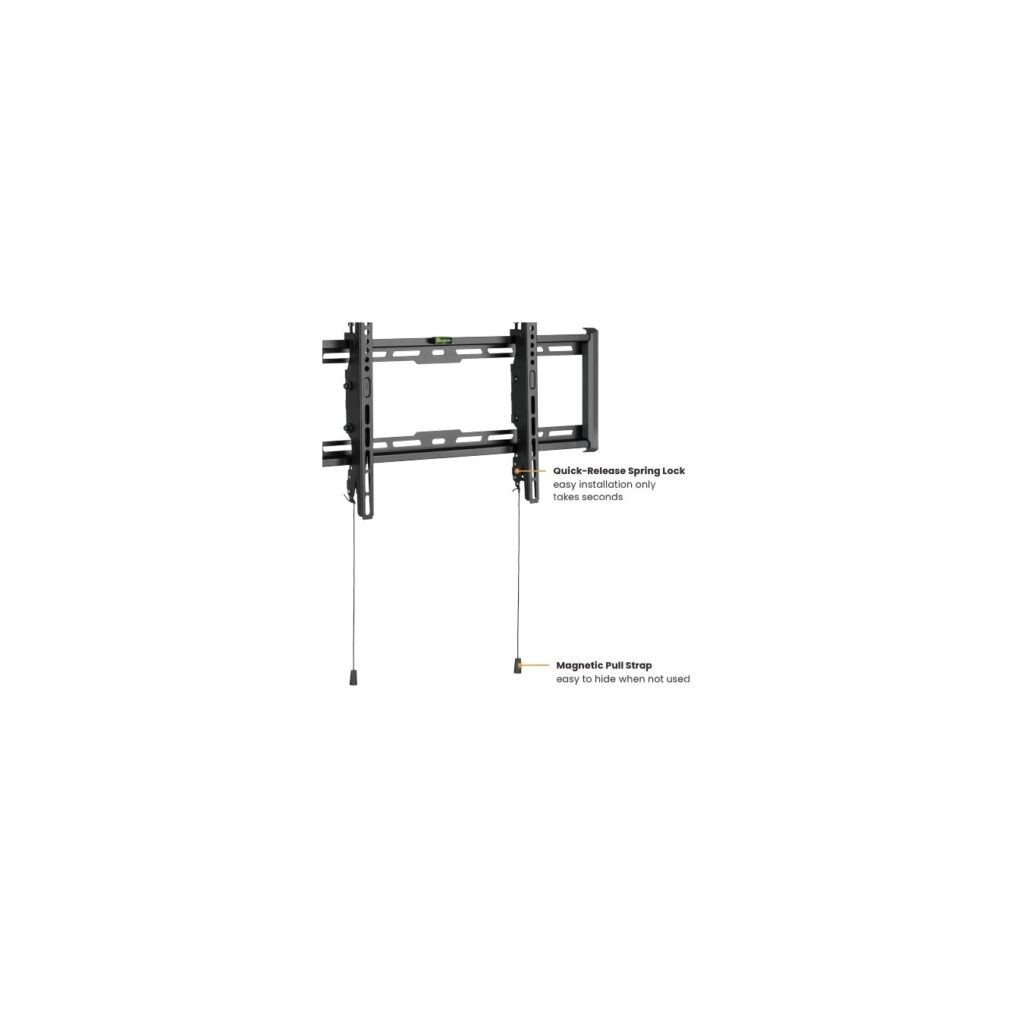

- Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
Product Category: Tilt TV Wall Mount
Rank: Standard
Material: Steel,Plastic
Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=1.5mm cold-rolled sheet (Wall Plate THK=0.059″ cold-rolled sheet,Bracket Arm THK=0.059″ cold-rolled sheet)
Surface Finish: Powder Coating
Color: Matte Black & Dark Grey,Matte White & Light Grey

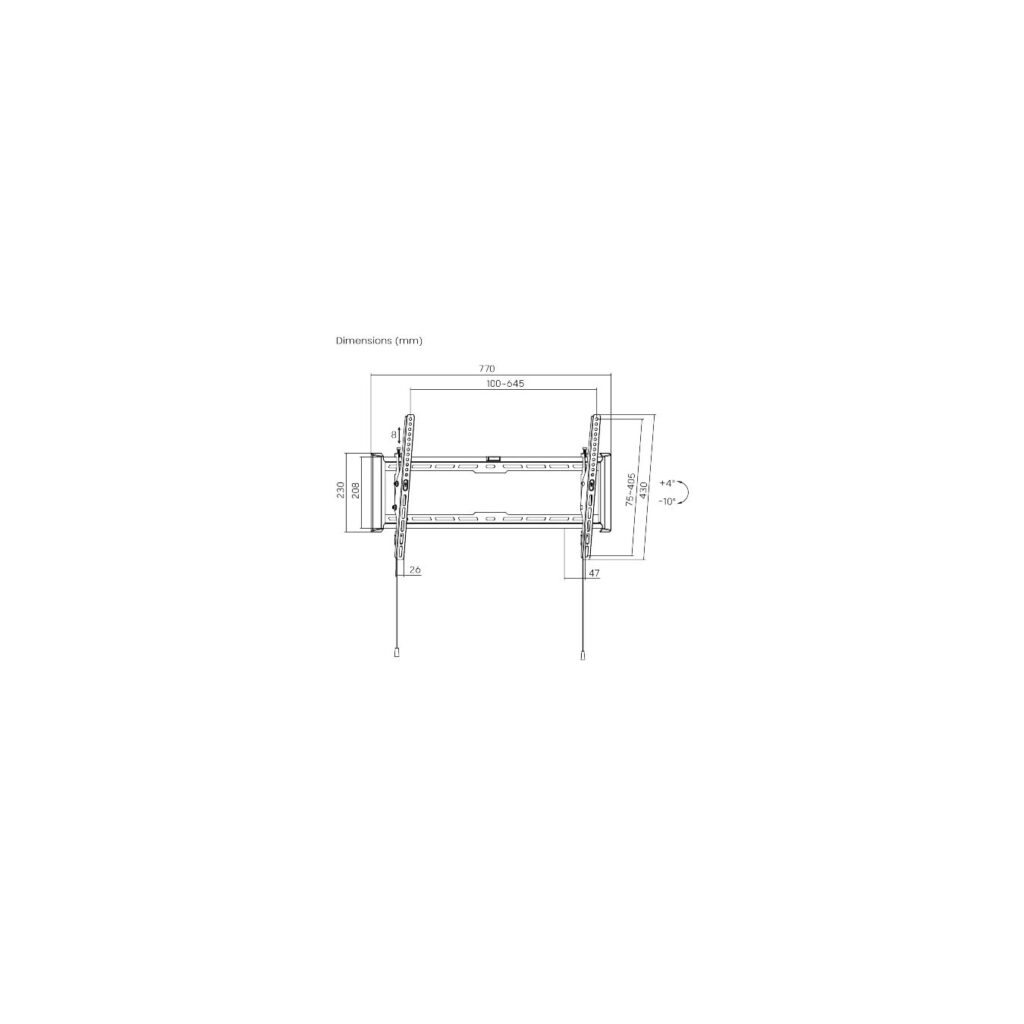

Dimensions: 47x770x430mm (1.9″x30.3″x16.9″)
Fit Screen Size: 37″-80″
Fit Curved TV: Yes
Mounting Hole Pattern: VESA & Universal
VESA Compatible: 200×200,300×200,400×200,300×300,400×300,400×400,600×400
Max. Mounting Hole: 650×405
Weight Capacity: 75kg (165lbs)
Strength Tested: 4 Times Approved
Profile: 47mm (1.9″)
Tilt Range: +4°~-10°
Screen Level: 8mm
Screen Freely Tilting: No
Installation: Solid Wall,Double Stud(406mm/450mm/600mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Direction Indicator: Yes
Cable Management: No
Anti-theft: No
Bubble Level: Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
| Function | Tilt |
| Max Vesa | 600x400 |
| Max. Weight | 75kg |
