White mid-tower ATX case with 4 pre-installed Light Wings LX ARGB fans, supports radiators up to 360mm, GPU up to 368mm, and CPU coolers up to 178mm. Features USB 3.2 Gen 2 Type-C, clean cable routing, and side panel window.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The be quiet! Pure Base 501 LX is a compact yet versatile white mid-tower PC case designed for gaming and office builds. Despite its modest footprint (450mm L × 231mm W × 463mm H), it accommodates high-end components including ATX motherboards, graphics cards up to 368mm in length, and CPU coolers up to 178mm in height. The case comes pre-installed with four Light Wings LX PWM fans (three 120mm front intake, one 140mm rear exhaust) featuring ARGB lighting synchronized via the front-panel control button or motherboard software.
Cooling flexibility is a key strength, supporting radiators up to 360mm at the front and 240mm at the top, making it ideal for custom water-cooling setups. The high-airflow mesh front and top panels ensure excellent thermal performance, while the side panel window provides visibility of internal components. The case includes a removable 2.5″/3.5″ drive cage with 5×2.5″ and 2×3.5″ drive bays, decoupled HDD mounting for vibration isolation, and thoughtful cable routing design. The front I/O panel features 1× USB 3.2 Gen 2 Type-C, 2× USB 3.2 Type-A, and a combo audio jack for convenient connectivity.
Key features include:
- Supports ATX, Micro-ATX, and Mini-ITX motherboards
- 4 pre-installed Light Wings LX ARGB fans with PWM control
- Radiator compatibility: up to 360mm (front), 240mm (top)
- GPU support: up to 368mm length with optional vertical mounting
- CPU cooler clearance: up to 178mm height

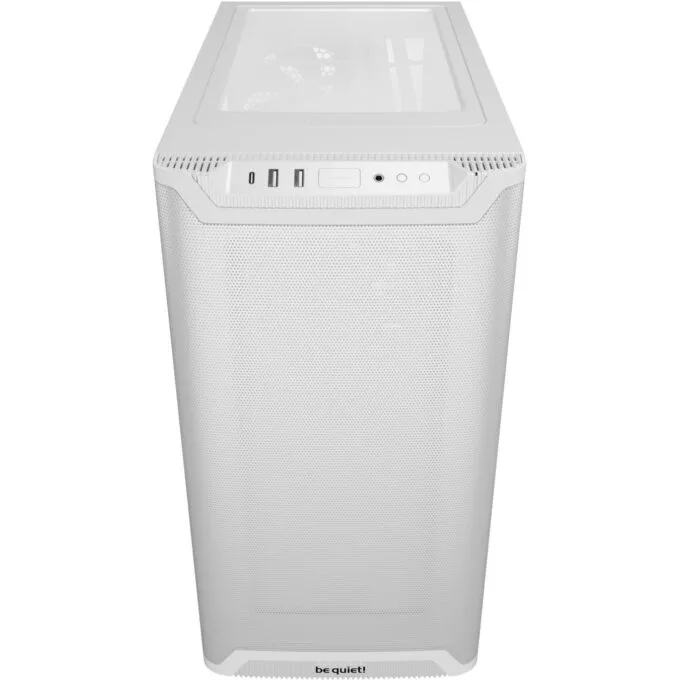

- Front I/O: USB 3.2 Gen 2 Type-C, 2× USB 3.2 Type-A, audio combo jack
- Sound-dampening side panel insulation and anti-vibration decoupling
| Form Factor | Mid Tower |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX |
| Color | White |
| Dimensions (L × W × H) | 450 × 231 × 463 mm |
| Pre-installed Fans | 4× Light Wings LX PWM (3× 120mm front, 1× 140mm rear) |
| Front Panel Fans Support | Up to 3× 120mm or 2× 140mm |
| Top Panel Fans Support | Up to 2× 120mm or 140mm |
| Rear Panel Fans Support | Up to 1× 120mm or 140mm |
| Radiator Support (Front) | Up to 360mm |
| Radiator Support (Top) | Up to 240mm |
| Max GPU Length | 368 mm |
| GPU Orientation | Horizontal (standard), Vertical (optional) |
| Max CPU Cooler Height | 178 mm |
| Max PSU Length | 180 mm (official), longer PSUs may fit |
| Drive Bays | 5× 2.5 |
| Front I/O Ports | 1× USB 3.2 Gen 2 Type-C, 2× USB 3.2 Type-A, 1× Combo Audio Jack |
| Front Panel Controls | Power button, ARGB LED control button |
| ARGB Hub | Yes, supports up to 6 ARGB devices |
| PWM Fan Hub | Yes, integrated |
| Side Panel | Tempered glass window |
| Front Panel Type | High-airflow mesh |
| Top Panel Type | High-airflow mesh |
| Sound Dampening | Side panel insulation mats, back panel insulation |
| Vibration Isolation | Anti-vibration decoupled HDD mounts and fan mounts |
| Cable Management | Optimized cable routing design with tie-down points |
