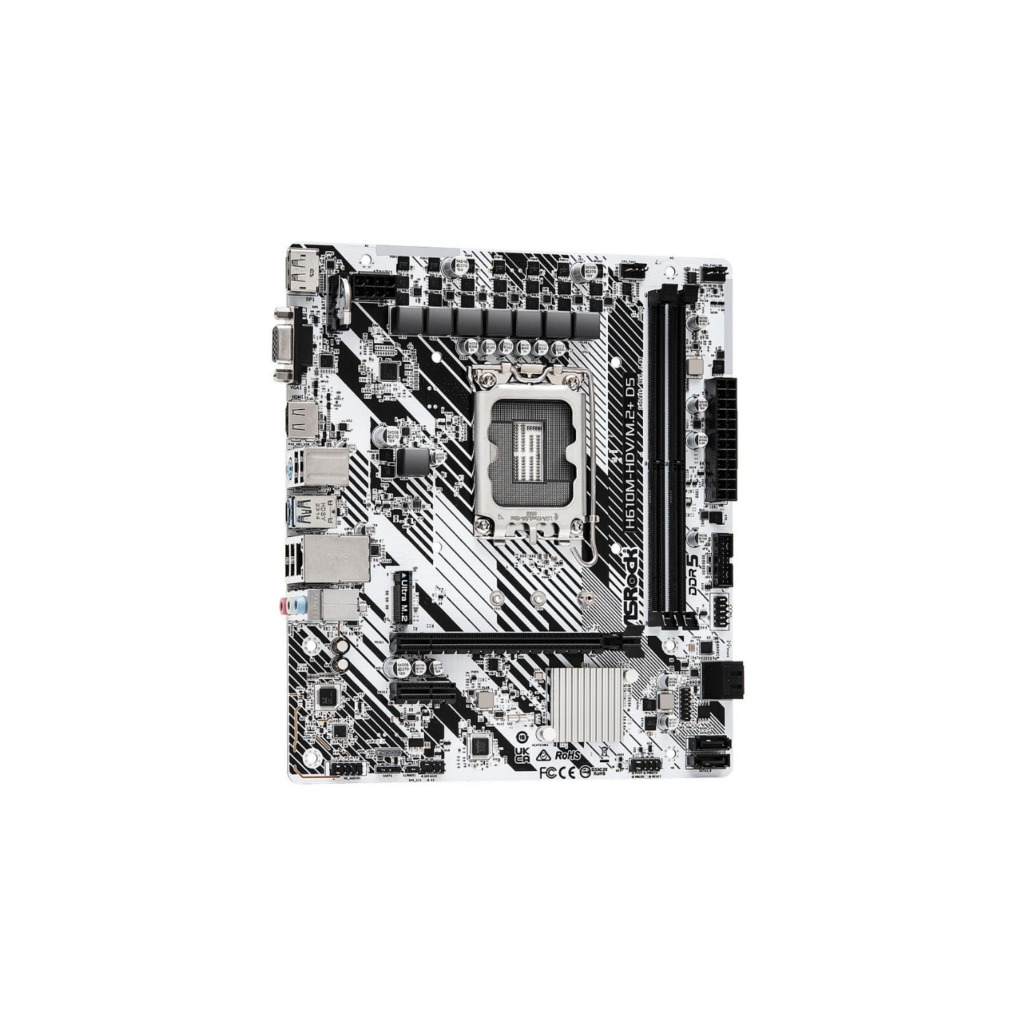

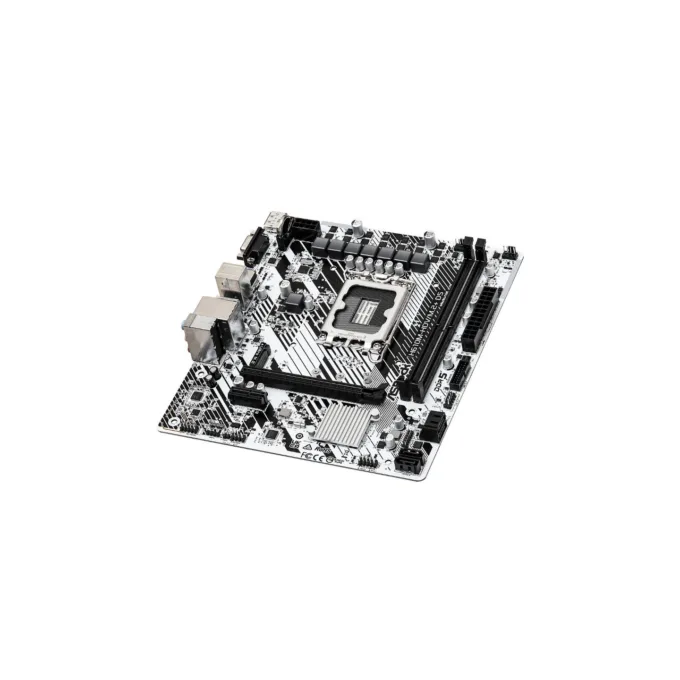

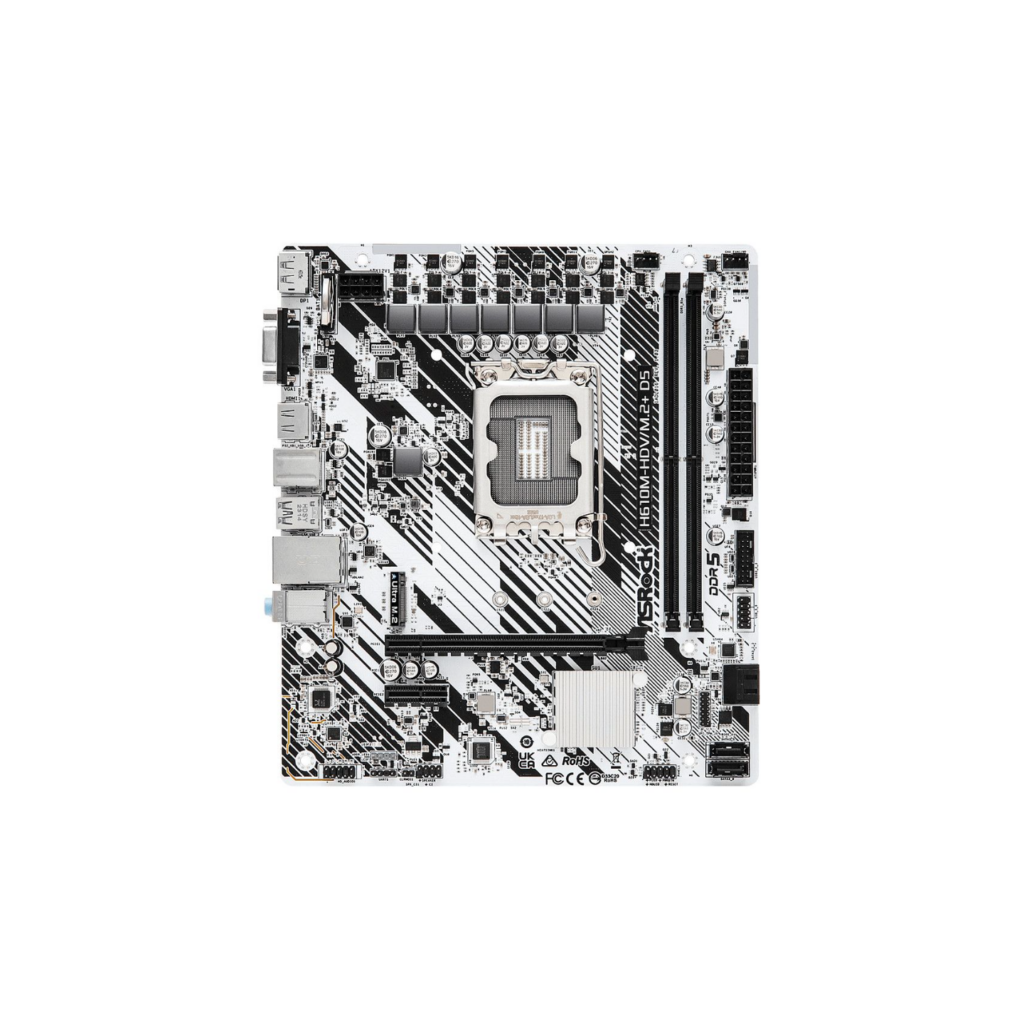

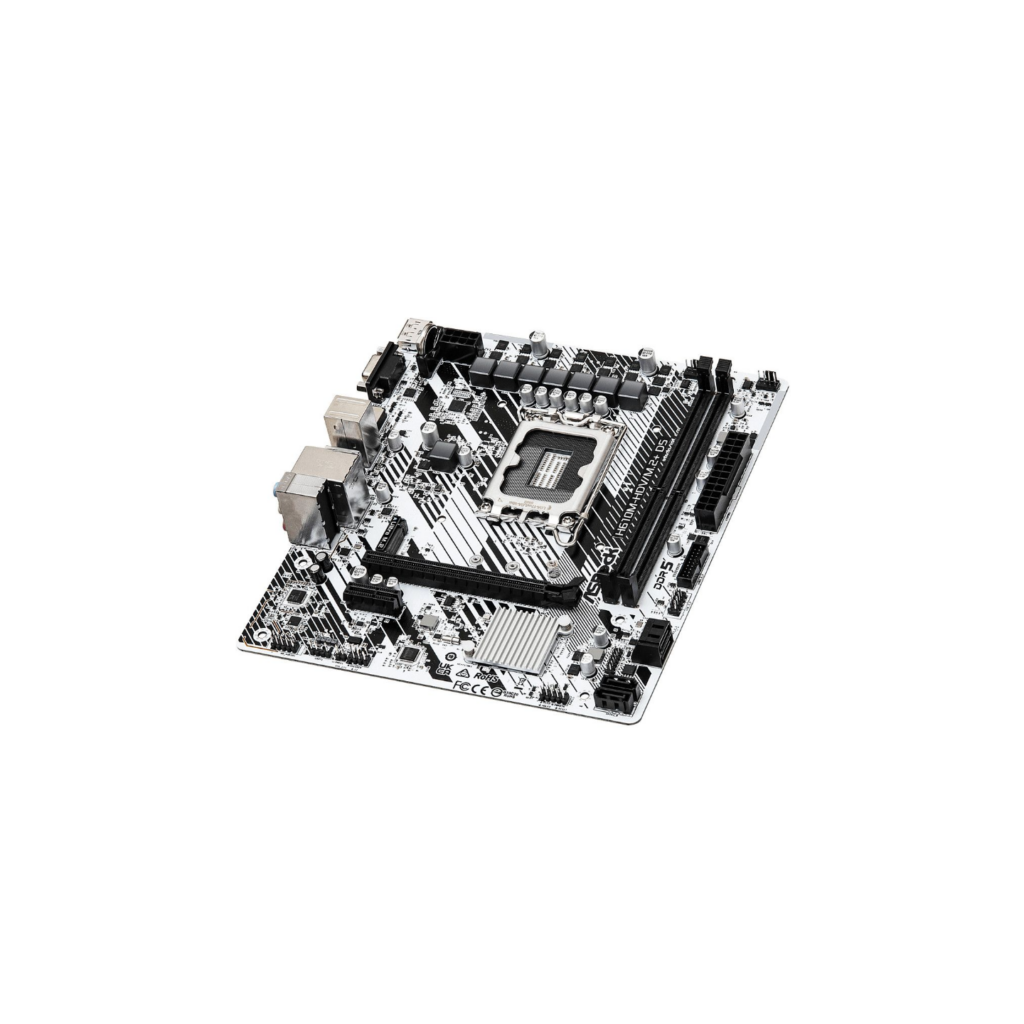

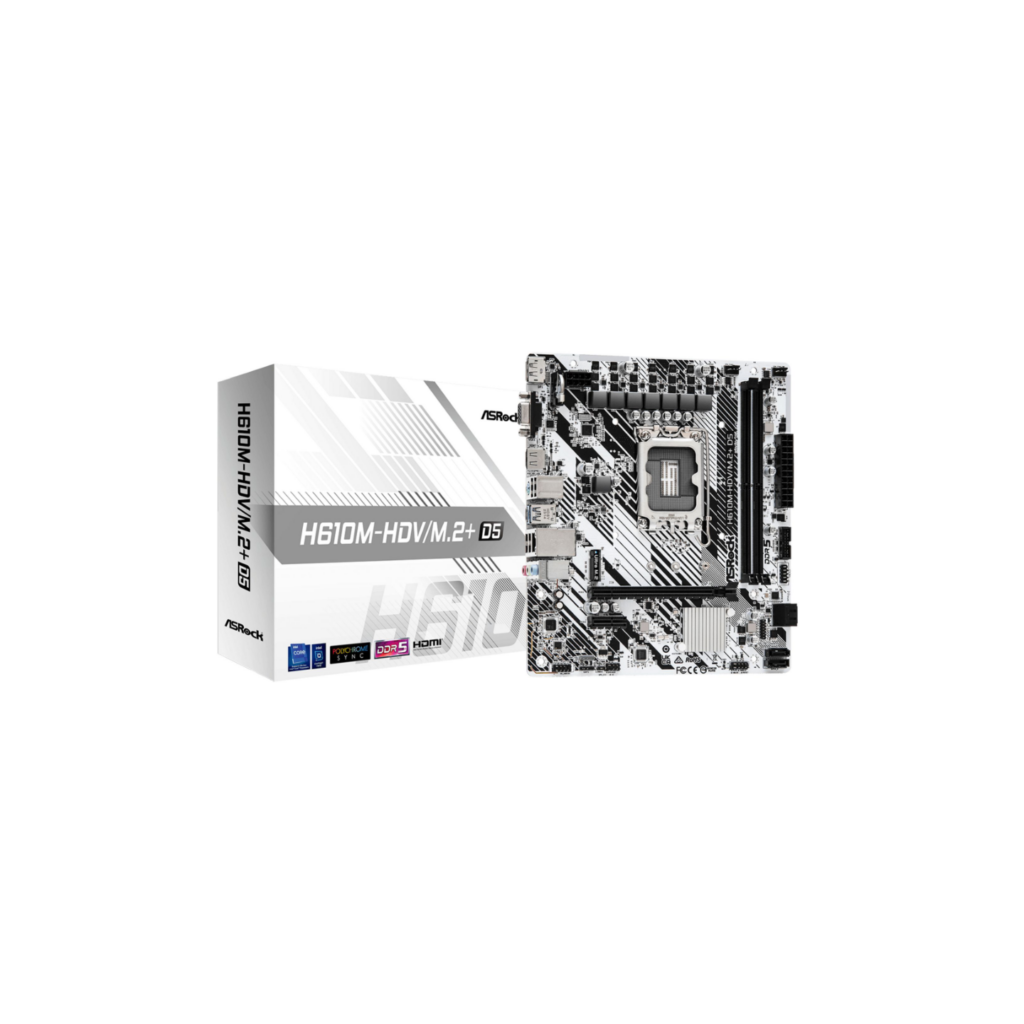

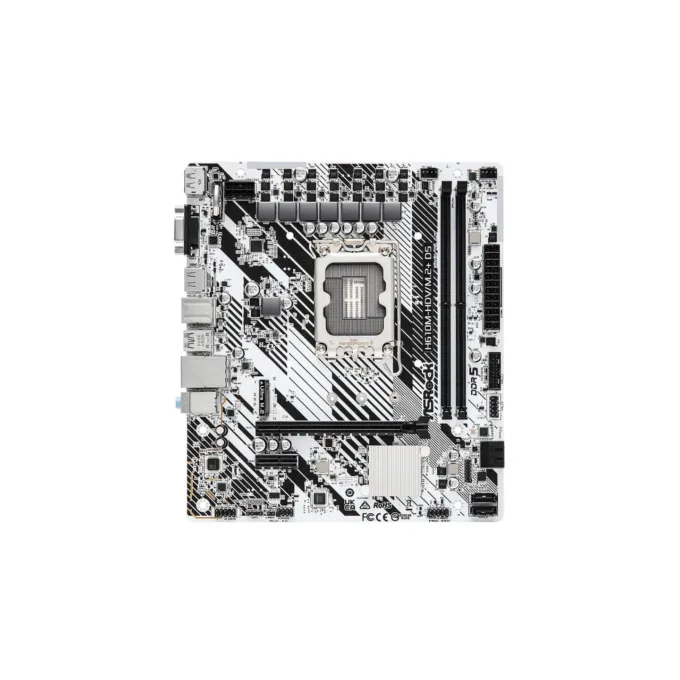

ASRock H610M-HDV/M.2+ D5 LGA1700 Micro-ATX DDR5 PCIe4.0
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Micro-ATX LGA1700 Intel H610 motherboard with DDR5 (2xDIMM up to 96GB/5600MHz+), M.2 PCIe Gen3x4 (32Gb/s), PCIe4.0 x16, 4xSATA, USB-C, HDMI/DP/D-Sub, RGB header, GbE LAN, 7.1 audio.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
ASRock H610M-HDV/M.2+ D5 is an entry-level Micro-ATX motherboard for Intel 12th/13th/14th Gen Core processors (LGA1700). Featuring the Intel H610 chipset, it supports DDR5 memory up to 96GB across 2 DIMM slots with speeds up to 5600MHz+(OC) for efficient multitasking and future-proofing.
It includes a 6+1+1 power phase design for stable CPU power delivery, Polychrome RGB header for customizable lighting sync, Ultra M.2 slot (PCIe Gen3 x4, 32Gb/s), PCIe 4.0 x16 graphics slot, 4x SATA III ports, rear USB 3.2 Gen1 Type-C (5Gbps), and triple display outputs: HDMI (4K@60Hz), DisplayPort 1.4, D-Sub. Additional features include Realtek RTL8111H Gigabit LAN, Realtek ALC897 7.1-channel HD audio, and Auto Driver Installer for easy setup.
- Supports Intel Core i9/i7/i5/i3/Pentium/Celeron (LGA1700)
- DDR5 Dual-Channel, Non-ECC, up to 96GB
- 1x M.2 (PCIe Gen3x4), 4x SATA3

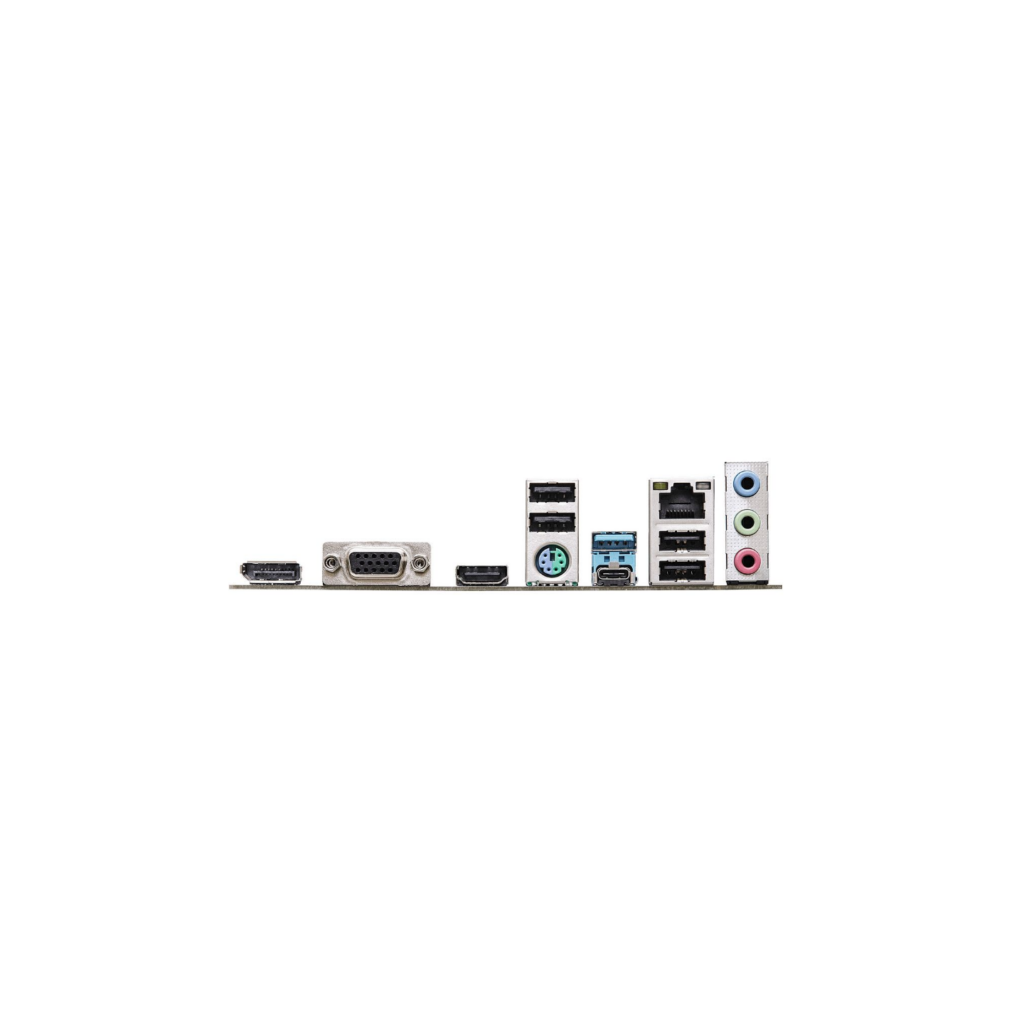

- Graphics: HDMI, DP 1.4, VGA
- USB: 1x Type-C, 1x Type-A (Gen1 rear), headers for more
- ARGB header, PS/2 combo port
- Dimensions: 22.0 x 19.3 cm
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Motherboard chipset | Intel H610 |
| Motherboard form factor | micro ATX |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Maximum internal memory | 96 GB |
| Supported storage drive interfaces | SATA III |
| Number of SATA III connectors | 4 |
| M.2 slots | 1 (PCIe Gen3 x4, 32Gb/s) |
| PCI Express x16 (Gen 4.x) slots | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Width | 220 mm |
| Depth | 193 mm |
| Power Phase Design | 6+1+1 |
| RGB Headers | 1x 3-pin 5V ARGB |
| BIOS type | UEFI AMI |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
