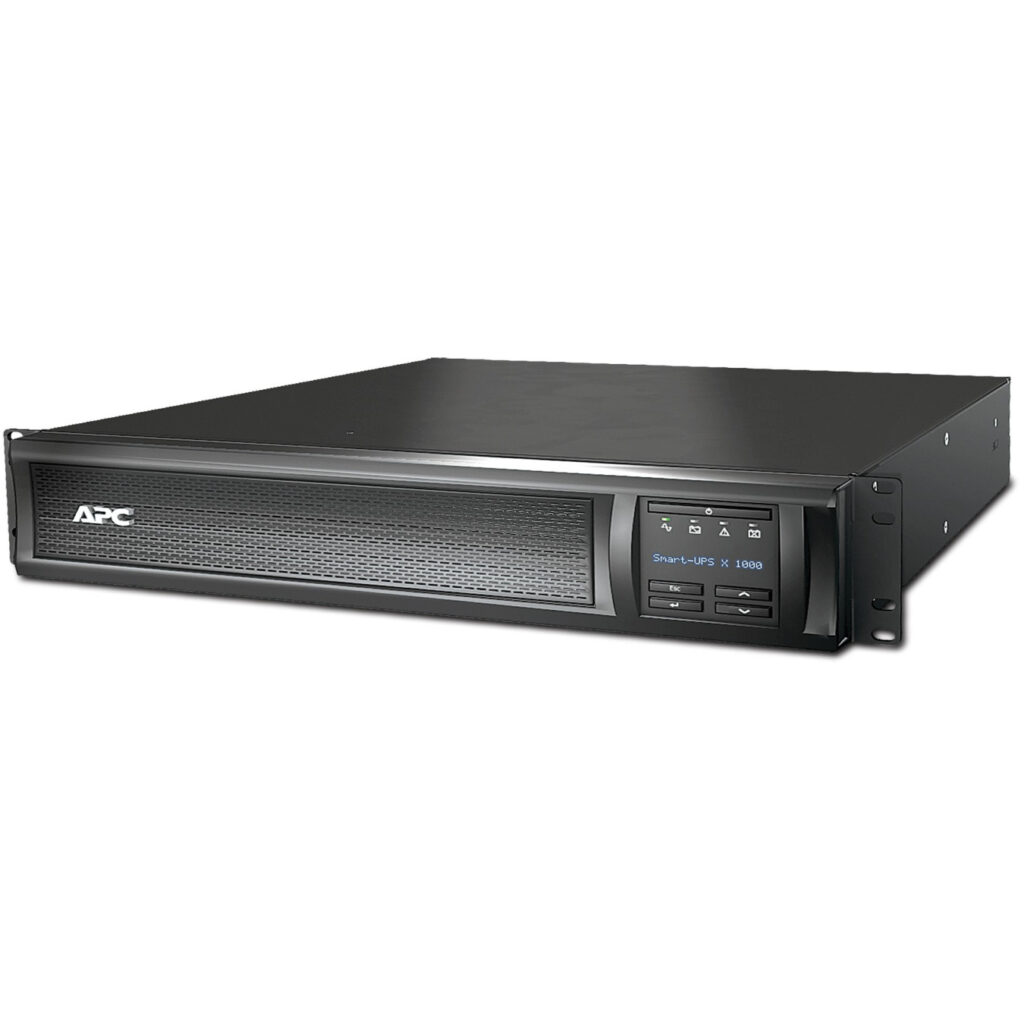

APC Smart-UPS X SMX1000I 1000VA/800W 2U Rack/Tower UPS
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
1000VA/800W line-interactive UPS with 2U rack/tower convertible form factor, 8× C13 outlets, pure sine wave output, 299 VAh battery, USB/RS-232 connectivity, and expandable runtime support.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The APC Smart-UPS X SMX1000I is a professional-grade uninterruptible power supply designed for mission-critical IT infrastructure, networking equipment, and commercial applications. With 1000VA/800W capacity and line-interactive topology, it delivers reliable power protection with pure sine wave output, ensuring compatibility with sensitive electronics including servers, storage systems, routers, switches, and point-of-sale terminals.
This 2U rack/tower convertible UPS features eight C13 IEC outlets for flexible device connectivity, automatic voltage regulation (AVR) to maintain stable output within user-selectable levels, and a multi-function LCD status console for real-time monitoring. The unit includes USB and RS-232 connectivity for graceful shutdown integration, a SmartSlot interface for enhanced management capabilities, and support for up to 5 external battery packs (SMX48RMBP2U) to extend runtime beyond the standard 8.1 minutes at full load. The sealed lead-acid battery (299 VAh) provides 3-5 years of service life with a typical 3-hour recharge time.
Key specifications include 50/60 Hz auto-sensing frequency, input voltage range of 151-302V (adjustable), 600 Joules surge energy rating, full-time multi-pole noise filtering, and comprehensive safety certifications (CE, RoHS, VDE, REACH). Operating temperature range is 0-40°C with 0-95% humidity tolerance, making it suitable for diverse deployment environments.
- 1000VA/800W line-interactive pure sine wave UPS
- 2U rack/tower convertible form factor with 8× C13 outlets
- 299 VAh sealed lead-acid battery with 3-5 year lifespan
- Automatic voltage regulation and 600J surge protection
- USB, RS-232, and SmartSlot connectivity for management
- Expandable runtime with support for up to 5 external battery packs
- Multi-function LCD display with audible alarms
- Comprehensive safety certifications and green premium sustainability rating
| UPS Topology | Line-Interactive |
| Power Capacity (VA) | 1000 VA |
| Output Power (W) | 800 W |
| Waveform Type | Pure Sine Wave |
| Input Voltage (Nominal) | 230 V |
| Input Voltage Range (Operating) | 160 - 286 V |
| Input Voltage Range (Adjustable) | 151 - 302 V |
| Output Voltage (Nominal) | 230 V |
| Input Frequency | 50/60 Hz +/- 3 Hz (Auto-sensing) |
| Output Frequency | 50/60 Hz +/- 3 Hz (Sync to mains) |
| Output Voltage Distortion | Less than 5% |
| Efficiency | 98.2% |
| Battery Type | Sealed Lead-Acid (VRLA), Maintenance-free |
| Battery Capacity | 299 VAh |
| Battery Life | 3 - 5 years |
| Battery Recharge Time | 3 hours (Typical) |
| Replacement Battery Model | APCRBC116 |

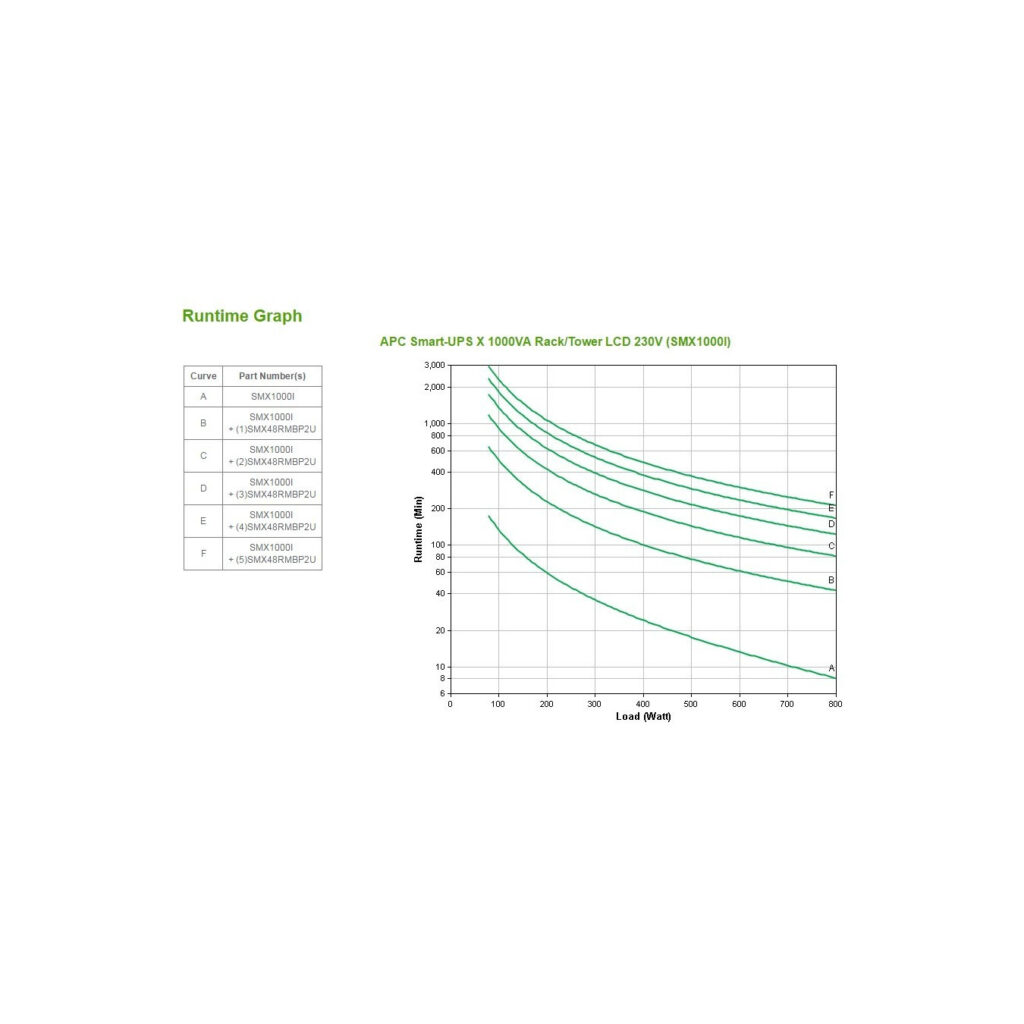

| Backup Time at Full Load | 8.1 minutes |
| Backup Time at Half Load | 24.2 minutes |
| Form Factor | Rack/Tower Convertible |
| Rack Space | 2U |
| AC Outlet Type | IEC C13 |
| AC Outlets Quantity | 8 |
| Input Connection Type | IEC 320 C14 |
| Power Cord Length | 1.83 m (6 ft) |
| Surge Energy Rating | 600 Joules |
| Surge Protection | Full-time multi-pole noise filtering, 5% IEEE surge let-through, zero clamping response time, meets UL 1449 |
| Overcurrent Protection | 60 A DC |
| Control Panel | Multi-function LCD status and control console |
| Audible Alarms | Low battery alarm, Overload continuous tone alarm |
| Emergency Power Off (EPO) | Yes |
| Interface Ports | USB, RS-232, SmartSlot |
| SmartSlot Quantity | 1 |
| Battery Expansion Support | Up to 5 external battery packs (SMX48RMBP2U) |
| Battery Pack Options | SMX48RMBP2U 1 (900 VAh), SMX48RMBP2U 2 (1500 VAh), SMX48RMBP2U 3 (2100 VAh) |
| Noise Level | 40 dB |
| Dimensions (Product Only) - Height | 89 mm |
| Dimensions (Product Only) - Width | 432 mm |
| Dimensions (Product Only) - Depth | 490 mm |
| Weight (Product Only) | 22.86 kg |
| Package Dimensions - Height | 246 mm |
| Package Dimensions - Width | 589 mm |
| Package Dimensions - Depth | 620 mm |
| Package Weight | 27.3 kg |
| Operating Temperature | 0 - 40 °C |
| Storage Temperature | -15 - 45 °C |
| Operating Humidity | 0 - 95% (non-condensing) |
| Storage Humidity | 0 - 95% (non-condensing) |
| Operating Altitude | 0 - 3000 m |
| Non-Operating Altitude | 0 - 15000 m |
| Certifications | CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, RoHS, PEP, EOLI |
| Included Accessories | Software CD, Documentation CD, Installation guide, Rack mounting brackets, RS-232 cable, USB cable |
| Color | Black |
| EAN Code | 0731304268635 |
| Manufacturer Part Number | SMX1000I |
| Total Carbon Footprint | 1124 kg CO2e |
| Sustainability | Green Premium, Packaging made with recycled cardboard |
