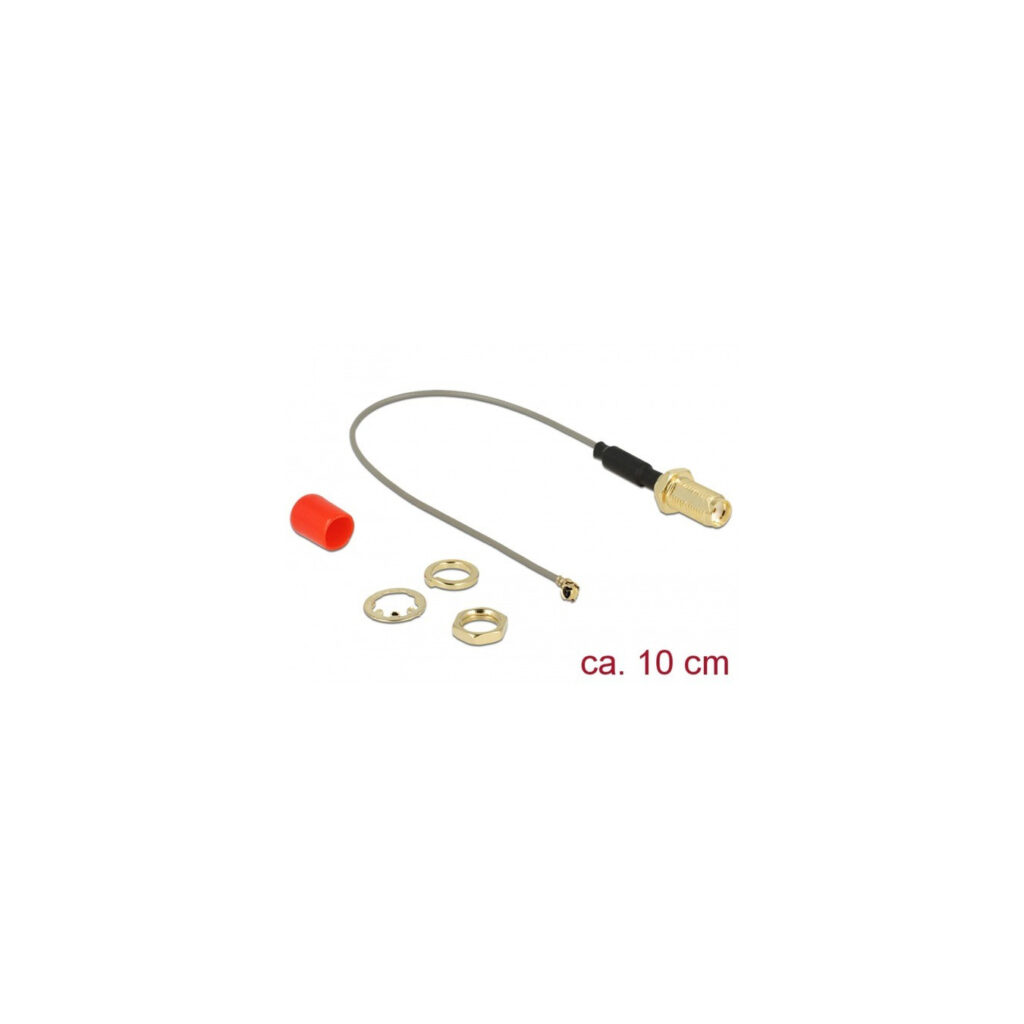

Antenna cable SMA (socket for installation) to MHF
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
The 89832 antenna cable from Delock is suitable for connecting high-frequency technology components.
Item no.: 1454909
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The 89832 antenna cable from Delock is suitable for connecting high-frequency technology components.
| Typ | Antenna cable |
| Color | grau/gold |
| EAN | 4043619898329 |
| Manufacturer no. | 89832 |
| Application example | For connecting WLAN antennas |
| Area | network |
| Connection - from | 1x SMA (socket) |
| taps | 2 |
| Characteristics | intern |
| More information | Thread length 10mm, impedance 50 Ohm, cable type 1.13, 1x ferrite core, cable attenuation 3.2dB @ 2.4 GHz per meter, cable diameter approx. 1.13mm |
| Notice | U.FL-LP-068 (Hirose) compatible |
| Accessories - available | Circlip, nut, toothed washer |
| Cable length | 10 cm |
| Weight | 8 Gramm |
