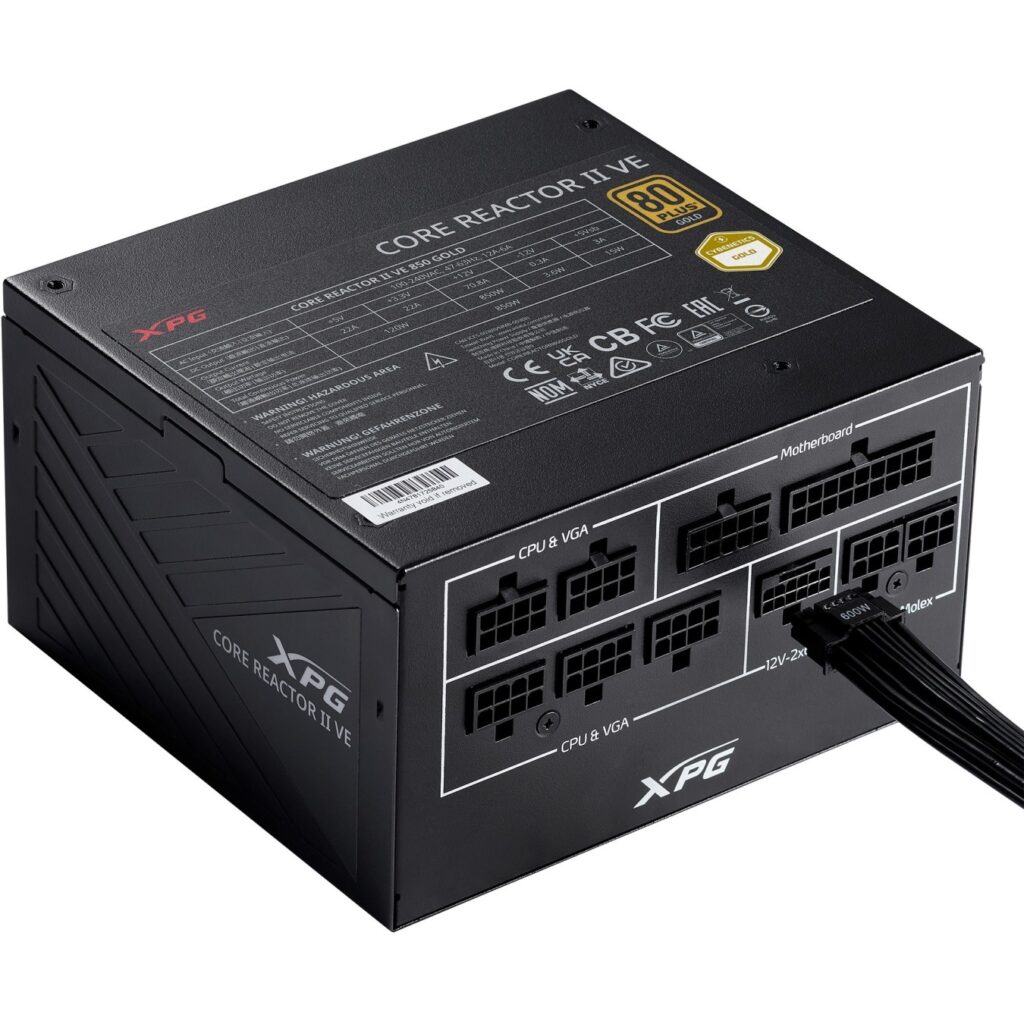

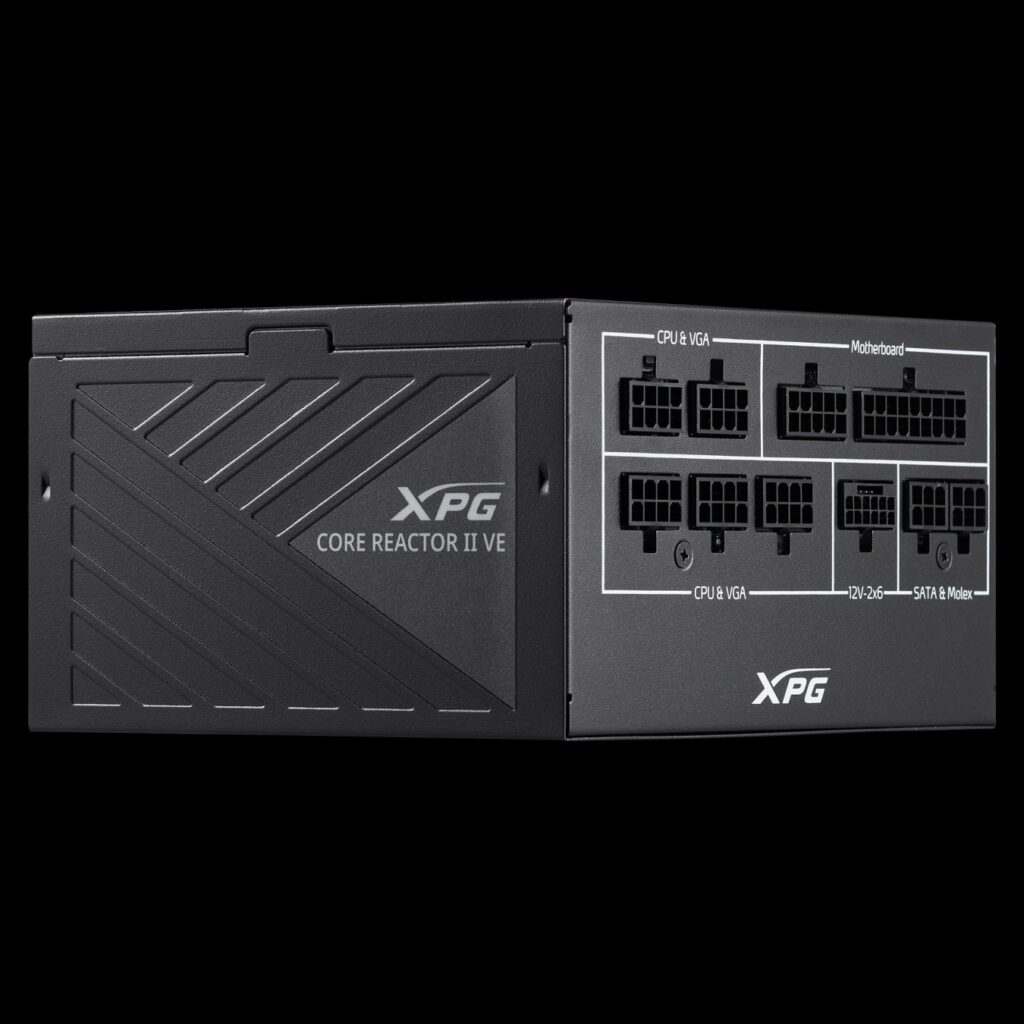

ADATA XPG CORE REACTOR II VE 750W PSU - 80+ Gold, Fully Modular ATX
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
XPG Core Reactor II VE 750W modular PSU with 80+ Gold efficiency, ATX form factor, 24-pin ATX, 3x PCIe connectors, 12 cm fan, 100-240V input, fully modular.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
XPG COREREACTOR II VE 750W Power Supply. Total power: 750 W. AC input voltage: 100 — 240 V. AC input frequency: 47 — 63 Hz. Motherboard power connector: 24-pin ATX. Motherboard power cable length: 65 cm. SATA power cable length: 150.450 mm. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Gold. Product colour: Black. Cooling type: Active. Fan diameter: 12 cm. Certification: CB / CE / FCC / TUV / cTUVus / BSMI / CCC NOM / FCC IC / UKCA / TUV / TUV S-Mark / cTUVus
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 10 A |
| Power factor | 0.99 |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current. Over power. Over voltage. Overheating. Short circuit. Surge & inrush protection (SIP). Under voltage |

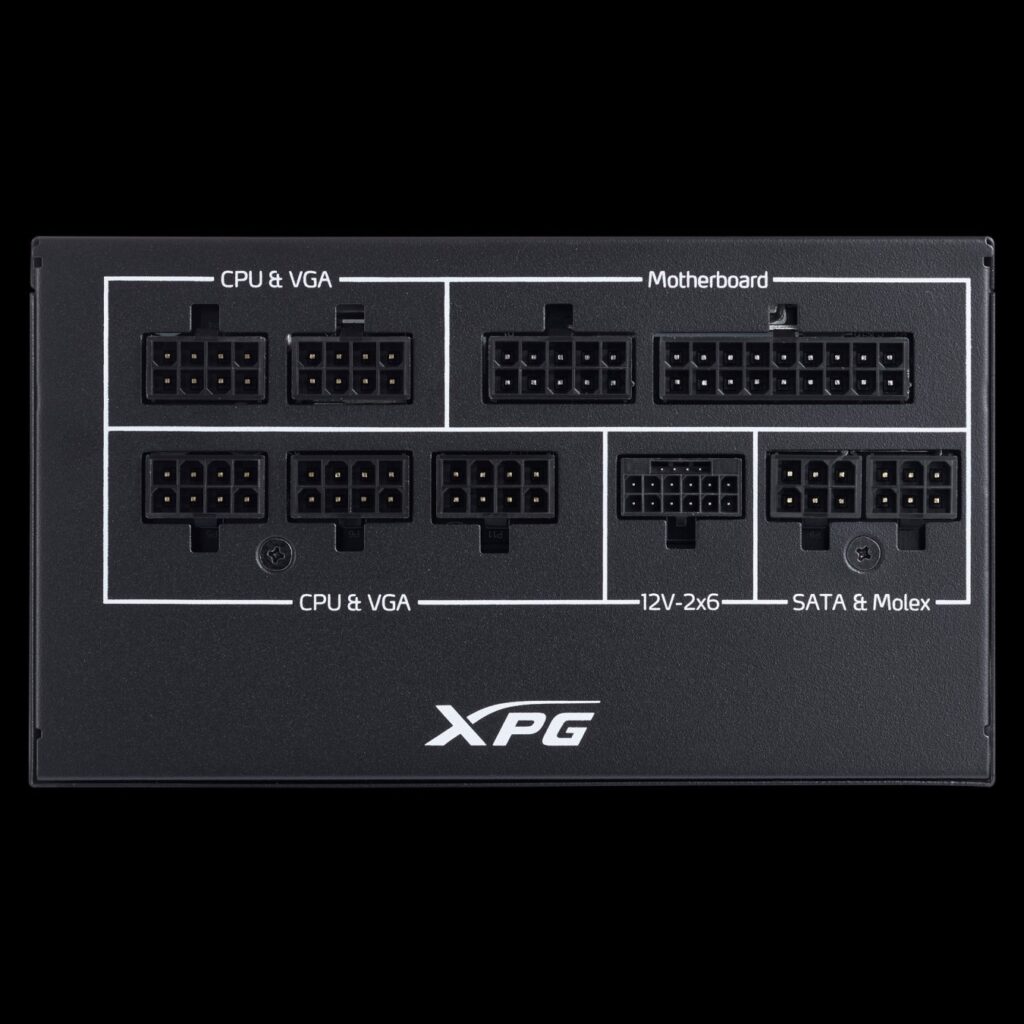

| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 65 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 150.450 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Feature | ATX power connector (12+4 pin) |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (12+4 pin) cable length | 600 mm |
| CPU power cable length | 75 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |

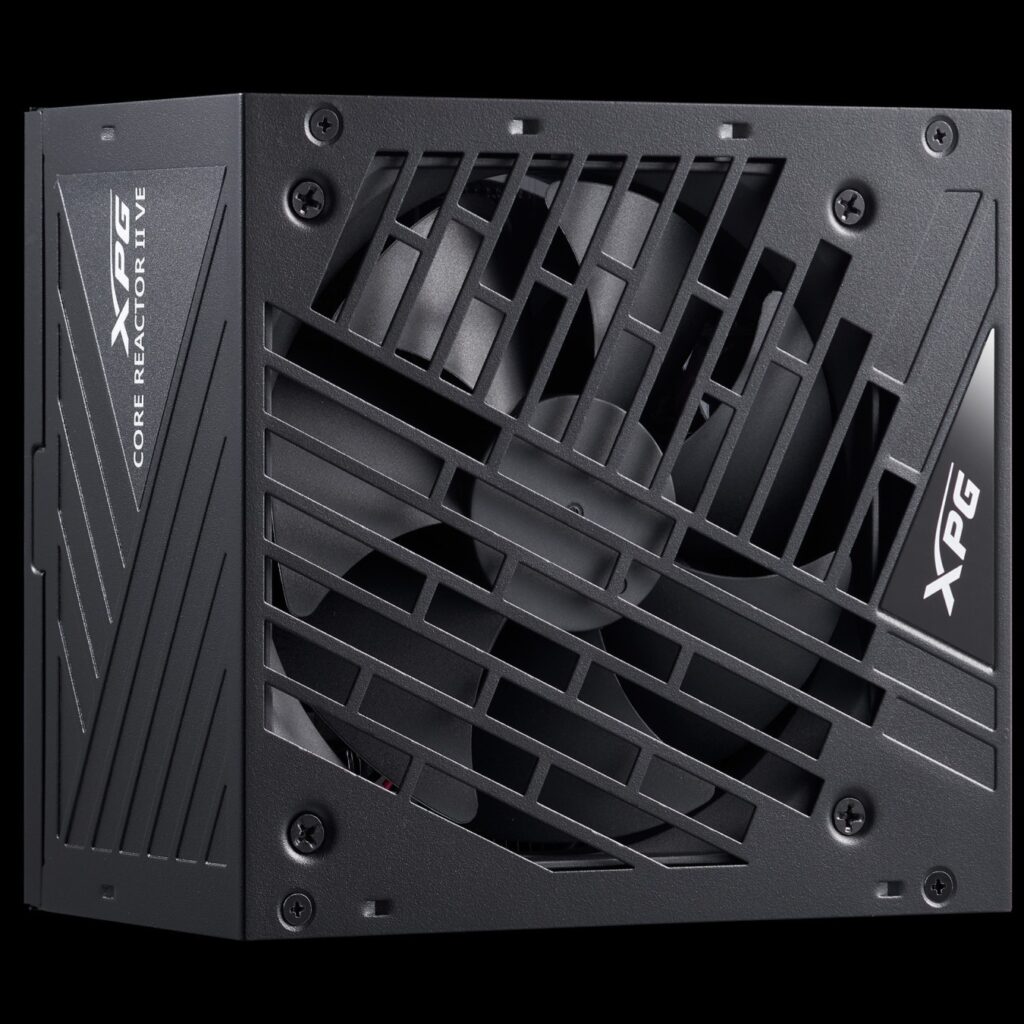

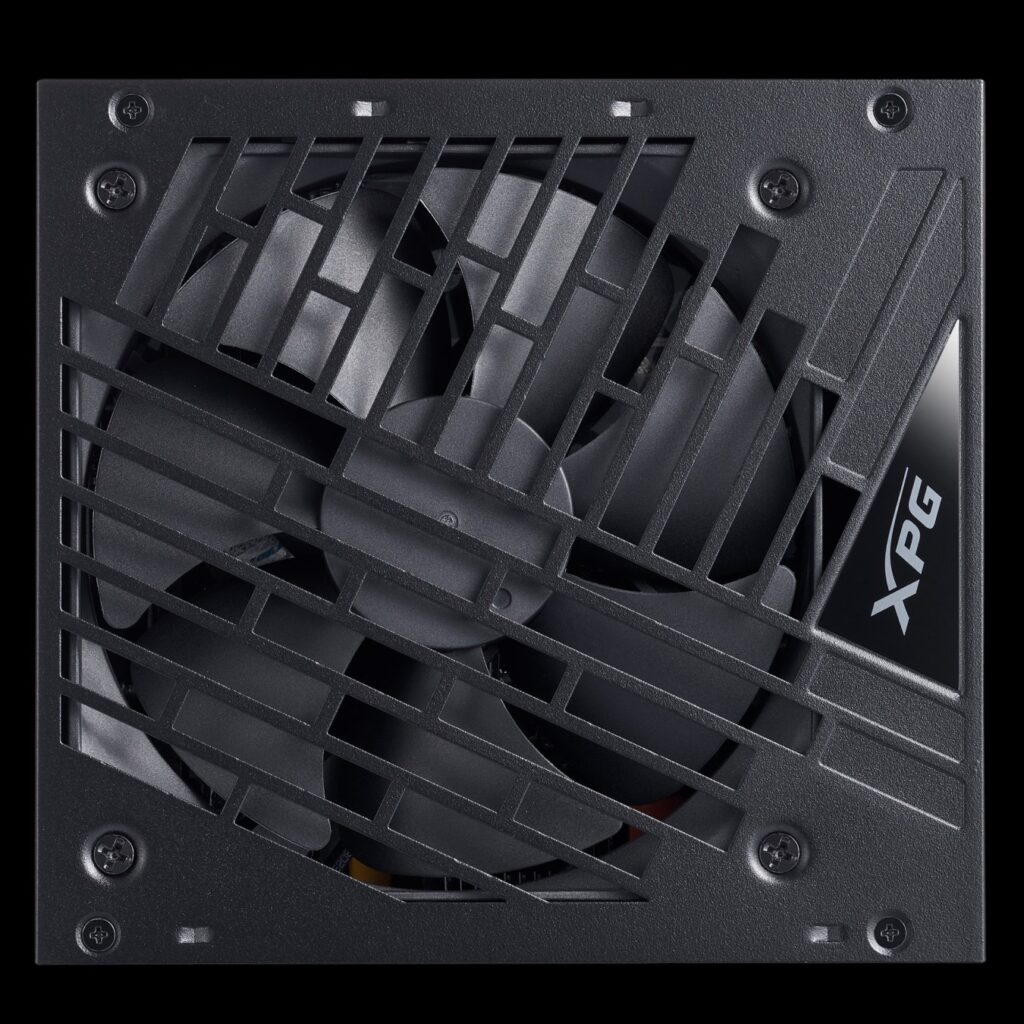

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Certification | CB / CE / FCC / TUV / cTUVus / BSMI / CCC NOM / FCC IC / UKCA / TUV / TUV S-Mark / cTUVus |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.45 kg |
| Package weight | 3.03 kg |
