2.5" SATA Converter - 22 Pin to M.2 mSATA
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.

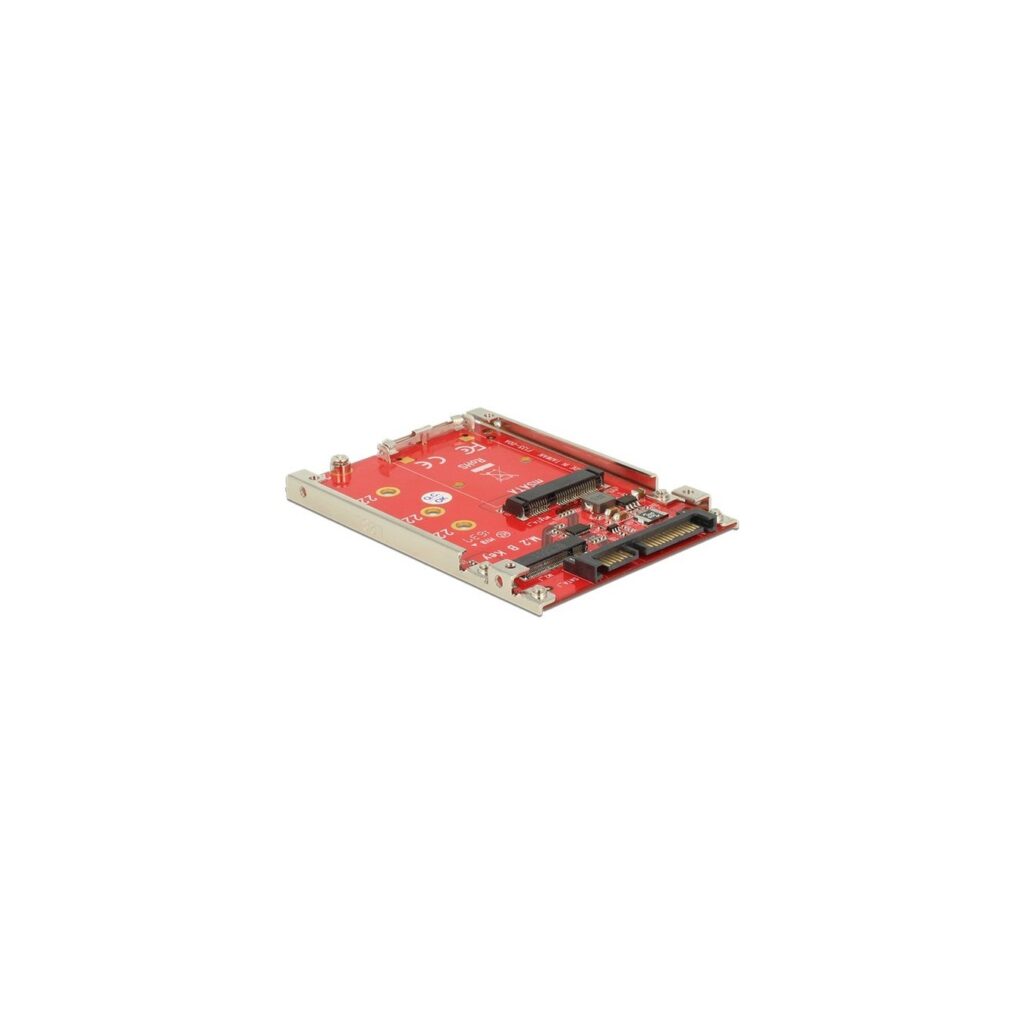

Delock 2.5″ SATA converter connects M.2 (2280/2260/2242/2230) Key B/B+M and mSATA to a SATA 22-pin interface; bootable; approx. 100 x 70 x 7 mm.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
An M.2 SSD in 2280, 2260, 2242 and 2230 format or an mSATA SSD in half size or full size format can be connected to this converter from Delock. If both slots are occupied, only the M.2 SSD can be used. The converter is integrated into the system via the SATA interface.
| Typ | Converter |
| EAN | 4043619628599 |
| Manufacturer no. | 62859 |
| Connections - internal | 1x M.2 |

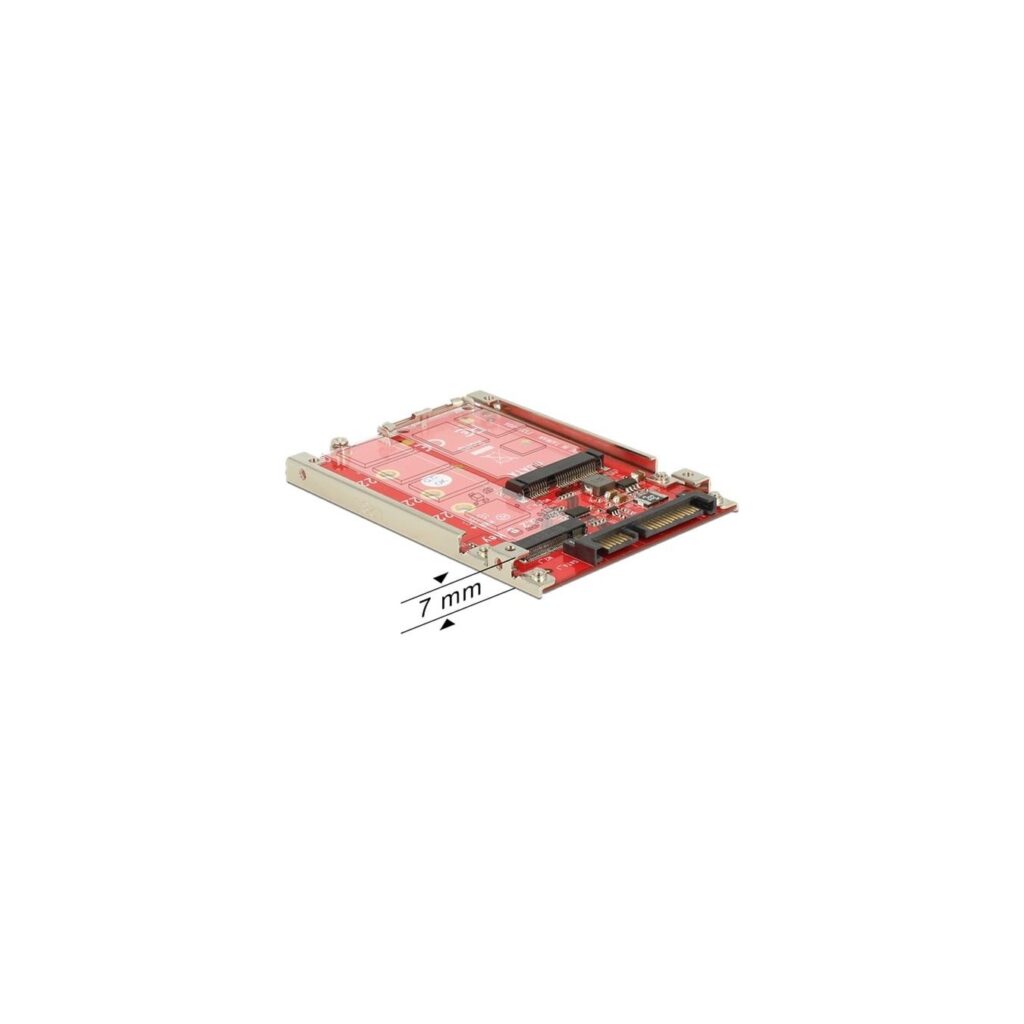

| More information | Connections: 1x SATA 6 Gb/s 22 pin connector > 1 x 67 pin M.2 Key B slot, 1x mSATA slot (half size / full size), interface: SATA, form factor: 2.5?, supports M.2 modules in format 2280, 2260, 2242 and 2230 with Key B or Key B+M on, SATA basis, maximum height of the components on the module: 1.5 mm, use of modules equipped on both sides possible, maximum current for modules: 4 A, bootable, dimensions (LxWxH): approx. 100 x 70 x 7 mm, system requirements Windows 7/7-64/8.1/8.1-64/10/10-64, Linux from kernel 2.6.x / kernel 4.x.x, a free SATA 22 pin interface |
| Notice | Converter SATA 22 pin to M.2 / mSATA |

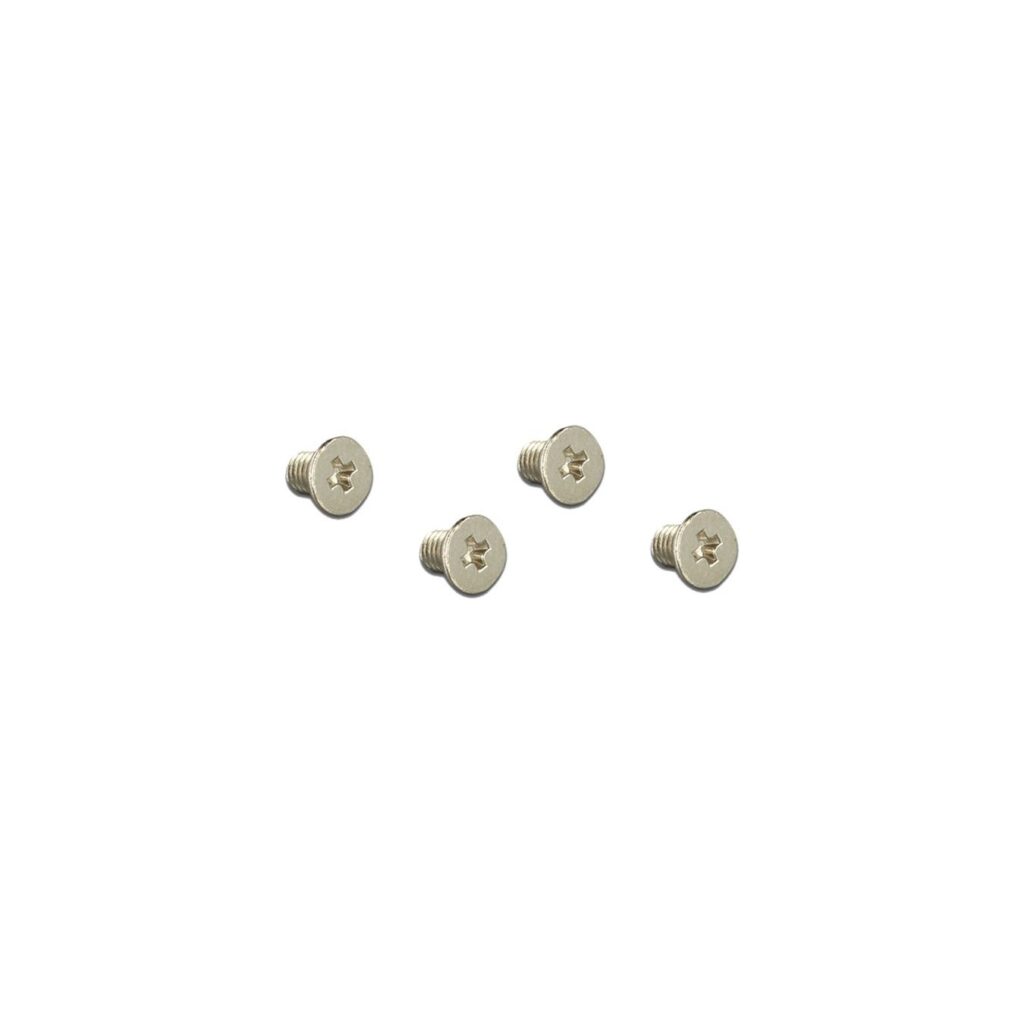

| Accessories - available | Instructions, 2.5" frame, mounting material |
| Weight | 80 Gramm |
