1000W Chieftec Vega M Series PPG-1000-C - 80+ Gold
Chieftec Vega M PPG-1000-C is a 1000W fully modular PSU with 80+ Gold efficiency, ATX 3.1 compliance, PCIe GEN5 12V-2×6 support. Features LLC topology, 135mm FDB fan, full protections for reliable high-end PC power.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The Chieftec Vega M Series PPG-1000-C delivers 1000W of reliable power in a fully modular design, certified 80PLUS Gold for high efficiency. Compliant with Intel ATX 12V 3.1 and supporting PCIe GEN5, it includes a native 12V-2×6 connector for modern GPUs like RTX 40/50 series.
Equipped with LLC Half-Bridge converter and DC-to-DC technology, it ensures stable output and enhanced efficiency. The 135mm fluid dynamic bearing (FDB) fan provides quiet cooling with automatic speed control. Dimensions: 150x150x85mm, active PFC ≥0.9, and comprehensive protections: OVP, UVP, OCP, OPP, OTP, SCP, SIP.

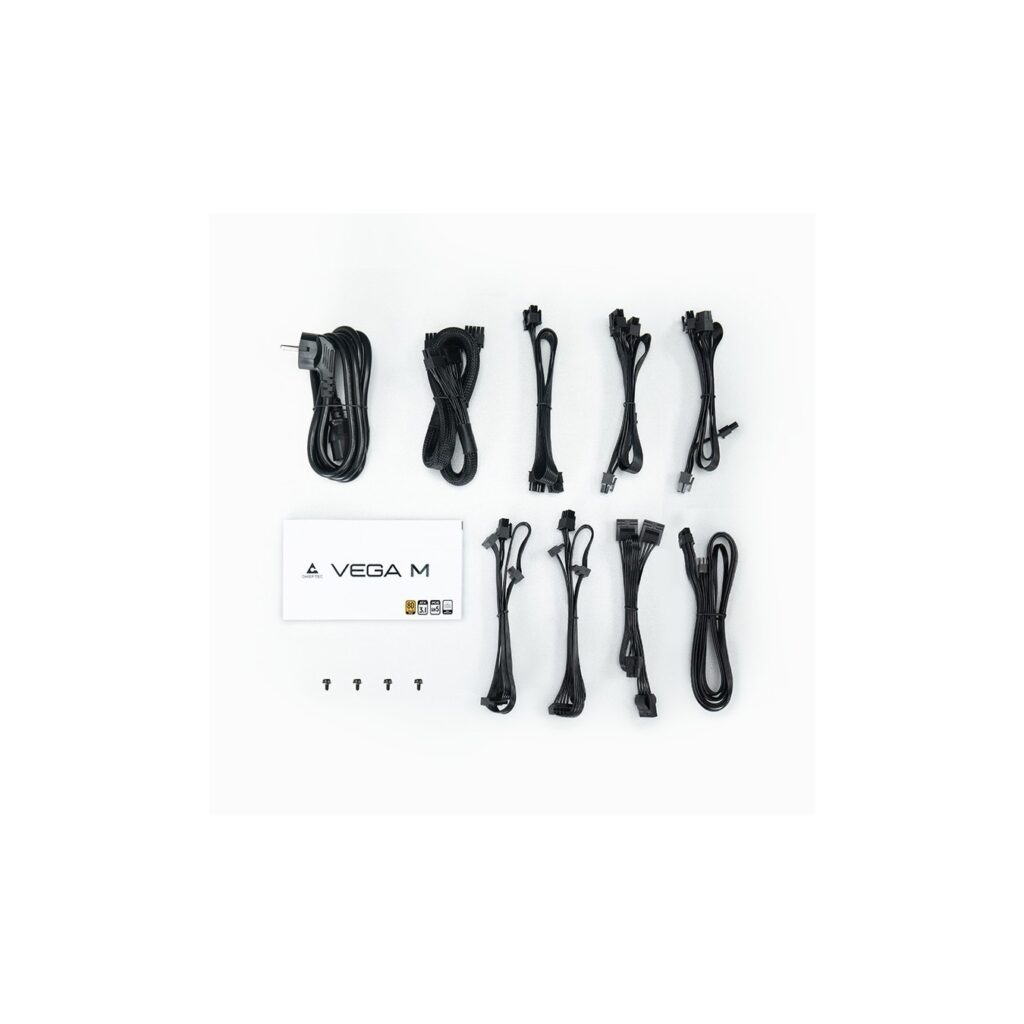

- ✅ Fully modular black cables for clean builds

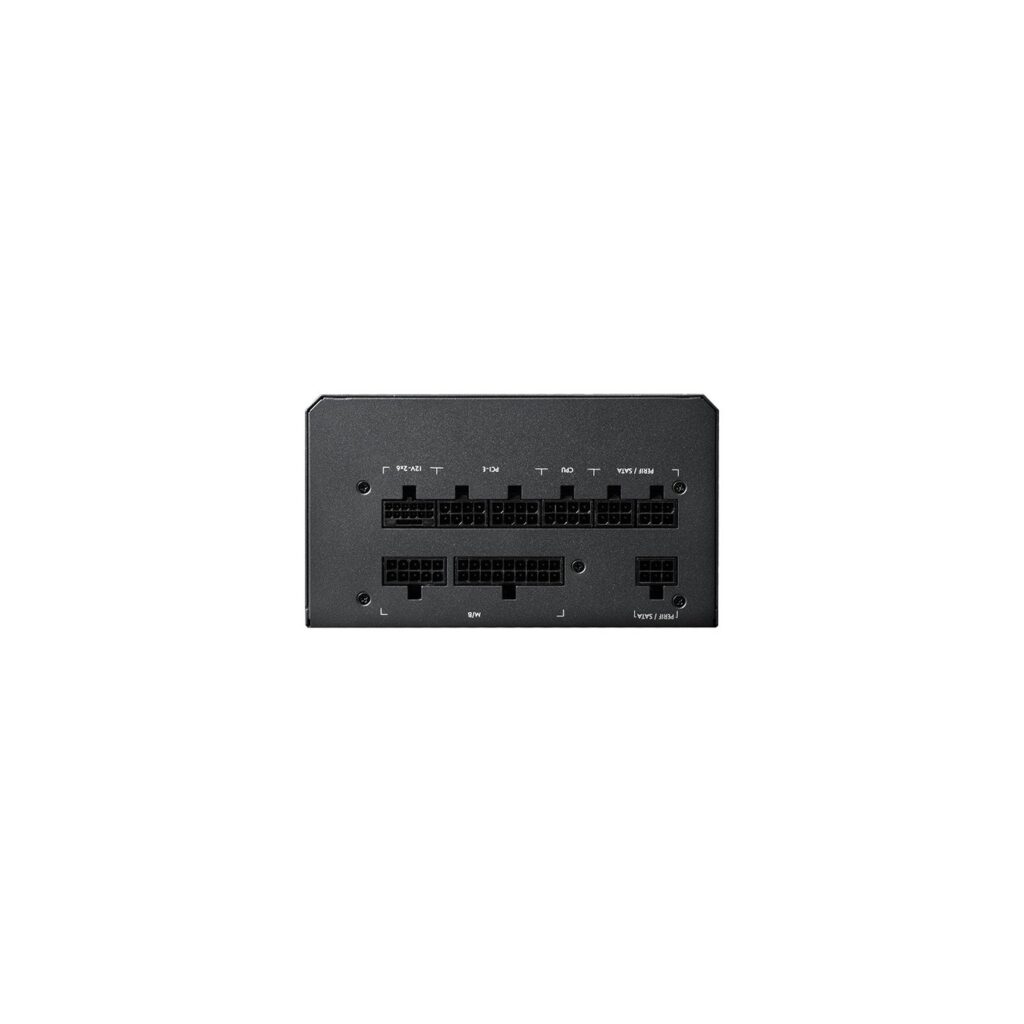

- ✅ 1x 12V-2×6 (GEN5) + multiple PCIe 6+2 pin connectors
- ✅ 1x 20+4pin ATX, 1x 8-pin EPS, 1x 4+4pin EPS
- ✅ 5-year warranty
- ✅ Weight: 2.3kg (unit) / 2.76kg (boxed)
| Model | PPG-1000-C |
| Power Output | 1000W |
| Efficiency | 80PLUS Gold |
| Form Factor | ATX |
| ATX Standard | ATX 12V 3.1 |
| Modularity | Fully Modular |
| Dimensions (DxWxH) | 150 x 150 x 85 mm |

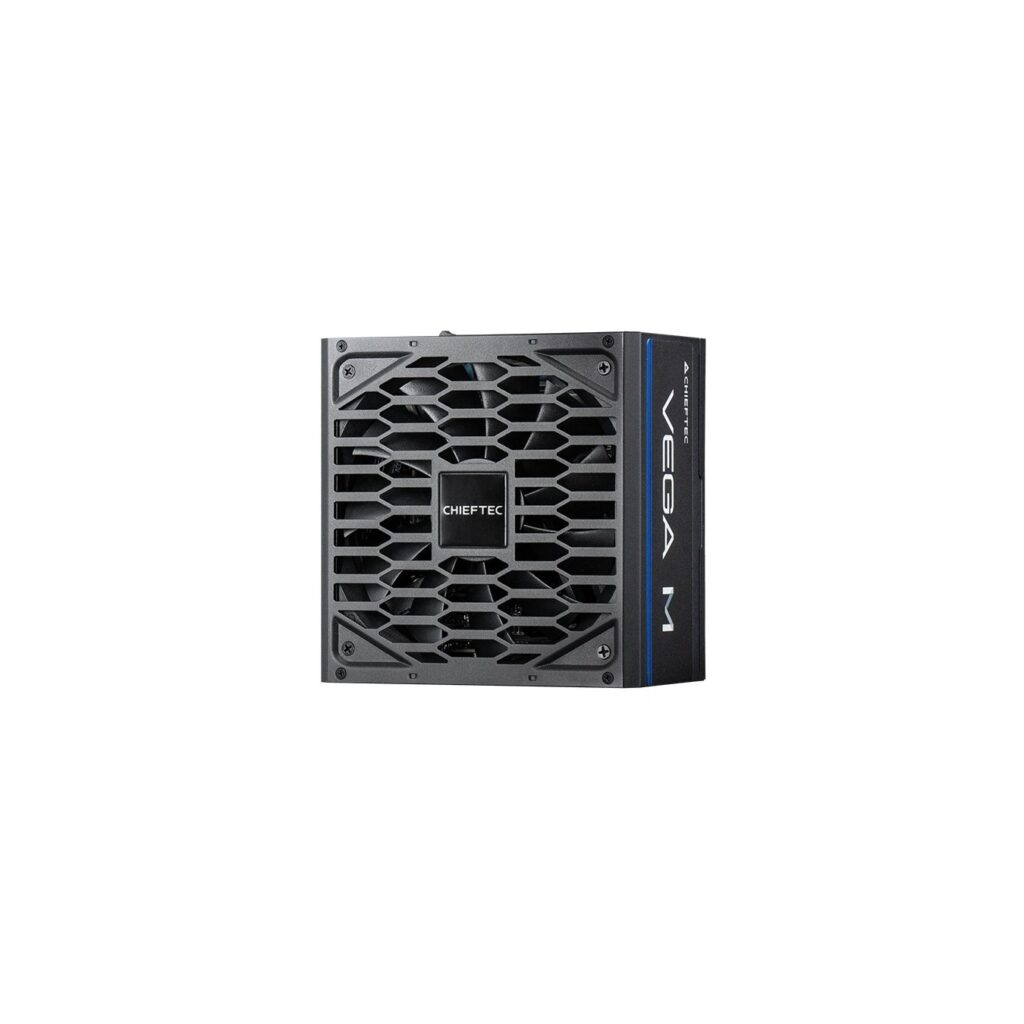

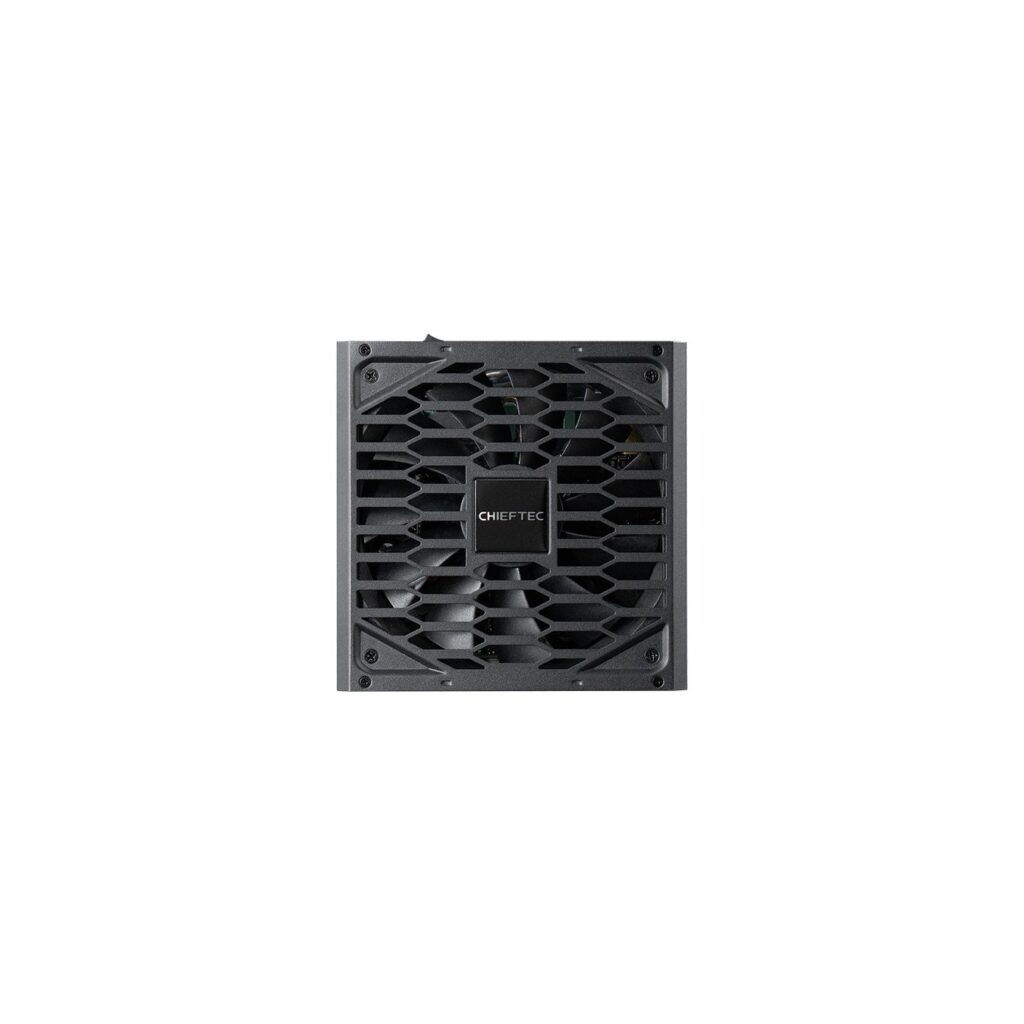

| Fan | 135mm FDB |
| PFC | Active PFC ≥0.9 |
| AC Input | 100-240V~ / 12A |
| Main ATX Connector | 1x 20+4 PIN |
| EPS Connectors | 1x 8 PIN EPS (8/4+4), 1x 4+4pin EPS/ATX12V |
| PCIe Connectors | 1x 12V-2x6 (GEN5), 6x 8/6 pins (6+2) |
| Protections | AFC, OPP, OTP, OVP, SCP, SIP, UVP, OCP |
| Warranty | 5 Years |
| Weight (unit/box) | 2.30kg / 2.76kg |
