1.5U-1528L, server chassis
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
The 1.5U-1528L is the perfect rack for a small and cost-effective storage system. Thanks to its special height of 1.5 U, it allows two external hard drives (2.5″ or 3.5″) to be ope…
For any questions about this item, availability, or delivery times, please contact us at 22 270068

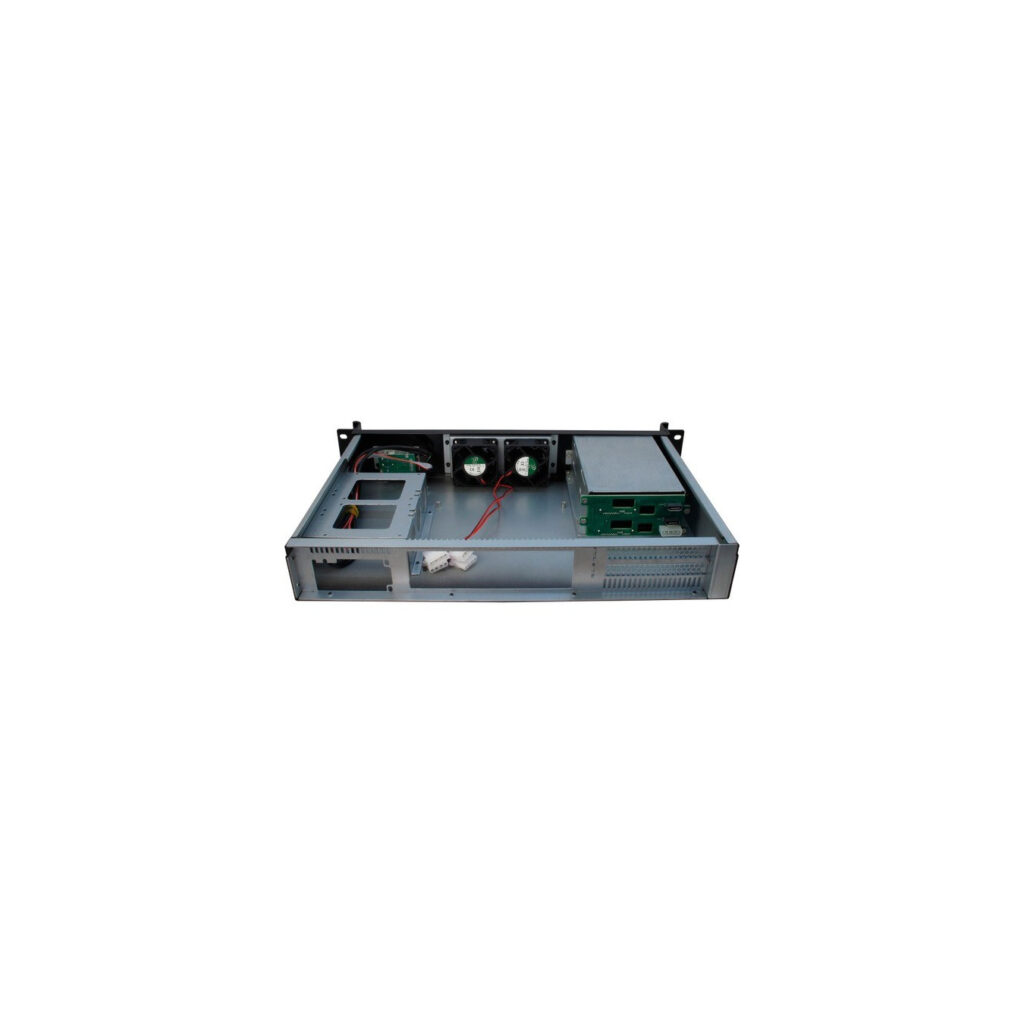

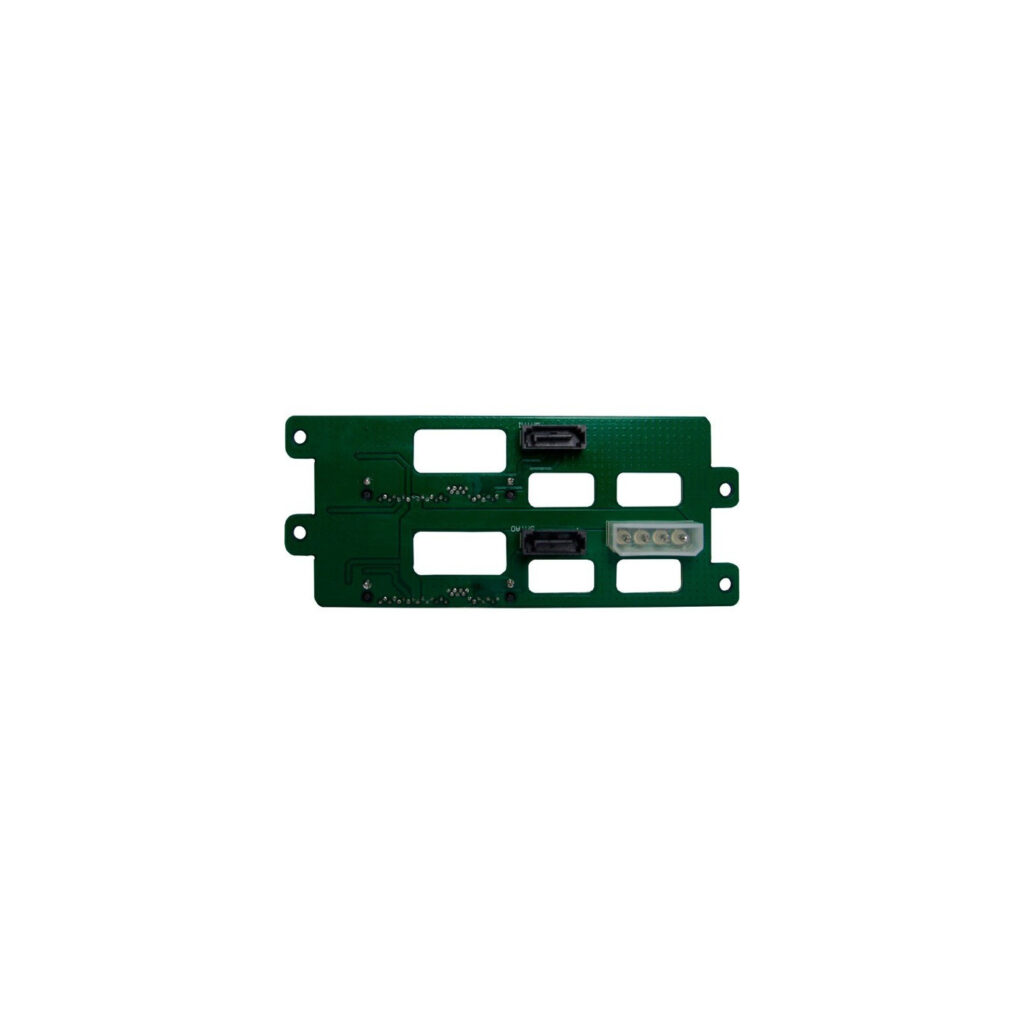

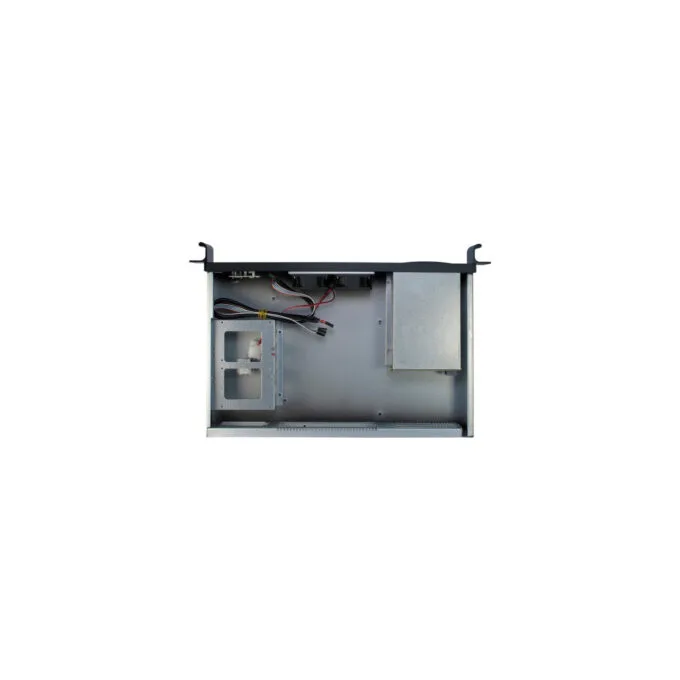

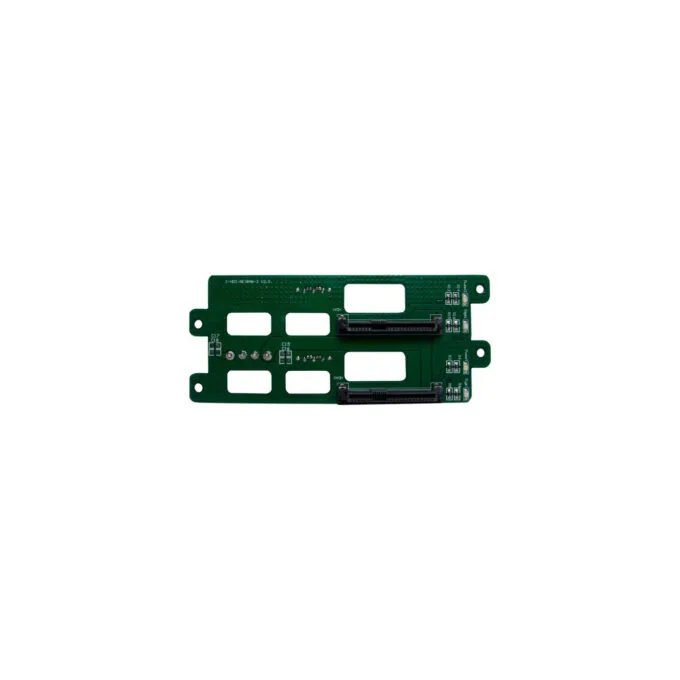

The 1.5U-1528L is the perfect rack for a small and cost-effective storage system. Thanks to its special height of 1.5 U, it allows two external hard drives (2.5″ or 3.5″) to be operated in hot-swap mode using an ITX mainboard as a base. The interior offers additional storage space for two additional 2.5″ hard drives as well as more height for CPU coolers than a normal 1U rack. Two standard 60 mm fans, which are located internally directly behind the front panel, reliably ensure optimal cooling. There are two USB 2.0 front ports in the front, right next to the controls.
| Typ | Server enclosure |
| Color | schwarz |
| EAN | 4260455641722 |
| Manufacturer no. | 88887210 |
| Design | Rack |
| Mainboard Formfaktor | Mini-ITX |
| Material | 1.0-1.2mm steel |
| Internal dimensions - plug-in card length | maximal 170 mm |
| Drive bays - 3.5 inches | Hot swap 2 pieces |
| Front connections | 2x USB-A 2.0 |
| front | Power switch, reset button, LED: power, hard drive activity |
| Notes | 2x 60 mm fans inside the case, installation option for Flex-ATX power supply, only 280 mm depth (without handles), two riser slots for expansion cards (full height max. 7 cm depth, half height max. 9 cm depth), USB 2.0 internally as standardized block connectors |
| Rear connection of the mainboard | No |
| More information | Maximum motherboard size: 170 mm x 170 mm (6.7" x 6.7") |
| Accessories - available | Screw assortment |
| Volume | 10 l |
| Dimensions | Width: 482mm x Height: 65mm x Depth/Length: 314mm |
| Weight | 4,3 kg |
