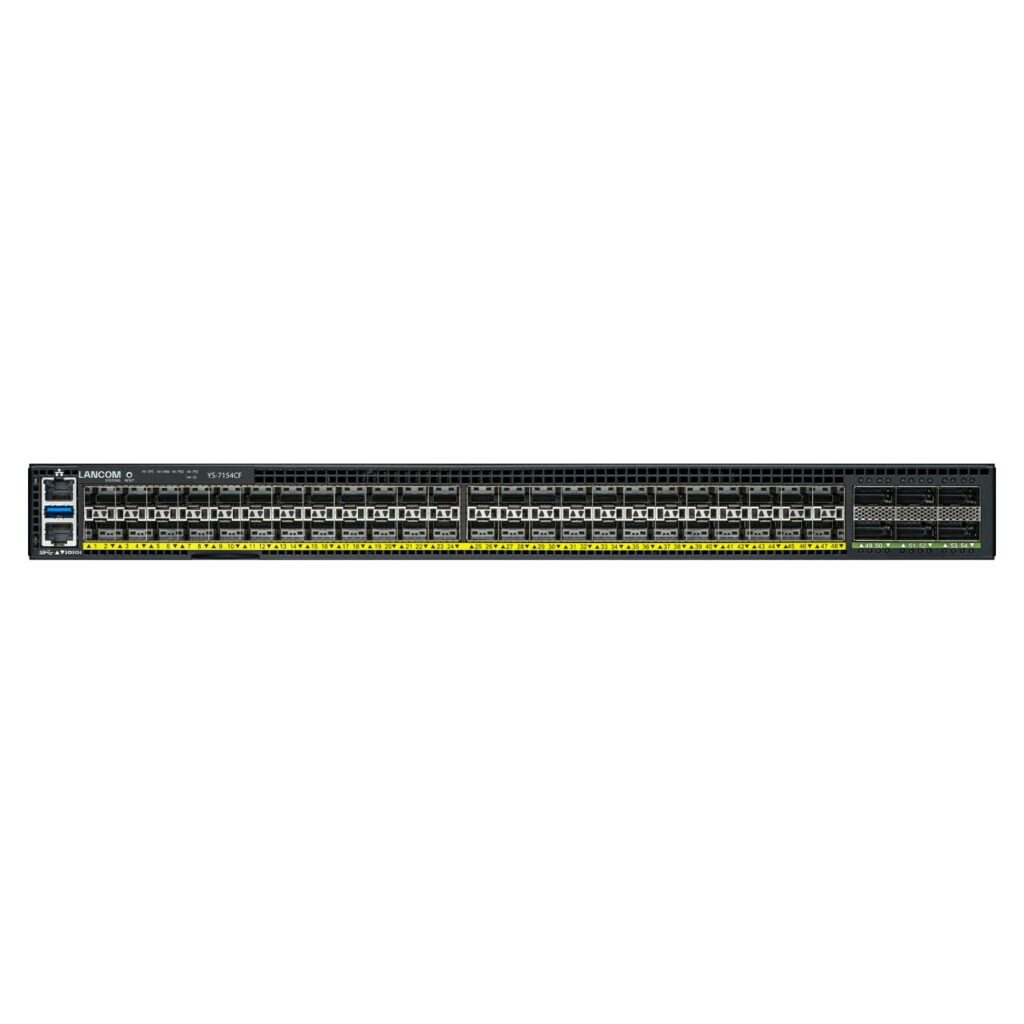

LANCOM YS-7154CF-B2F, Managed, L2/L3, Vollduplex, Rack-Einbau, 1U
For any questions about this item, availability, or delivery times, please contact us at 22 270068
LANCOM YS-7154CF-B2F. Switch-Typ: Managed, Switch-Ebene: L2/L3. Konsolen-Port: RJ-45. Vollduplex. MAC-Adressentabelle: 32000 Eintragungen. Netzstandard: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x. Netzstecker: AC-Eingangsbuchse. Rack-Einbau, Formfaktor: 1U
| Switch-Typ | Managed |
| Switch-Ebene | L2/L3 |
| Quality of Service (QoS) Support | Ja |
| Web-basiertes Management | Ja |
| Traffic-Klassifizierung | Ja |
| ARP-Inspektion | Ja |
| Konfiguration der Standorteinstellungen (CLI) | Ja |
| MIB Unterstützung | MIB II, Bridge MIB, Interface MIB, SMON MIB, IGMP MIB, IEEE 802.3 MAU MIB |
| Konsolen-Port | RJ-45 |
| Anzahl QSFP28-Ports | 6 |
| Anzahl SFP28-Ports | 48 |
| Netzstecker | AC-Eingangsbuchse |
| Netzstandard | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
| 10G-Unterstützung | Ja |
| Port-Spiegelung | Ja |
| Vollduplex | Ja |
| IP-Routing | Ja |
| Unterstützung Datenflusssteuerung | Ja |
| Link Aggregation | Ja |
| Broadcast-Sturmkontrolle | Ja |
| Ratenbeschränkung | Ja |
| Spannbaum-Protokoll | Ja |
| VLAN-Unterstützung | Ja |
| Virtuelle LAN-Funktionen | Private VLAN |
| Anzahl der VLANs | 4093 |
| Durchsatz | 2000 Gbit/s |
| MAC-Adressentabelle | 32000 Eintragungen |
| Store-and-Forward | Ja |
| Statische Route | Ja |
| Anzahl der statischen Routen | 16000 |
| Jumbo Frames Unterstützung | Ja |
| Jumbo-Frames | 12288 |
| Datenpaket-Pufferspeicher | 32 MB |
| DHCP-Funktionen | DHCP client, DHCP relay, DHCP server |
| Zugriffkontrollliste | Ja |
| IGMP-Snooping | Ja |
| IGMP-Einträge | 2800 |
| IGMP-Proxy | Ja |
| Unterstützte Sicherheitsalgorithmen | SNMP, SNMPv2 |
| SSH-/SSL-Unterstützung | Ja |
| Passwortschutz | Ja |
| Autentifizierungstyp | RADIUS, TACACS+ |
| Multicast Unterstützung | Ja |
| Multicast Listener Discovery (MLD) Snooping | Y |
| Management-Protokolle | SNMP |
| GARP VLAN Registration Protocol (GVRP) | Ja |
| Router Protokoll | BGP4, OSPFv2, OSPFv3 |
| Rack-Einbau | Ja |
| Formfaktor | 1U |
| Produktfarbe | Schwarz |
| LED-Anzeigen | Ja |
| Anzahl Lüfter | 5 Lüfter |
| Eingebauter Prozessor | Ja |
| Prozessortaktfrequenz | 1600 MHz |
| Speichertyp | DDR4-SDRAM |
| Speicherkapazität | 8192 MB |
| Geräuschpegel | 65 dB |
| Upgradefähige Firmware | Ja |
| Energiequelle | AC |
| Netzteil enthalten | Ja |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50/60 Hz |
| Stromverbrauch (max.) | 220 W |
| Betriebstemperatur | 0 - 40 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Wärmeableitung | 750 BTU/h |
| Breite | 440 mm |
| Tiefe | 440 mm |
| Höhe | 43,8 mm |
| Gewicht | 8,7 kg |
| Betriebsanleitung | Ja |
| Verpackungsbreite | 540 mm |
| Verpackungstiefe | 660 mm |
| Verpackungshöhe | 180 mm |
| Paketgewicht | 8,7 kg |
| Zolltarifnummer (TARIC) | 85176200 |
| Ursprungsland | Taiwan |
