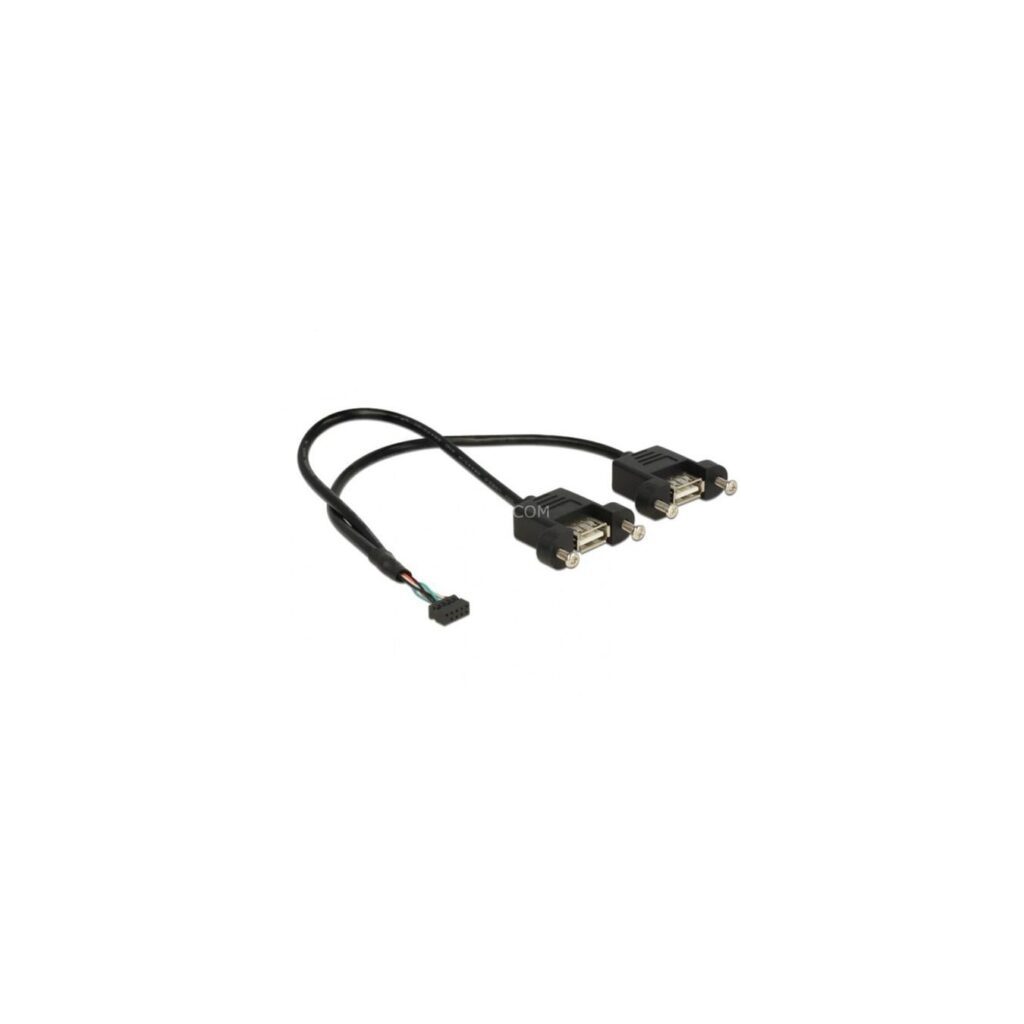

USB 2.0 cable - 2mm 10Pin header to 2x USB-A socket, for installation
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
USB 2.0 extension cable (model 84832) to connect multiple devices; sockets can be mounted with screws, e.g., on a slot bracket.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The USB cable 84832 is used to extend a USB 2.0 connection and can be used to connect various devices. The sockets can be attached with two screws, for example to a slot bracket, to a cable duct or in a housing with the appropriate recess. This allows you to install a USB socket in an easily accessible position. The cable is particularly suitable for self-constructed computer systems.
| Typ | Cable |
| Color | schwarz |
| EAN | 4043619848324 |
| Manufacturer no. | 84832 |
| Manufactured in | China |
| Application example | For installing 2 USB-A sockets |
| Area | Data transfer |
| Connection - from | 1x 10-Pin USB 2.0 Header |
| Protocol | USB 2.0 |
| Cable cross section | 28 AWG |
| taps | 3 |
| Characteristics | intern |
| Feature | Hi-speed data transfers up to 480 Mbit/s |
| More information | Connections: 1x 10 pin USB 2.0 header socket > 2x USB 2.0 Type-A socket with nuts for installation, pitch 2.00mm, pin 10 = key, screw type M3, installation opening approx. 17.5 x 11.5mm, hole approx. 28.5mm hole spacing, cable diameter approx. 4mm |
| Cable length | 25 cm |
