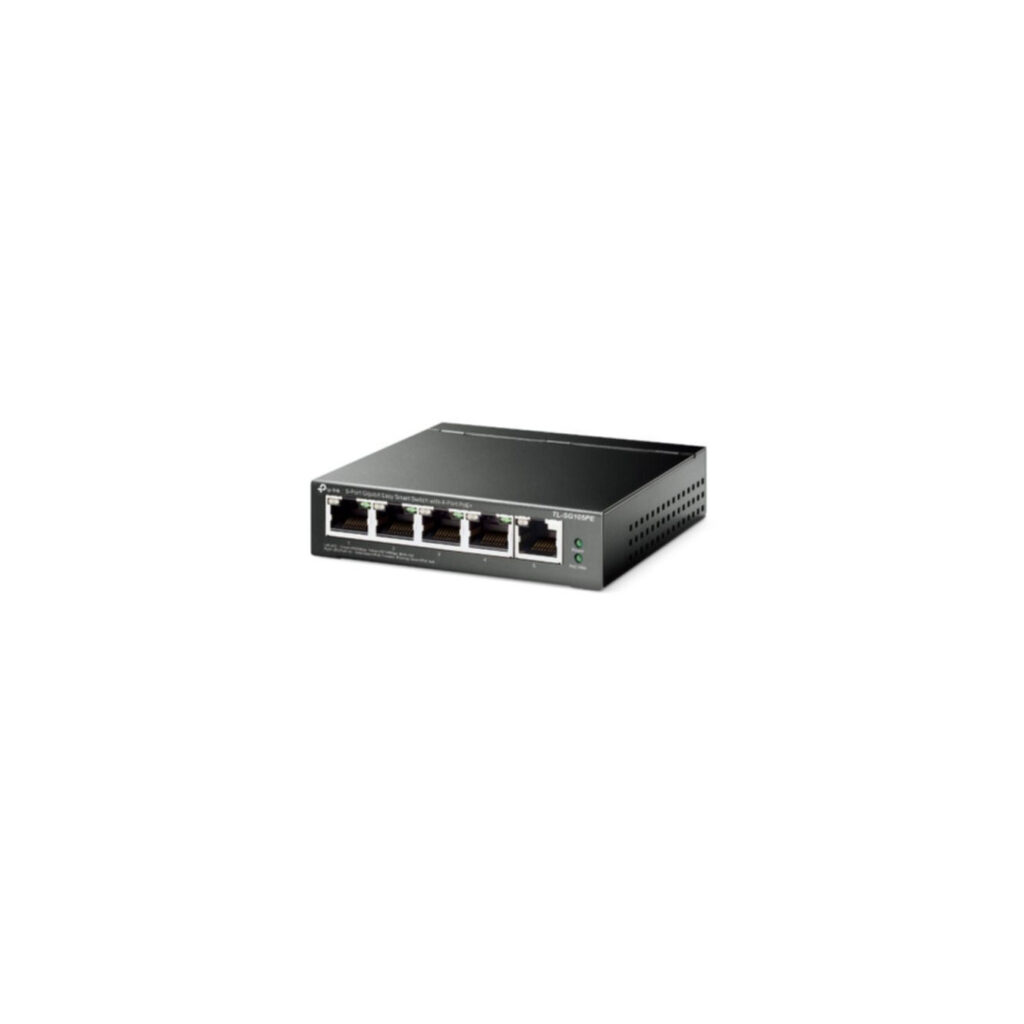

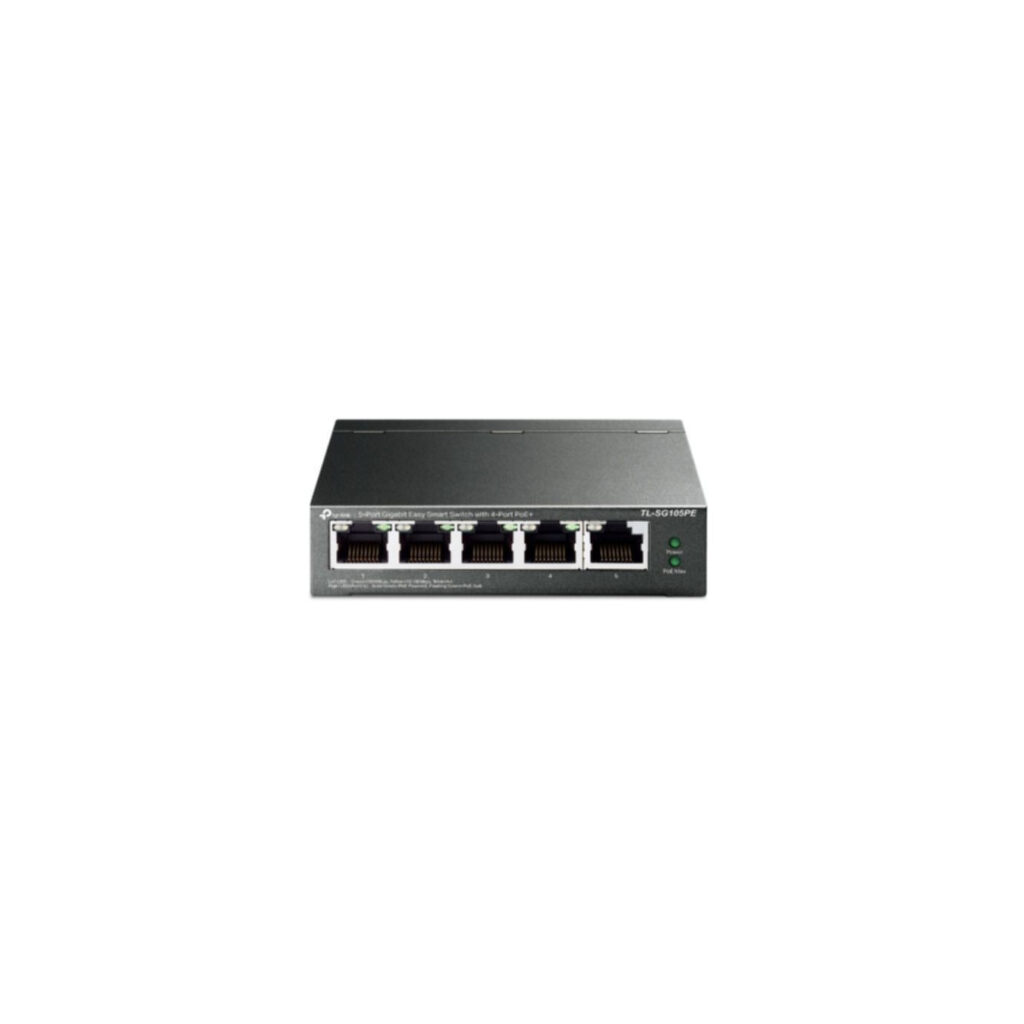

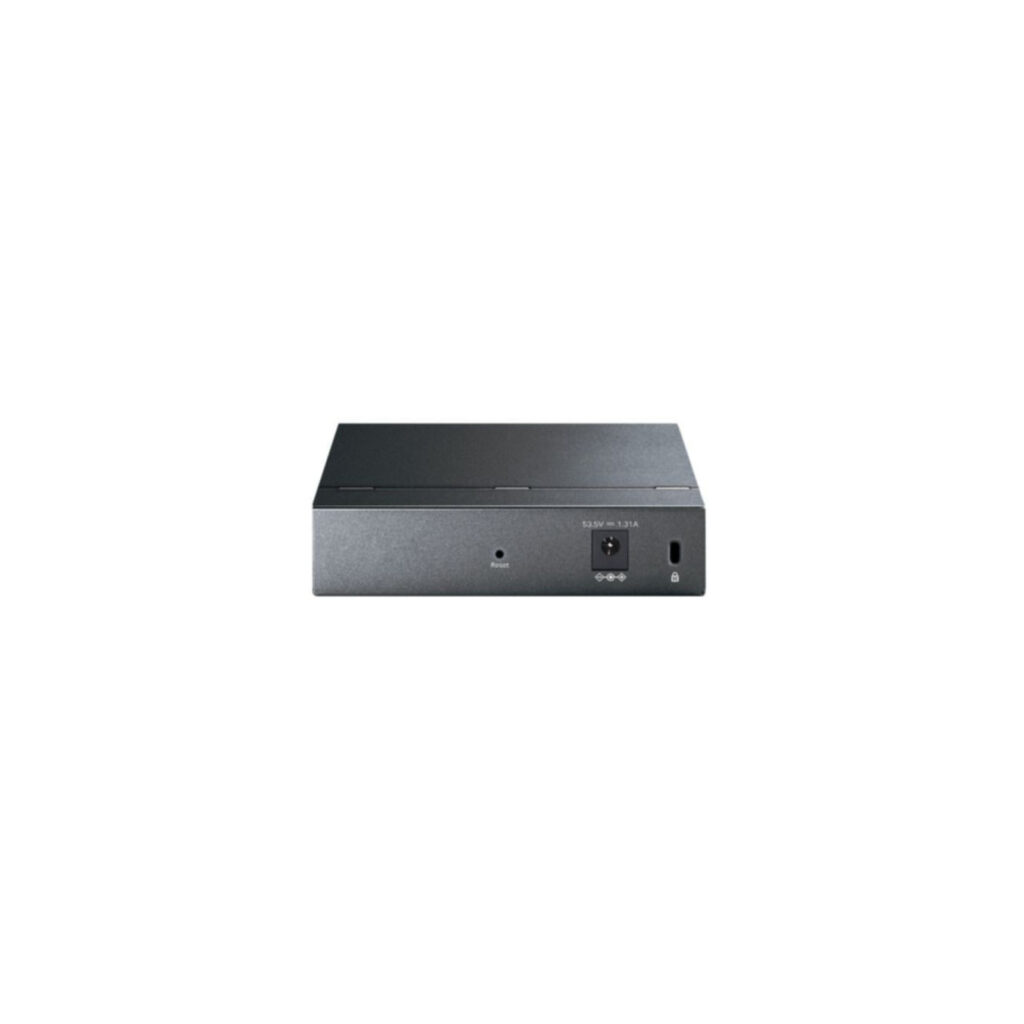

TP-Link TL-SG105PE - 5-Port Gigabit PoE+ Managed L2 Switch, 65W Budget, Black, Fanless
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Compact 5-port Gigabit managed L2 switch (TL-SG105PE) with 4 PoE+ ports, 65W PoE budget, web-managed, fanless design — ideal for small offices and IP cameras.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
TP-Link 5-Port Gigabit Easy Smart PoE Switch with 4-Port PoE+. Switch type: Managed. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries. Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1Q. IEEE 802.1p. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3i. IEEE 802.3u. IEEE…. Power over Ethernet (PoE)
| Switch type | Managed |
| Switch layer | L2 |
| Feature | User guide |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Networking standards | IEEE 802.1Q. IEEE 802.1p. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3i. IEEE 802.3u. IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-FX. 100BASE-TX. 1000BASE-T |
| Cable types supported | Cat3. Cat4. Cat5. Cat5e. Cat6 |
| Virtual LAN features | Port-based VLAN. Tagged VLAN |
| Number of VLANs | 4000 |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| MAC address table | 2000 entries |
| Number of queues | 4 |
| Jumbo frames | 16000 |
| Packet buffer memory | 1 MB |
| Product colour | Black |
| LED indicators | Activity. Link. PoE. Power. Speed. Status |
| Power source | DC |
| Input current | 1.31 A |
| Input voltage | 53.5 V |
| Power consumption (max) | 75.16 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 65 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 256.3 BTU/h |
| Width | 99.8 mm |
| Depth | 98 mm |
| Height | 25 mm |
| Package width | 131 mm |
| Package depth | 196 mm |
| Package height | 121 mm |
| Package weight | 770 g |
| Certification | FCC. CE. RoHS |
| Harmonized System (HS) code | 85176990 |
