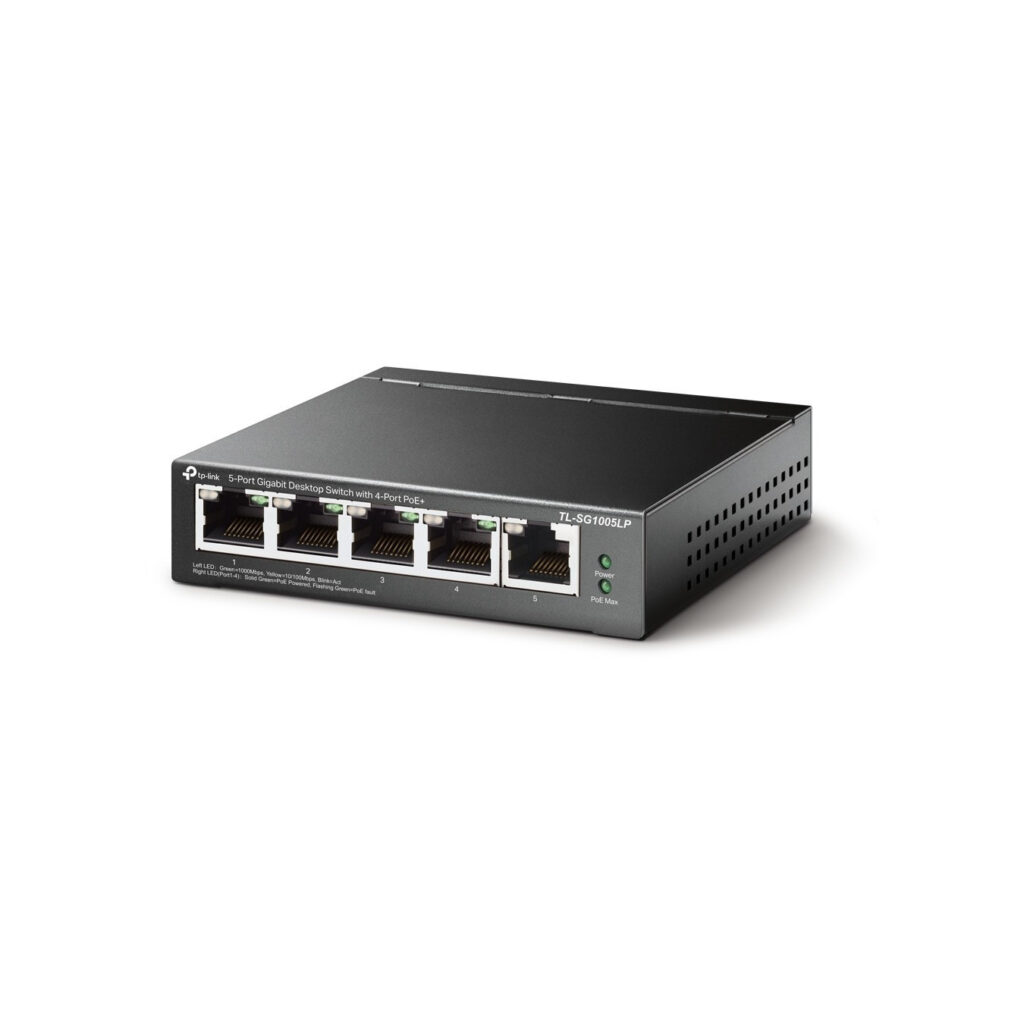

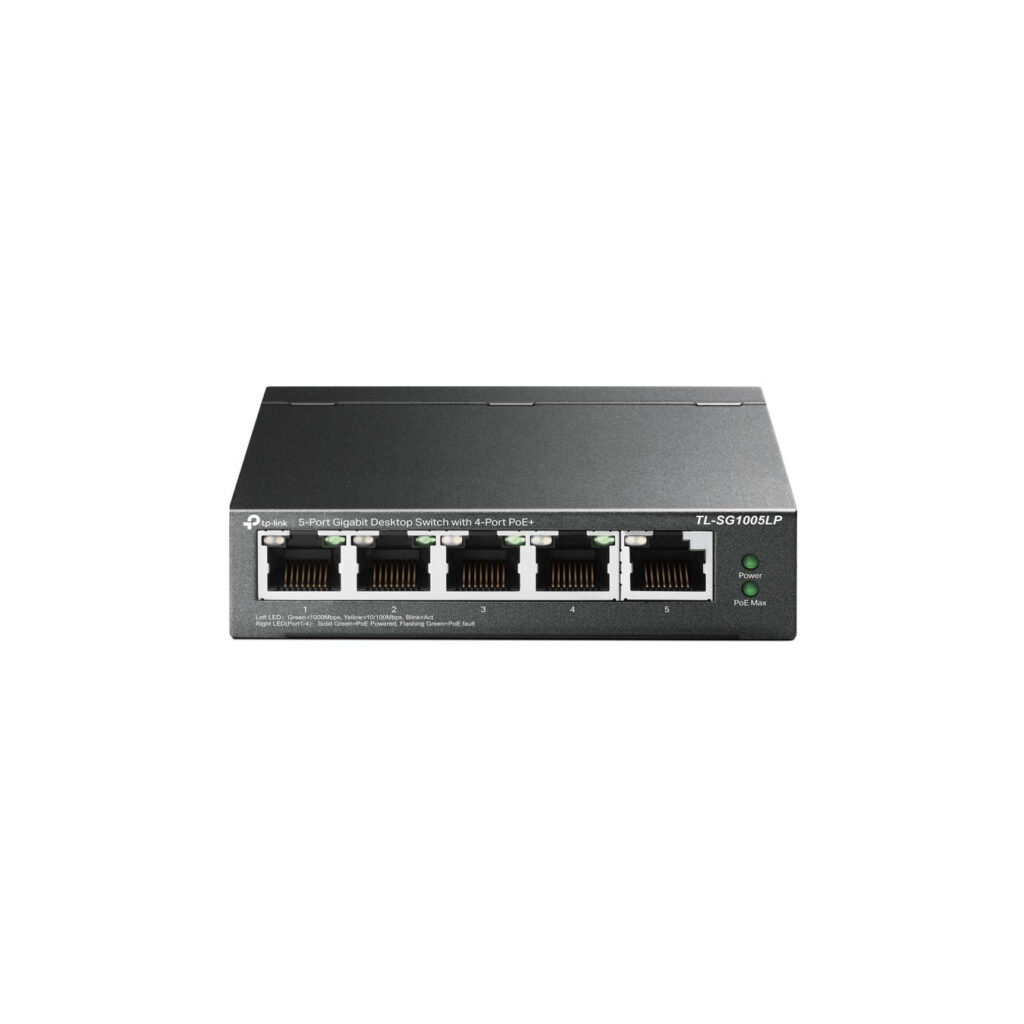

TP-Link TL-SG1005LP - 5-Port Gigabit Unmanaged Switch, 4x PoE+ - Black, Wall-mountable
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
5-port unmanaged Gigabit (10/100/1000) switch with 4 PoE+ ports, 10 Gbit/s switching capacity, 2000 MAC entries, compact black design, wall-mountable.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
TP-Link TL-SG1005LP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries. Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3i. IEEE 802.3u. IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Wall mountable
| Switch type | Unmanaged |
| Feature | Sustainability compliance |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Networking standards | IEEE 802.1p. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3i. IEEE 802.3u. IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-TX. 1000BASE-T |
| Cable types supported | Cat3. Cat4. Cat5. Cat5e. Cat6 |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| MAC address table | 2000 entries |
| Jumbo frames | 16000 |
| Product colour | Black |
| Maximum cable length | 100 m |
| Power source | DC/PoE |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 53.5 V |
| Input current | 0.81 A |
| Power consumption (max) | 47.5 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 40 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 161.98 BTU/h |
| Width | 99.8 mm |
| Depth | 98 mm |
| Height | 25 mm |
| Package type | Box |
| Package width | 131 mm |
| Package depth | 196 mm |
| Package height | 121 mm |
| Package weight | 730 g |
| Compliance certificates | CE. Federal Communications Commission (FCC). RoHS |
| Certification | FCC. CE. RoHS |
| Harmonized System (HS) code | 85176990 |
